Wind Solar Hybrid LED Street Lighting
Off-grid wind and solar hybrid street lighting systems for roads and highways.
Product overview

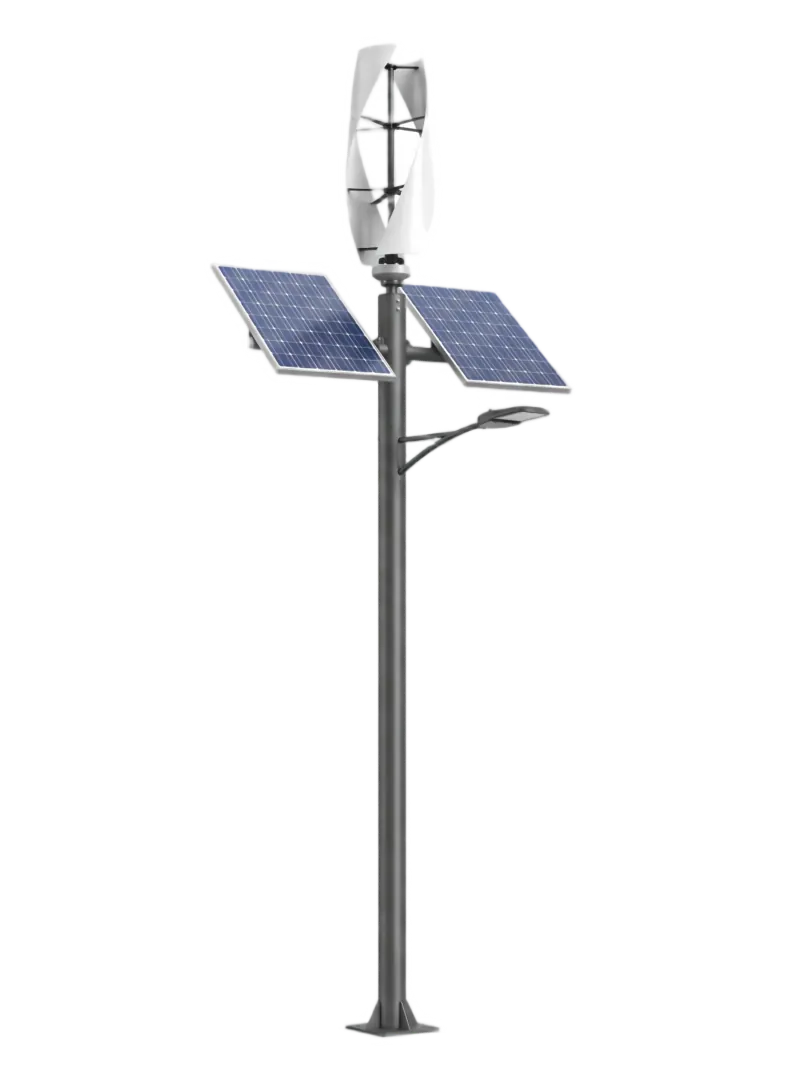

The EA-N series vertical wind solar hybrid LED street light unites a vertical-axis wind turbine, a monocrystalline solar array and LiFePO4 storage with Philips Lumileds LED optics. By harvesting wind and solar energy together it delivers reliable, mains-free lighting for roads, highways, parks and remote or coastal sites where grid power is unavailable.
With a 360° vertical-axis turbine that runs even in turbulent air, a high-efficiency solar panel that works in low light, and a battery rated for more than 6,000 cycles, the EA-N series provides continuous off-grid illumination while lowering both operating cost and carbon footprint.
- ✓ IP66 weather-proof build
- ✓ Philips Lumileds high-efficacy LED
- ✓ Vertical-axis wind turbine (VAWT)
- ✓ Monocrystalline solar panel
- ✓ LiFePO4 battery, 6,000 cycles
- ✓ Automatic dusk-to-dawn / time control
Engineered for reliable off-grid power
Vertical Axis Wind Turbine
360° wind pick-up, robust construction, works even in air turbulence and frequent wind direction changes.
Practically Silent
Works quietly at more than 10 m/s; ambient sounds of the surroundings are louder than the turbine.
High Efficient Solar Panel
High transfer efficiency monocrystalline silicone panel with a 25-year life span, effective in low light and cloudy weather.
High Brightness LED Lamp
Philips SMD3030 high-efficiency LED chip, up to 16lm/W @25°C, aluminium lamp base for excellent heat dissipation.
LiFePO4 Lithium-ion Battery
Over 2,000 full charge/discharge cycles, intelligent BMS, more than six years service life.
Solar & Wind Power Charger Controller
Integrates the needs of the solar panel and wind turbine, maximising the use of both energy sources.
Key specifications
| Model No. | EA-N30W | EA-N50W | EA-N80W |
|---|---|---|---|
| IP Protection | IP66 | IP66 | IP66 |
| LED Type | Philips Lumileds | Philips Lumileds | Philips Lumileds |
| CCT Range | 3000K/4000K/5000K/6000K | 3000K/4000K/5000K/6000K | 3000K/4000K/5000K/6000K |
| Beam Angle | 145°/83° | 145°/83° | 145°/83° |
| CRI | Ra ≥ 81 | Ra ≥ 81 | Ra ≥ 81 |
| Output Flux | 4,800 lm | 9,000 lm | 12,800 lm |
| Rated Lamp Power | 30W | 50W | 80W |
| Battery Capacity | 17.8V 39.1 Wh | 12.8V 548 Wh | 12.8V 1,080 Wh |
| Battery Type | LiFePO4, 6,000 cycles | LiFePO4, 6,000 cycles | LiFePO4, 6,000 cycles |
| Wind Generator | 100W VAWT | 300W VAWT | 500W VAWT |
| Wind Turbine Height | 1.05 m | 1.3 m | 1.5 m |
| Started/Rated Wind Speed | 1.3 m/s / 1.8 m/s | 1.3 m/s / 1.8 m/s | 1.3 m/s / 1.8 m/s |
| Solar Panel | 18V 50W Mono | 18V 80W Mono | 18V 110W Mono |
| Working Temperature | -20°C to 65°C | -20°C to 65°C | -20°C to 65°C |
| Control Method | Dusk-to-dawn / time / manual | Dusk-to-dawn / time / manual | Dusk-to-dawn / time / manual |
| Lighting Modes | 100% / energy-saving / custom | 100% / energy-saving / custom | 100% / energy-saving / custom |

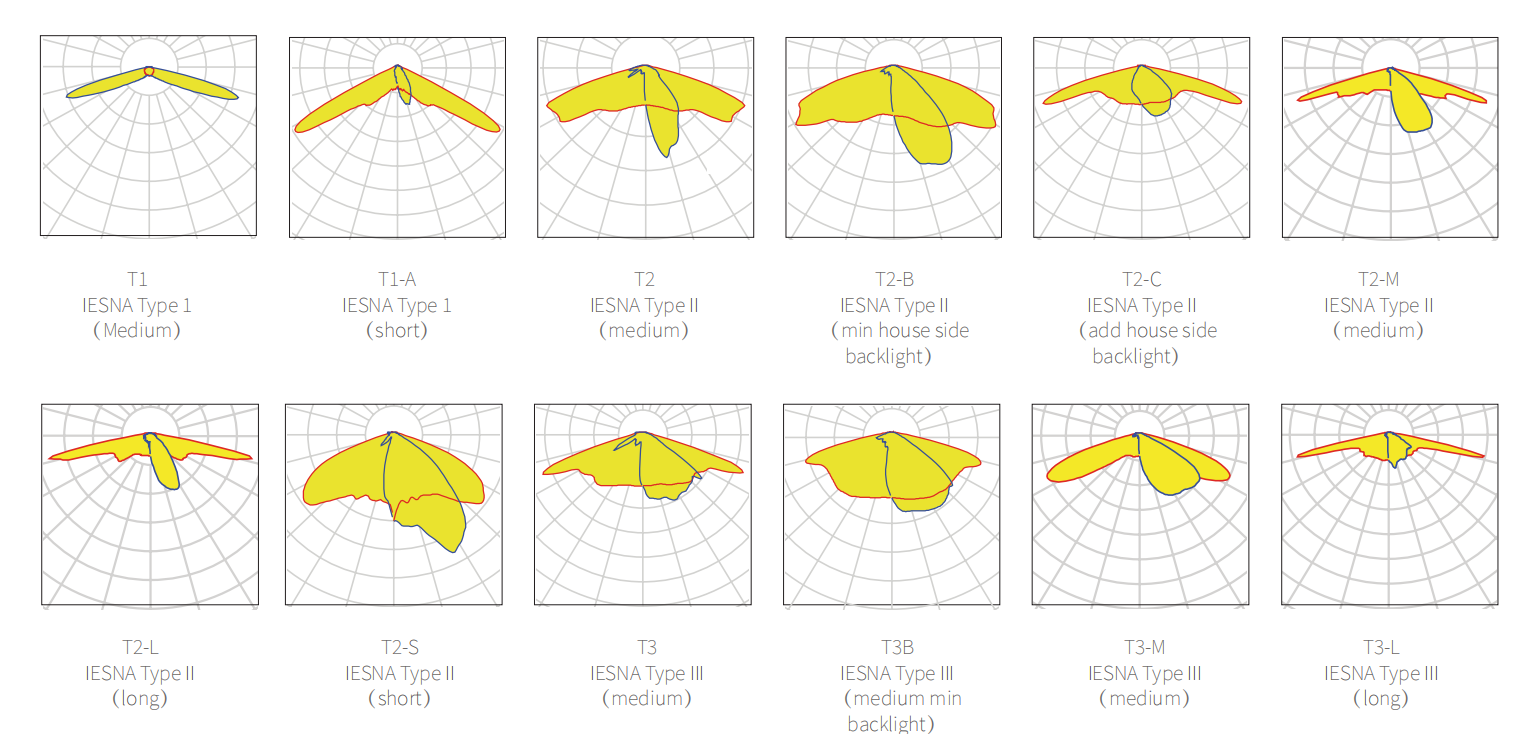

Optional LED optics
A choice of 12 IESNA photometric distributions — Type I, Type II and Type III with short, medium, long and house-side backlight variants — lets the beam pattern be matched to the road layout and light-pollution requirements.

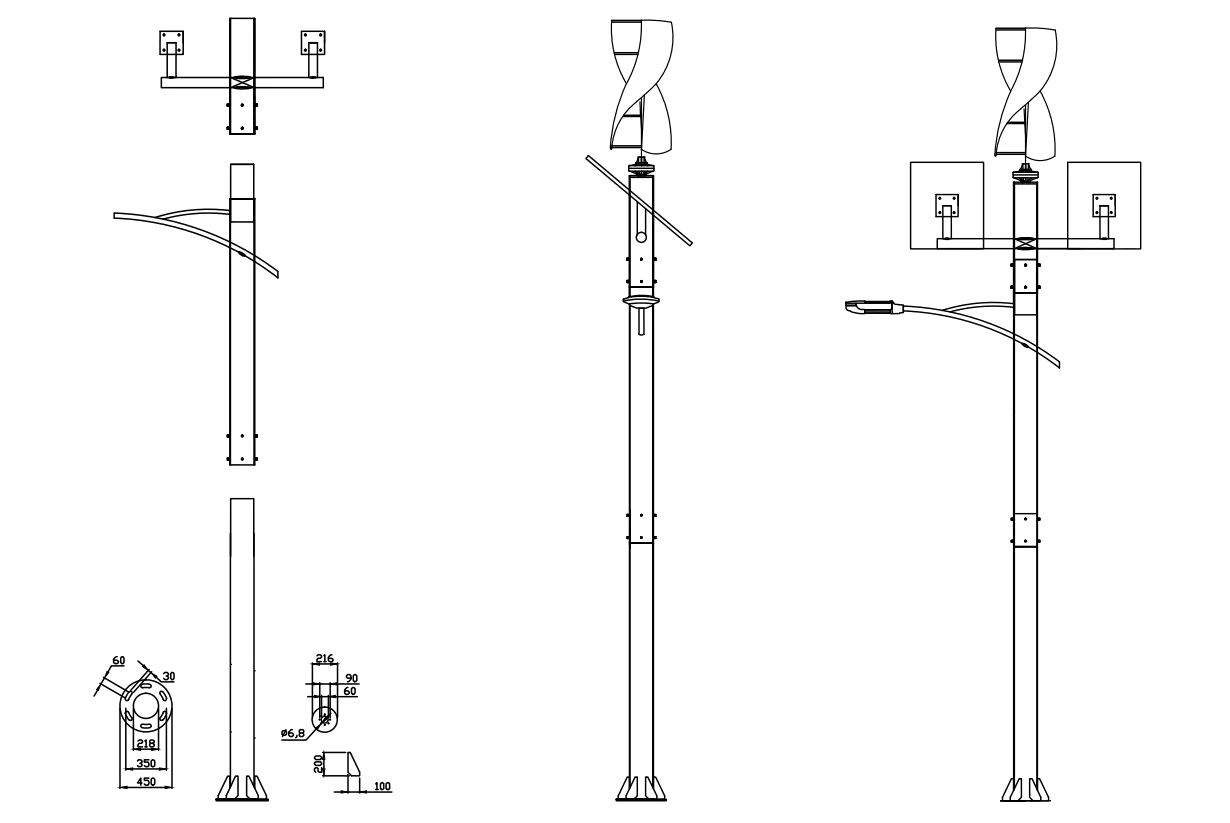

Installation drawing
Hot-dip galvanized Q235 steel pole sections with a factory-wired internal harness; assemble the pole, solar panel, VAWT and LED lamp, then connect the pre-fitted connectors.
Advantages
All Climates Working
Benefits from hybrid solar and wind power, working well in mountains, rivers, canyons and seashores.
Lower Operating Costs
Stand-alone system; no grid power connection and no electricity billing during its operating lifetime.
Free Maintenance
High-quality, long-lifetime components; the intelligent controller status makes maintenance straightforward.
Eliminate Carbon Footprints
Powered by natural solar and wind energy — 100% green power with no pollution.
Easy Installation
Internal wiring is factory-made; assemble the pole, solar panel, VAWT and LED lamp and plug in the connectors.

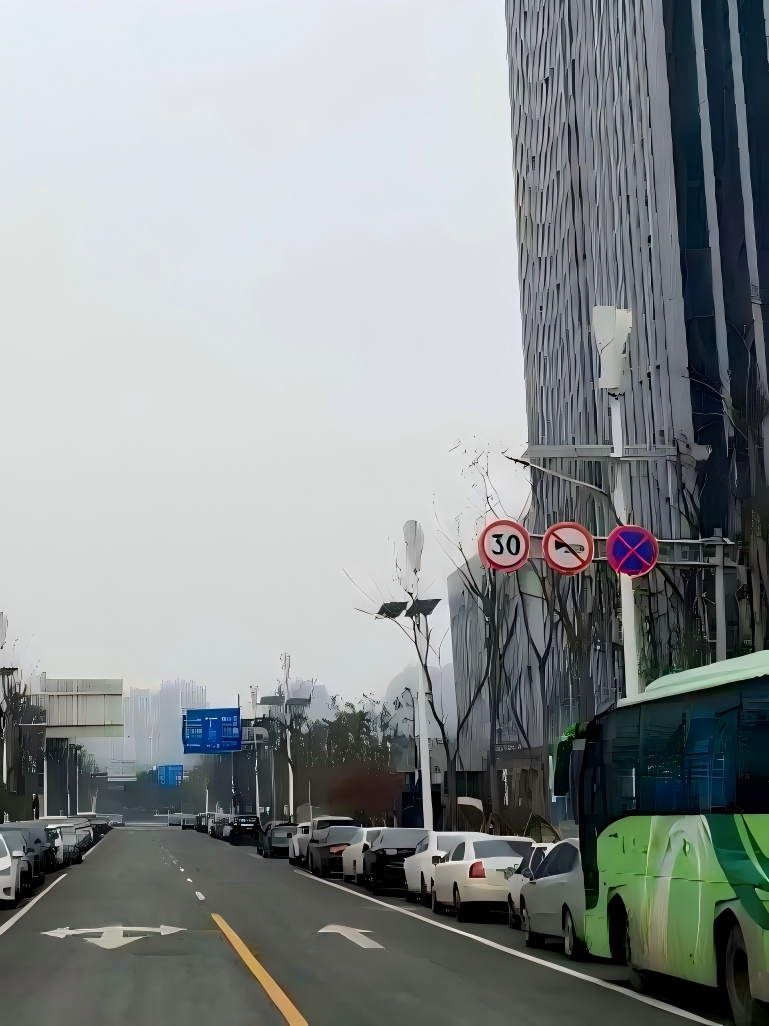

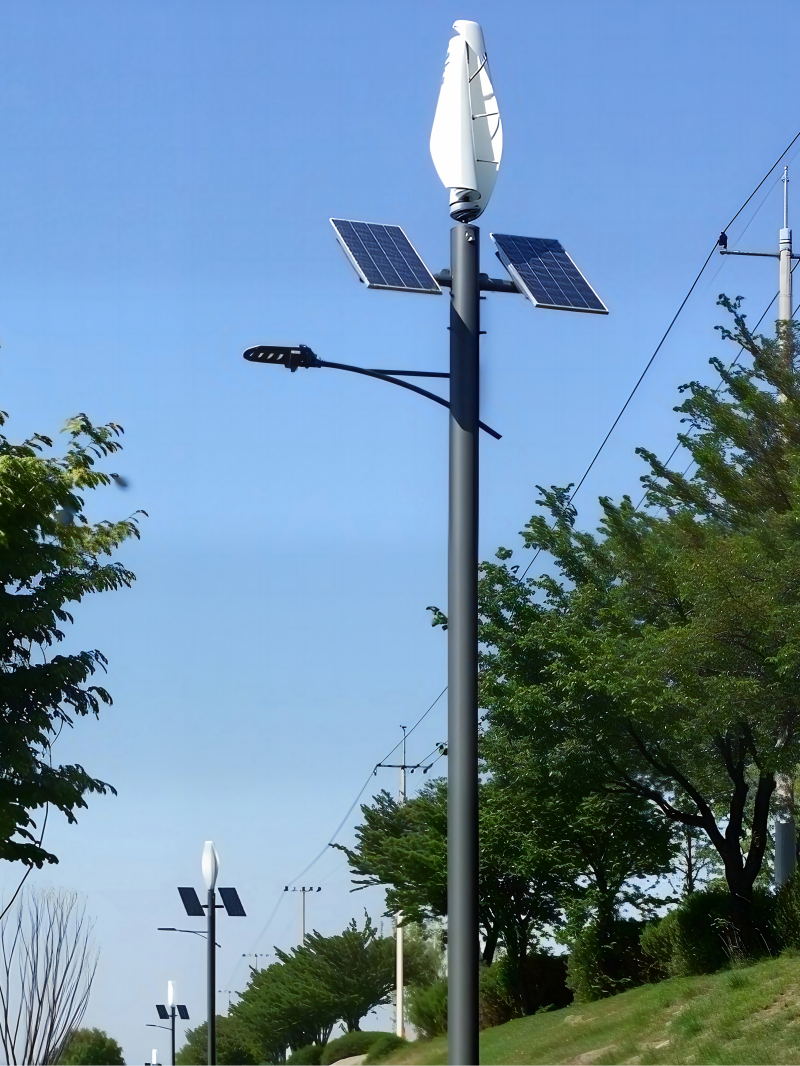

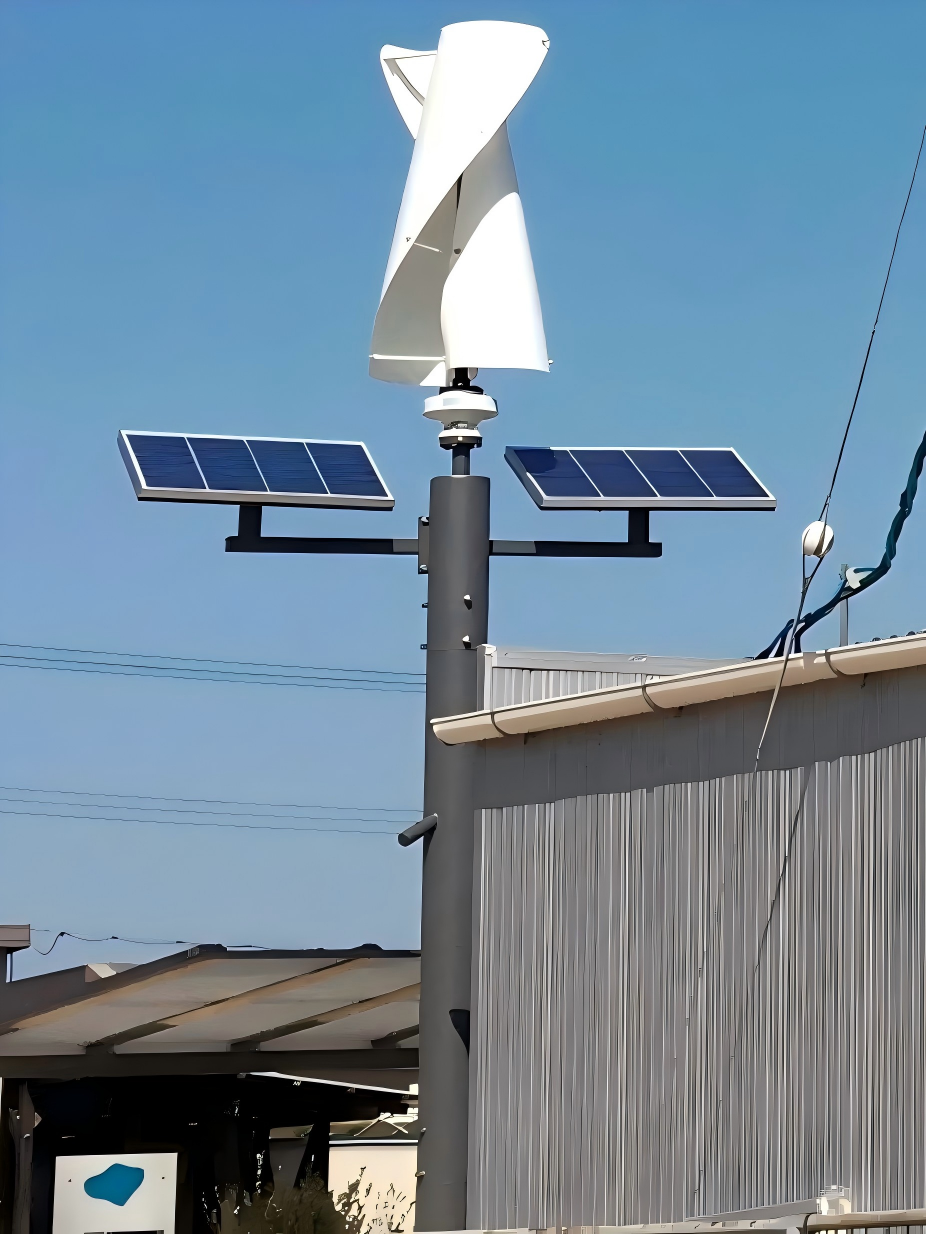

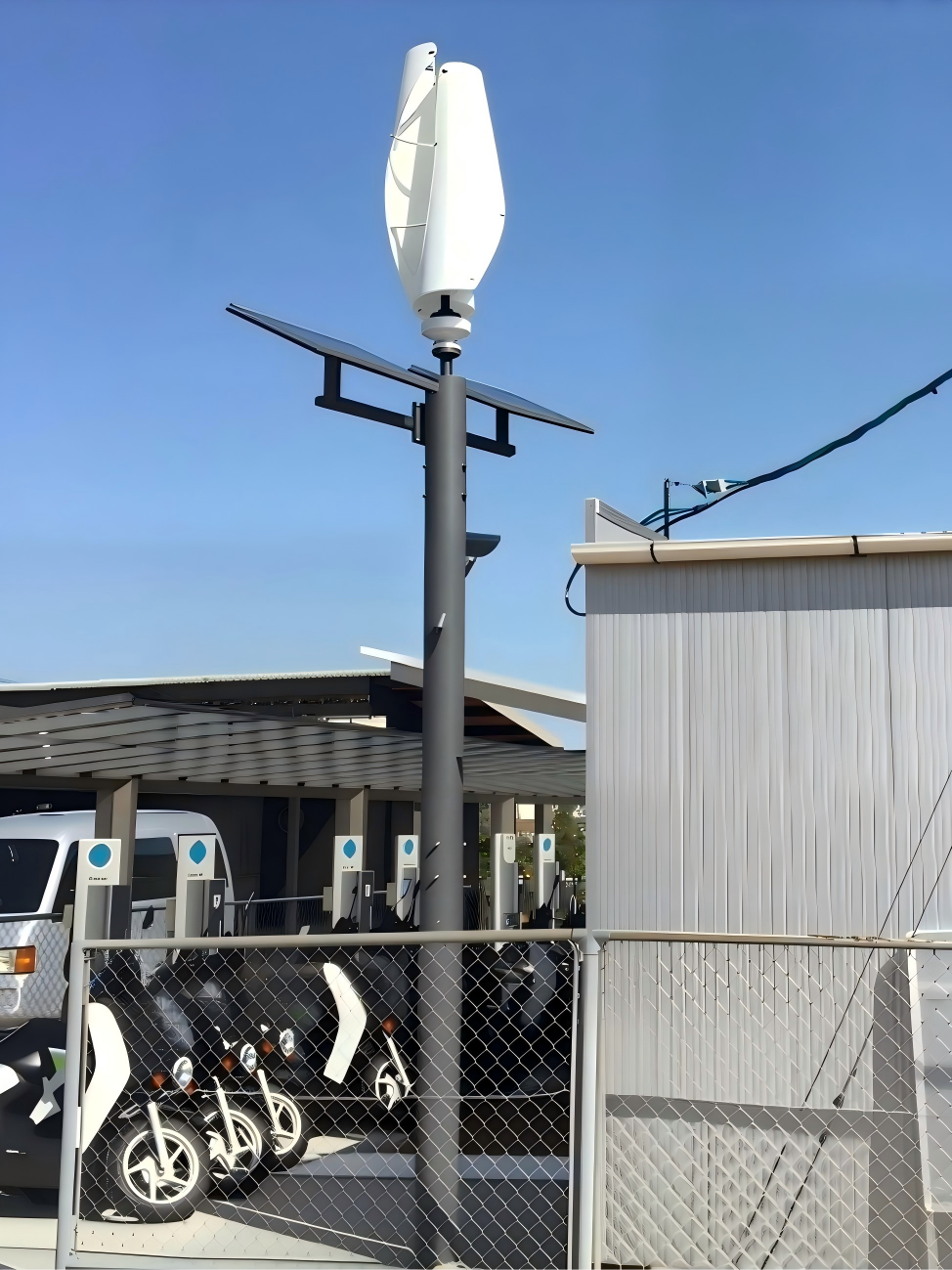

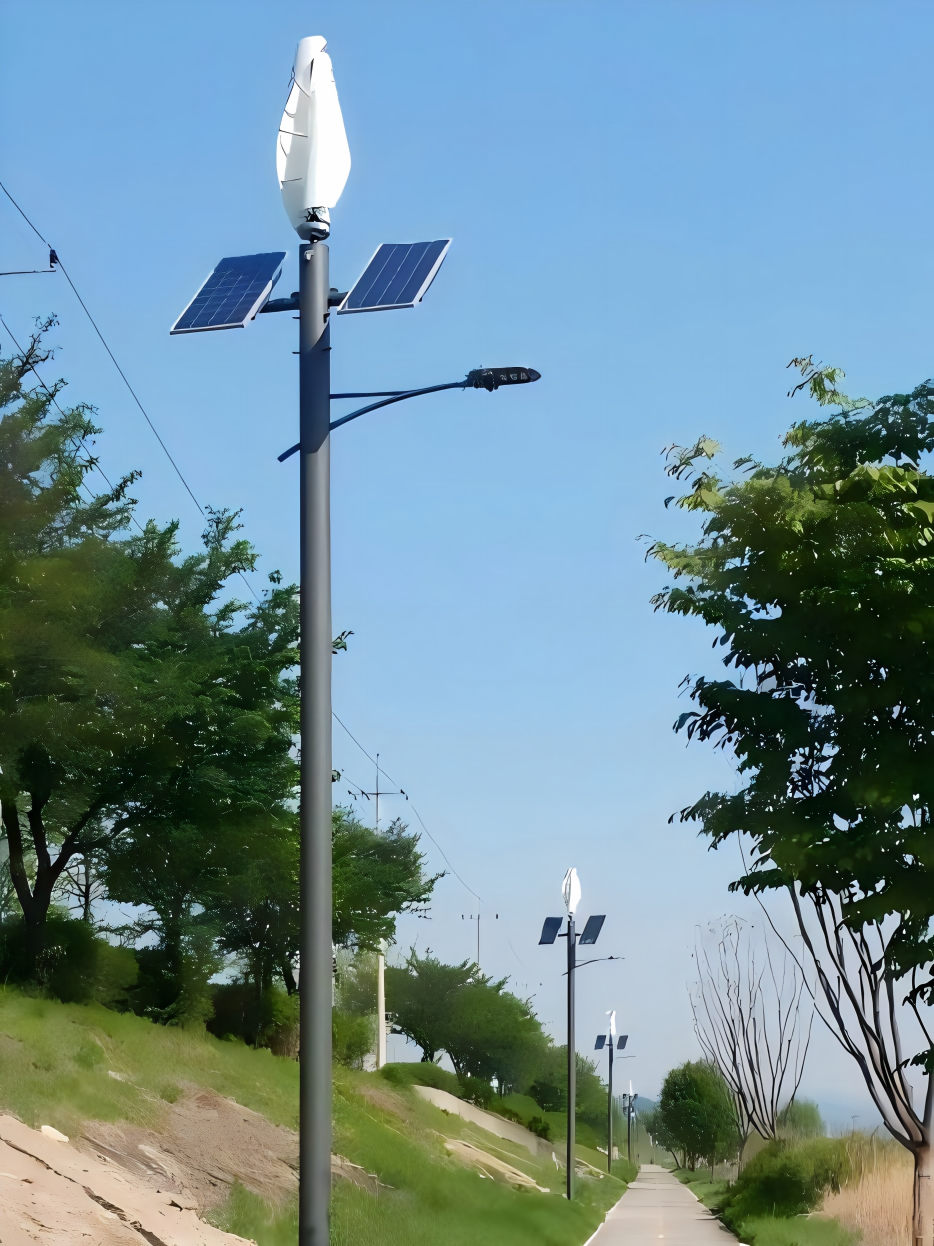

Installation projects
Frequently asked questions
What models does the vertical wind solar hybrid LED street light come in?
The EA-N series is available in three models: EA-N30W, EA-N50W and EA-N80W.
What is the output of each model?
The EA-N30W delivers 4,800 lm, the EA-N50W delivers 9,000 lm and the EA-N80W delivers 12,800 lm with Philips Lumileds LEDs and a CRI of Ra ≥ 81.
How does the hybrid power system work?
A vertical-axis wind turbine (VAWT) and a monocrystalline solar array harvest wind and solar energy together, stored in a LiFePO4 battery, so the light runs continuously off-grid even through the night or in low-light weather.
Is it weather resistant?
Yes. It is built with a hot-dip galvanized Q235 steel pole and aluminium die-cast lamp housing, rated IP66 for outdoor and coastal environments.
How long does the battery last?
The LiFePO4 battery is rated for more than 6,000 charge/discharge cycles, with a service life beyond six years supported by the built-in battery management system.
What switching and control modes are available?
The controller supports automatic dusk-to-dawn switching, time control and manual on/off, with 100% continuous, energy-saving and customisable lighting modes.
Which applications is it suited to?
It suits path, lawn and park lighting, parking lots, roads and highways, and outdoor or rural areas without mains electricity.
