50W Split Solar Street Light - 7M Single Arm
50W split solar street light with single-arm 7m pole and separate PV panel.
View Product E-ABLE POWER — PRODUCT DATASHEET
COMMERCIAL SOLAR LIGHTING SOLUTIONS
INFRASTRUCTURE GRADE 8M POLE SYSTEM
Key Specifications at a Glance
| LED Luminaire | 60W / 170 LM/W / IP66 | Solar Module | 120W Monocrystalline |
| Battery Pack | LiFePO4 12.8V / 60Ah | Controller | 10A MPPT + Dimming |
| Pole Structure | 8m Conical Q235 Steel | Finish | Hot-Dip Galvanizing |
| System Layout | Single-Arm Split | Cell Efficiency | >18% |
| Application | Municipal / Industrial | Project Support | DIALux + Wind-Load |
| Certifications | CE / RoHS | Warranty | 3 Years Standard |

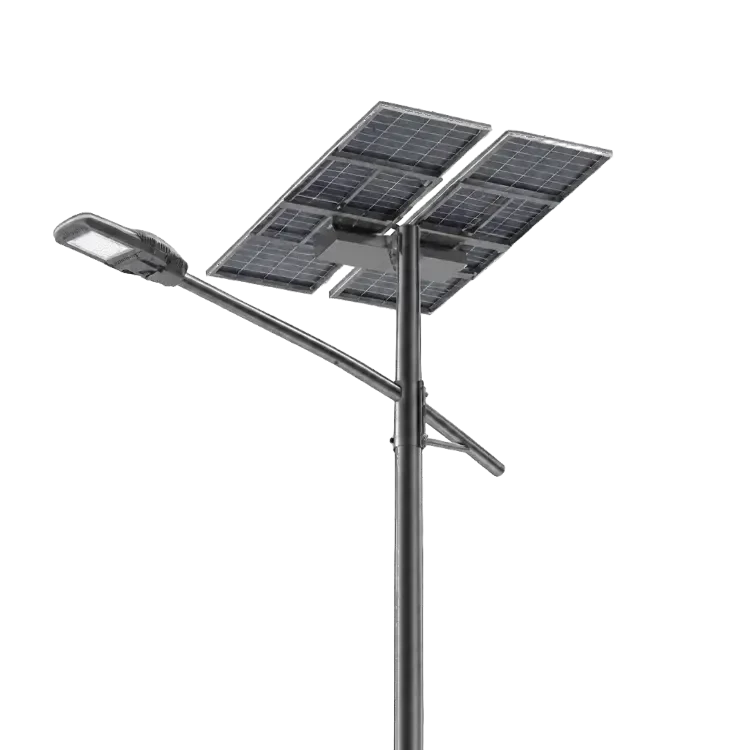

Fig 1.0: 8-Meter Single Arm Split Solar Street Light System
Engineering Benefits
Separate System Layout
Independent panel positioning helps the project team evaluate solar access and mounting orientation for the specific road or site layout — maximizing daily charge in shaded or angled corridors.
Municipal Pole Planning
The 8-meter single-arm structure is specified around road width, pole spacing, wind conditions, foundation design and target illumination — with structural wind-load analysis referenced in the project proposal.
Smart Energy Management
LiFePO4 storage and 10A MPPT charging are configured with the operating schedule and rainy-season autonomy requirement — automatic on/off with dimming reference functions for year-round reliability.
Reference Technical Configuration
| Component | Reference Specification | Project Check |
|---|---|---|
| Lighting & Energy System | ||
| LED Luminaire | 60W LED engine; reference efficacy 170 lm/W; IP66 | Confirm luminous flux and optic |
| Solar Module | 120W monocrystalline panel; reference cell efficiency >18% | Check solar resource and shade |
| Battery Pack | LiFePO4, 12.8V / 60Ah reference configuration | Set rainy-day autonomy |
| Controller | 10A MPPT with automatic on/off and dimming reference functions | Confirm lighting profile |
| Pole & Installation | ||
| Pole Structure | 8-meter conical Q235 steel pole, hot-dip galvanizing reference finish | Confirm wind zone and foundation |
| System Layout | Single-arm split arrangement — separate panel, light and energy storage | Confirm pole spacing and cable routing |
| Certifications | CE / RoHS / ISO 9001 / ISO 14001 | |
Table 1.0 — Reference configuration for the 8-meter system. Final values to be confirmed with the approved quotation, photometric plan and destination-market requirements. 3-year standard warranty.
DIALux & Structural Project Support
Lighting and Layout Validation
For an 8-meter deployment, provide the road width, pole spacing, road surface, target illumination, operating hours and installation location. These inputs allow the lighting design, solar-panel capacity and energy-storage plan to be reviewed for the intended application.
Where required, E-ABLE POWER can discuss DIALux lighting calculations and wind-load inputs as part of a project proposal. Final lighting performance and structural suitability must be confirmed for the selected configuration and local standards.

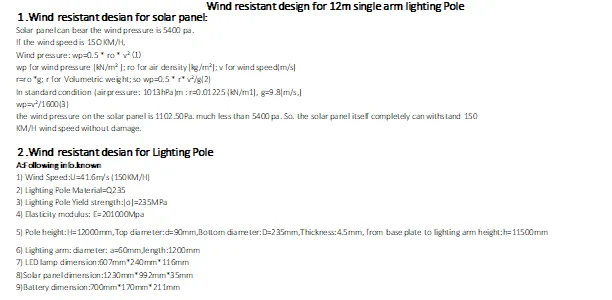

Structural wind-resistance analysis reference
Ideal Application Scenarios
Municipal Roads Industrial Sites Public Infrastructure Highway Access Roads Parking & Depot Areas Commercial Outdoor Projects
Factory & Installation Visuals

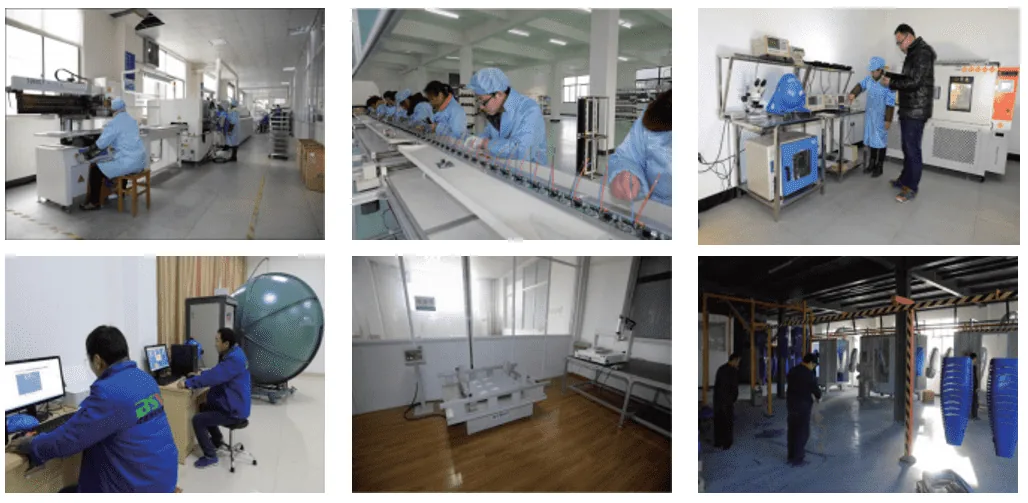

LED engine assembly

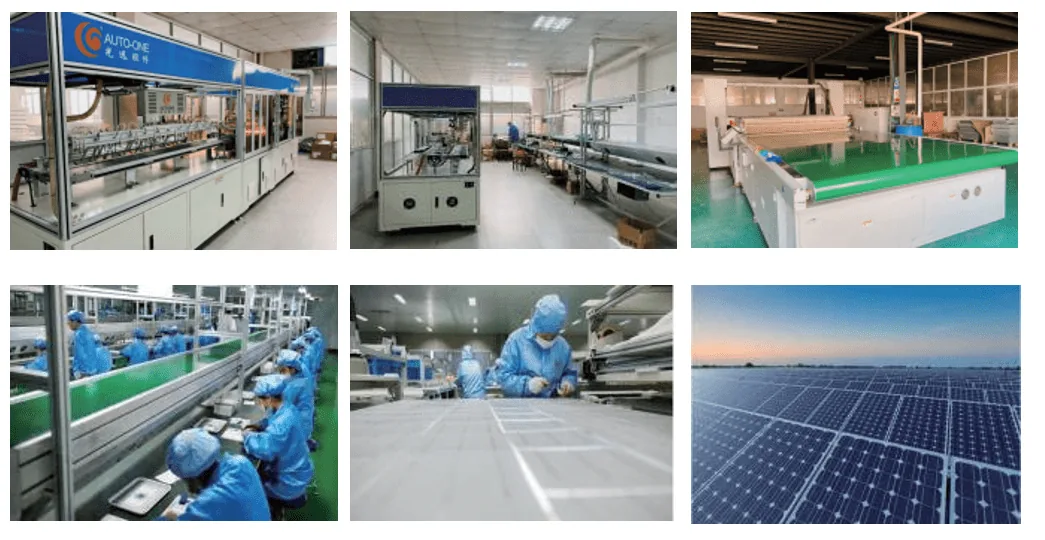

Solar module production

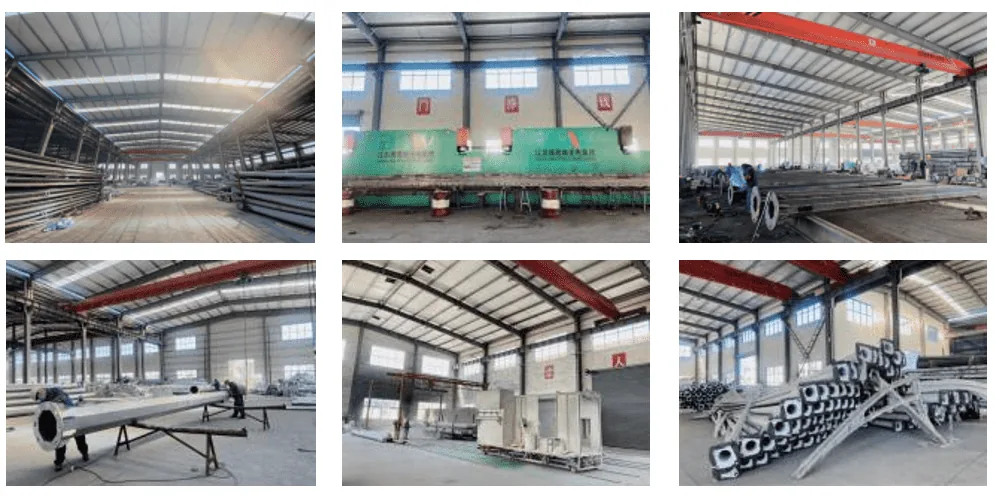

Pole galvanizing line

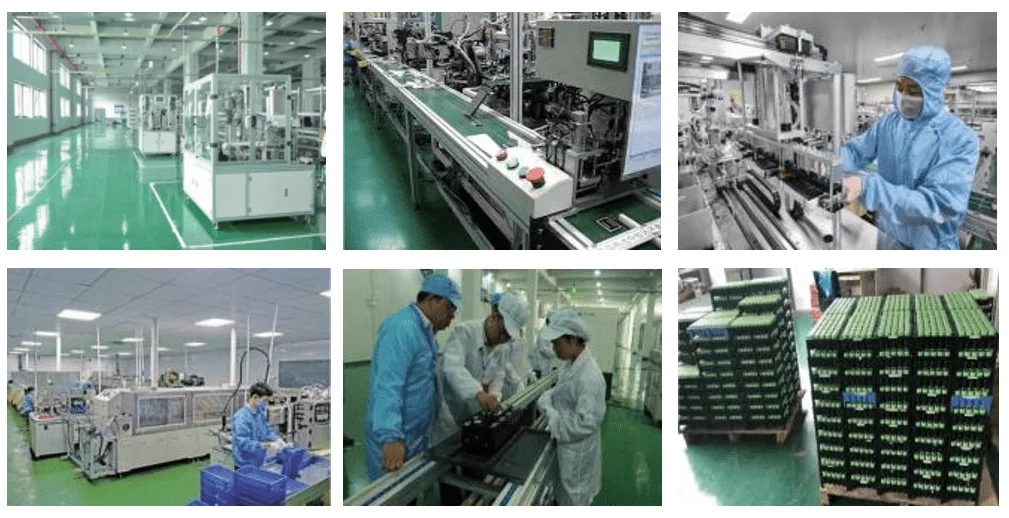

LiFePO4 energy-storage testing
Field Deployment & Installation
Watch the original installation video below. If your network blocks embedded YouTube content, use the backup viewing button.
Video unavailable in this editor or network?
WATCH THE INSTALLATION VIDEO ON YOUTUBEBuyer FAQ
Is an 8-meter pole suitable for every road?
No. Select the pole height from road width, mounting layout, lighting target, wind condition and local standards. An 8m single-arm configuration is typically suited to municipal and collector roads; wider carriageways may require higher poles or a double-arm layout — our engineering team will advise based on your site plan.
How are the solar panel and battery selected?
They are sized around local sunshine, rainy-season autonomy, dimming schedule, lighting load and required operating time. The reference configuration (120W monocrystalline panel + 12.8V/60Ah LiFePO4) can be up-sized for cloudy climates or extended autonomy — the split layout makes this easy because the panel and battery are independent components.
Can project documentation be discussed?
Provide the destination market and project inputs so that applicable drawings, lighting information and documentation can be reviewed for the selected configuration. Where required, DIALux lighting calculations and wind-load inputs are discussed as part of the project proposal.
Is the system fully off-grid, and what maintenance is required?
Yes — the system is fully solar-powered with no grid connection: independent panel charges the LiFePO4 battery through the 10A MPPT controller, with automatic dusk-to-dawn operation and dimming. Maintenance is minimal: periodic panel cleaning and an annual inspection of cable connections and pole foundation. The hot-dip galvanized Q235 pole requires no repainting, and the system carries a 3-year standard warranty.
E-Able Power is an ISO 9001 & ISO 14001 certified manufacturer. All split solar street lights are CE and RoHS compliant with 3-year standard warranty.
