400W–1500W range
Six documented models for large-area sports and high-mast applications.
Product overview

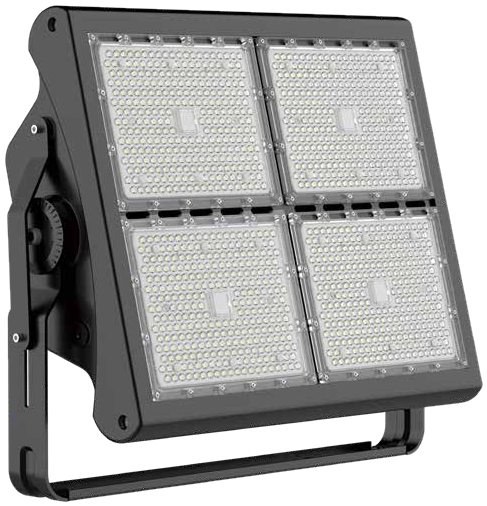

SKYWING SF02
Sports & High Mast Light.
SKYWING SF02 is a sports and high-mast LED light family documented from 400W to 1500W in six models, with 25°, 45°, 60° and 90° optical distributions and a 270° racked-angle bracket.
The family uses Lumileds chips, a UV-resistant polycarbonate optical lens (94% transmittance), AC100-277V input, an IP66 / IK08 enclosure and 10-20KV surge protection.
Selection note: confirm mounting height, target area and required illuminance against the site before finalising CCT, driver and control options.
Four optics
25°, 45°, 60° and 90° distributions with published polar plots.
270° racked angle
An adjustable mounting bracket with degree indicator for precise aiming.
IP66 / IK08
Documented environmental and impact rating plus 10-20KV surge protection.
Model configurator
6 models. Every verified value.
SKYWING SF02 · Sports & High Mast Light
ISL-QCD-B400W
Rated 400W · 56,000lm

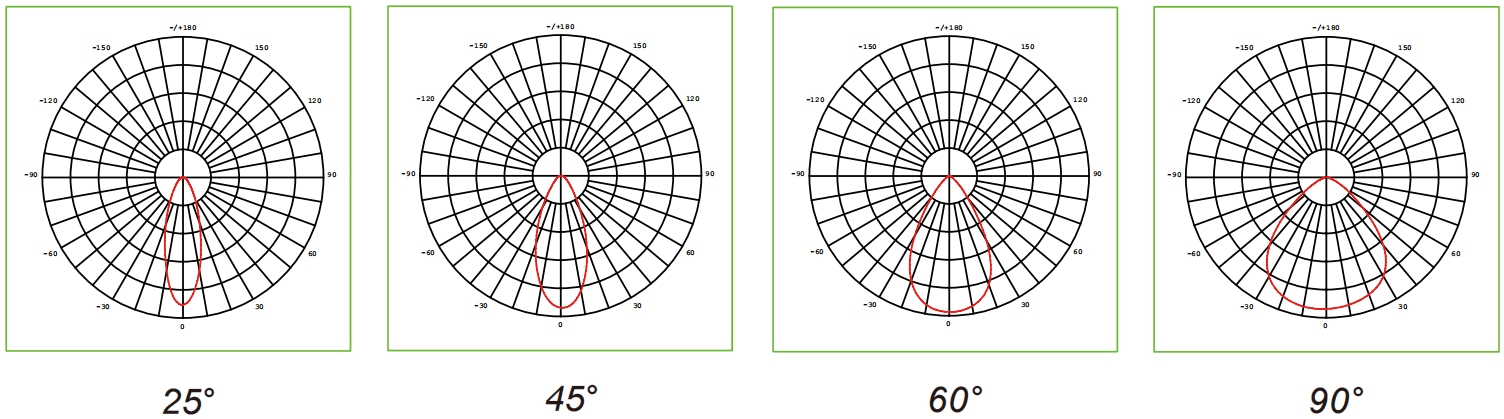

Optical distributions
Beam patterns.
The catalog publishes polar plots for four optical distributions across the SKYWING SF02 family.
FAQ
High-mast lighting questions, answered.
What power options are available for the SKYWING SF02?
The catalog documents 6 models — ISL-QCD-B400W, 500W, 800W, 1000W, 1200W, 1500W — with rated power from 400W to 1500W.
Which beam angles or optical distributions are documented?
The distributions are: 25°, 45°, 60° and 90°.
Which luminous flux values are documented?
The catalog lists 56,000lm up to 201,600lm.
What information should be confirmed before high-mast light selection?
Mounting height, target area, required illuminance and beam angle must be confirmed against the site, together with CCT, driver and control options.
Which installation or dimensional details are documented?

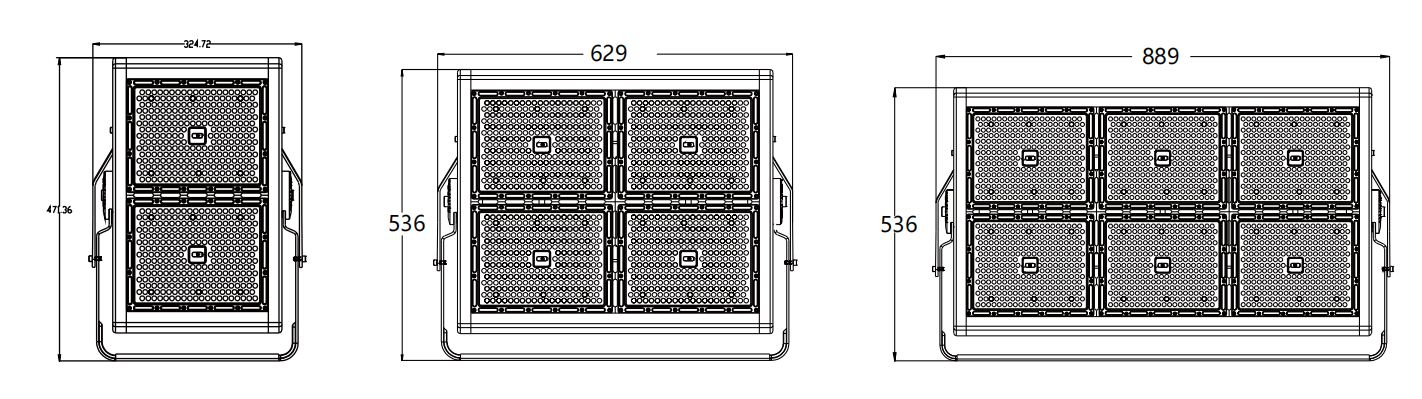

The catalog records a 270° racked-angle bracket with degree indicator and housing footprints from 325×472×160mm to 890×536×160mm.
What project information is needed for a quotation?
Share the pole or tower height, target area, required lux level, beam angle and operating schedule so the model and optics can be sized to the site.
How can customers request project-selection support?
Contact the project support team with your site conditions and target illuminance for selection guidance, sizing and a quotation.
Plan your SF02 high-mast lighting project.
Send your mounting or tower height, target area, required illuminance, desired beam angle and operating schedule for model selection and application guidance.
