SolarWrap / GeoFlex foldable vertical module

Foldable vertical panels that ship flat.

A polygonal module that folds flat for freight and closes round the pole on site. 6, 8, 10 and 12 sides, 100 W to 300 W, poles from 120 mm to 330 mm.

Downloads

Print-ready PDF — specifications and installation in one place, no login required.

Product overview

What the format does

Built for poles that already carry a luminaire, a camera or a sign.

The same glass and cells, shipped flat. A rigid 1.5 m cylinder is mostly air in a container; the GeoFlex panel folds and stacks, which cuts the shipped volume by more than half and makes long-haul projects and small spare-part stocks work.

On site it opens round the pole and the corner buckles close it. One person can carry a 300 W panel up a pole; the rigid equivalent needs two people and a cradle.

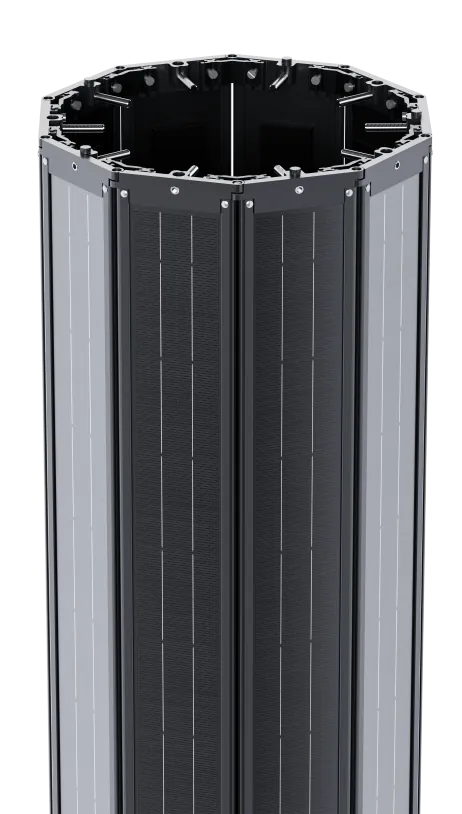

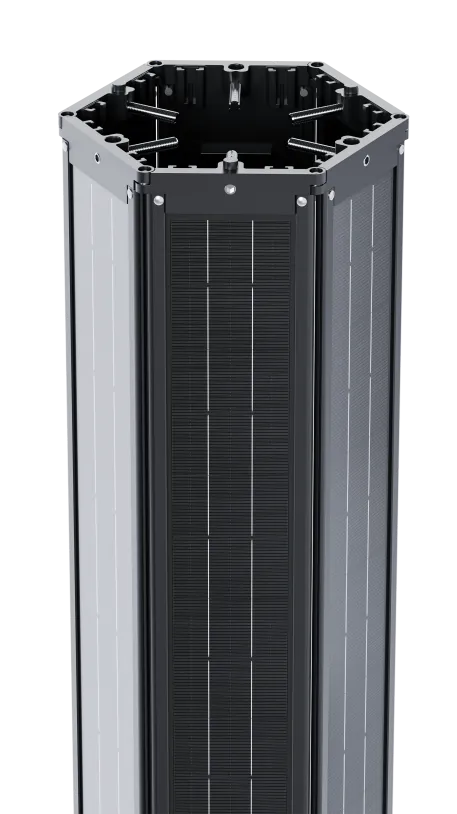

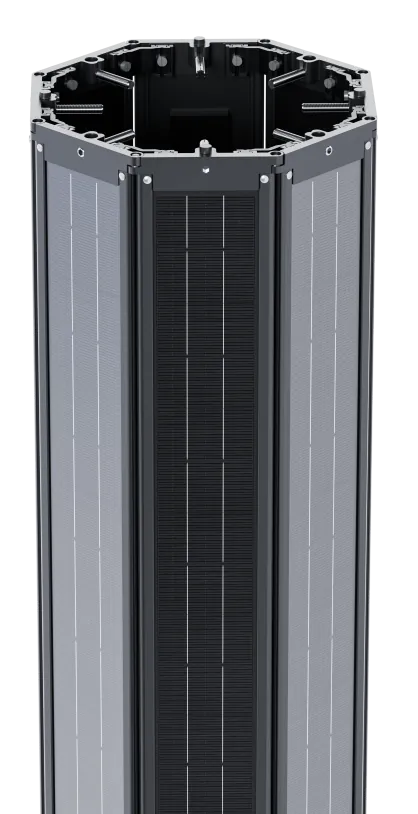

Four families cover the pole range: HEXAGON to 120 mm, OCTAGON to 190 mm, DECAGON to 260 mm and DODECAGON to 330 mm, each in a 1.16 m and a 1.56 m version.

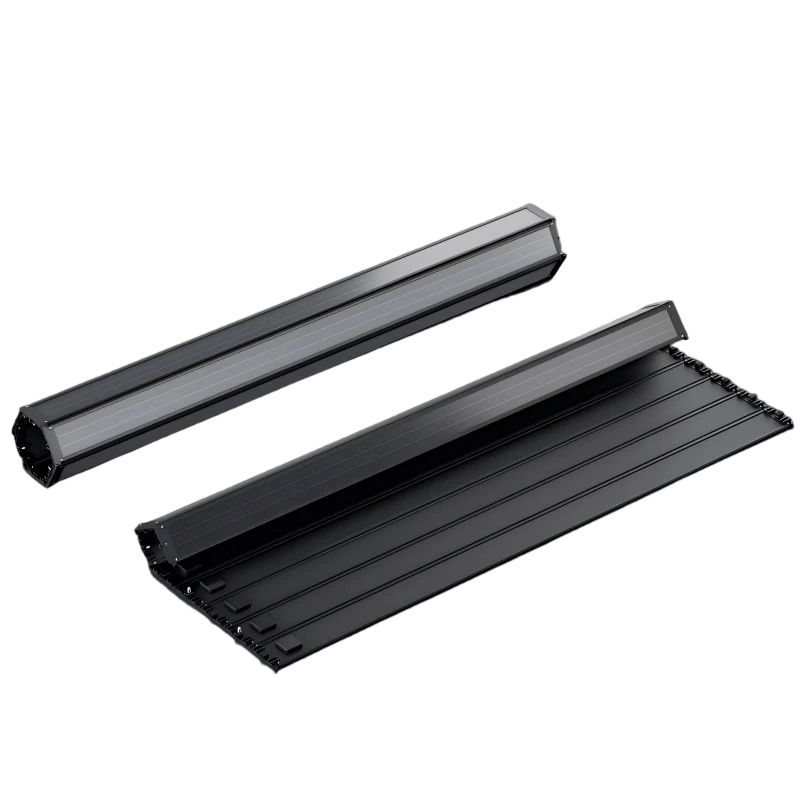

SolarWrap GeoFlex foldable polygonal vertical solar module
Technical data

Verified module specifications

Nameplate values at STC. Where the factory sheet and the price list disagree, the datasheet value is used.

PropertyHEXA-15036OCTA-20036OCTA-25036DODE-30036
Rated power (Pmax)140 W200 W250 W300 W
Dimensions (mm)1560 × 250 × 1961560 × 290 × 2701560 × 360 × 3401560 × 425 × 410
Voltage at Pmax (Vmp)36 V36 V36 V36 V
Current at Pmax (Imp)on requeston requeston requeston request
Open-circuit voltage (Voc)on requeston requeston requeston request
Short-circuit current (Isc)on requeston requeston requeston request
Power tolerance±3%±3%±3%±3%
Cell typeon requeston requeston requeston request
Module efficiencyon requeston requeston requeston request
Cable / connector2.5 mm² · MC42.5 mm² · MC42.5 mm² · MC42.5 mm² · MC4
Front glassHigh-strength tempered glassHigh-strength tempered glassHigh-strength tempered glassHigh-strength tempered glass
FrameAluminium, powder coatedAluminium, powder coatedAluminium, powder coatedAluminium, powder coated
Mechanical loadFront 5400 Pa / back 2400 PaFront 5400 Pa / back 2400 PaFront 5400 Pa / back 2400 PaFront 5400 Pa / back 2400 Pa
Ingress protectionIP66IP66IP66IP66
Max. pole diameter≤ 140 mm≤ 190 mm≤ 260 mm≤ 330 mm
Operating temperature−20 °C to +70 °C−20 °C to +70 °C−20 °C to +70 °C−20 °C to +70 °C
Expected lifetime> 20 years> 20 years> 20 years> 20 years
Warranty3 years3 years3 years3 years
The 36 V models above are the current price-list SKUs. The 18 V series (HEXA-11018 to DODE-30018) covers 12 V and 24 V battery systems; ask for the separate sheet. Wind resistance to IEC 60598-2-3, test report LCS201222096BS-EA-2026. Mechanical load figures are test values, not a site-specific structural approval. CE / EMC documentation is not claimed for the module — request the current compliance file before tendering.
Why vertical

Six things that matter on site

360° capture

PV faces wrap the pole, so half the array always faces the sun. Output holds at low sun angles and in short winter days.

Self-cleaning face

Rain sheets dust and sand off a vertical surface. No scheduled washing on coastal, desert or industrial corridors.

Low wind load

A slim vertical module sheds gust load instead of levering it. Wind resistance tested to IEC 60598-2-3.

No snow hold

Nothing settles on a vertical face, so winter yield does not collapse after a snowfall.

Modular stack

Slide further modules onto the same pole to raise array power without changing the luminaire or the foundation.

Retrofit ready

Clamps onto the pole you already own. No new foundation, no re-poling, no street closure.

Selection

Which model for which job

Starting points, not a substitute for a yield calculation.

Typical installationModule and battery to specify
Pole 100–120 mmHEXAGON: HEXA-11018 or HEXA-15018
Pole 121–190 mmOCTAGON: OCTA-13518 or OCTA-20018
Pole 191–260 mmDECAGON: DECA-16518 or DECA-25018
Pole 261–330 mmDODECAGON: DODE-20018 or DODE-30018
Straight about the trade-off. Folding adds buckles and a joint line, so a GeoFlex module is not the cheapest per watt on a short domestic delivery. It wins on container volume, on spares and on handling at height.

Frequently asked questions

Answers to common questions about SolarWrap GeoFlex foldable vertical solar modules profile sizing, pole fitment, weatherproofing and warranty.

1

What is a SolarWrap GeoFlex foldable vertical solar module?

+

A SolarWrap GeoFlex is a pole-mounted vertical solar module that fans open around a light pole in a hexagon, octagon, decagon or dodecagon profile. Models range from 100W to 300W, turning a street, garden or highway pole into its own solar charging tower.

2

Which GeoFlex model sizes are available?

+

GeoFlex offers four profiles: Hexagon (100W / 150W), Octagon (135W / 200W), Decagon (165W / 250W) and Dodecagon (200W / 300W). Each is available in two lengths, 1160 mm and 1560 mm.

3

Which pole diameters do the foldable modules fit?

+

The Hexagon fits poles up to 120 mm, the Octagon up to 190 mm, the Decagon up to 260 mm and the Dodecagon fits larger masts. Choose the profile that matches your pole for a clean, weld-free retrofit.

4

Are the foldable modules waterproof and impact resistant?

+

Yes. The tempered-glass polygonal faces and sealed construction are IP66 rated for weatherproof outdoor use in rain, coastal salt and high-wind conditions.

5

How do foldable polygonal modules compare to a flat solar panel?

+

The five-to-twelve faces wrap the pole to capture light from many angles, ideal where a flat panel would be shaded. The near-vertical faces also shed snow, sand and dust, lowering maintenance.

6

What is the warranty and expected lifespan?

+

SolarWrap GeoFlex modules are backed by a 5-year warranty from E-Able Power, engineered for long-life, low-maintenance municipal and commercial lighting installations.

Plan your SolarWrap GeoFlex Foldable Vertical Solar Modules project.

Send your site conditions, lighting requirements or load profile for a system engineered to your location — DIALux simulation, sizing and pricing within 2–3 business days.
