High-efficiency LED optics
High-output LED chips with low light decay, precise photometric distributions and long service life.
Product overview
E-Able Power supplies project-configured LED high mast lighting systems engineered for large open areas where uniform, high-output illumination is essential. Our high mast LED lights deliver the lux level and beam control your site needs while keeping energy use and maintenance low, with factory-direct production, IP-rated housings and Grade A LiFePO4 power.

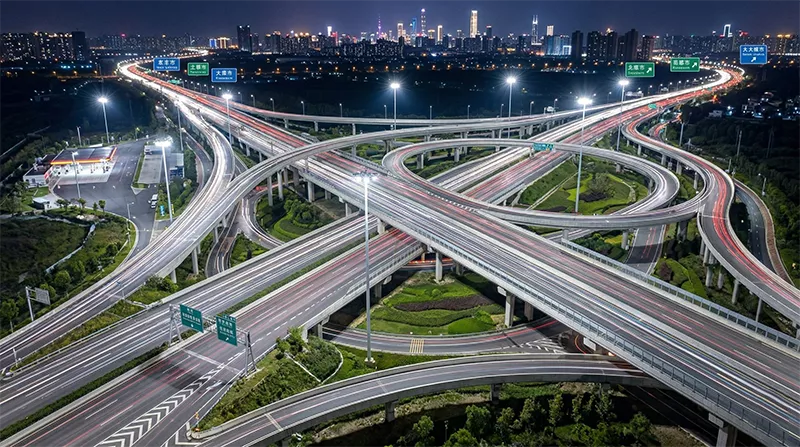

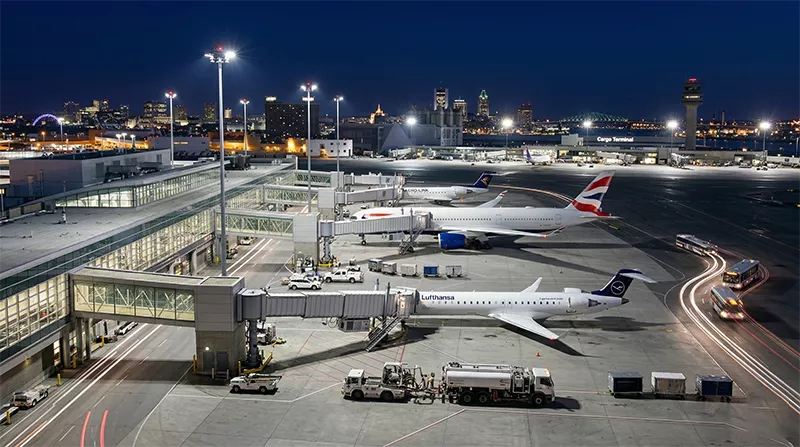

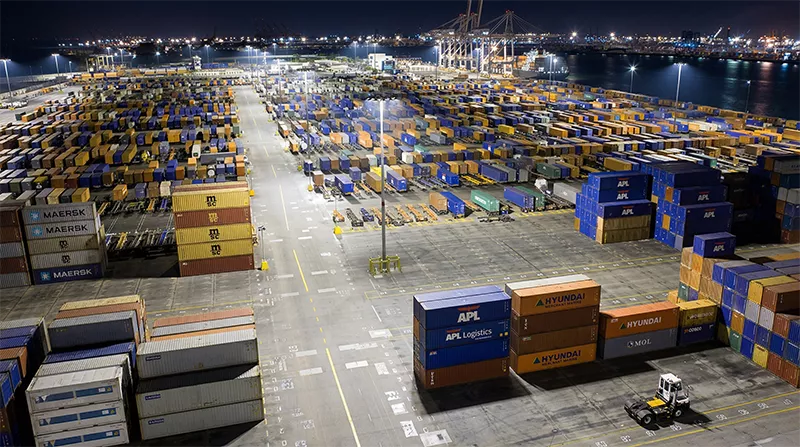

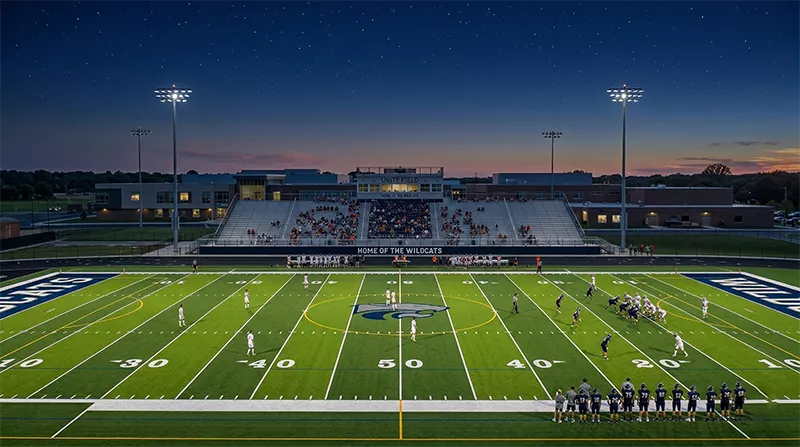

High mast lighting for airports, seaports, stadiums and sports venues, rail yards, freight yards, highway interchanges and large parking lots. Whether you need a high mast light pole for a runway apron, a sports field floodlighting scheme or a container terminal, each system is sized to the illuminance, uniformity and mounting height required for the application.
Every high mast lighting project is configured to the site: wind resistance and pole strength, lux levels and beam angle, mounting height and lift control, plus optional smart or timed control for energy savings. Send your site conditions and E-Able Power can deliver a DIALux simulation, sizing and quotation for your high mast lighting system.
Engineered LED High Mast Lighting
High-output LED systems engineered for large open areas — airports, seaports, stadiums, container terminals, rail yards and highway interchanges — with configurable wattage, selectable beam angles, glare control and site-specific DIALux sizing.
Configurable power & beam
Multiple wattage options with selectable beam angles to match field contours, spill and glare requirements.
Glare & spill control
Anti-glare optics, visors and racked-angle brackets to reduce upward light and lighting pollution.
HIGH MAST

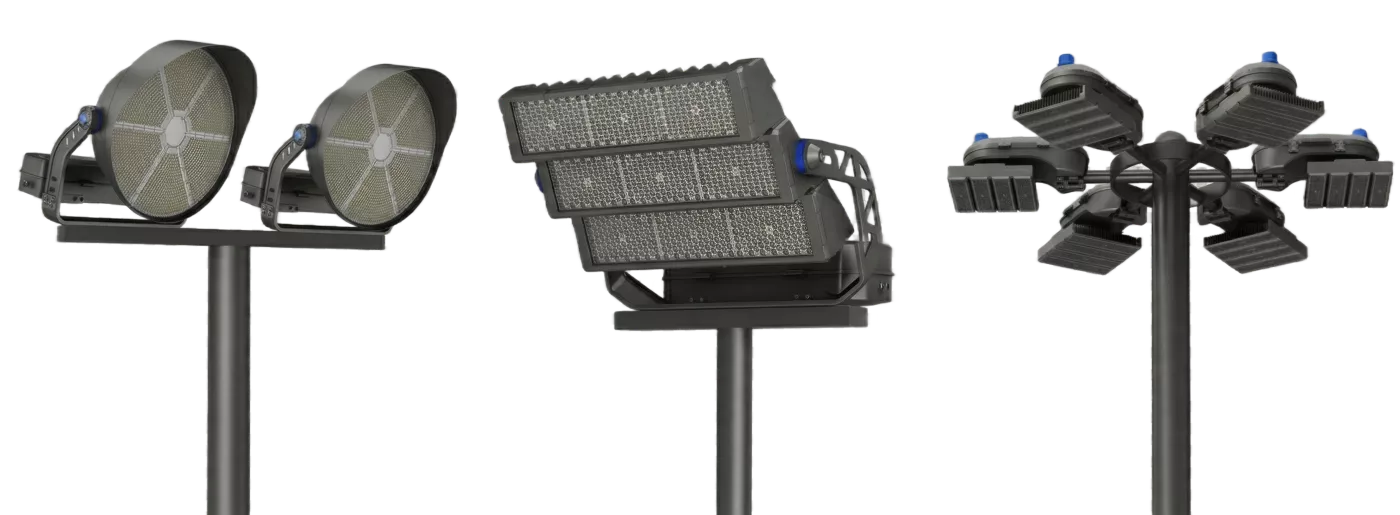

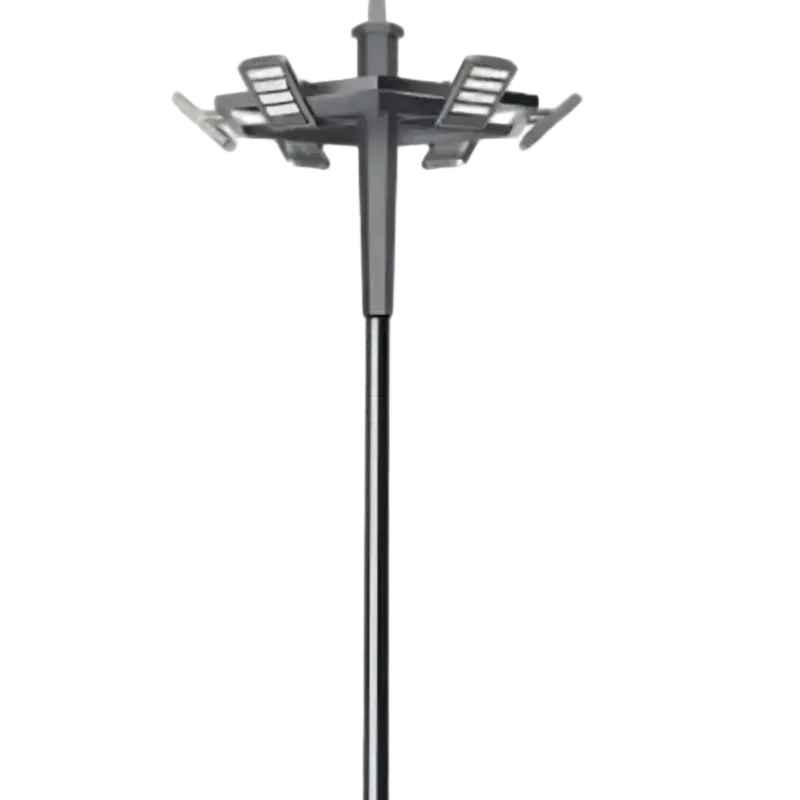

High Mast LED Lighting System
High-mast LED lighting configured for airports, seaports, stadiums, rail yards and highway interchanges, sized and engineered to the site for the required lux level and wind load.
READ PRODUCT BRIEF +
Rated power: 400W – 1200W
Luminous efficacy: 160 lm/W
Light source: Lumileds / Osram 5050 chips
Driver: Meanwell driver
IP rating: IP66
IK rating: IK10
Wind resistance: 17-level wind rating
Life span: 100,000 h
SF01HIGH MAST
SKYWING SF01 Sports & High Mast Light
Six models from 200W to 1440W with 25/45/60/90 degree optics, an AL1070 cold-forged housing, IP66/IK08 protection and 10-20KV surge resistance for high-output sports and high-mast use.
READ PRODUCT BRIEF +
Models: ISL-XQCD 200W – 1440W
Beam angles: 25° / 45° / 60° / 90°
Housing: AL1070 cold-forged
IP rating: IP66
IK rating: IK08
Input voltage: AC100-277V, 50/60Hz
LEDs: Lumileds
Surge protection: 10-20KV
SF02HIGH MAST
SKYWING SF02 Sports & High Mast Light
Six models from 400W to 1500W with 25/45/60/90 degree optics, a 270 degree racked angle in 10 degree steps, an AL1070 cold-forged housing and IP66/IK08 protection.
READ PRODUCT BRIEF +
Models: ISL-QCD-B 400W – 1500W
Beam angles: 25° / 45° / 60° / 90°
Housing: AL1070 cold-forged
Racked angle: 270°, 10° steps
IP rating: IP66
IK rating: IK08
Input voltage: AC100-277V, 50/60Hz
LEDs: Lumileds
SF03HIGH MAST
SKYWING SF03 Sports & High Mast Light
Five replaceable-module fixtures from 250W to 1250W with 10/25/45/60/90 degree and 130x30x60, 65x25x60 degree asymmetric optics, in IP66/IK08 die-cast ADC12 modules.
READ PRODUCT BRIEF +
Models: ISL-QCD-C 250W – 1250W
Beam angles: 10/25/45/60/90° + asymmetric
Modules: Replaceable ADC12 modules
IP rating: IP66
IK rating: IK08
Input voltage: AC100-277V, 50/60Hz
LEDs: Lumileds / Osram
Surge protection: 10-20KV
SF04HIGH MAST

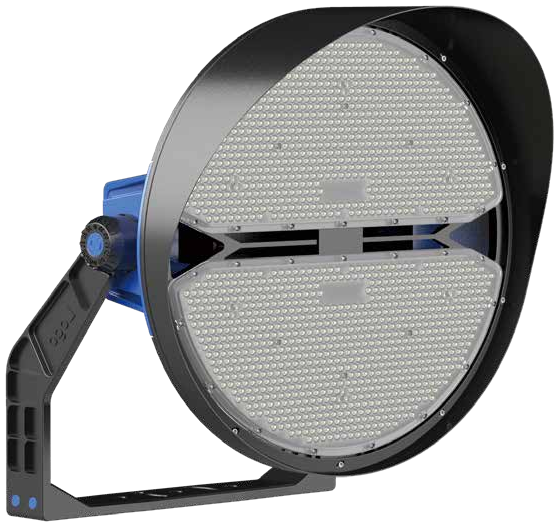

SKYWING SF04 Sports & High Mast Light
Six models from 400W to 1200W with 10/25/45/60/90 degree optics, an ADC12 die-cast housing, a racked angle with visor and IP66/IK08 protection for glare control.
READ PRODUCT BRIEF +
Models: ISL-QCD-D 400W – 1200W
Beam angles: 10° / 25° / 45° / 60° / 90°
Housing: ADC12 die-cast with visor
IP rating: IP66
IK rating: IK08
Input voltage: AC100-277V, 50/60Hz
LEDs: Lumileds / Osram
Surge protection: 10-20KV
SF05HIGH MAST
SKYWING SF05 Sports & High Mast Light
Six models from 200W to 1200W with 30/45/60/90 degree and 120x40x60, 80x140 degree asymmetric optics, in a die-cast ADC12 housing with IP66/IK08 protection.
READ PRODUCT BRIEF +
Models: ISL-QCD-E 200W – 1200W
Beam angles: 30/45/60/90° + asymmetric
Housing: Die-cast ADC12
IP rating: IP66
IK rating: IK08
Input voltage: AC100-277V, 50/60Hz
LEDs: Lumileds
Surge protection: 10-20KV
SF06HIGH MAST
SKYWING SF06 Sports & High Mast Light

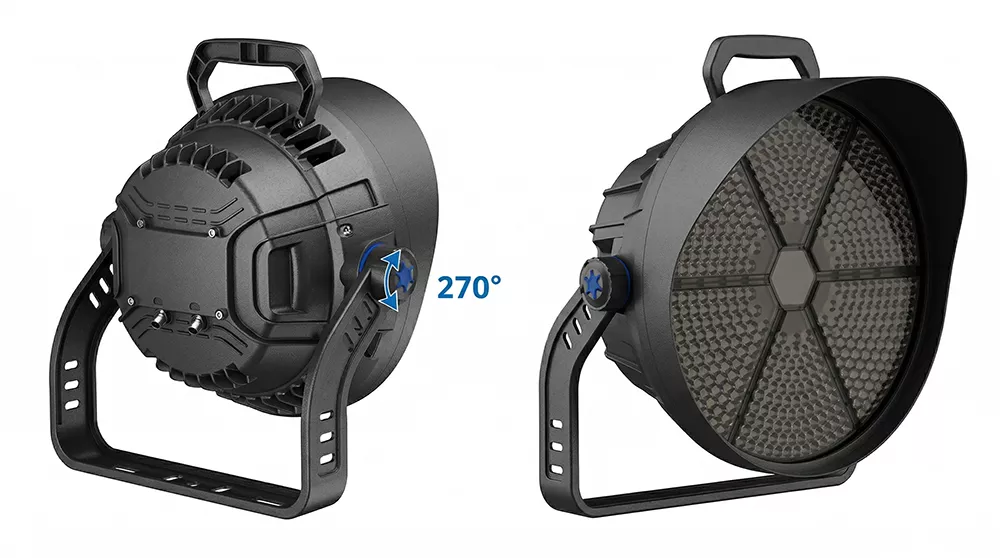

Six models from 400W to 1200W with six distributions 10/15/25/45/60/90 degrees, a 270 degree racked angle, die-cast aluminum housing and IP66/IK08 build.
READ PRODUCT BRIEF +
Models: ISL-SF06-A 400W – 1200W
Beam angles: 10/15/25/45/60/90°
Housing: Die-cast aluminum
Racked angle: 270°, 10° steps
IP rating: IP66
IK rating: IK08
Input voltage: AC100-277V, 50/60Hz
LEDs: Lumileds / Osram
SF07HIGH MAST
SKYWING SF07 Sports & High Mast Light
Eight models from 400W to 1800W with symmetric and asymmetric 60 degree optics, an ADC12 housing with optional 4mm tempered glass and IP66/IK08 protection.
READ PRODUCT BRIEF +
Models: ISL-QCD-G 400W – 1800W
Beam angles: 10/15/25/45/60/90° + asymmetric 60°
Housing: ADC12, 4mm tempered glass option
IP rating: IP66
IK rating: IK08
Input voltage: AC100-277V, 50/60Hz
LEDs: Lumileds / Osram
Surge protection: 10-20KV
SF08HIGH MAST
SKYWING SF08 Sports & High Mast Light
Five models from 300W to 1500W with symmetric and asymmetric 60 degree optics, a die-cast ADC12 housing, optional terminal box and IP66/IK08 protection.
READ PRODUCT BRIEF +
Models: ISL-QCD-H 300W – 1500W
Beam angles: 10/15/25/45/60/90° + asymmetric 60°
Housing: Die-cast ADC12, terminal box option
IP rating: IP66
IK rating: IK08
Input voltage: AC100-277V, 50/60Hz
LEDs: Lumileds / Osram
Surge protection: 10-20KV
SF09HIGH MAST
SKYWING SF09 Sports & High Mast Light
Three models from 400W to 800W with six optical distributions 30/45/60/90/140x80/120x40x60 degrees, in a die-cast ADC12 housing with IP66/IK08 protection.
READ PRODUCT BRIEF +
Models: ISL-SF09-A 400W – 800W
Beam angles: 30/45/60/90/140×80/120×40×60°
Housing: Die-cast ADC12
IP rating: IP66
IK rating: IK08
Input voltage: AC100-277V, 50/60Hz
LEDs: Lumileds
Surge protection: 10-20KV
SF10HIGH MAST

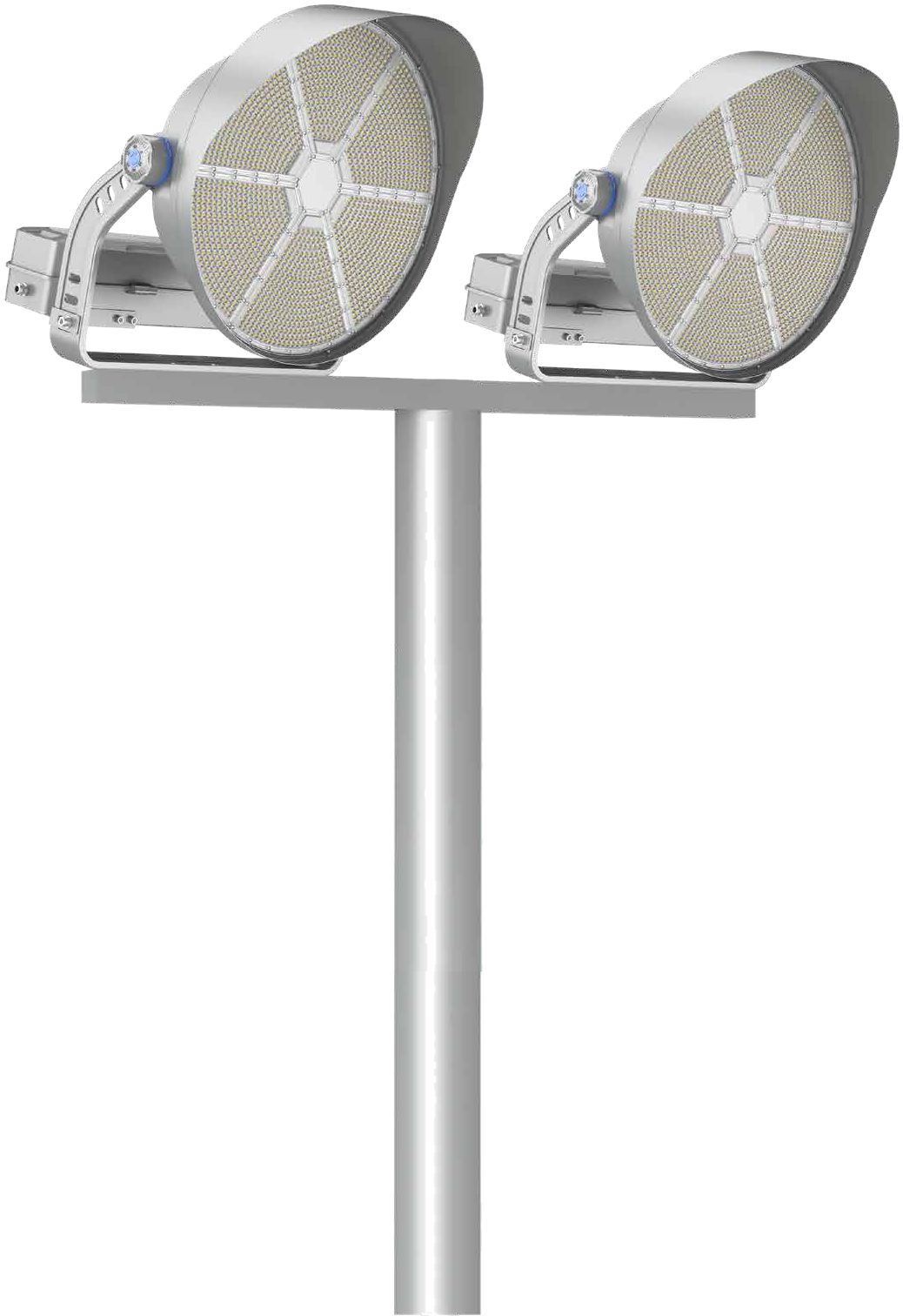

SKYWING SF10 Sports & High Mast Light
Six models from 400W to 1200W with 10/15/25/45/60/90 degree optics, an ADC12 housing with a removable driver box and IP66/IK08 protection for easy maintenance.
READ PRODUCT BRIEF +
Models: ISL-SF10-A 400W – 1200W
Beam angles: 10/15/25/45/60/90°
Housing: ADC12, removable driver box
IP rating: IP66
IK rating: IK08
Input voltage: AC100-277V, 50/60Hz
LEDs: Lumileds / Osram
Surge protection: 10-20KV
SF11HIGH MAST

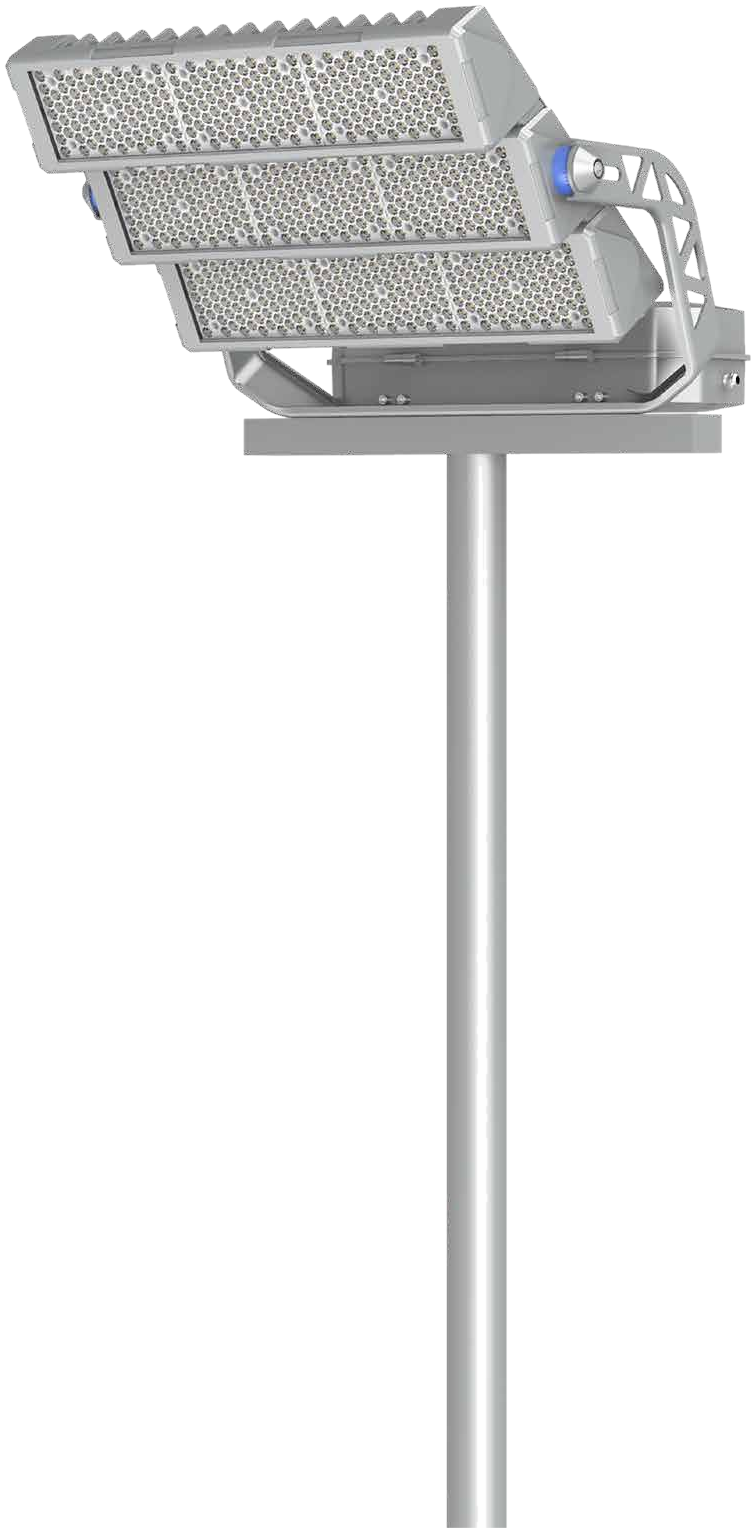

SKYWING SF11 Sports & High Mast Light
Ten models from 400W to 2400W with symmetric and asymmetric 60 degree optics, a removable driver box, ceiling mounting bracket and IP66/IK08 protection.
READ PRODUCT BRIEF +
Models: ISL-SF11-A 400W – 2400W
Beam angles: 10/15/25/45/60/90° + asymmetric 60°
Housing: ADC12, removable driver box
Mounting: Ceiling mounting bracket
IP rating: IP66
IK rating: IK08
Input voltage: AC100-277V, 50/60Hz
LEDs: Lumileds / Osram
SF13HIGH MAST

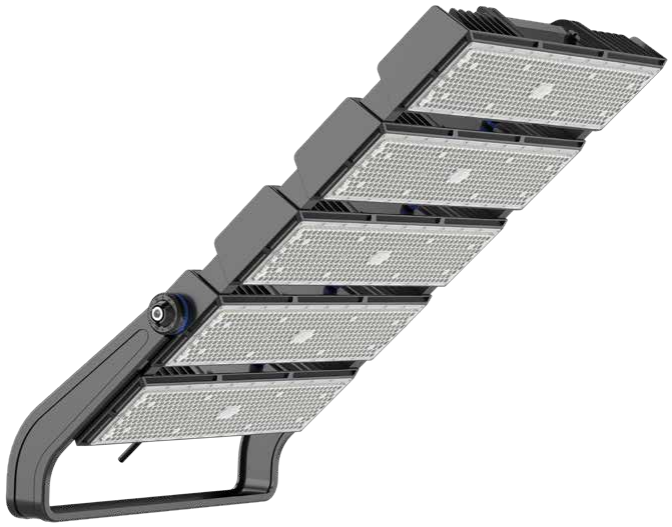

SKYWING SF13 Sports & High Mast Light
Five power-adjustable replaceable modules from 250W to 1250W with 10/15/25/45/60/90 degree and 65x25 degree optics, supplied for SKD assembly with IP66/IK08 protection.
READ PRODUCT BRIEF +
Models: ISL-SF13 250W – 1250W
Beam angles: 10/15/25/45/60/90° + 65×25°
Modules: Power-adjustable replaceable
Assembly: SKD
IP rating: IP66
IK rating: IK08
Input voltage: AC100-277V, 50/60Hz
LEDs: Lumileds / Osram
Frequently asked questions
What is a high-mast LED lighting system?
A high-mast LED lighting system is a tall pole fitted with a cluster of high-output LED luminaires, used to light large open areas such as airports, seaports, stadiums, rail yards, highway interchanges and parking lots. E-Able Power supplies these as project-configured systems.
What heights are high-mast lighting poles available in?
High-mast poles are supplied in a wide range of heights and are configured per project, typically covering poles from 10 m to 30 m and built to the required mounting height for the site.
How are high-mast lights maintained?
Many high-mast systems use a lifting mechanism that lowers the lamp holder to ground level for maintenance, so lamps can be accessed and cleaned without scaffolding or a mobile crane. Non-lifting fixed poles are maintained by lowering a winch or by accessing the luminaire ring.
What luminaires are used on a high-mast tower?
High-mast towers use energy-efficient LED high-mast and floodlight luminaires with symmetric or asymmetric optical distributions, higher lumen-per-watt efficacy, and IP-rated housings. The optimum beam angle and mounting height are determined by a lighting simulation for the site.
How is a high-mast lighting system controlled?
A high-mast system is typically controlled by a power distribution panel that provides timed, light-sensitive or combined lighting modes, with overload and instantaneous overcurrent protection. Dimmable and smart control options can be specified per project.
Can a high-mast lighting system be customised for a site?
Yes. E-Able Power configures each high-mast system to the site: pole height, wind resistance, lux level, number and angle of luminaires, control scheme and runtime. Send your site conditions and lighting requirements and our team can size and quote the system.
Plan your LED High Mast Lighting Systems | Project-Configured Large-Area Illumination project.
Send your site conditions, lighting requirements or load profile for a system engineered to your location — DIALux simulation, sizing and pricing within 2–3 business days.
