View Product →| E-ABLE POWER — PRODUCT DATASHEET RESIDENTIAL & COMMERCIAL ENERGY STORAGE | VERTICAL LFP51.2V14.40–30.72 kWh |

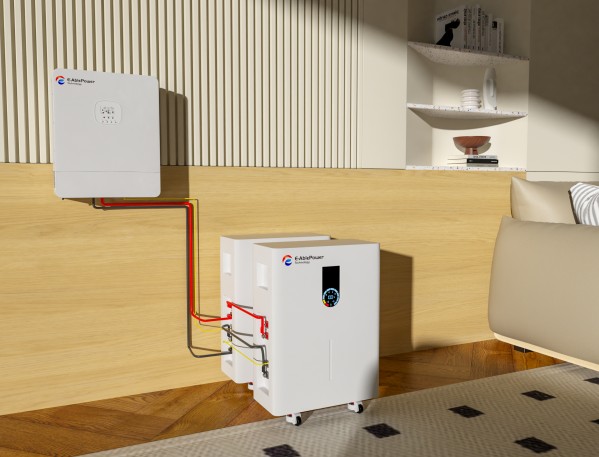

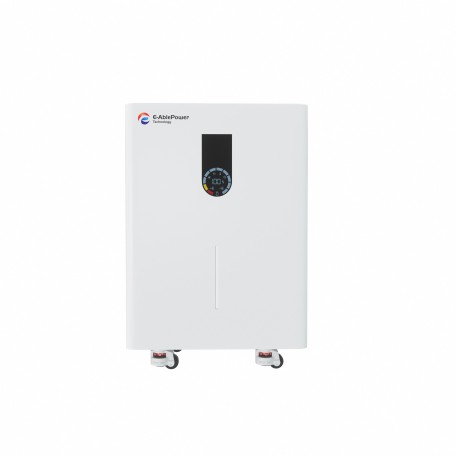

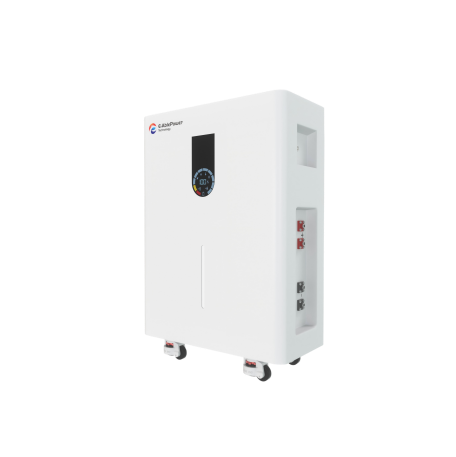

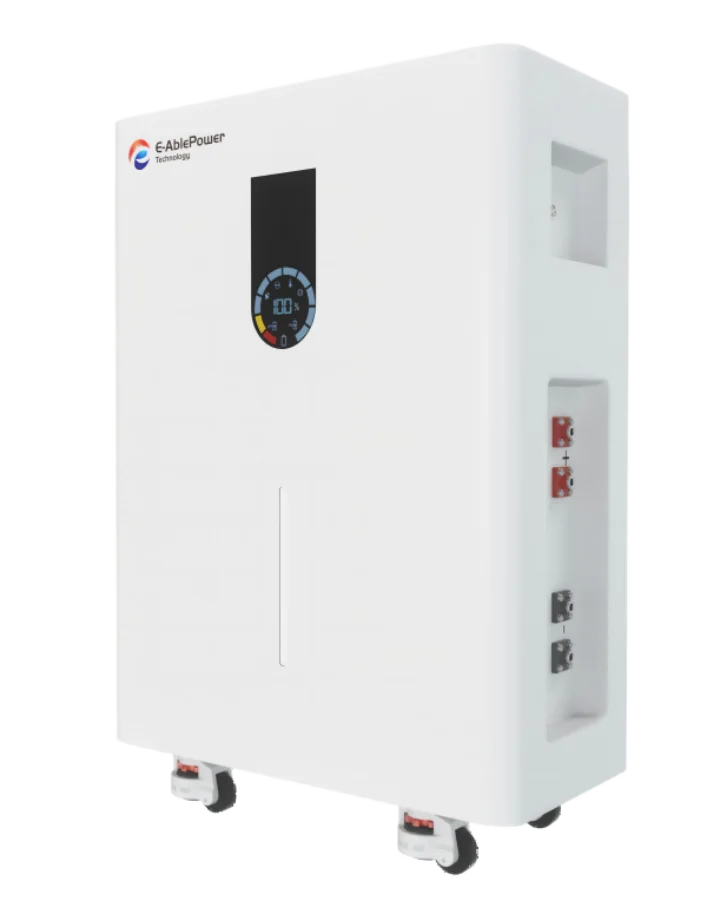

GVR Series | Vertical Floor-Standing LFP Battery Vertical LFP Energy Storage BatteryA floor-standing vertical battery series on a 48V and 51.2V low-voltage platforms in three capacities — 14.40 / 16.08 / 30.72 kWh (300Ah / 314Ah / 600Ah). Built with Grade A LiFePO4 cells, intelligent BMS protection, pulley-wheel design and smart communication for home energy storage and small commercial backup. Model: 48V/300Ah (14.40kWh) · 51.2V/314Ah (16.08kWh) · 51.2V/600Ah (30.72kWh) Brand: E-Able Power | Platform: 51.2Vdc Low-Voltage Architecture Capacity: 14.40 / 16.08 / 30.72 kWh | Parallel: Up to 15 units |  |

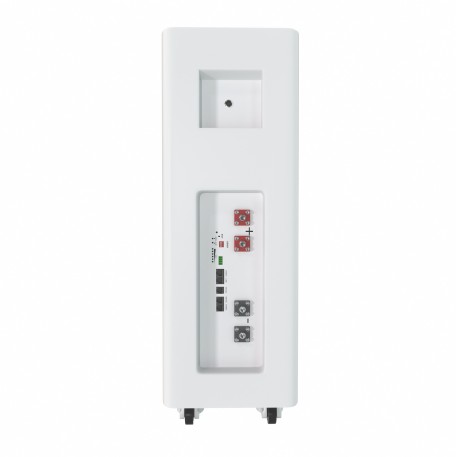

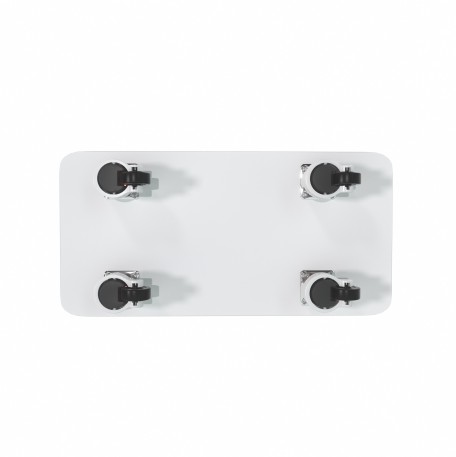

| BMS Protection Intelligent battery management with cell-level voltage, current and temperature monitoring plus automatic balancing. | Pulley Design Built-in caster wheels and pulley design — move and position heavy battery cabinets easily on site. | Home Energy Storage Purpose-built for solar self-consumption, peak shifting and whole-home backup with hybrid inverters. | Intelligent Communication RS232 / CAN / RS485 / WiFi / BT interfaces with LCD display — monitor SOC and system status in real time. |
Key Specifications at a Glance
| Parameter | 48V / 300 Ah | 51.2V / 314 Ah | 51.2V / 600 Ah |
|---|---|---|---|
| Product Type | Vertical Floor-Standing LFP Battery (with BMS) | ||
| Cell Chemistry | Grade A LiFePO4 | ||
| Nominal Voltage (V) | 48 | 51.2 | 51.2 |
| Capacity (Ah) | 300 | 314 | 600 |
| Nominal Energy (kWh) | 14.40 | 16.08 | 30.72 |
| Suggested DOD | 80% | ||
| Charge / Discharge Current | 200A standard | ||
| Cycle Life | > 6,000 cycles | ||
| IP Rating | IP21 (IP65 optional) | ||
| Operating Temperature | Discharge -20~50°C / Charge 0~45°C | ||
| Maximum Parallel | 15 units | ||
| Communication | RS232 / CAN / RS485 / WiFi / BT | ||
| Display | LCD color screen (optional) | ||
| Enclosure | Floor-standing cabinet with caster wheels | ||
| Certifications | UN38.3 / MSDS / CE / RoHS / FCC | ||
| Warranty | 5 Years | ||
| Net Weight (kg) | 123.1 | 126.2 | 235.2 |
| Gross Weight (kg) | 145.1 | 145.9 | 260.5 |
| Product Size (mm) | 860×550×270 | 860×550×270 | 872×530×530 |
| Package Size (mm) | 945×640×480 | 945×640×480 | 985×640×740 |
Related Products

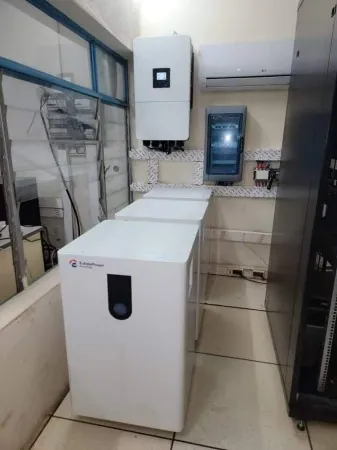

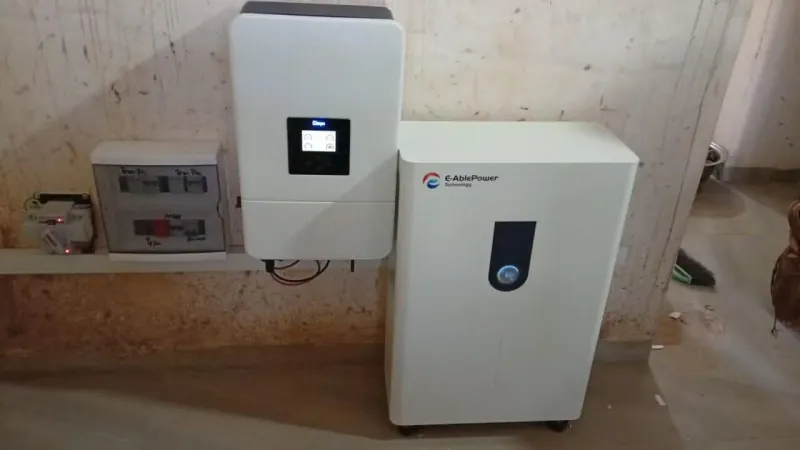

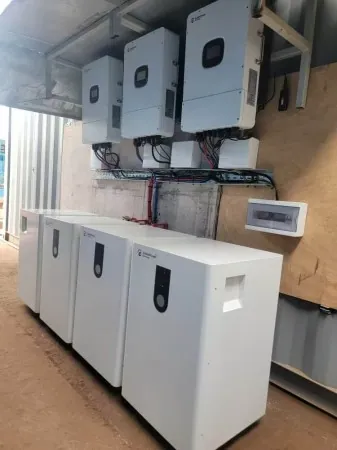

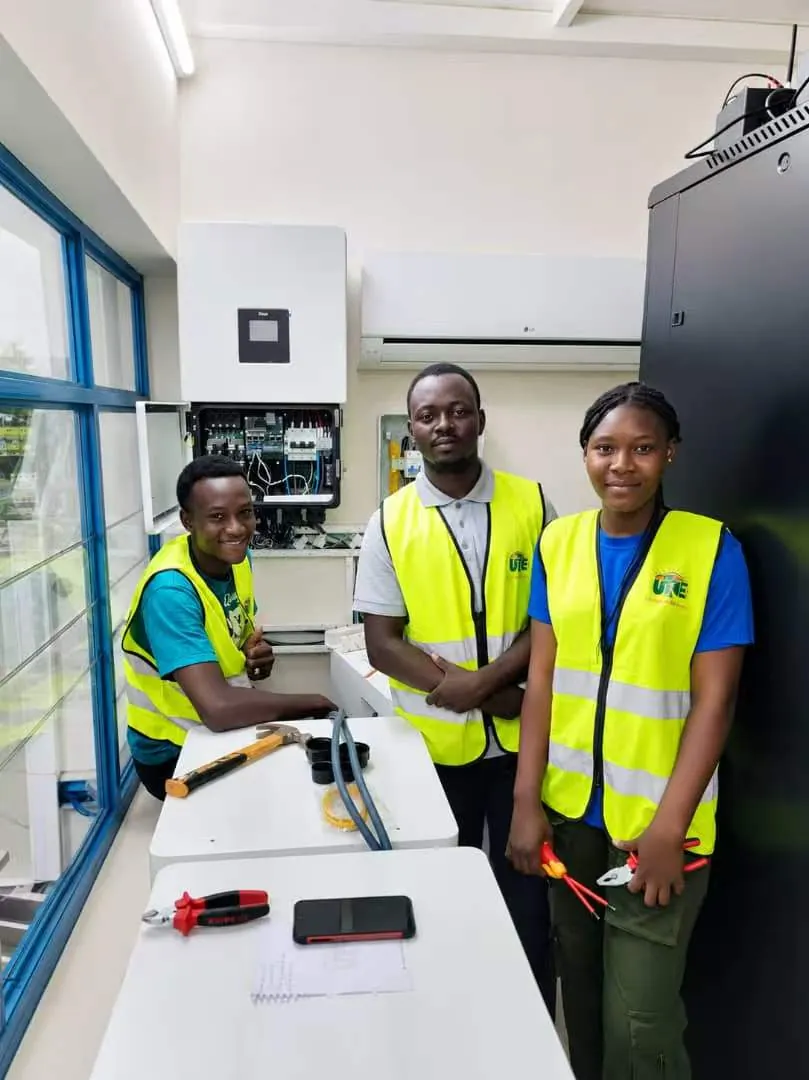

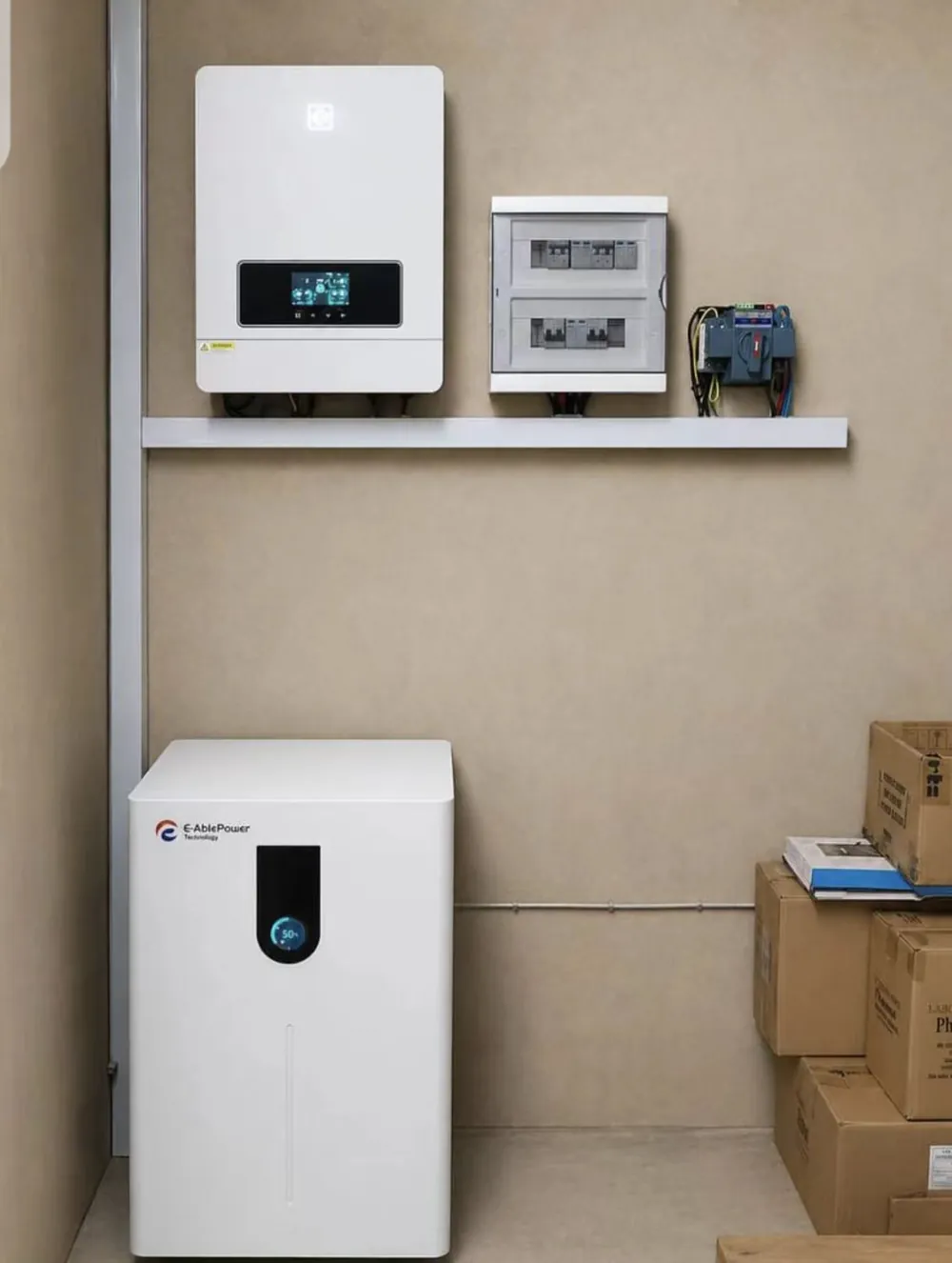

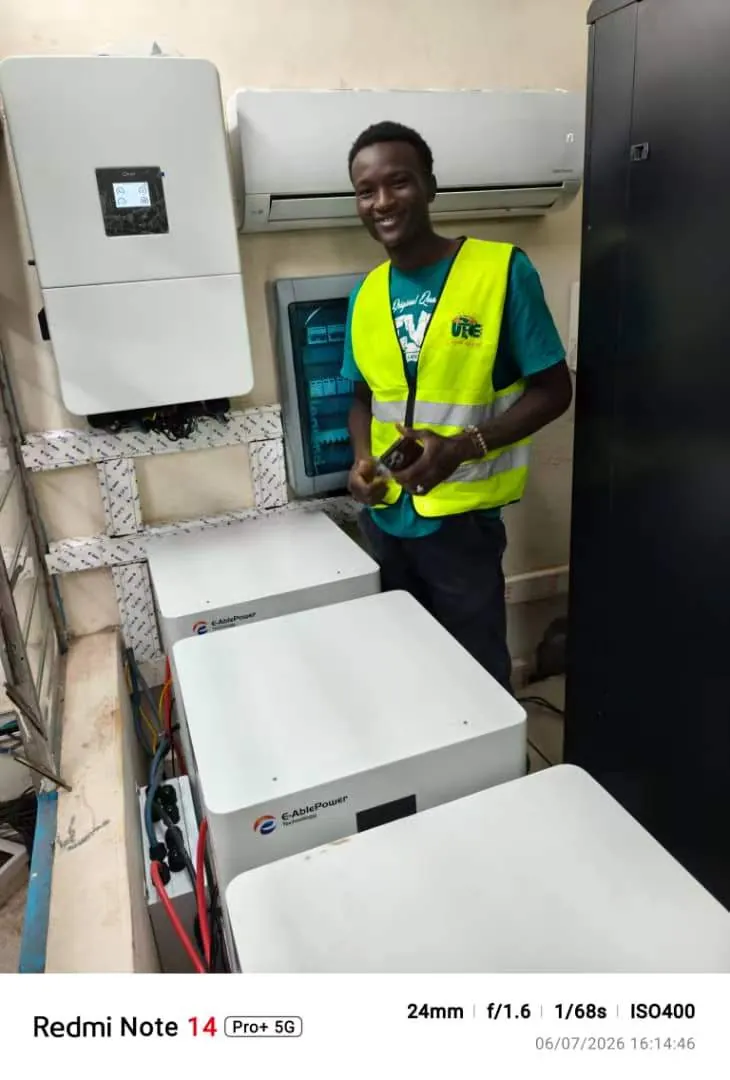

Installation Cases

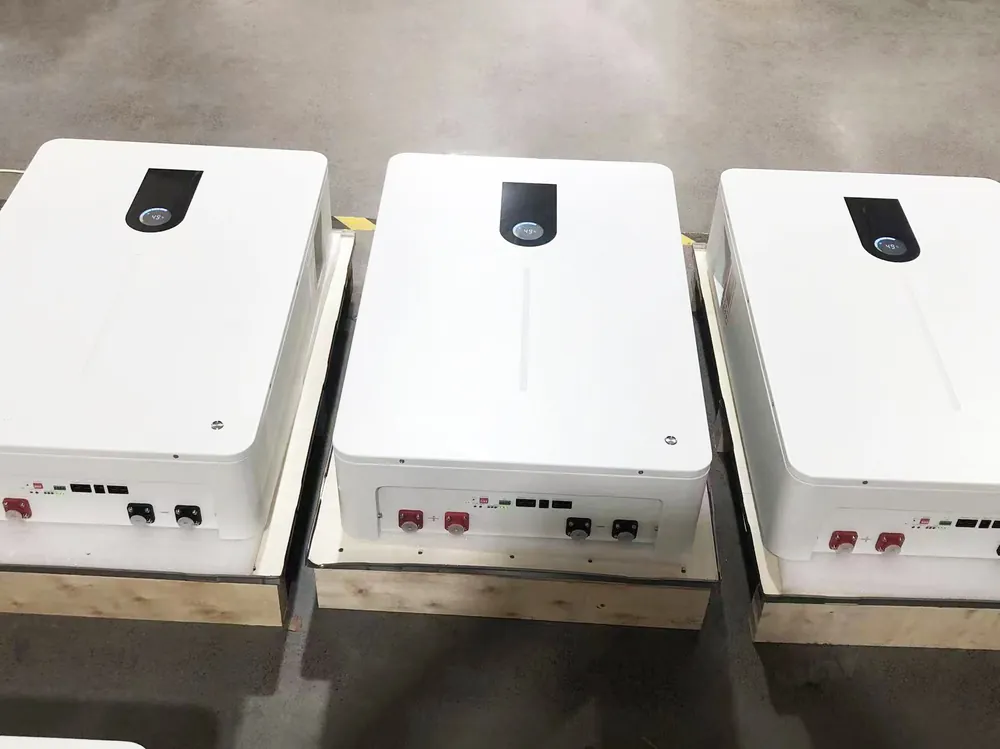

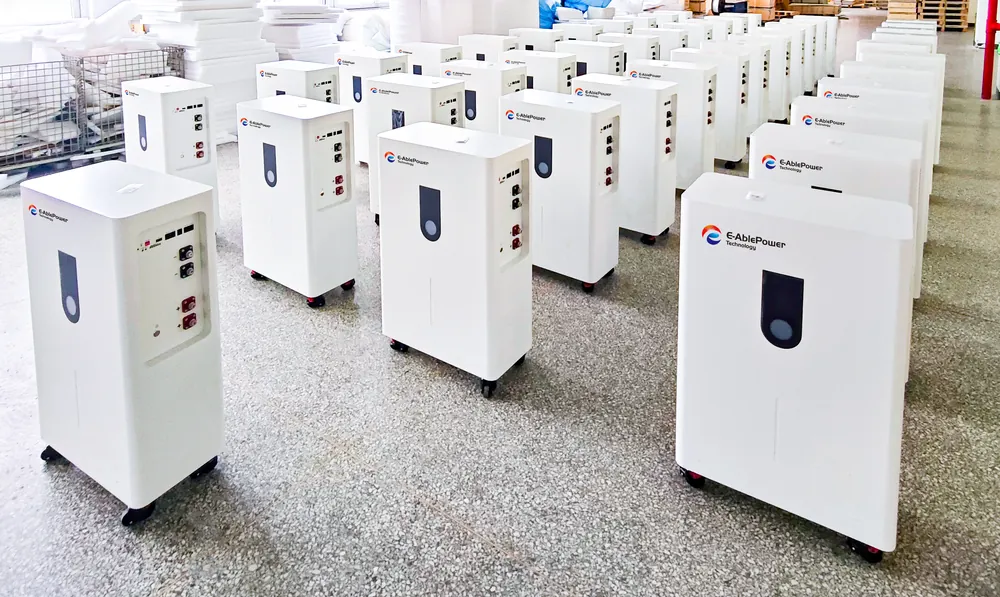

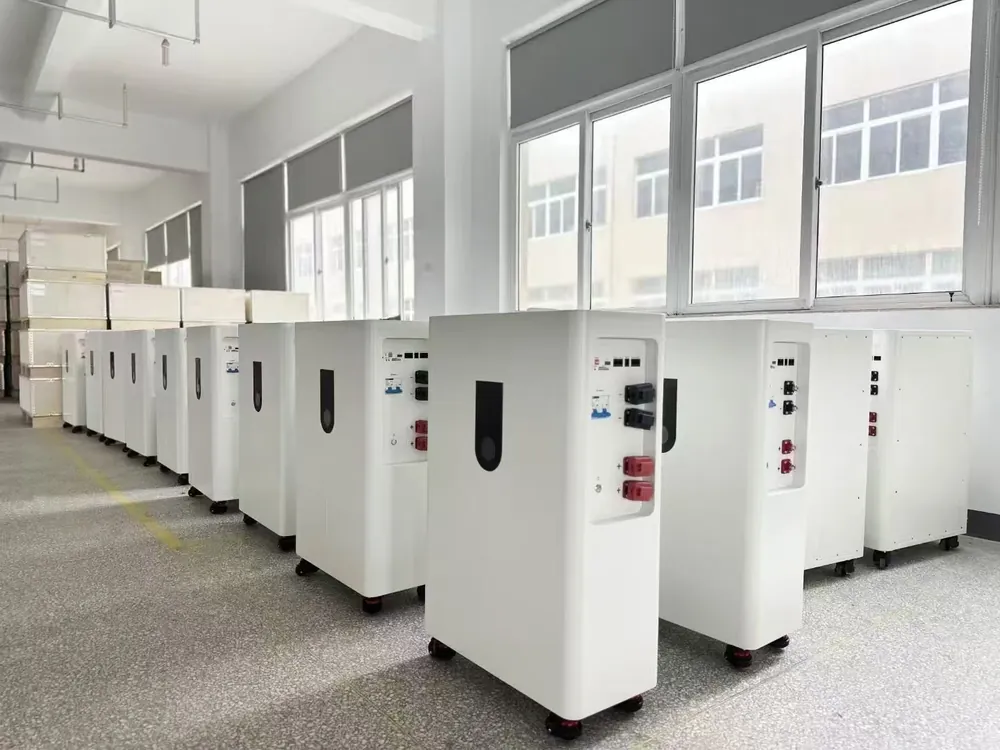

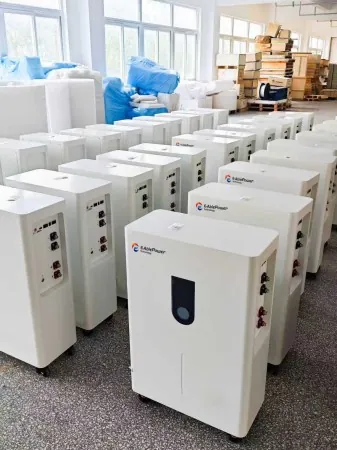

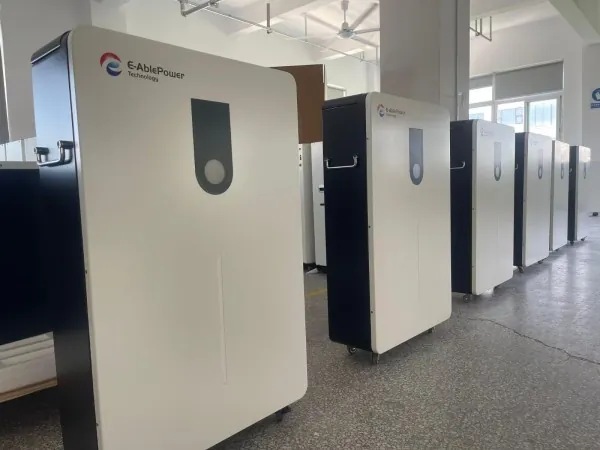

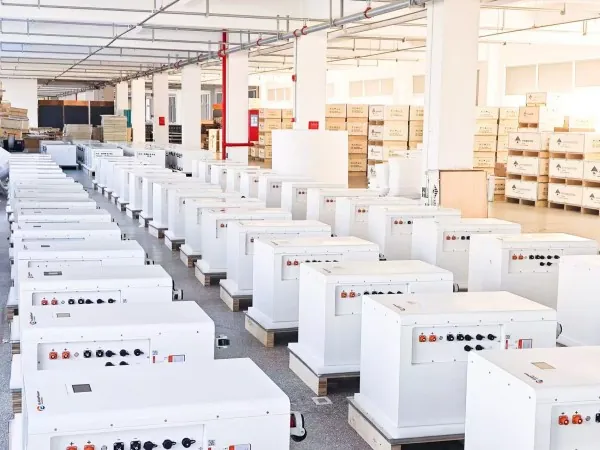

Production
Shipping
RELATED PRODUCTS
Explore Related Products
GCB-E50 Commercial Energy Storage System
GCB-E50 50kW/50kWh all-in-one C&I BESS cabinet with LFP battery packs, air cooling and IP54 protection.
View Product →
GCB-E241 Commercial Energy Storage System
GCB-E241 125kW/241.15kWh commercial and industrial LFP energy-storage cabinet with integrated fire protection.
View Product →Frequently Asked Questions
What capacity models is the GVR Series available in?
Capacities of 14.40 / 16.08 / 30.72 kWh (48V/300Ah · 51.2V/314Ah · 51.2V/600Ah).
What battery technology does the GVR Series use?
Grade A LiFePO4 cells, rated for > 6,000 cycles.
What voltage and configuration does the GVR Series support?
Operates at 51.2 Vdc (working 43.2–57.6V), parallel up to 15 units.
Is the GVR Series protected against dust, water and impact?
Rated IP21 (IP65 optional); the standard unit is for indoor floor-standing installation.
How is the GVR Series operated in different conditions?
Discharge -20~50°C / Charge 0~45°C.
What control and communication does the GVR Series support?
RS232 / CAN / RS485 / WiFi / BT.
