Monocrystalline panel
5V / 4.5W solar input for wire-free operation.
Product overview
Light the space.
Keep it efficient.

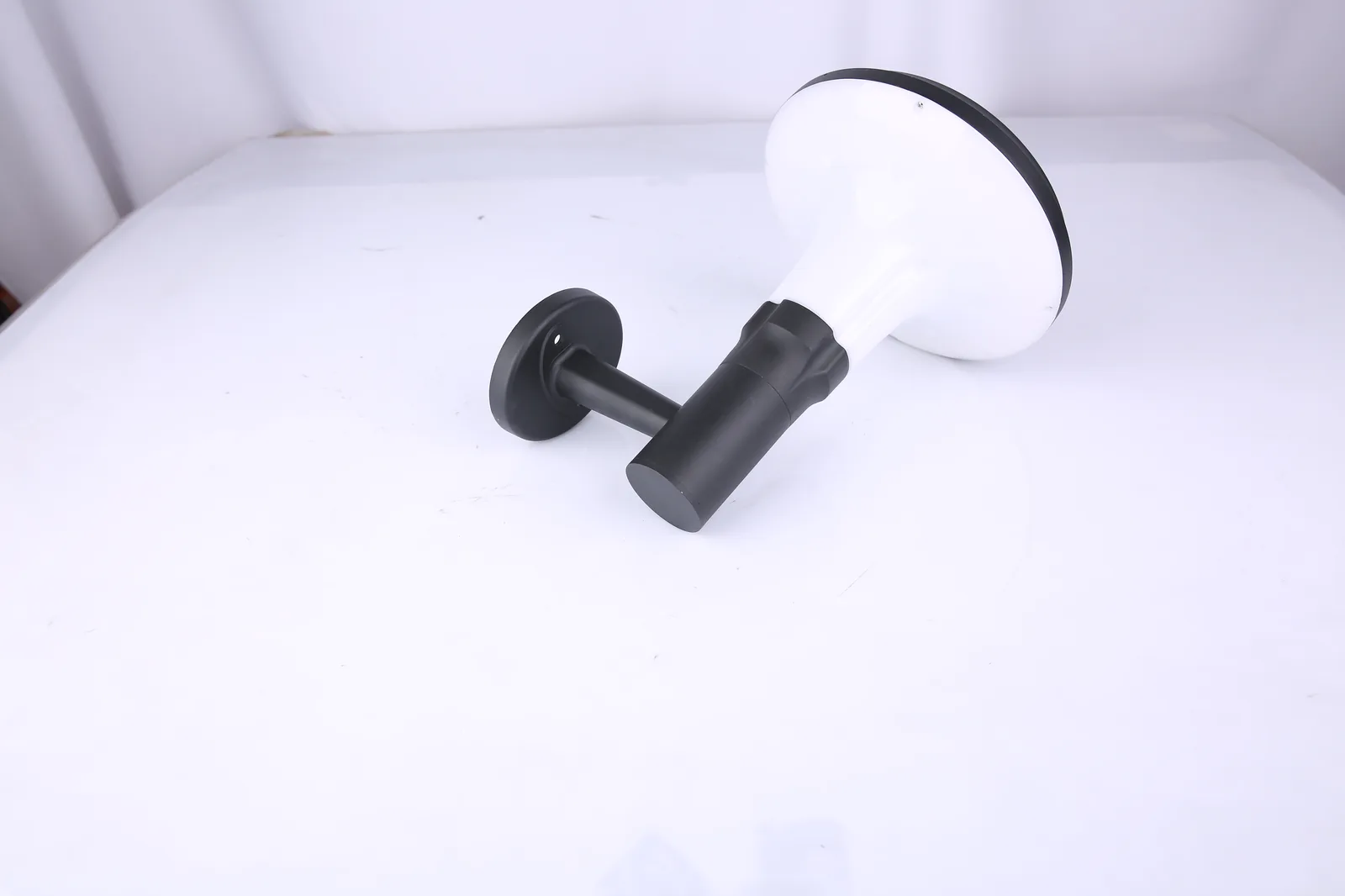

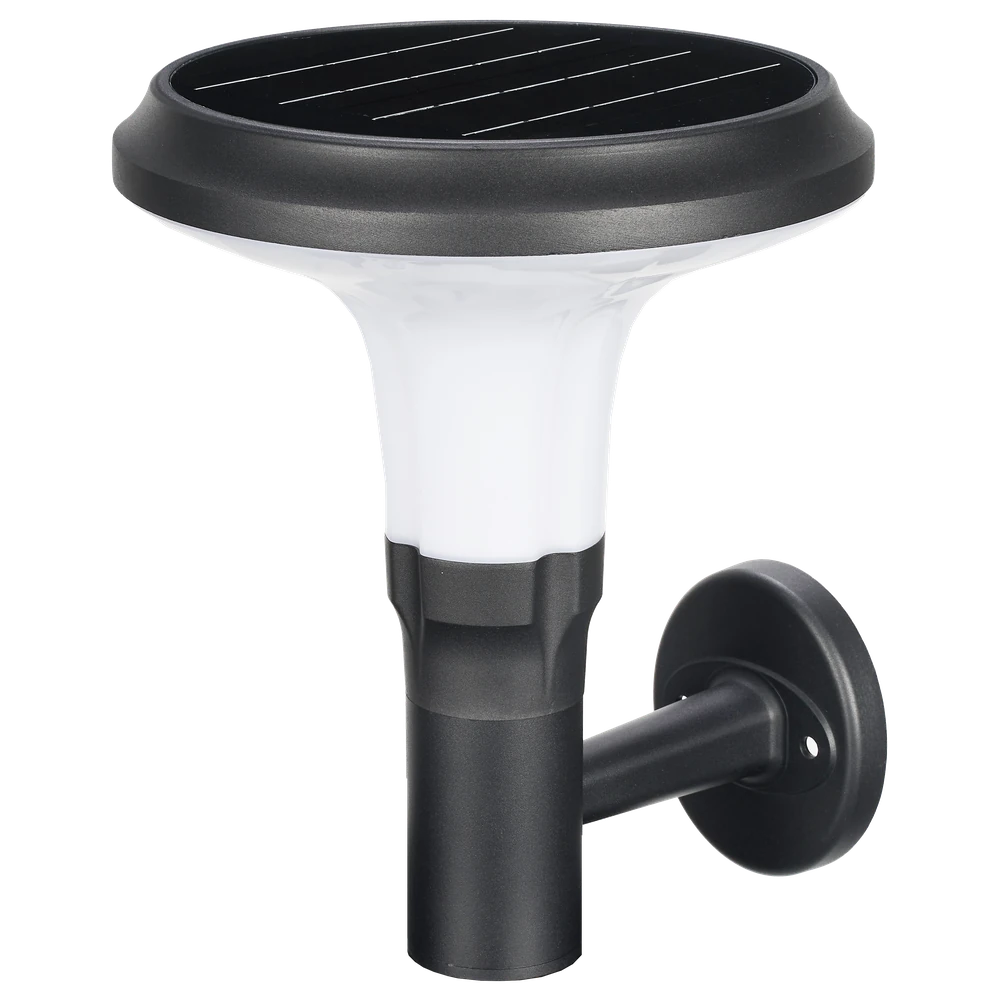

ZC-BD1004 is a flared-cap solar wall light from E-Able Power, pairing a 5V / 4.5W monocrystalline panel with a 3.2V / 8000mAh LiFePO4 battery and 12 LEDs in a die-cast aluminum + PC housing.
The wide flared shade spreads a soft, downward glow that suits entrances, porches and low garden walls while keeping the fixture clean and wire-free.
Selection note: selection note: choose the mounting height and orientation to suit the facade, then confirm site conditions before final configuration.
LiFePO4 battery
3.2V / 8000mAh battery for reliable nightly output.
Weather-protected housing
IP65 rated die-cast aluminum + PC construction.
Even light distribution
12 high-efficiency LEDs with warm bright daylight options.
Verified specifications
Technical data, made easy to compare.
Solar & electrical
- Solar panel5V / 4.5W
- Battery3.2V / 8000mAh
- Rated power4.5W
- Input voltageDC 3.2V
- Working time3 – 5 rainy days
Optical performance
- Light source2835 LED
- LED quantity12 pcs
- Colour temperature3000K – 6500K
- Luminous fluxhigh CRI output
- Colour rendering>80
- Beam angle120°
Construction & dimensions
- MaterialDie-cast aluminum + PC
- Lamp colourBlack; other colours customisable
- Net weight—
- Sizeφ260 mm × H330 mm
- Installation height2 – 4 m
Operating environment
- Waterproof levelIP65
- Operating temperature-25°C – 50°C
- Working humidity10% – 90%
Applications

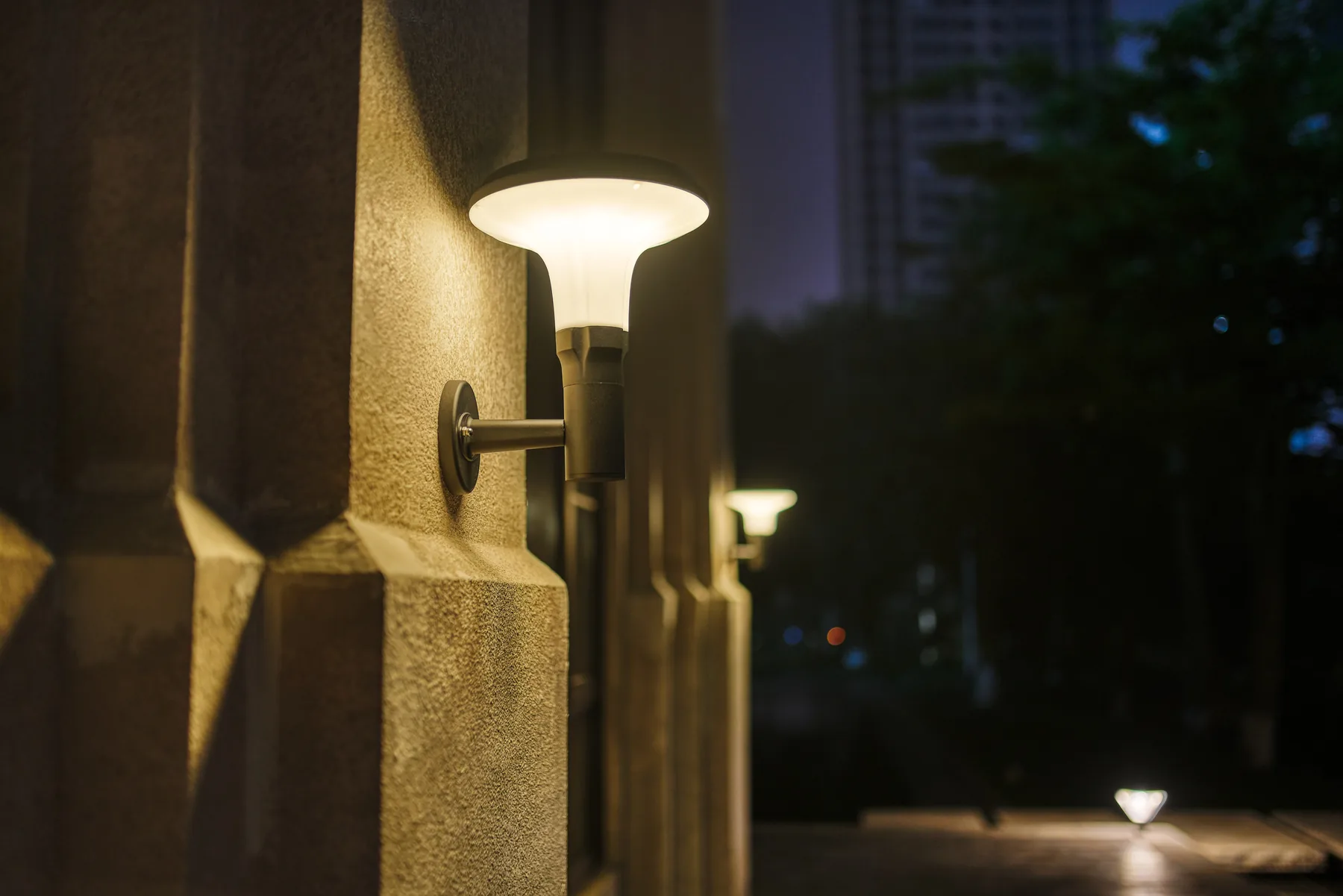

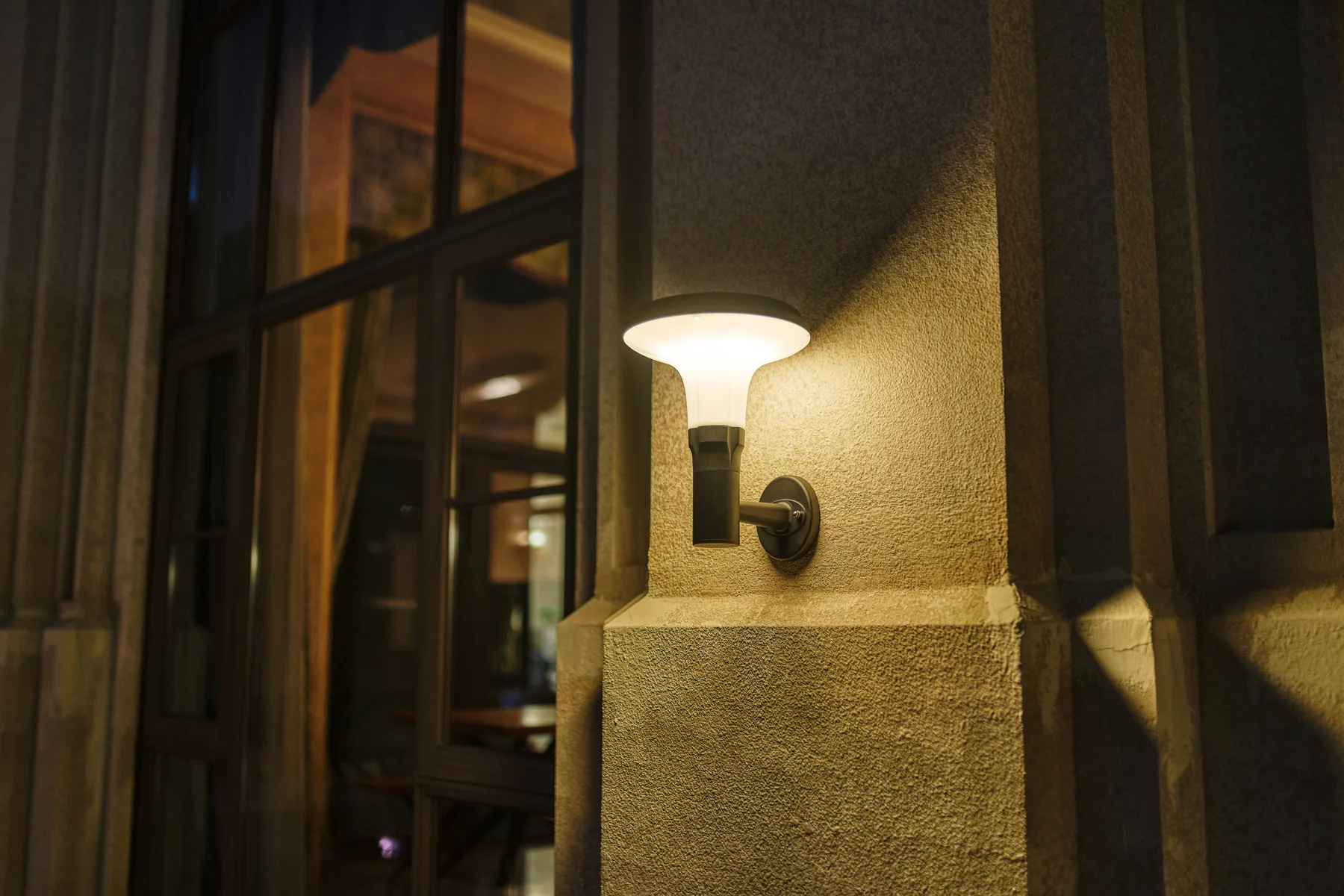

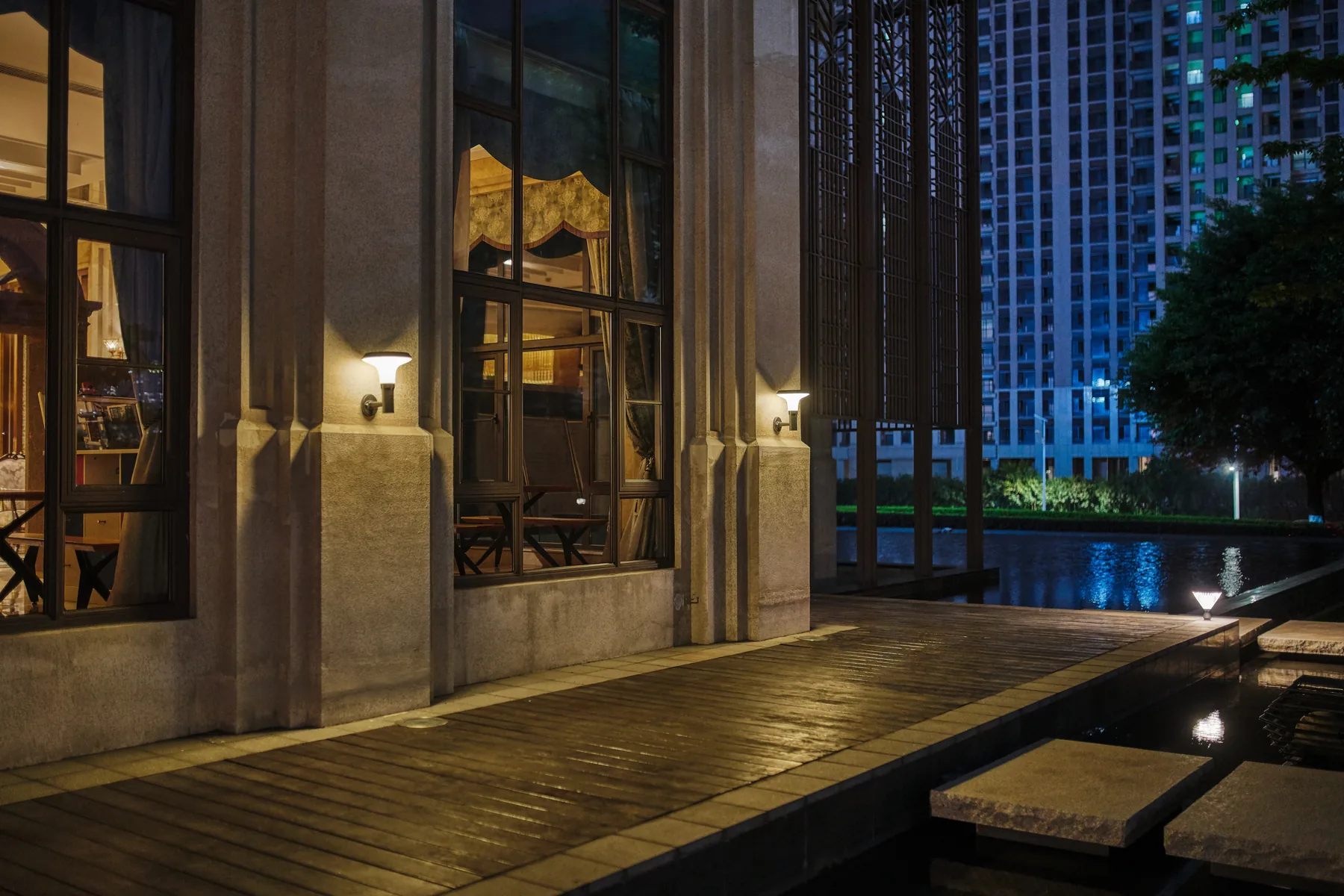

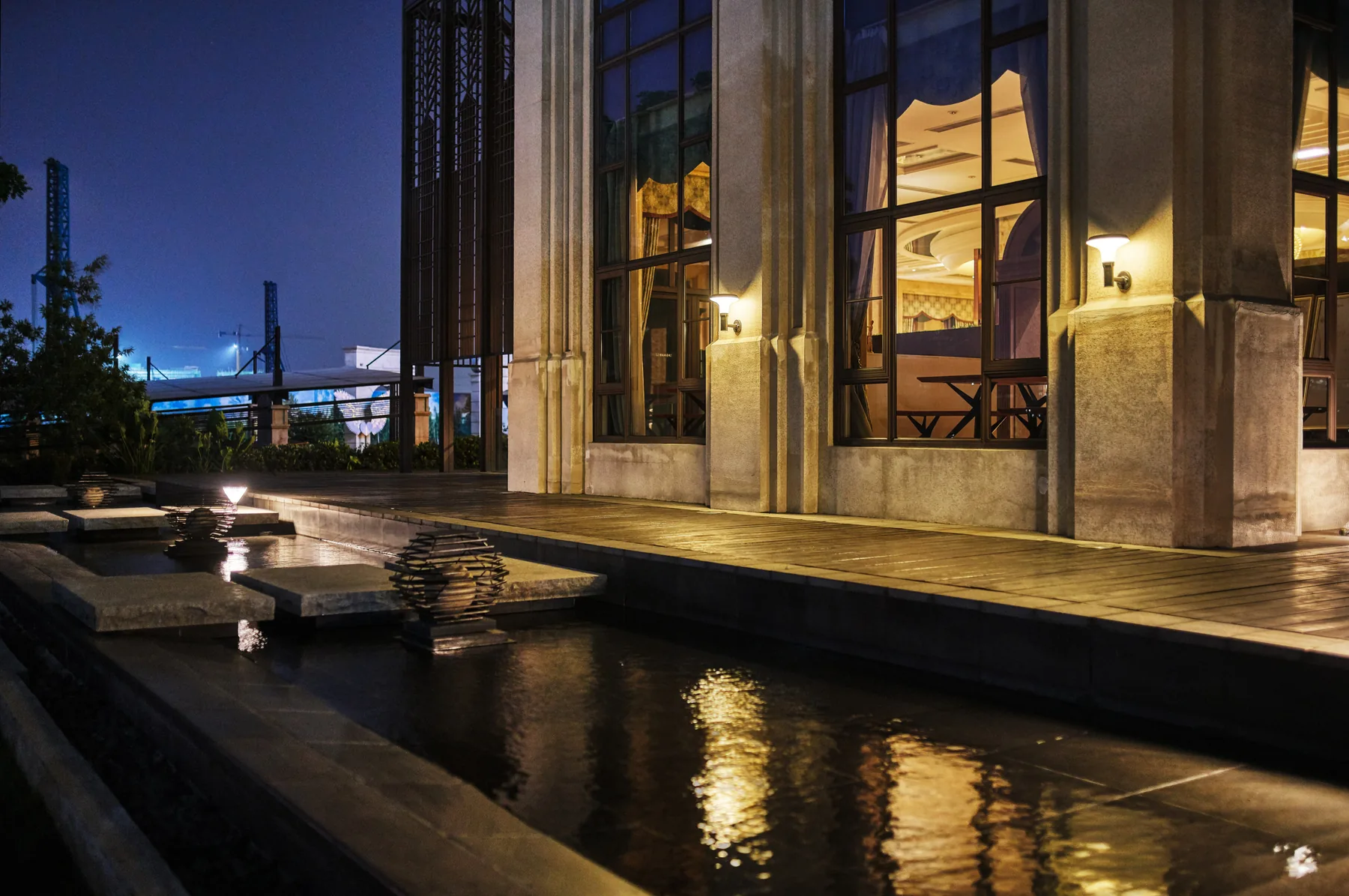

Lighting for facades, entries and garden edges.
FAQ
Common questions.
1What sizes is the ZC-BD1004 available in?
+
The ZC-BD1004 comes in φ260 mm × H330 mm.
2How long does the ZC-BD1004 run on a full charge?
+
It runs on a 3.2V / 8000mAh battery and provides 3 – 5 rainy days of working time.
3Is the ZC-BD1004 weatherproof?
+
Yes. It is built from die-cast aluminum + PC and rated IP65 for outdoor exposure.
4What colour temperature does the ZC-BD1004 offer?
+
It offers 3000K – 6500K for warm or bright daylight light.
5What powers the ZC-BD1004?
+
A 5V / 4.5W monocrystalline solar panel charges the on-board battery.
6Can the ZC-BD1004 be customised for a project?
+
Yes — configuration and colour options can be adapted. Contact us with your requirements.
Project support
Plan your solar lighting layout.
Share the layout, installation height and preferred colour temperature. Our team can help review a suitable ZC-BD1004 configuration.
