E-ABLE POWER / ENERGY STORAGE

GHS-100LFP Battery

GHS-100 high-voltage stackable LFP battery that builds modular capacity for scalable commercial and industrial storage. Compact modules stack to raise voltage and capacity while the BMS monitors each cell.

EXPLORE THE RANGE →REQUEST PROJECT SUPPORT
E-ABLE POWER — PRODUCT DATASHEET
COMMERCIAL ENERGY STORAGE SOLUTIONS
C&I STACKABLE MODULE30.74–76.8kWh / RACK6–15 MODULES / RACK

GHS-100 Series | High-Voltage Stackable LFP Battery

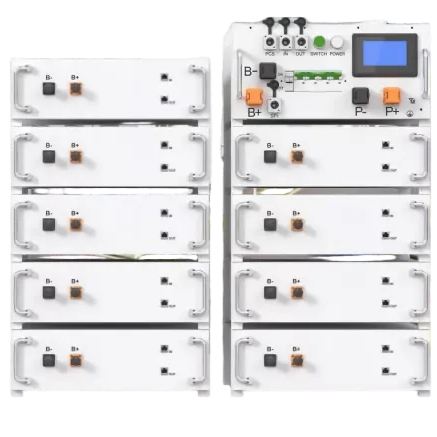

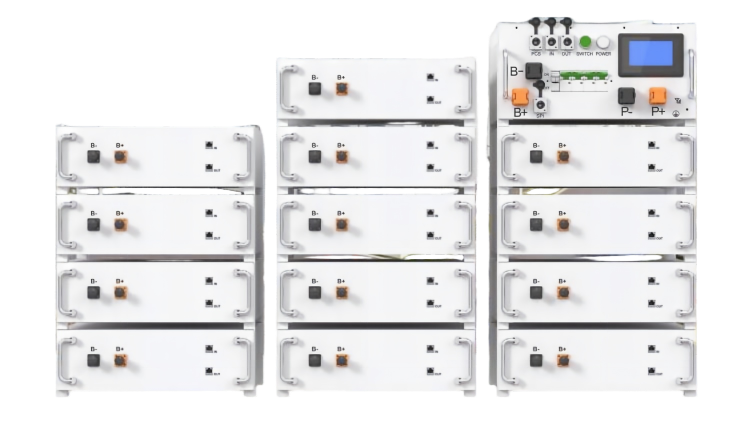

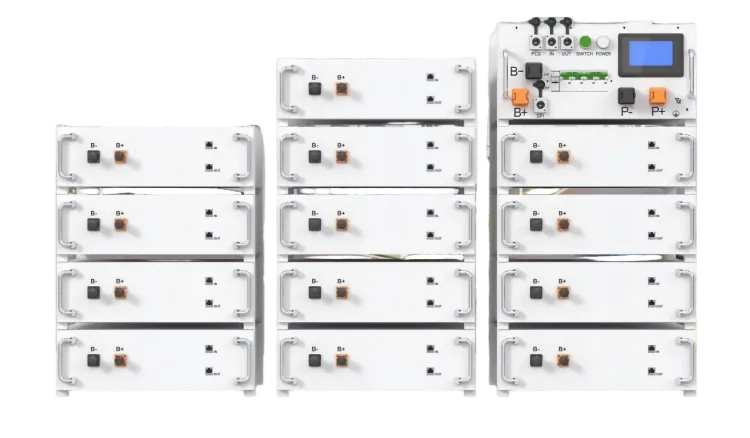

GHS-100 High-Voltage Stackable LFP Battery

A high-voltage stackable LFP battery for commercial energy-storage projects. Each GHS-100 module is rated at 51.2V, 100Ah and 5.12kWh. Configure 6 to 15 modules in series for a rated system voltage of 307.4–768V and rated energy of 30.74–76.8kWh. CAN communication supports listed inverter platforms including Growatt, Solis, Goodwe, Sol-Ark, SRNE and DEYE.

 GHS-100 High-Voltage Stackable LFP Battery

Key Specifications at a Glance

Product Type High-Voltage Stackable LFP Battery Module Rating 51.2V / 100Ah / 5.12kWh
Series Configuration 6–15 Modules System Energy 30.74–76.8kWh
Rated System Voltage 307.4–768V Operating Voltage Range 268.8–345.6V (6S) / 672–864V (15S)
Charge / Discharge 50A / 50A (Recommended) Communication CAN
Inverter Compatibility Growatt, Solis, Goodwe, Sol-Ark, SRNE, DEYE Module Dimensions / Weight 482 × 475 × 133mm / 40.8kg
IP Rating IP20 Warranty 10 Years

Key Engineering Advantages

Ultimate Cycle Life

More than 6,000 cycles at 0.5C, 25°C and 90% DOD are specified for the GHS-100. The LFP chemistry is paired with a 10-year warranty.

Modular Scalability

Series configuration supports 6 to 15 modules, covering 30.74–76.8kWh and a rated voltage range of 307.4–768V. Confirm the final series count against the inverter DC-voltage window before ordering.

Broad Inverter Ecosystem

The datasheet lists Growatt, Solis, Goodwe, Sol-Ark, SRNE and DEYE as compatible inverter brands. CAN is the specified communication port; confirm the exact inverter model and protocol before project release.

Technical Specifications

Category Parameter Specification
General Model / Product Type GHS-100 / High-Voltage Stackable LFP Battery
Application C&I Peak Shaving, Backup Power, UPS / Data Centers, EV Charging Hubs, Microgrids
Charge / Discharge Current 50A / 50A (Recommended)
Battery System Cell Chemistry LiFePO4 (LFP) / 51.2V / 100Ah
Module / Rack Capacity 5.12kWh per Module / 30.74kWh (6S) to 76.8kWh (15S)
DC Voltage Range Rated: 307.4V (6S) to 768V (15S); Operating: 268.8–345.6V (6S) / 672–864V (15S)
Cycle Life / DOD ≥ 6,000 Cycles at 25°C, 0.5C, 90% DOD
Integration Compatible Inverters Growatt, Solis, Goodwe, Sol-Ark, SRNE, DEYE (confirm inverter model before order)
Communication CAN
Humidity Operating: 10%–95% non-condensing; Storage: 5%–95% non-condensing
Environment Charging Temperature 0–55 °C
Discharging Temperature −20–60 °C
Storage Temperature −10–40 °C
Physical Module Dimensions / Weight 482 × 475 × 133 mm / 40.8 kg per Module
Ingress Protection IP20
Warranty 10 Years / >6,000 Cycles (0.5C @ 25°C, 90% DOD)

Table 1.0 — GHS-100 technical specifications. The datasheet states that listed values are experimental data; the actual product shall prevail. Confirm final series configuration and inverter compatibility for each project.

C&I Application Scenarios

Industrial Peak Shaving

Reduce demand charges by discharging during peak tariff windows.
Data Centers

Critical UPS backup with high-voltage DC efficiency.
EV Charging Hubs

Buffer rapid chargers to mitigate grid impact and upgrade costs.
Agricultural Microgrids

Scalable energy autonomy for remote farming operations.

Frequently Asked Questions

Q: What is the GHS-100 series configuration range?

The GHS-100 supports 6 modules in series at minimum and 15 modules at maximum. The datasheet gives a rated energy range of 30.74–76.8kWh, rated voltage of 307.4–768V, and operating-voltage ranges of 268.8–345.6V (6S) or 672–864V (15S). Select the final configuration only after matching the inverter DC-voltage requirement.

Q: How is inverter compatibility validated for my project?

The current GHS-100 datasheet lists Growatt, Solis, Goodwe, Sol-Ark, SRNE and DEYE as compatible inverters, with CAN as the port communication. Provide the exact inverter model and DC-voltage window before order so the series configuration and protocol can be confirmed.

Q: What configuration information is needed for a GHS-100 project?

Specify the selected 6–15 module series count, inverter make/model, DC-voltage window and project energy target. The published module rating is 51.2V / 100Ah / 5.12kWh, with recommended charge and discharge current of 50A. The product carries a 10-year warranty.

Q: What environmental conditions are specified for the GHS-100?

The datasheet specifies charging at 0–55°C, discharging at −20–60°C, and storage at −10–40°C. Operating humidity is 10%–95%, non-condensing; storage humidity is 5%–95%, non-condensing. The enclosure rating is IP20. Design the installation and service clearances in accordance with the local electrical code and the final project drawings.

GHS-100 highlights: LFP chemistry, CAN communication, IP20 protection, >6,000 cycle life (0.5C @ 25°C, 90% DOD), and a 10-year warranty. The datasheet notes that actual product parameters shall prevail.

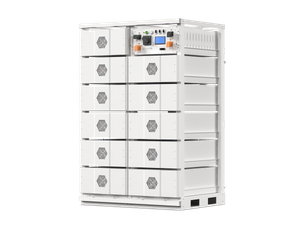

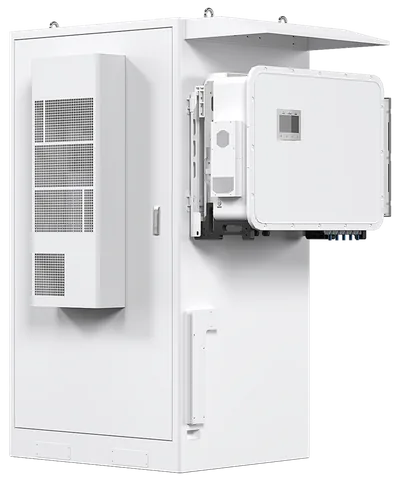

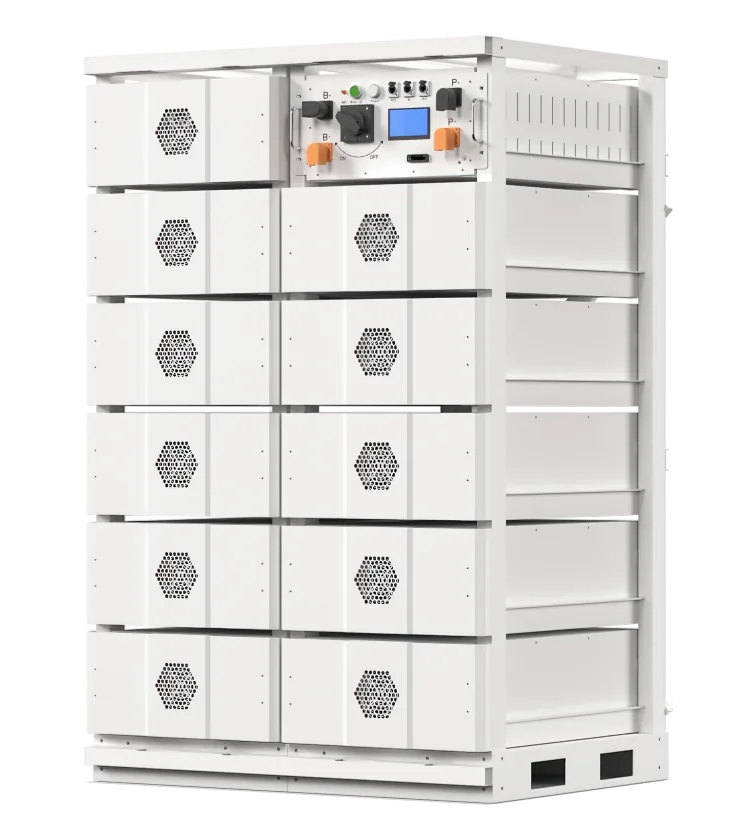

Related Products

Explore Related Products

GHS-100 High-Voltage Battery FAQ

Answers about the GHS-100 stackable high-voltage LFP battery — capacity, voltage, configuration, compatibility, protection and warranty.
1

What is the GHS-100 battery capacity?

+

The GHS-100 provides 30.74-76.8 kWh of usable energy from a 51.2V / 100Ah module, with 6-15 modules connected in series to scale to your commercial or industrial load.

2

What voltage range does the GHS-100 support?

+

It operates at 307.4-768V, configurable with 6-15 modules in series to match your hybrid or off-grid inverter's DC input range.

3

What inverters is the GHS-100 compatible with?

+

The GHS-100 communicates over CAN and is compatible with leading hybrid inverter brands including Growatt, Solis, GoodWe and Sofar.

4

Is the GHS-100 protected against dust, water and impact?

+

It is rated IP20 for indoor installation inside a rack or cabinet and is built to be maintenance-free, with a 3-level smart BMS for voltage, current, temperature and fault protection.

5

What is the battery and warranty life of the GHS-100?

+

The LFP cells provide 6,000+ cycles and the GHS-100 carries a 10-year / >6,000 cycle warranty, making it suited to long-life commercial, microgrid and solar self-consumption projects.

6

Can the GHS-100 be configured for my project?

+

Yes. E-Able Power adapts module count, voltage and configuration to your site and energy requirements, with sizing and quotation support.

Plan a site-appropriate energy-storage system.
Send your load profile, solar plan and project requirements for a source-backed technical proposal.
EMAIL SALES@E-ABLEPOWER.COM →REQUEST A PROJECT QUOTE →
