SolarWrap GeoFlex Foldable Solar Modules
SolarWrap GeoFlex foldable polygonal modules (100W–300W) wrap around the pole in 6-…
View ProductProduct Overview
Pole-mounted photovoltaic solutions

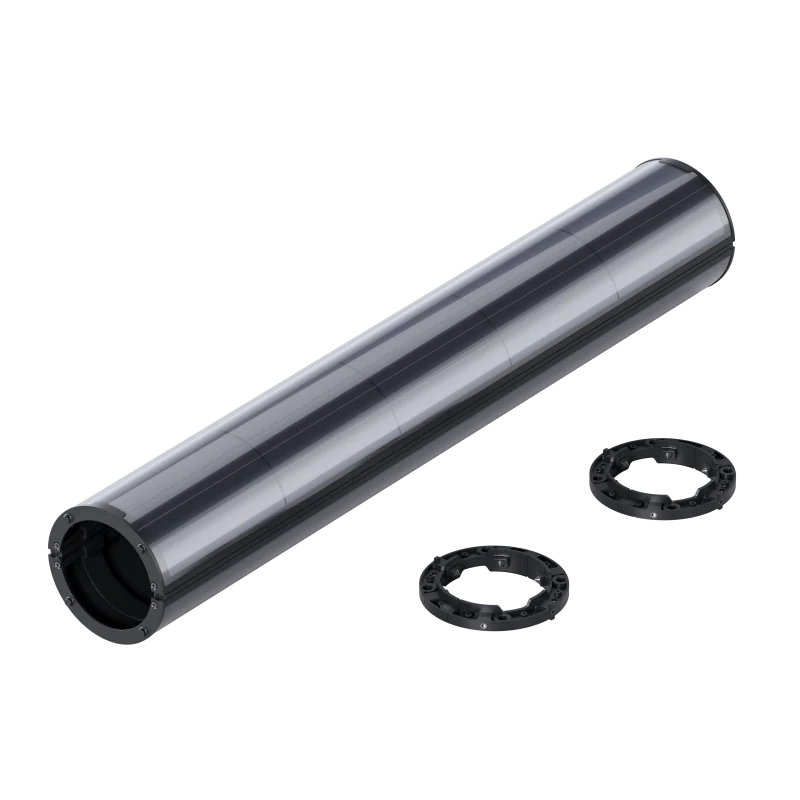

SolarWrap Circular vertical solar tube modules
Tempered-glass circular modules for compatible pole-mounted solar lighting, camera, signal and custom-lighting systems. S80, S100 and S140 models with IP66 protection and clean cylindrical geometry.
Key features
1
360° cylindrical energy capture — the full-wrap tempered-glass cylinder collects light from every azimuth, maximising yield on poles where a flat panel would be partly shaded.
2
Low-drag, wind-rated geometry — the slim round profile minimises wind loading, making it a strong fit for coastal and high-wind streetscapes.
3
IP66 weatherproof housing — tempered-glass cover and sealed aluminium construction stand up to rain, salt and long-term outdoor exposure.
4
Retrofit bracket system — a compatible bracket fits the supplied pole diameter, enabling fast retrofit onto existing lighting and camera poles.
5
Three power classes — S80 (80W), S100 (100W) and S140 (140W) models cover street, garden, camera and area-lighting loads.
6
Low-maintenance design — the smooth cylindrical surface sheds dust and water, reducing cleaning and keeping output stable.
Verified Module Specifications
Verified module specifications
All values below are supplier datasheet values. Confirm the selected model, pole diameter and site conditions before specifying a project.
| Circular series — verified specifications | ||||
|---|---|---|---|---|
| Model | Pmax | Dimensions | Vmp / Imp | Pole Ø |
| S80 | 80W | Ø160 × 1040 mm | 6V / 13.33A | 60–90 mm |

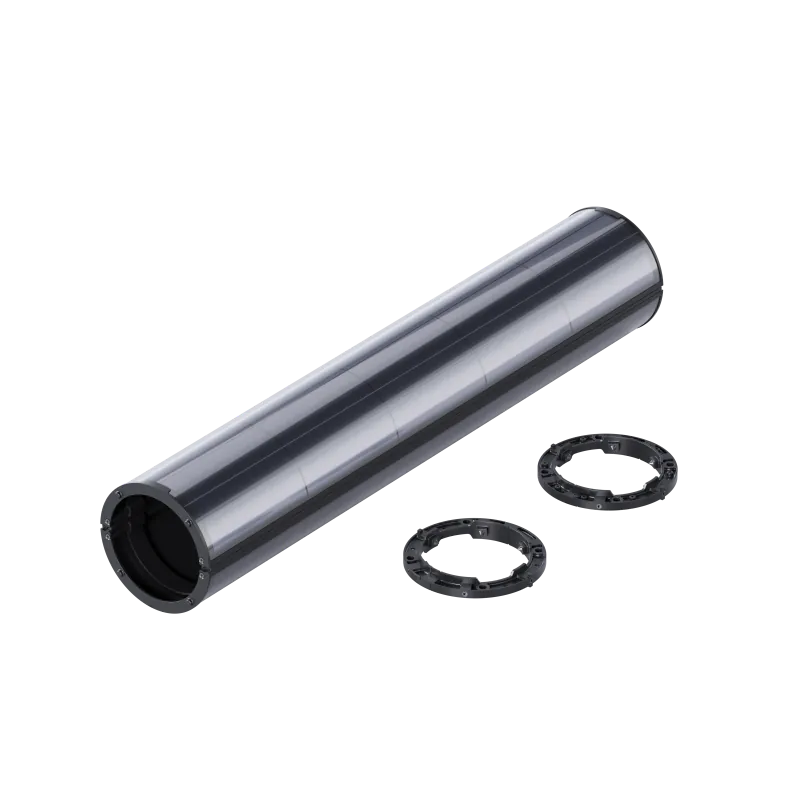

| S100 | 100W | Ø190 × 1040 mm | 6V / 16.67A | 70–120 mm |

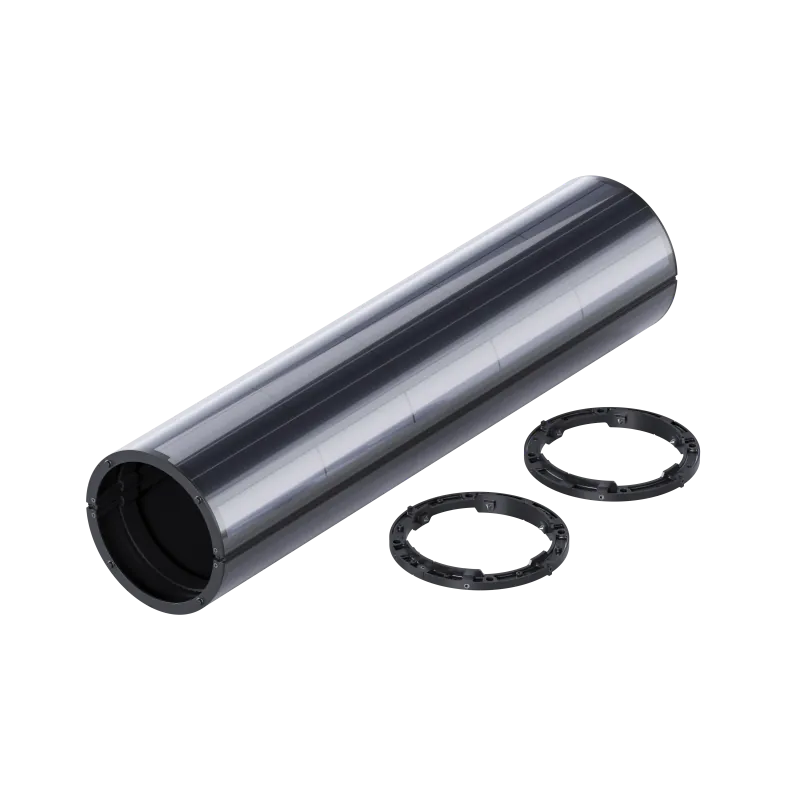

| S140 | 140W | Ø240 × 1040 mm | 9V / 15.55A | 80–170 mm |
Product Gallery

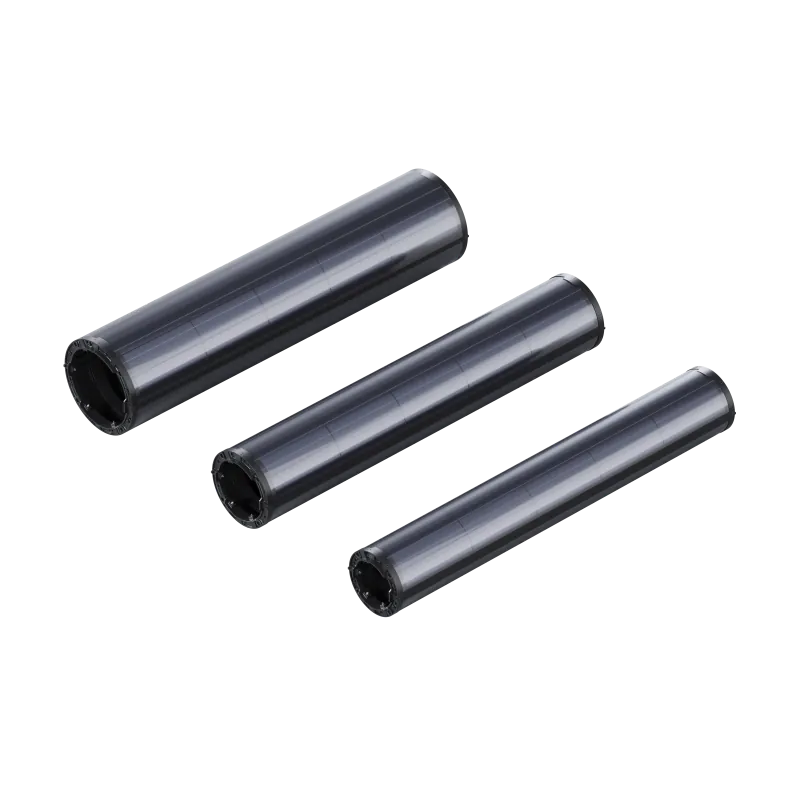

Detailed product imagery of the SolarWrap Circular vertical solar tube modules — power classes, glass tube and assembled pole integration. Click a thumbnail to zoom.
Frequently asked questions
Answers to common questions about SolarWrap Circular vertical solar tube modules sizing, pole fitment, weatherproofing, wind rating and warranty.
1What is a SolarWrap Circular vertical solar tube module?
+
A SolarWrap Circular is a pole-mounted vertical solar module that wraps tempered-glass photovoltaic faces around a lighting pole in a clean cylindrical geometry. The S80, S100 and S140 models produce 80W, 100W and 140W respectively, turning a standard street, garden, camera or area lighting pole into its own solar charging tower.
2What is the difference between the S80, S100 and S140 tube models?
+
The S80 is 1040 mm long at 80W with a 160 mm diameter. The S100 is 1040 mm long at 100W with a 190 mm diameter. The S140 is 1040 mm long at 140W with a 240 mm diameter. The larger S140 fits the widest pole range (80-170 mm) and delivers the highest yield.
3Which pole diameters do the Circular tubes fit?
+
The bracket system is sized to the selected model: the S80 fits 60-90 mm poles, the S100 fits 70-120 mm poles, and the S140 fits 80-170 mm poles. Choose the model that matches your existing pole to enable a weld-free retrofit.
4Are the Circular tubes waterproof and impact resistant?
+
Yes. The tempered-glass cover and sealed aluminium construction are IP66 rated for weatherproof outdoor use, delivering reliable operation in rain, coastal salt and high-wind environments.
5How do vertical solar tubes compare to a flat solar panel?
+
The full-wrap cylindrical face captures sunlight from a wide range of angles through the day, which is ideal where a flat panel would be shaded or where a lower visual profile is preferred. The smooth surface also sheds dust and water, reducing cleaning.
6What is the warranty and expected lifespan of a solar tube module?
+
SolarWrap Circular modules are backed by a 5-year warranty from E-Able Power. The tempered-glass front, encapsulated PV cells and seamless pole integration are built for long-life, low-maintenance municipal and commercial lighting installations.
Related Products
Explore Related Products
Plan your SolarWrap Circular Vertical Solar Tube Modules S80 S100 S140 project.
Send your site conditions, lighting requirements or load profile for a system engineered to your location — DIALux simulation, sizing and pricing within 2–3 business days.
