Post-top solar lights for parks, plazas and street-scale lighting, delivering even distribution and long autonomy without cabling. LiFePO4 batteries and dusk-to-dawn controllers keep them reliable.
PRODUCTSolar Post Top Lights | Architectural Landscape Lighting
TYPESOLAR GARDEN LIGHTING
SUPPORTOEM / ODM
WARRANTY5 Years
Solar post top light range
Post top and garden lights engineered in-house with Grade A LiFePO4 batteries, IP65-rated waterproof housings and intelligent controllers — zero trenching, zero grid connection, dusk-to-dawn autonomy in any climate.
Three architectural profiles (GGD001 Round, GGD002-1 Square L, GGD002-2 Square S) from 12-20W with 3,000-6,500K CCT, dusk-to-dawn sensing, zero trenching. For plazas, pathways and courtyards.
READ PRODUCT BRIEF +
Solar Panel: 5V 20W (GGD001/G002-1) / 5V 12W (G002-2) Monocrystalline
Battery: 3.2V 20,000mAh (64Wh) / 12,000mAh (38Wh) Grade A LiFePO4
Charging Time: 3-5 Hours — Standard Direct Sunlight
Industrial-grade post lights up to 60,000mAh / 38W (TYD5108 / TYD2808) with reinforced glass lens and IK-rated impact resistance — for municipal, coastal and extreme-weather sites.
READ PRODUCT BRIEF +
Solar Panel: 5V 25W (TYD5108) / 5V 38W (TYD2808) Monocrystalline
Battery: 3.2V 36,000mAh / 60,000mAh Grade A LiFePO4
Dark-sky compliant post top light: 2,800lm at 190lm/W, UGR <1% glare-free optics, 154Wh LiFePO4, MPPT controller, up to 5-day autonomy. DIALux simulation included.
READ PRODUCT BRIEF +
Solar PV Power: 38W Monocrystalline Silicon — >22.5% Conversion Efficiency

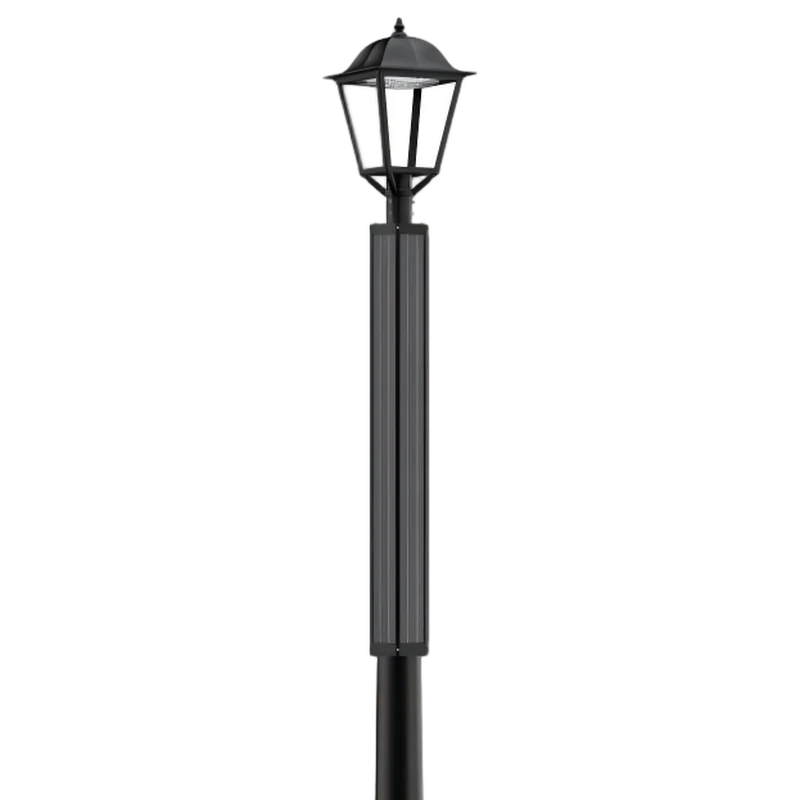

Vertical solar garden light with SolarWrap technology: up to 8,800lm, 3.5-5m height, easy-maintenance battery-in-pole design for modern landscape projects.
READ PRODUCT BRIEF +
Solar PV Power (Max): 140W (Vertical Module)
Battery (LiFePO4 32700): 307.2 WH (12.8V 24AH)
CCT Range / Working Temp: 3000K | 4000K | 6000K / -25°C to +65°C

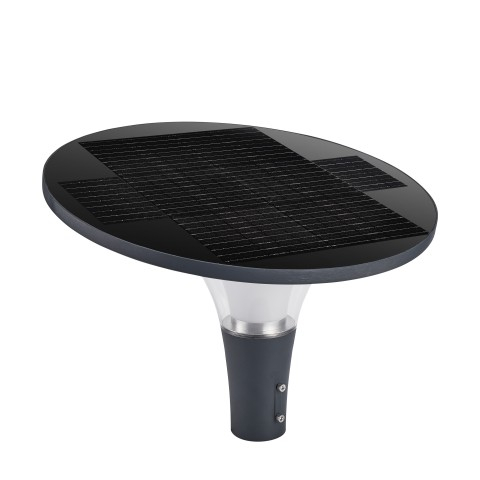

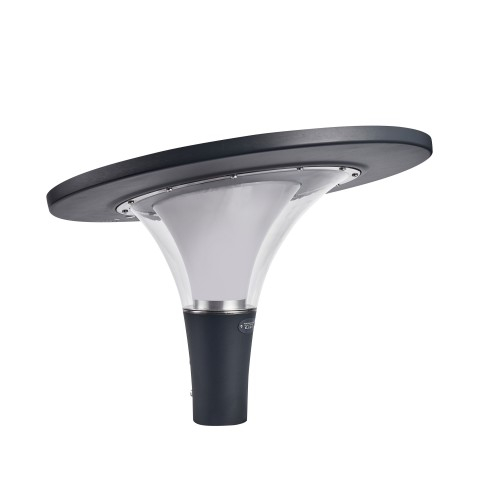

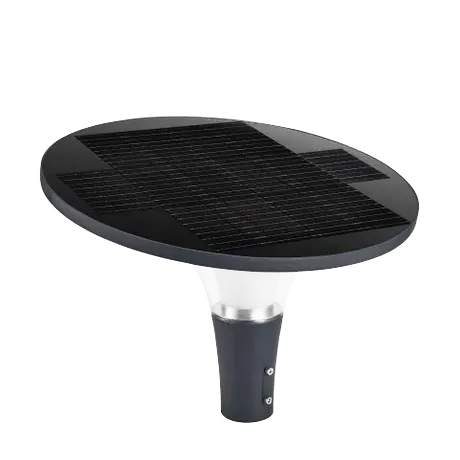

2,800lm of glare-free 360° illumination, 2.4G smart grouping, 10-year LiFePO4 battery, IP65/IK10 durability. For luxury resorts and municipal pathways.
READ PRODUCT BRIEF +
LED Power / Type: 18W (164pcs Ultra-Bright SMD2835)

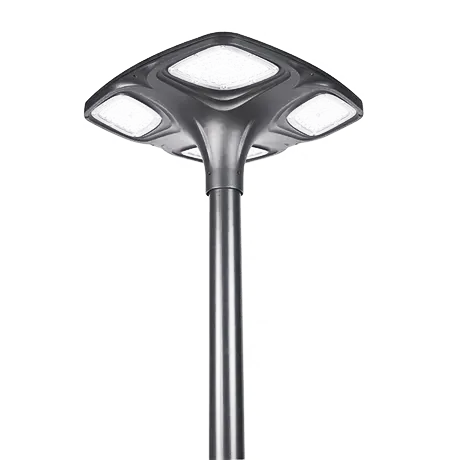

Symbolic four-leaf design with commercial-grade power: 32W panel and 45Ah battery — premium commercial landscape lighting for architects and municipal projects.
Solar Post Top Light GGD-001: 5V / 20W monocrystalline panel, 3.2V / 20Ah (64Wh) LiFePO4, 80 pcs, 480 mm × H440 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 5VW
Solar panel: 5V / 20W
Battery: 3.2V / 20Ah (64Wh)
Input voltage: DC 3.2V
Working time: 3 rainy days
Light source: 2835 LED
Lamp colour: Black; other colours can be customized
Solar Post Top Light GGD-002: 5V / 20W monocrystalline panel, 3.2V / 20Ah (64Wh) LiFePO4, 80 pcs, 400 mm × H410 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 5VW
Solar panel: 5V / 20W
Battery: 3.2V / 20Ah (64Wh)
Input voltage: DC 3.2V
Working time: 3 rainy days
Light source: 2835 LED
Lamp colour: Black; other colours can be customized

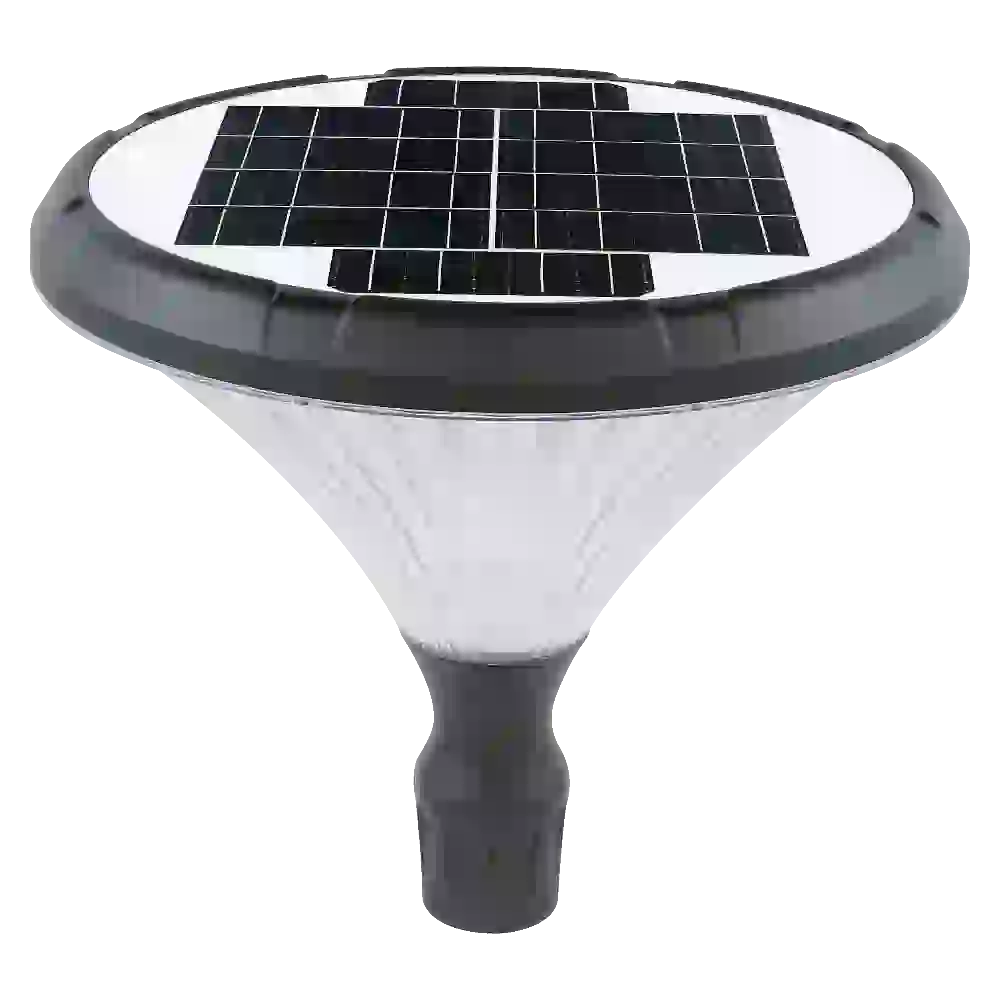

Solar Post Top Light GGD-003: 5V / 25W monocrystalline panel, 3.2V / 30Ah (96Wh) LiFePO4, 160 pcs, 530 mm × H490 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 5VW
Solar panel: 5V / 25W
Battery: 3.2V / 30Ah (96Wh)
Input voltage: DC 3.2V
Working time: 3 rainy days
Light source: 2835 LED
Lamp colour: Black; other colours can be customized
Solar Post Top Light GGD-2005: 5V / 28W monocrystalline panel, 3.2V / 30Ah (96Wh) LiFePO4, 120 pcs, 1070 mm × H300 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 5VW
Solar panel: 5V / 28W
Battery: 3.2V / 30Ah (96Wh)
Input voltage: DC 3.2V
Working time: 3 rainy days
Light source: 2835 LED
Lamp colour: Black; other colours can be customized
Solar Post Top Light TYD-1104: 5V / 25W monocrystalline panel, 3.2V / 30Ah (96Wh) LiFePO4, 160 pcs, 530 mm × H440 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 5VW
Solar panel: 5V / 25W
Battery: 3.2V / 30Ah (96Wh)
Input voltage: DC 3.2V
Working time: 3 rainy days
Light source: 2835 LED
Lamp colour: Black; other colours can be customized

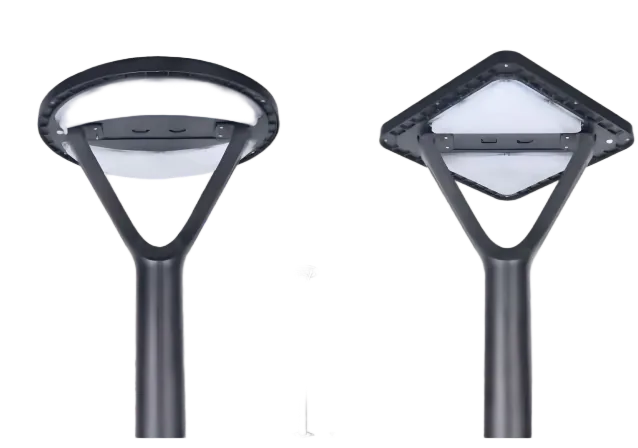

Solar Post Top Light TYD-2403: 5V / 20W monocrystalline panel, 3.2V / 20Ah (64Wh) LiFePO4, 80 pcs, 400 mm × H420 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 5VW
Solar panel: 5V / 20W
Battery: 3.2V / 20Ah (64Wh)
Input voltage: DC 3.2V
Working time: 3 rainy days
Light source: 2835 LED
Lamp colour: Black; other colours can be customized
Solar Post Top Light TYD-2505: 48W / 5V monocrystalline panel, 3.2V / 60Ah (60000mAh) LiFePO4, 208 pcs, 580 mm × 580 mm × H255 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 48W
Solar panel: 48W / 5V
Battery: 3.2V / 60Ah (60000mAh)
Input voltage: DC 3.2V
Working time: 12 hrs (3 – 5 rainy days)
Light source: 2835 LED
Lamp colour: Black; other colours can be customized
Solar Post Top Light TYD-2508: 20W / 5V monocrystalline panel, 3.2V / 20Ah (20000mAh) LiFePO4, 80 pcs, 415 mm × H385 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 20W
Solar panel: 20W / 5V
Battery: 3.2V / 20Ah (20000mAh)
Input voltage: DC 3.2V
Working time: 12 hrs (3 – 5 rainy days)
Light source: 2835 chip
Lamp colour: Black; other colours can be customized
Solar Post Top Light TYD-2609: 36W / 5V monocrystalline panel, 3.2V / 45Ah (45000mAh) LiFePO4, 150 pcs, φ585 mm × H550 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 36W
Solar panel: 36W / 5V
Battery: 3.2V / 45Ah (45000mAh)
Input voltage: DC 3.2V
Working time: 12 hrs (3 – 5 rainy days)
Light source: 3030 chip
Lamp colour: Black; other colours can be customized

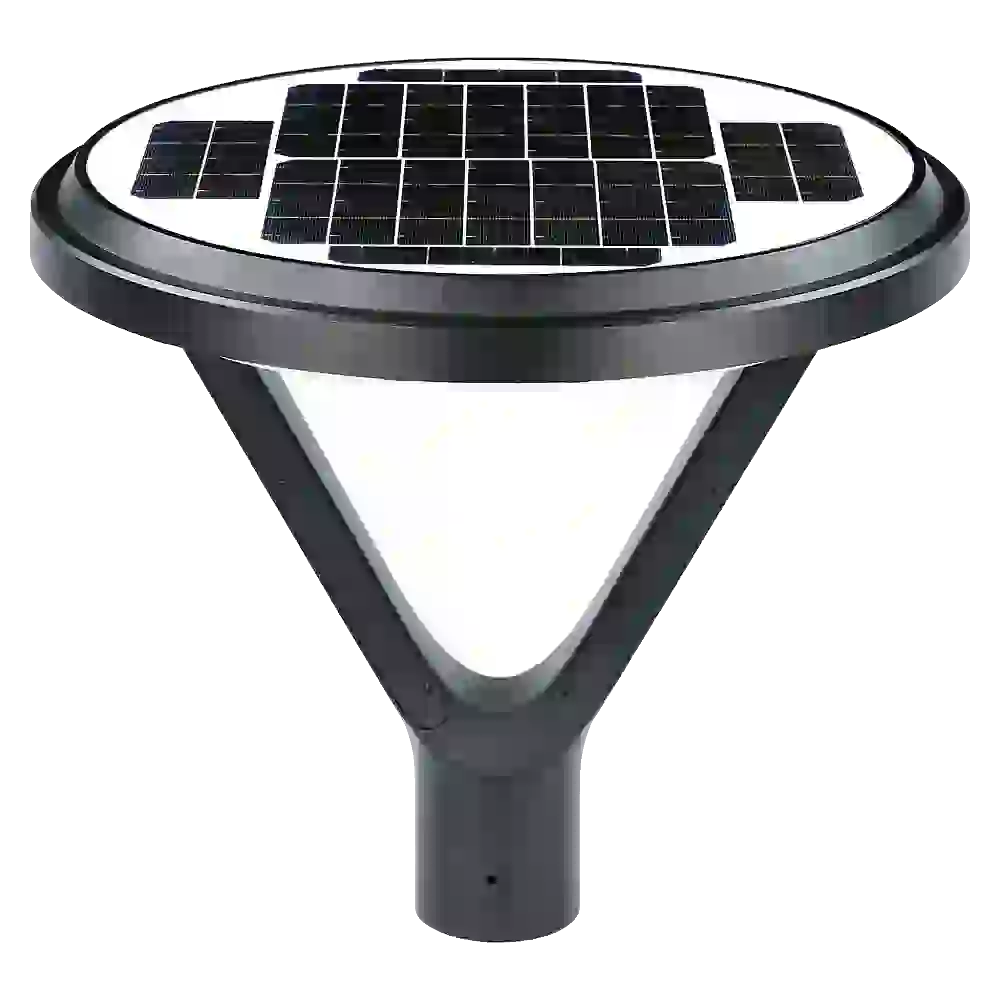

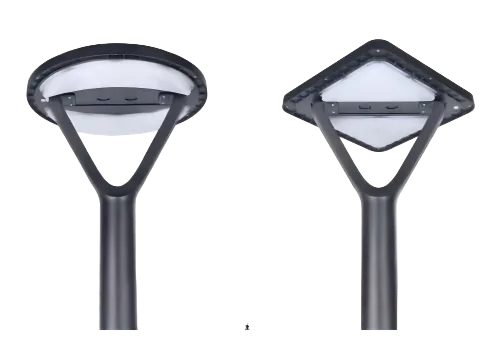

Solar Post Top Light TYD-2705: 5V / 20W monocrystalline panel, 3.2V / 20Ah (64Wh) LiFePO4, 80 pcs, 480 mm × H410 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 5VW
Solar panel: 5V / 20W
Battery: 3.2V / 20Ah (64Wh)
Input voltage: DC 3.2V
Working time: 3 rainy days
Light source: 2835 LED
Lamp colour: Black; other colours can be customized

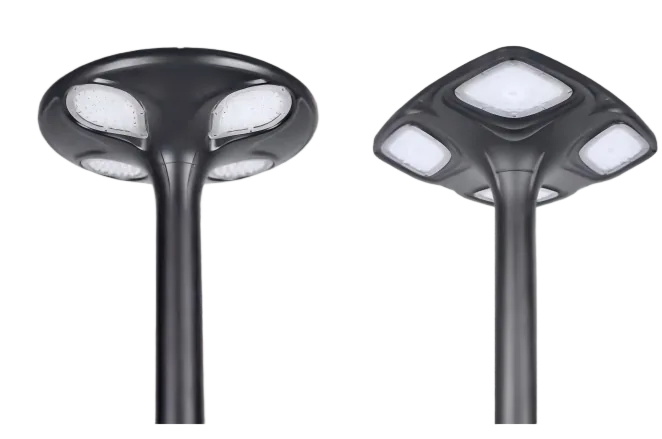

Solar Post Top Light TYD-2806: 36W / 5V monocrystalline panel, 3.2V / 45Ah (45000mAh) LiFePO4, 160 pcs, φ585 mm × φ78 mm × H215 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 36W
Solar panel: 36W / 5V
Battery: 3.2V / 45Ah (45000mAh)
Input voltage: DC 3.2V
Working time: 12 hrs (3 – 5 rainy days)
Light source: 3030 LED
Lamp colour: Black; other colours can be customized
Solar Post Top Light TYD-4206: 36W / 5V monocrystalline panel, 3.2V / 48Ah (48000mAh) LiFePO4, 60 pcs, 550 mm × H510 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 36W
Solar panel: 36W / 5V
Battery: 3.2V / 48Ah (48000mAh)
Input voltage: DC 3.2V
Working time: 12 hrs (3 – 5 rainy days)
Light source: 5054 chip
Lamp colour: Black; other colours can be customized
Solar Post Top Light TYD-4208: 62W / 5V monocrystalline panel, 3.2V / 100Ah (100000mAh) LiFePO4, 100 pcs, 590 mm × 590 mm × H505 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 62W
Solar panel: 62W / 5V
Battery: 3.2V / 100Ah (100000mAh)
Input voltage: DC 3.2V
Working time: 12 hrs (3 – 5 rainy days)
Light source: 5054 chip
Lamp colour: Black; other colours can be customized
Solar Post Top Light TYD-5105: 52.5W / 18V monocrystalline panel, 3.2V / 60Ah (60000mAh) LiFePO4, 240 pcs (3 heads), 1660 mm × H435 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 52.5W
Solar panel: 52.5W / 18V
Battery: 3.2V / 60Ah (60000mAh)
Input voltage: DC 3.2V
Working time: 12 hrs (3 – 5 rainy days)
Light source: 3030 LED
Lamp colour: Black; other colours can be customized
Solar Post Top Light TYD-5106: 33W / 5V monocrystalline panel, 3.2V / 45Ah × 3 LiFePO4, 180 pcs (3 mould), 1260 mm × H390 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 33W
Solar panel: 33W / 5V
Battery: 3.2V / 45Ah × 3
Input voltage: DC 3.2V
Working time: 12 hrs (3 – 5 rainy days)
Light source: 3030 LED
Lamp colour: Black; other colours can be customized
Solar Post Top Light TYD-5108: 5V / 25W monocrystalline panel, 3.2V / 36Ah (115.2Wh) LiFePO4, 100 pcs, 630 mm × H495 mm, IP65. For pathway and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 5VW
Solar panel: 5V / 25W
Battery: 3.2V / 36Ah (115.2Wh)
Input voltage: DC 3.2V
Working time: 3 rainy days
Light source: 5054 LED
Lamp colour: Black; other colours can be customized
Solar Post Top Light GGD-006: 5V / 20W monocrystalline panel, 3.2V / 20Ah (20000mAh) LiFePO4, 80 pcs, ø480 mm × H405 mm, IP65. For pathway, courtyard and landscape lighting.
READ PRODUCT BRIEF +
Rated power: 5VW
Solar panel: 5V / 20W
Battery: 3.2V / 20000mAh
Input voltage: DC 3.2V
Working time: 12 hours (3 – 5 rainy days)
Light source: 3030 SMD LED chip
Lamp colour: Black; other colours can be customized
LED quantity: 3030 SMD LED chip
Project-ready solar lighting
Factory-direct manufacturing
Engineered and produced in-house with Grade A LiFePO4 cells, IP-rated housings and intelligent controllers.
Configured to your site
Wind resistance, lux levels, autonomy and mounting height optimized for your project conditions and climate.
OEM / ODM customization
Custom branding, housing, materials and configurations developed to match your product line and market.
Frequently asked questions
Answers to common questions about solar post top lights for parks, plazas and street-scale lighting — luminaire output, pole mounting, battery autonomy, weatherproofing and project customisation.
1
What is a solar post top light?
+
A solar post top light is a self-contained off-grid luminaire mounted on the top of a pole, post or pillar. It pairs an integrated monocrystalline solar panel with a Grade A LiFePO4 battery, a dusk-to-dawn controller and an LED light engine, so the fixture delivers reliable illumination in parks, plazas, campus walkways and streetscapes without any mains wiring or trenching.
2
How tall should a solar post top light pole be?
+
Post top lights are typically mounted at 3-5 m for pedestrian and landscape lighting, and up to 6-8 m for street-scale or area applications. The right height depends on the space between fixtures, the target lux level and the road or path width. E-Able Power recommends a lighting layout so brightness stays even and energy use stays low.
3
How many nights of battery autonomy do post top lights provide?
+
Most E-Able Power post top lights are configured for 3-5 rainy or overcast days of autonomy at the target operating schedule. Larger units with higher-capacity LiFePO4 banks (up to 60,000mAh / 192Wh) can be sized for longer backup in regions with extended cloudy periods.
4
Are solar post top lights weatherproof?
+
Yes. The die-cast aluminium housing and anti-UV polycarbonate diffuser are IP65 rated for rain, dust and coastal salt, and the LED array is protected against moisture and impact. This makes them suitable for year-round outdoor use in municipal, commercial and residential settings.
5
What is the difference between post top and pillar lights?
+
A post top light is mounted on top of a pole to cast light outward over a wide area, while a pillar (post cap) light sits directly on a gatepost, boundary wall or pier and is more decorative. Post top lights deliver higher output and reach for real illumination, whereas pillar lights are chosen for architectural accent lighting at close range.
6
Can E-Able Power customise a solar post top light for my project?
+
Yes. E-Able Power engineers each unit factory-direct — configuring LED wattage and lumen output, CCT (3000K/4000K), battery capacity, mounting height, housing finish, dark-sky optics and OEM/ODM branding, with DIALux simulation and sizing support for your site.
Plan your Solar Post Top Lights project.
Send your site conditions, lighting requirements or load profile for a system engineered to your location — DIALux simulation, sizing and pricing within 2–3 business days.
