Monocrystalline panel
5V / 20W solar input for the solar-powered version.
Product overview
Light the space.
Keep it efficient.
GGD-001 is a solar garden light from E-Able Power, combining a 5V solar panel, 3.2V / 20Ah (64Wh) battery and 2835 LED output in a weather-protected IP65 housing.
The source-pack specification documents 480 mm × H440 mm. It is designed for pole-top mounting in parks, residential streets and municipal applications.
Selection note: select the preferred size and colour temperature for the layout, then confirm local site conditions before final configuration.
LiFePO4 battery
3.2V / 20Ah (64Wh) battery configuration from the supplied specification.
Weather-protected housing
IP65 rated construction for outdoor use.
Even light distribution
2835 LED source with 3000K – 6500K colour temperature range.
Verified specifications
Technical data, made easy to compare.
Solar & electrical
- Solar panel5V / 20W
- Battery3.2V / 20Ah (64Wh)
- Rated power5VW
- Input voltageDC 3.2V
- Working time3 rainy days
Optical performance
- Light source2835 LED
- LED quantity2835 LED
- Colour temperature3000K – 6500K
- Luminous flux822 lm
- Colour rendering—
- Beam angle360°
Construction & dimensions
- MaterialDie-cast aluminum
- Lamp colourBlack; other colours can be customized
- Net weight—
- Size480 mm × H440 mm
- InstallationPole-top
Operating environment
- Waterproof levelIP65
- Operating temperature-25°C – 65°C
- Working humidity—
Applications

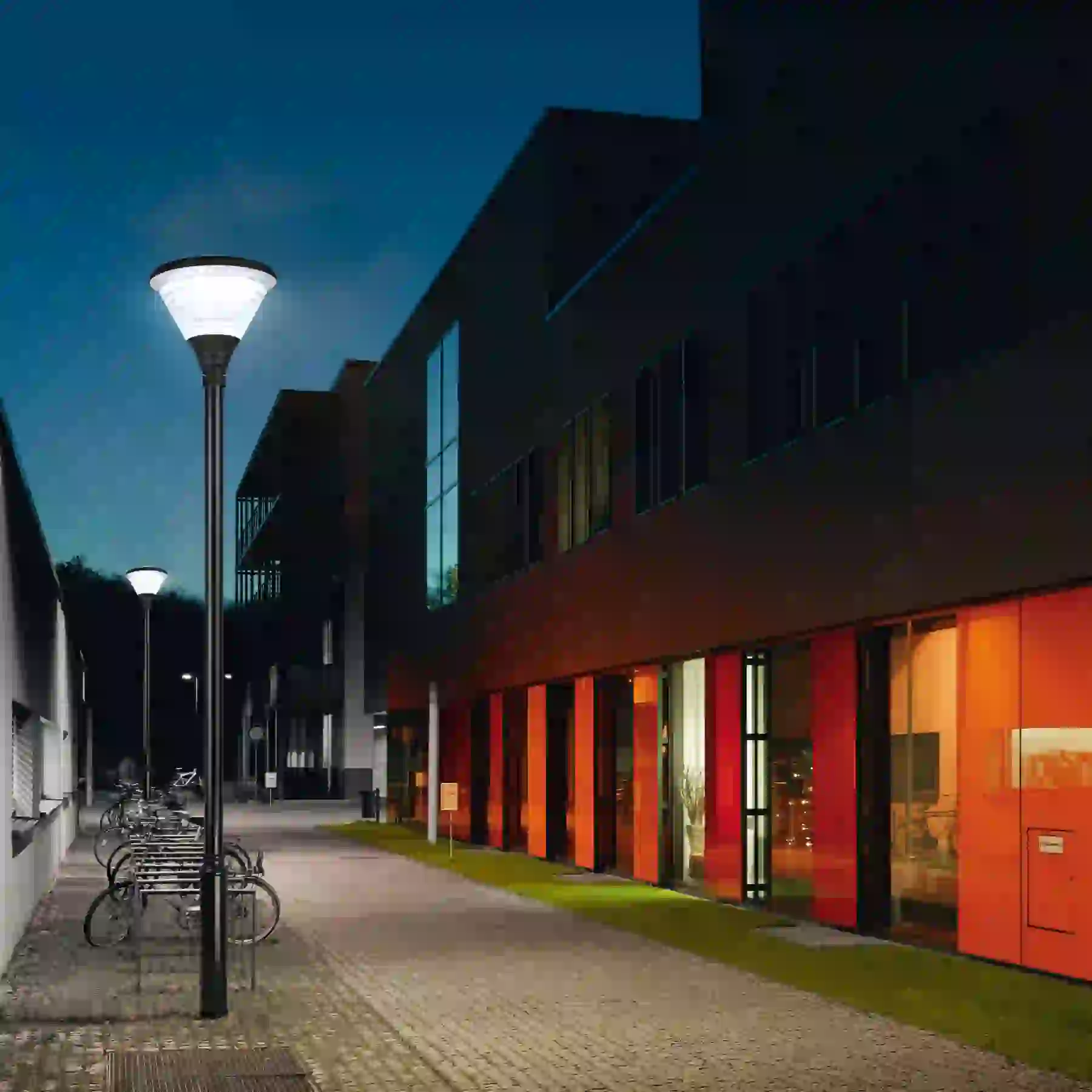

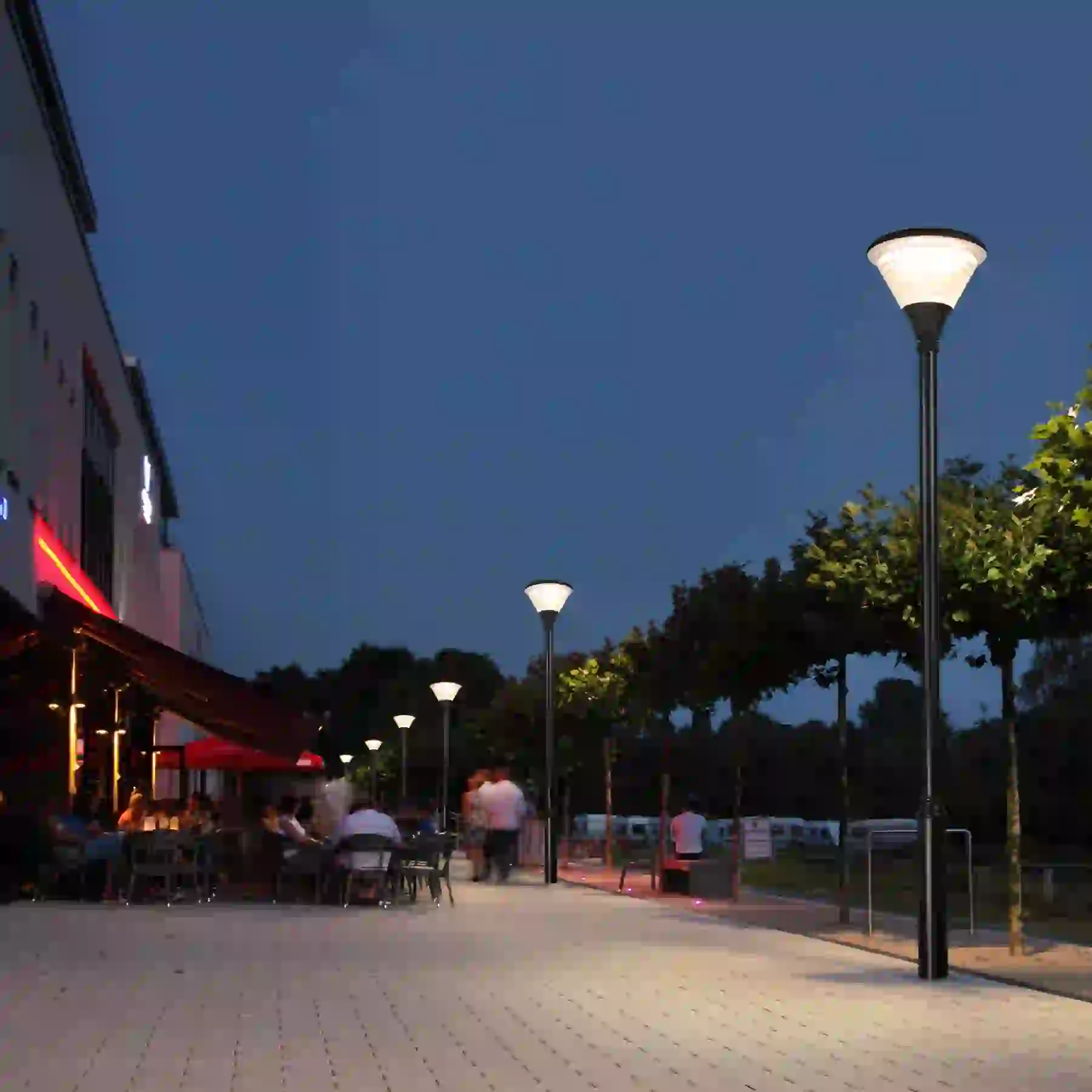

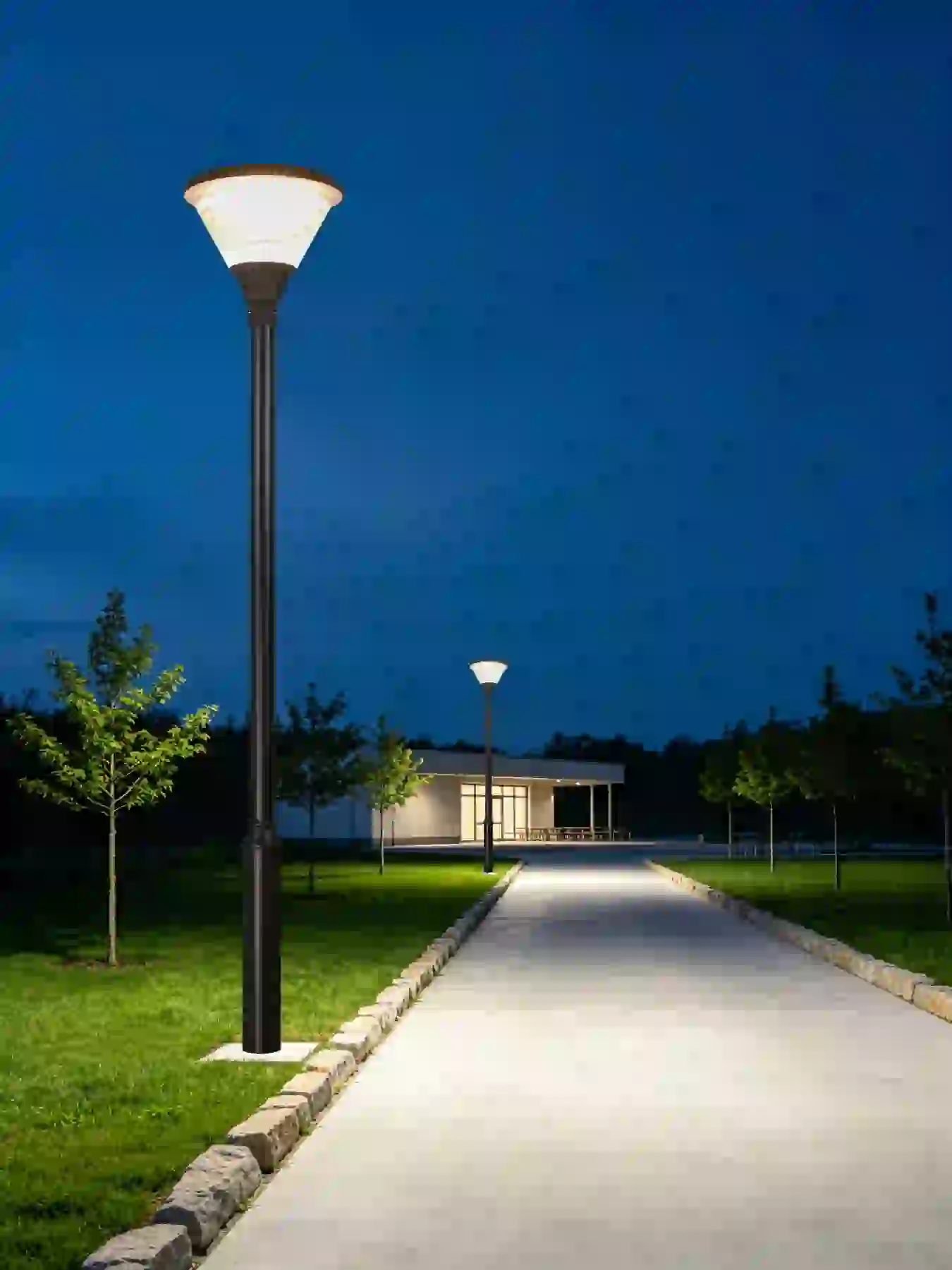

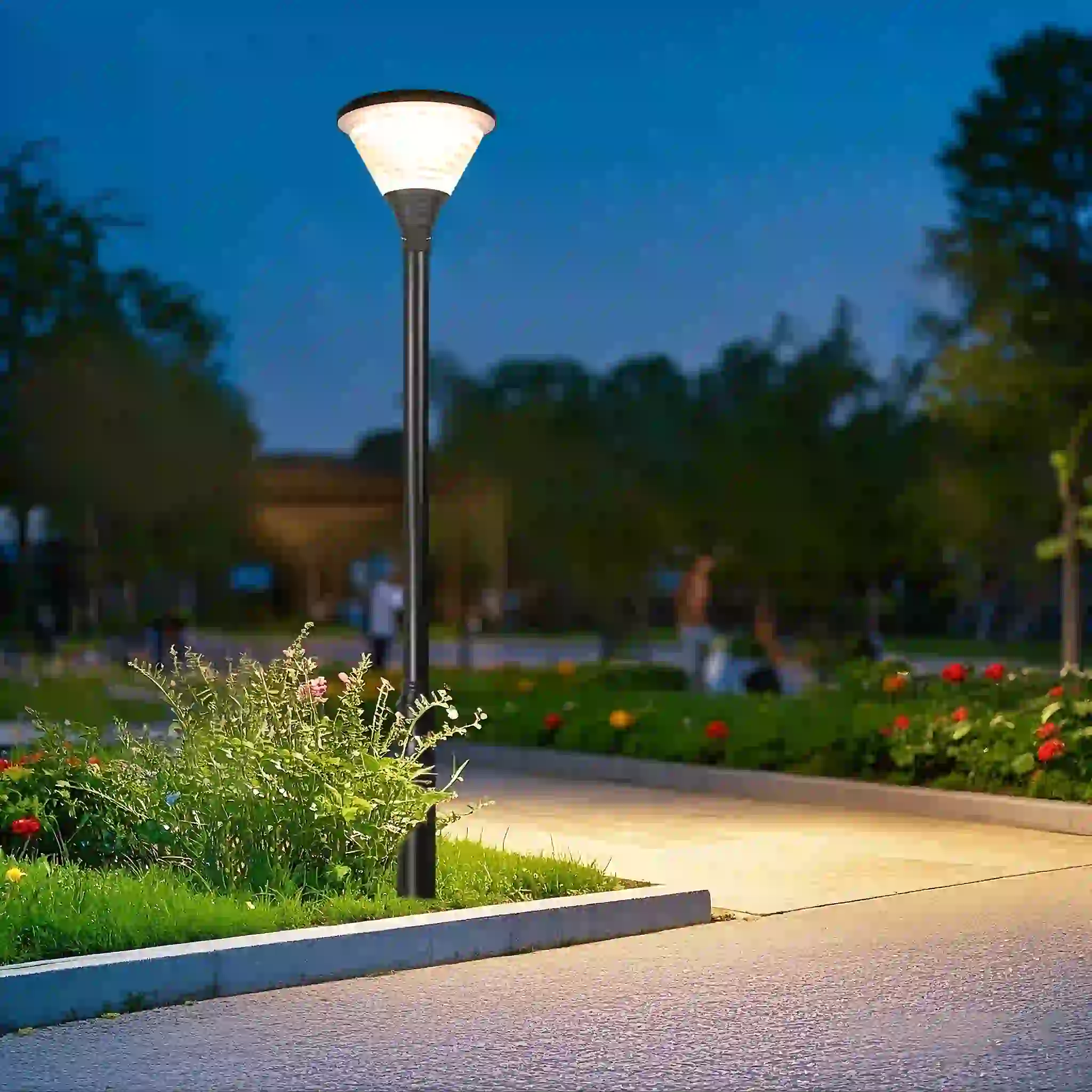

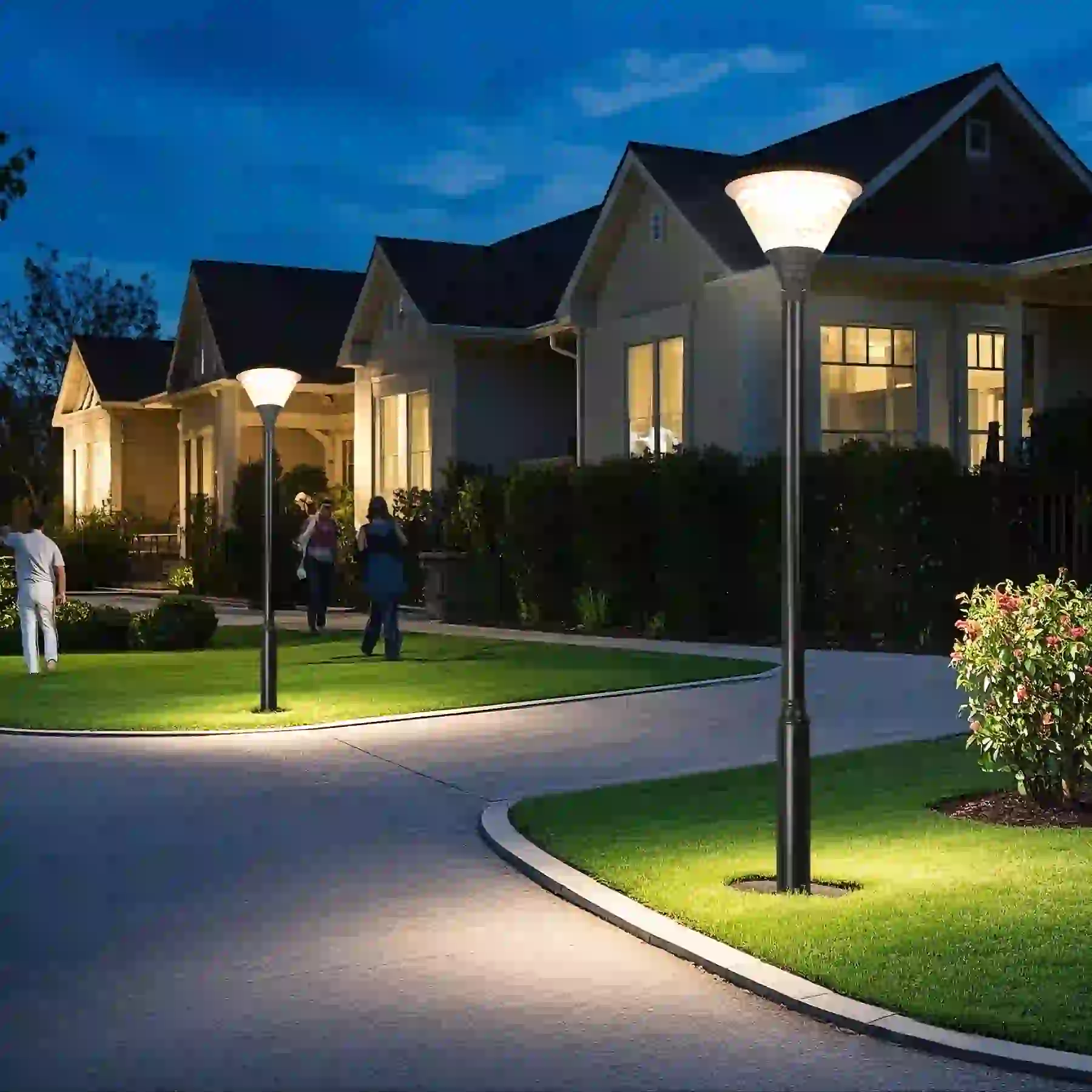

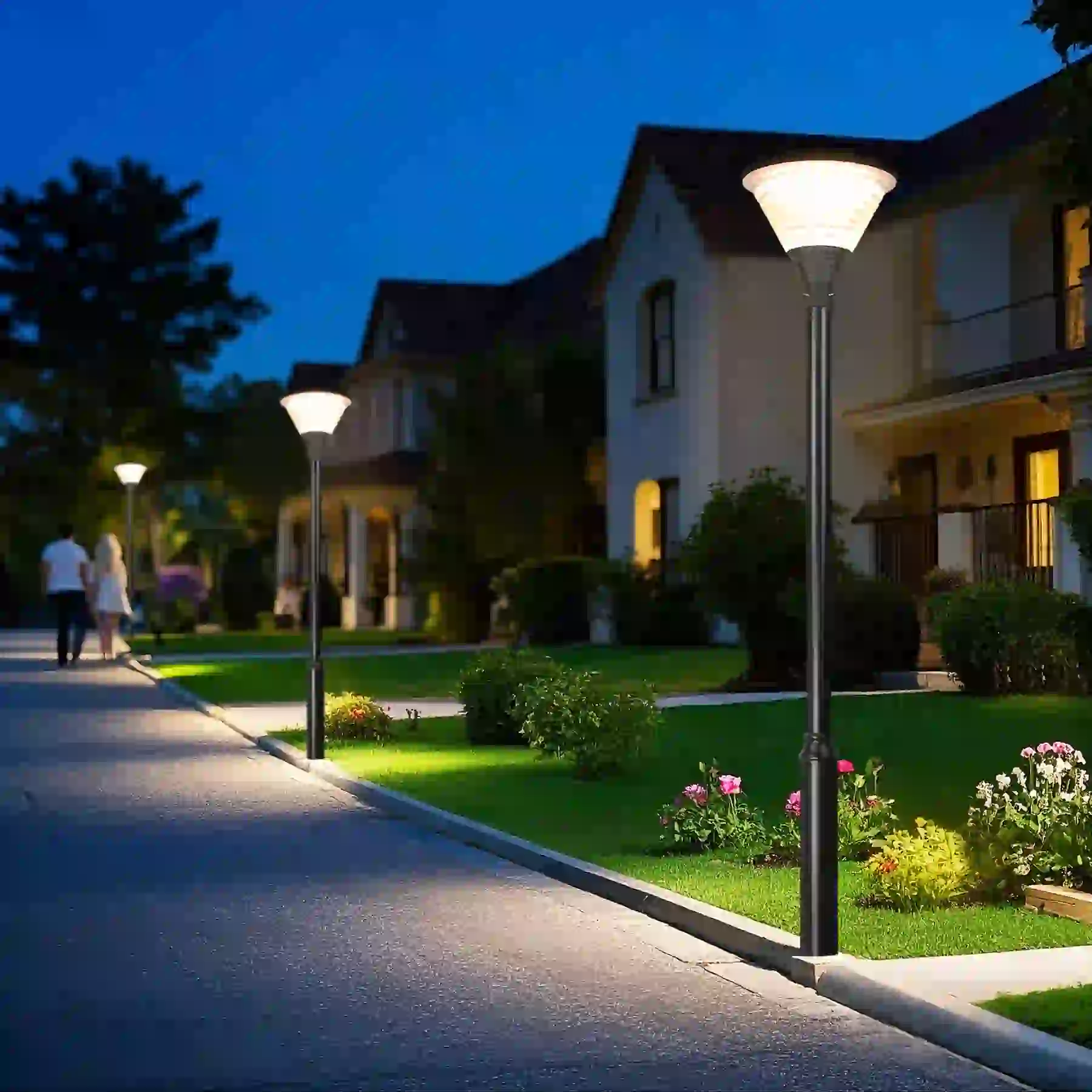

Lighting for pathways, entries and planted edges.
FAQ
Common questions.
1What sizes is the GGD-001 available in?
+
The GGD-001 comes in 480 mm × H440 mm.
2How long does the GGD-001 run on a full charge?
+
It runs on a 3.2V / 20Ah (64Wh) battery and provides 3 rainy days of working time.
3Is the GGD-001 weatherproof?
+
Yes. It is built from Die-cast aluminum and rated IP65 for outdoor exposure.
4What colour temperature and brightness does the GGD-001 offer?
+
It offers 3000K – 6500K with roughly 822 lm luminous flux.
5How and where should the GGD-001 be installed?
+
It is designed for pole-top mounting.
6What powers the GGD-001?
+
A 5V / 20W monocrystalline solar panel charges the on-board battery.
7Can the GGD-001 be customised for a project?
+
Yes — configuration and colour options can be adapted. Contact us with your site and lighting requirements to review a GGD-001 configuration.
Project support
Plan your solar lighting layout.
Share the layout, installation height and preferred colour temperature. Our team can help review a suitable GGD-001 configuration.
