E-ABLE POWER / SOLAR LIGHTING

Sailing SeriesAll-In-Two Solar

Sailing series all-in-two solar street light, built for reliable performance with an independent panel for optimum solar capture. High-capacity battery and integrated LED head for steady output.

EXPLORE THE RANGE →REQUEST PROJECT SUPPORT

Sailing Series | All-in-Two Coastal & High-Wind Lighting

Sailing Series All-in-Two Solar Street Light

Designed for coastal roads, islands and high-wind environments, the Sailing Series is an all-in-two solar street light with a low-drag aerodynamic housing and marine-grade anti-corrosion coating. It pairs an independently adjustable monocrystalline solar panel (360° horizontal / 60° vertical) with an integrated lamp head housing the up to 185LM/W Philips LED array, LiFePO4 battery and MPPT controller. Available in models from 30W/6,000lm to 100W/20,000lm (RS-SL80P to RS-SL300P) for 6–10m poles, with IP66 salt-spray sealing, wind-resistant construction, and OEM/ODM + DIALux simulation — the smart choice for distributors and project engineers installing wind-resistant solar street lighting.

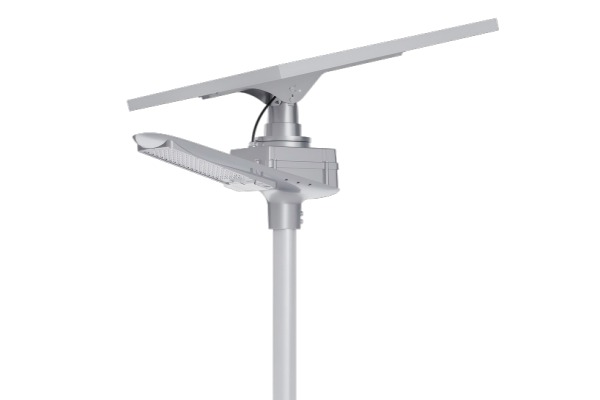

Sailing Series all-in-two solar street light with aerodynamic body, rectangular solar panel and curved LED lamp head
Key Innovation Advantages

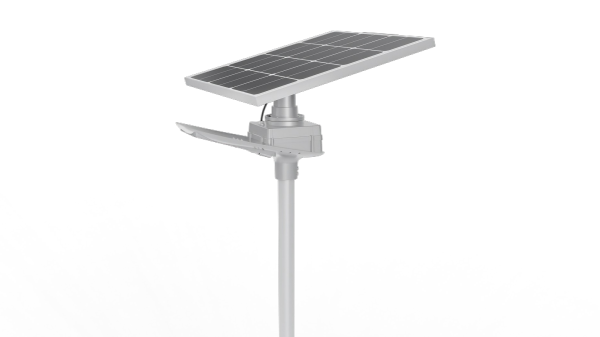

A white solar street light with a rectangular solar panel mounted on top and a winged LED lamp housing attached to a vertical pole.

Aerodynamic Wind Resistance

The slim, tapered design of the lamp body reduces wind load, making it the safest choice for tropical storm-prone areas and coastal highways.

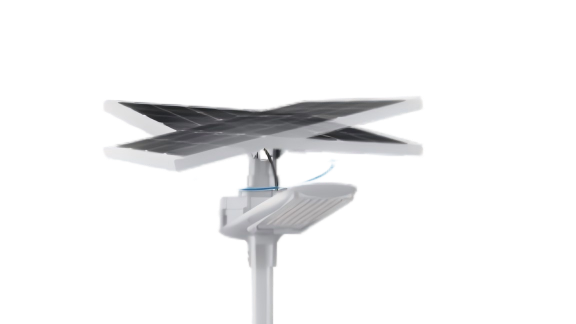

A white solar street light with a cross-shaped photovoltaic panel array and an integrated LED lamp head mounted on a pole against a white ba

Independent Solar Tracking

The split-panel design allows for 360-degree horizontal and 60-degree vertical adjustment, ensuring maximum energy harvesting at any latitude.

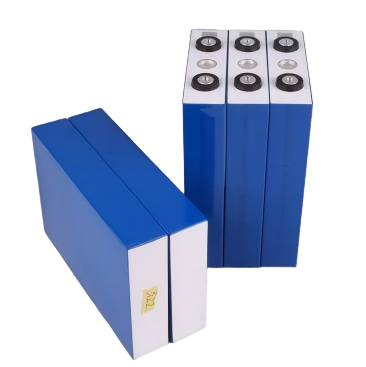

Several blue rectangular batteries with white tops and metal terminals arranged on a white background.

Optimized Power-to-Weight

High-capacity LiFePO4 batteries are integrated into the lamp head, allowing for a lighter pole load while supporting LED outputs up to 100W.

Model Performance Matrix
Model LED Power Lumens Solar Panel Battery Mounting
RS-SL80P 30W 6,000lm 60W 192Wh 6-7m
RS-SL100P 40W 8,000lm 80W 256Wh 7-8m
RS-SL120P 50W 10,000lm 80W 320Wh 7-8m
RS-SL120-A 60W 12,000lm 100W 384Wh 8-10m
RS-SL200P 80W 16,000lm 120W 512Wh 8-10m
RS-SL300P 100W 20,000lm 150W 640Wh 9-10m
Technical Specifications & Dimensions
Luminous Efficacy Up to 185LM/W (Philips 5050 / 3030)
Solar Module High-Efficiency Monocrystalline (A-Grade)
Battery Tech Premium LiFePO4 (Internal Smart BMS)
Controller High-Efficiency MPPT
Housing Die-Cast Aluminum with Sea-Salt Coating
Temp Range -25°C to +65°C
Ingress Grade IP66 Waterproof & Dustproof

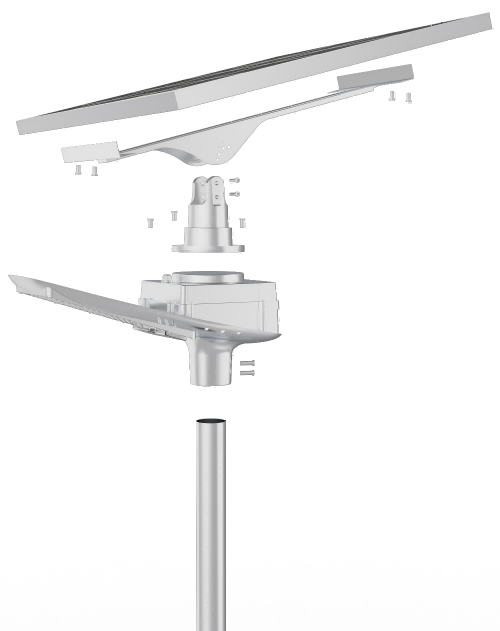

An exploded view diagram of a modern, sleek street light featuring a solar panel, head assembly, and pole.

Ideal Applications

Built for projects where coastal salt, steady wind and long, dark hours demand a corrosion-proof, high-output fixture — in a slim low-drag body that installs fast on any pole.

  • Coastal Boulevards: High-wind resistance and anti-corrosion coating for ocean-side roads and salt-laden sea air.

  • Island Infrastructure: Corrosion-resistant, salt-spray-tested lighting for maritime regions and high-humidity islands.

  • Commercial Ports: High-wattage coverage for shipping container yards, logistics hubs and heavy-duty cargo zones.

  • Smart City Expressways: Modern low-drag design meets industrial-strength LED output for multi-lane roads.

  • Wind Farms & Coastal Campsites: IP66 sealing and an aerodynamic body for exposed, gust-prone locations.

  • Perimeter & Security Lighting: Reliable autonomous operation for remote compounds and boundary zones.

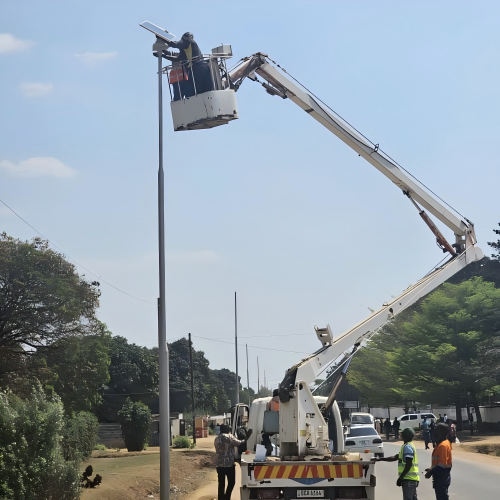

Two workers in a bucket truck are elevated to repair a street light pole.

Sailing Series Frequently Asked Questions

What makes the Sailing Series different from other all-in-two solar street lights?
Its low-drag aerodynamic housing and marine-grade anti-corrosion coating. The tapered lamp body reduces wind load for coastal and storm-prone areas, while the sea-salt coating and IP66 sealing are specifically tested for salt-spray and high-humidity island environments.
Why choose an all-in-two over an all-in-one or fully split system for coastal projects?
An all-in-two solar street light gives you the panel orientation flexibility of a split system — the solar panel can be rotated 360° horizontally and 60° vertically for maximum harvest at any latitude — while keeping the LiFePO4 battery and MPPT controller integrated in the lamp head. Fewer exposed components and no ground-level wiring means fewer corrosion failure points near the sea.
Which Sailing Series model should I choose for my road?
Selection is based on pole height and road width: RS-SL80P / RS-SL100P for 6–8m poles on collector roads and coastal boulevards; RS-SL120P / RS-SL120-A for 7–8m poles; RS-SL200P / RS-SL300P for 8–10m poles on expressways, ports and logistics yards. Provide your road width and target lux for a precise DIALux simulation and sizing.

Explore Related Solar Lighting Solutions

Explore Related Products

Plan your Sailing Series All-in-Two Solar Power Street Light project.

Send your site conditions, lighting requirements or load profile for a system engineered to your location — DIALux simulation, sizing and pricing within 2–3 business days.
