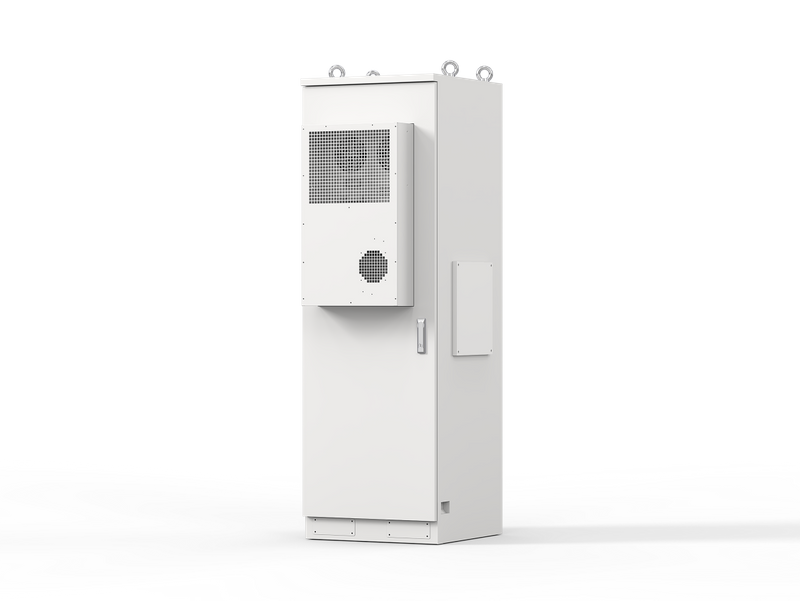

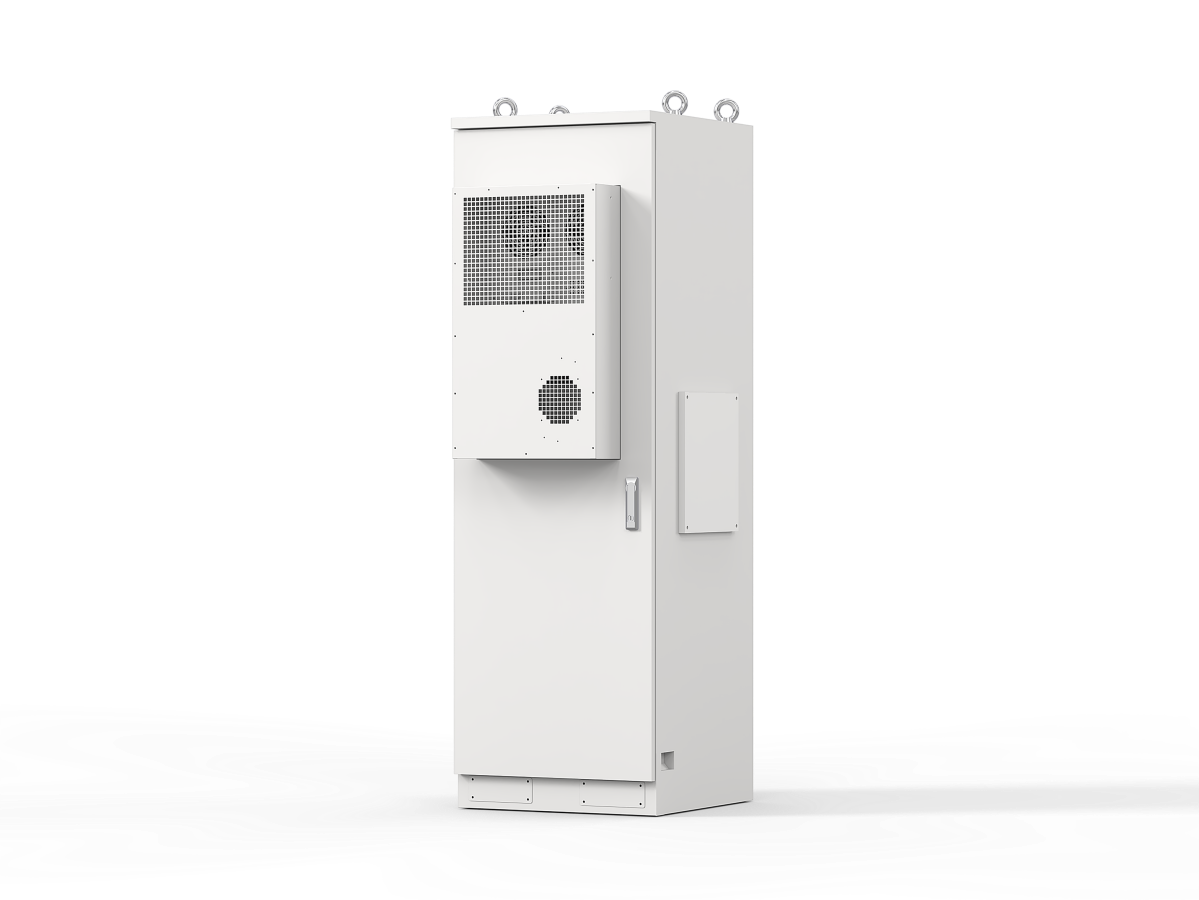

GCB-E112 C & I Energy Storage System
A factory-integrated 50kW / 112.53kWh all-in-one BESS cabinet using seven 51.2V /…
View Product| E-ABLE POWER — PRODUCT DATASHEET COMMERCIAL ENERGY STORAGE SOLUTIONS | INDUSTRIAL GRADE50kW / 50kWh CAPACITY10-YEAR WARRANTY |
Key Specifications at a Glance
| Rated Power | 50kW Charge / Discharge | Rated Energy | 50 kWh — 10 × 51.2V / 100Ah Packs |
| Battery Cells | LFP 100Ah | Battery Pack | 51.2V / 100Ah |
| Rated Voltage | 512V (10 Modules in Series) | Voltage Range | 448–576V |
| Cycle Life | 6,000 Cycles at 90% DOD | System Efficiency | ≥ 90% |
| Enclosure Rating | IP54 — Outdoor-Grade | Dimensions (W×D×H) | 780 × 640 × 2000 mm |
| System Weight | 625 kg | Warranty | 10 Years |
| Communication | RS485 / CAN | Fire Protection | Integrated Fire Protection System |
Key Industrial Features
Fast Charging SpeedHigh charge and discharge efficiency reduces equipment downtime and saves more time — a full 50kW of rated throughput keeps production lines, cooling loads and critical processes running with minimal interruption. | More SecureReal-time monitoring of the Power Distribution Unit (PDU) provides better system protection — voltage, current and temperature are supervised continuously for early fault detection and safe operation. | More PortableLFP chemistry delivers more watt-hours per kilogram while weighing only about one-third of equivalent SLA batteries — a compact 780×640×2000mm footprint at just 625kg for fast site deployment. |
High Cycle LifeAchieves 6,000 cycles at 90% DOD — effectively reducing total cost of ownership across 15+ years of daily cycling, with LFP thermal stability and zero-cobalt chemistry for long-term reliability. | Highly AdaptableStrong environmental adaptability with cell-level tolerance up to 60 °C — suited to hot tropical and desert sites, while the IP54 cabinet is rated for continuous operation from -20 °C to 50 °C. | Easy to StoreExtremely low self-discharge rate (LSD) with no risk of sulfation — the battery can be stored for up to 6 months before a maintenance recharge, simplifying phased deployments and spare inventory. |
Technical Specifications — GCB-E50
| Category | Parameter | Specification |
|---|---|---|
| General System | Model Number | GCB-E50 |
| Product Type | 50kW / 50kWh Industrial & Commercial Energy Storage Cabinet | |
| Application | C&I Peak Shaving, Backup Power, Microgrid, Solar Self-Consumption, TOU Arbitrage | |
| Ingress Protection | IP54 — Outdoor-Grade Installation | |
| Battery System | Battery Cell | LFP 100Ah |
| Battery Pack | 51.2V / 100Ah | |
| Rated Voltage | 512V (10 Modules in Series) | |
| Rated Energy | 50 kWh | |
| Voltage Range | 448–576V | |
| Cycle Life | 6,000 Cycles at 90% DOD | |
| System Efficiency | ≥ 90% | |
| Environmental | Operating Temperature | -20 °C to 50 °C |
| Relative Humidity | 0–95% | |
| Altitude | < 2,000 m | |
| Cooling Method | Air Cooling (Refrigeration, Ventilation, Heating) | |
| Noise | ≤ 75 dB | |
| Safety & Mechanical | Fire Protection | Integrated Fire Protection System |
| Communication | RS485, CAN | |
| Dimensions (W×D×H) | 780 × 640 × 2000 mm | |
| System Weight | 625 kg | |
| Warranty | 10 Years |
Table 1.0 — GCB-E50 technical specifications. All parameters are reference data from the factory datasheet; the actual product shall prevail. Final configuration confirmed per project.
Commercial & Industrial Deployment Scenarios Industrial Logistics Parks EV Charging Hubs Remote Microgrids Critical Backup Facilities Solar + Storage Sites Commercial Buildings |
Frequently Asked Questions
Q: What is the expected payback period for a GCB-E50 in a peak-shaving application?
Payback depends on the local tariff structure — specifically the peak-to-off-peak price spread and demand charge rate. In markets with demand charges above $10/kW/month and peak rates 2–3× off-peak, typical payback is 3–5 years. The 6,000-cycle life at 90% DOD ensures the system remains economically productive for 15+ years before significant capacity fade. E-Able Power can model your specific tariff and load profile for a project-specific ROI analysis.
Q: Can the GCB-E50 operate fully off-grid with solar?
Yes. The GCB-E50 supports grid-tied, off-grid, and hybrid (solar-plus-storage with grid-fallback) modes. In off-grid configuration, the system powers critical loads with seamless transfer — no interruption during grid outage. Solar PV can be AC-coupled through the inverter. The applicable mode, solar array sizing, and protection coordination must be validated for your specific site and local grid code. All modes are configurable — not locked to a single topology.
Q: What customization options are available for the GCB-E50?
The GCB-E50 is fully configurable to project requirements. Customization options subject to project volume include: cabinet color and OEM branding (logo + housing), communication interface (RS485 / CAN), and destination-market compliance requirements. Contact E-Able Power with your project specification for a customized proposal — engineering response within 2–3 business days.
Q: What site preparations are needed before GCB-E50 installation?
Pre-installation requirements: (1) Level concrete pad or indoor floor with adequate load-bearing (~650kg + safety factor), (2) Minimum clearances — 1m front and rear for service access per local electrical code, (3) AC cable routing from the main distribution panel to the cabinet location, (4) Communication — RS485/CAN cabling for monitoring (4G optional), (5) Environmental — ambient temperature within -20 °C to 50 °C and relative humidity 0–95%, protected from direct flooding. E-Able Power provides a detailed site preparation guide and remote commissioning support. On-site engineer available for projects above 500 kWh.
Factory: Dongguan, Guangdong, China. 10-year warranty. Project-specific compliance documentation available on request.
Related Products
Explore Related Products
GCB-E50 FAQ
What is the GCB-E50's rated output or capacity?
The GCB-E50 provides 50kW charge / 50kWh discharge and 50 kWh (10 × 51.2V / 100Ah packs) of energy.
What battery technology does the GCB-E50 use?
It uses LFP 100Ah cells. It is rated for 6,000 cycles at 90% DOD.
Is the GCB-E50 protected against dust, water and impact?
Rated IP54 outdoor-grade. It is built for outdoor use.
What control and communication does the GCB-E50 support?
Communication via RS485 / CAN.
Can the GCB-E50 be configured for a project?
Yes — configuration can be adapted for a project. It carries a 10 years warranty. Contact us with your site and energy or lighting requirements for sizing and a quotation.
Configure your GCB-E50 energy storage system
Every GCB-E50 is configured to your site — capacity, operating mode, inverter platform and protection design are confirmed per project. Send your load profile and requirements for a technical proposal.
