View Product E-ABLE POWER — PRODUCT DATASHEET
SOLAR SECURITY & LIGHTING SOLUTIONS
PATENT: 2022307269546 4.0MP HD SECURITY 365 DAYS MONITORING
Key Specifications at a Glance
| Architecture | All-in-One — Solar + LED + Camera + Battery | Camera | 4.0MP (2560×1440) Full-Color — 350° PTZ |
| LED Array | SMD3030 — 104 pcs (2400 lm) / 154 pcs (3600 lm) | Solar Panel | 4V / 35W High-Conversion Monocrystalline |
| Battery Storage | LiFePO4 3.2V — 36 Ah / 48 Ah | Charge Controller | MPPT — Smart IoT Adaptive Power Management |
| Connectivity | 4G LTE + 2.4 GHz WiFi Dual-Mode | Storage | microSD up to 128 GB + Cloud Backup |
| Optical Lens | Teijin PC — 25% Larger Illumination Area | IP Rating | IP65 Waterproof & Dustproof |
| Certifications | CE / RoHS / ISO9001 / ISO14001 | Warranty | 3 Years |
Advanced Engineering Advantages

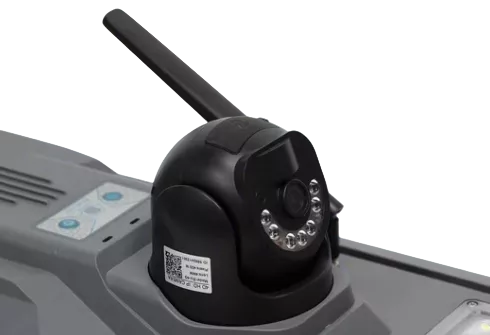

4.0MP Full-Color PTZ
2560×1440 resolution with full-color night vision — captures license plates and facial details where IR cameras fail. Motorized 350° horizontal rotation eliminates blind spots. microSD + cloud dual storage.

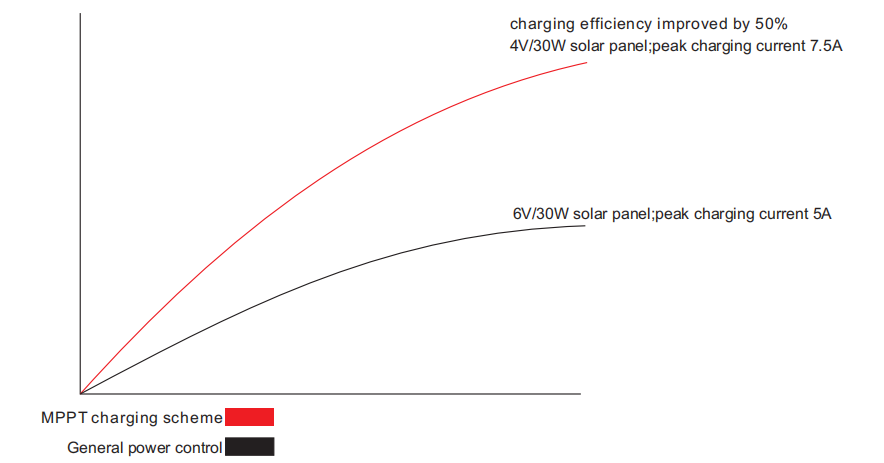

MPPT Fast Charge
4V/30W peak current architecture increases charging efficiency by 50% vs PWM controllers. Extracts up to 30% more daily energy from the 35W monocrystalline panel — critical for security applications where downtime is unacceptable.
25% Larger Area — Teijin PC Lens
Professional-grade Teijin polycarbonate optics deliver 25% wider coverage than standard PMMA at equal mounting height. Uniform distribution eliminates hot spots — 104/154 pcs SMD3030 LEDs for 2400/3600 lm output.
Smart Power IoT
When battery drops below 20% state of charge, the system auto-switches to radar-triggered recording mode — camera wakes only on motion. Guarantees 365 days per year of surveillance, even after 15+ consecutive overcast days.
Technical Specifications Matrix

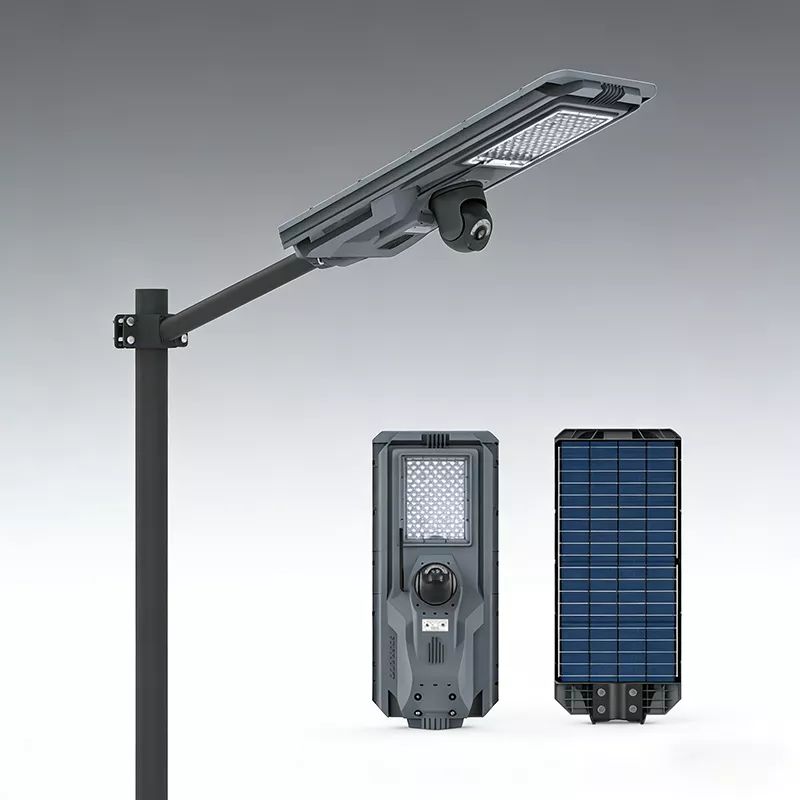

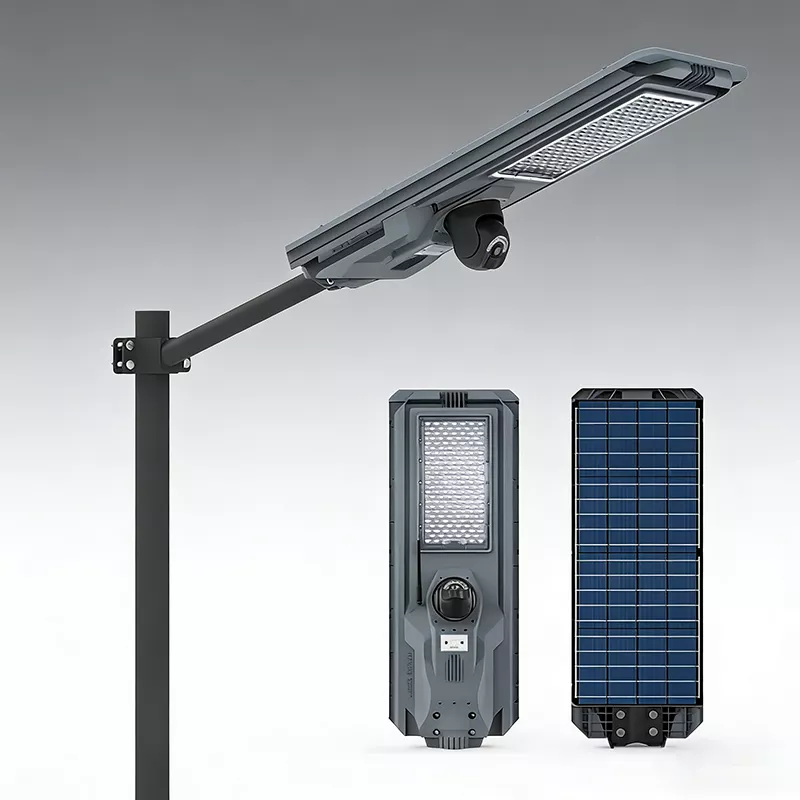

| Parameter | MJ-SSTH800C | MJ-SSTH1200C |
|---|---|---|
| Lighting System | ||
| LED Chips (SMD3030) | 104 pcs | 154 pcs |
| Luminous Flux | 2,400 lm | 3,600 lm |
| CCT Options | 3000 K (Warm) / 4000 K (Neutral) / 5700 K (Daylight) | |
| Lens Material | Teijin Polycarbonate — 25% Larger Coverage vs PMMA | |
| Surveillance System | ||
| Camera Resolution | 4.0MP (2560×1440) — Full-Color Night Vision | |
| PTZ Range | 350° Horizontal / 90° Vertical — Motorized | |
| Storage | microSD up to 128 GB + Cloud Backup via 4G/WiFi | |
| App Support | EseeCloud — iOS / Android / Windows / macOS | |
| Power & Energy | ||
| Solar Panel (Mono) | 4V / 35W High-Conversion Module | |
| LiFePO4 Battery | 3.2V / 36 Ah (115 Wh) | 3.2V / 48 Ah (154 Wh) |
| Charge Controller | MPPT — 4V/30A Peak Current Scheme | |
| Smart IoT Mode | Auto Radar Activation @ Battery < 20% — 365-Day Operation | |
| Connectivity | 4G LTE + 2.4 GHz WiFi Dual-Mode | |
| Physical & Environmental | ||
| IP Rating | IP65 — Waterproof & Dustproof Sealed Housing | |
| Mounting Height | 4–7 m (Pole-Mount Bracket Included) | |

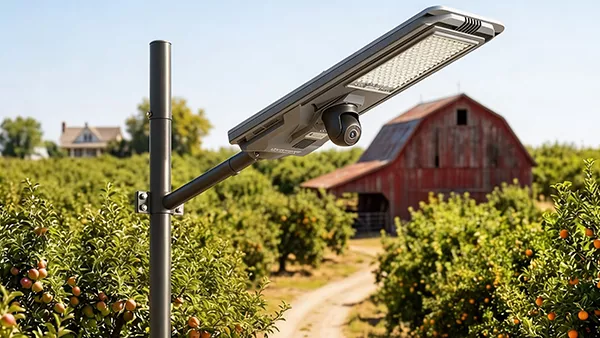

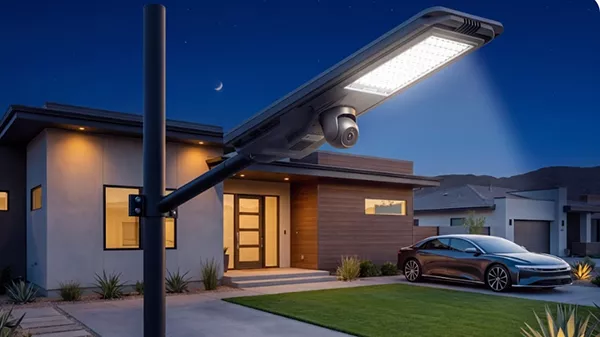

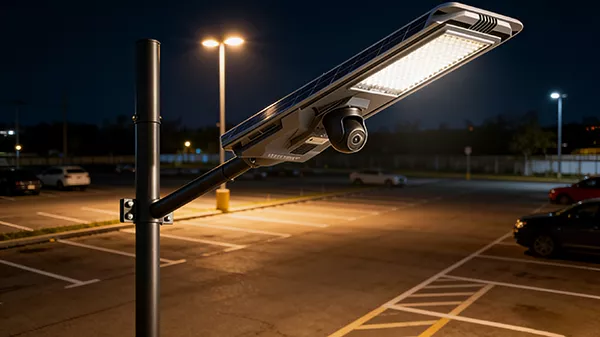

| Suggested Use | Residential Communities, Gardens, Pathways | Commercial Perimeters, Farm Compounds, Parking |
| Operating Temp. | -20 °C to +60 °C — Outdoor Rated | |
Table 1.0 — Starship III MJ-SSTH Series specifications. Both models share the same 4.0MP camera, 4G/WiFi module, EseeCloud app, and MPPT controller. Custom CCT and OEM branding available for orders >50 units. Patent No. 2022307269546.
EseeCloud App — Real-Time Security Control
Manage safety from your pocket with live PTZ control, two-way audio, and instant motion alerts — available on iOS, Android, Windows, and macOS.
Motion Alerts: Instant push notifications with snapshot preview — customizable detection zones to eliminate false alerts
Multi-User View: Concurrent monitoring with role-based permissions — security team + property owner simultaneous access
Two-Way Audio: Built-in microphone and speaker for visitor communication or intruder deterrence
Energy Dashboard: Real-time battery state-of-charge, solar yield, and power consumption at a glance

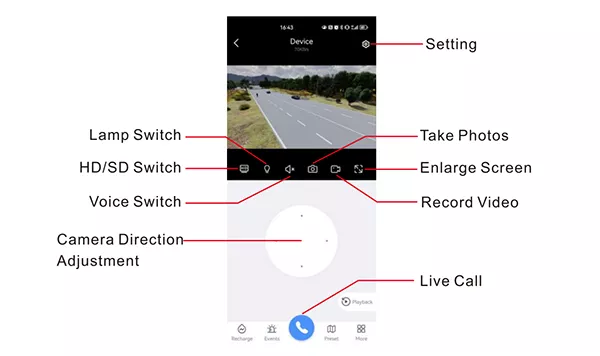

Fig 2.0 — Real-Time PTZ Remote Control Interface (EseeCloud)
Application Scenarios
Frequently Asked Questions
How does Starship III maintain 365-day operation in low-sunlight regions?
The Smart Power IoT system continuously monitors battery state of charge. Under normal conditions, the camera records continuously and the LED follows its programmed schedule. When the battery drops below 20% SoC — typically after 10–15 consecutive overcast days — the controller automatically switches to radar-triggered mode: the camera records only upon motion detection, and the LED dims to 30% standby. This adaptive strategy extends autonomy to 365 days/year in virtually all climates. Once solar input recovers, the system returns to normal mode automatically.
What is the difference between 4.0MP and 4K — and why does it matter?
4.0MP (2560×1440 pixels, also called 1440P or QHD) is not the same as 4K (3840×2160, 8MP). Starship III uses a 4.0MP sensor which is double the resolution of standard 1080P (2MP) — sufficient for license plate recognition at 10–15 m and facial identification at 5–8 m. 4K cameras in solar fixtures would consume 3–4× more storage and power with diminishing returns at typical pole-mount distances. The 4.0MP sensor plus full-color night vision delivers the optimal balance of detail, storage efficiency, and battery autonomy for outdoor security applications.
Can multiple Starship III units be managed from one account?
Yes. The EseeCloud app supports unlimited device binding to a single account. You can organize fixtures into groups by location (e.g., "North Perimeter," "Parking Lot A," "Main Gate"), view up to 4 live feeds simultaneously on one screen, and configure role-based sub-accounts for different team members — security guards get live view only, while administrators retain PTZ control and playback access. The desktop client (Windows/macOS) adds multi-screen support for control rooms monitoring 10+ fixtures concurrently.
What installation and network requirements does Starship III have?
Installation requires only a standard pole (4–7 m height) with the included mounting bracket — no trenching, no cabling, no electrical permit for grid connection. Network setup: insert a standard 4G SIM card (Nano-SIM, any carrier with LTE coverage at the site) or connect to a 2.4 GHz WiFi network within range. Each fixture consumes approximately 2–5 GB/month of mobile data for continuous cloud recording (adjustable — lower-resolution substream for continuous + full-resolution for events reduces data to ~1 GB/month). The system is pre-configured at factory — on first power-up, scan the QR code in the EseeCloud app to bind the device in under 60 seconds.
100% QC inspection. Factory: Dongguan, Guangdong, China. Patent No. 2022307269546. 3-year comprehensive warranty.
