200W–1200W range
Six documented models for large-area sports and high-mast applications.
Product overview

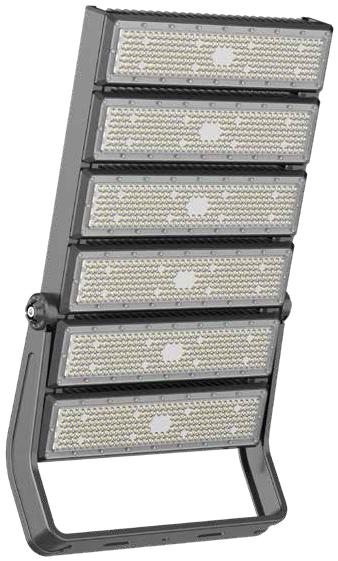

SKYWING SF05
Sports & High Mast Light.
SKYWING SF05 is a sports and high-mast LED light family documented from 200W to 1200W in six models, with 30°, 45°, 60°, 90°, 120×40×60° and 80×140° optical distributions.
The family uses Lumileds chips, a UV-resistant polycarbonate optical lens (94% transmittance), AC100-277V input, an IP66 / IK08 enclosure and 10-20KV surge protection.
Selection note: confirm mounting height, target area and required illuminance against the site before finalising CCT, driver and control options.
Six optics
30°, 45°, 60°, 90°, 120×40×60° and 80×140° distributions.
Die-cast ADC12
Cast-aluminium housing with excellent thermal management.
IP66 / IK08
Documented environmental and impact rating plus 10-20KV surge protection.
Model configurator
6 models. Every verified value.
SKYWING SF05 · Sports & High Mast Light
ISL-QCD-E200W
Rated 200W · 28,000lm
Optical distributions
Beam patterns.

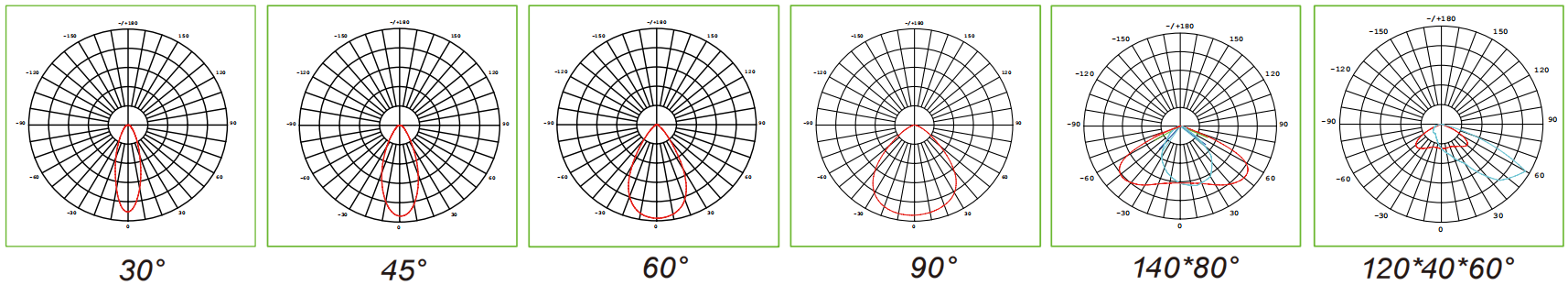

The catalog publishes polar plots for six optical distributions across the SKYWING SF05 family.
FAQ
High-mast lighting questions, answered.
What power options are available for the SKYWING SF05?
The catalog documents six models — ISL-QCD-E200W, 400W, 600W, 800W, 1000W and 1200W — with rated power from 200W to 1200W.
Which beam angles or optical distributions are documented?
Six distributions are listed: 30°, 45°, 60°, 90°, 120×40×60° and 80×140°, with polar plots published for each.
Which luminous flux values are documented?
The catalog lists 28,000lm up to 168,000lm across the six models.
What information should be confirmed before high-mast light selection?
Mounting height, target area, required illuminance and beam angle must be confirmed against the site, together with CCT, driver and control options.
Which installation or dimensional details are documented?

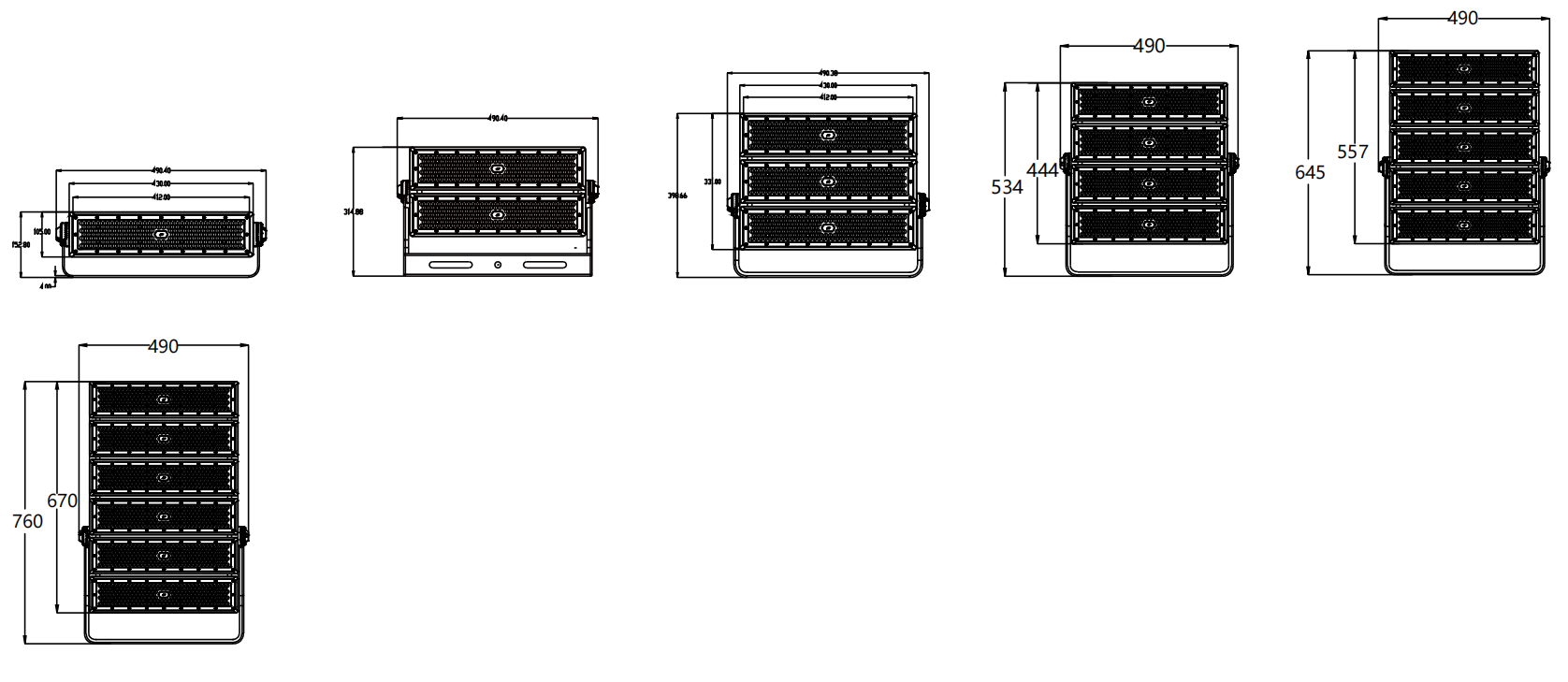

The catalog records six housing footprints from 159×490×140mm to 776×490×155mm across the model range.
What project information is needed for a quotation?
Share the pole or tower height, target area, required lux level, beam angle and operating schedule so the model and optics can be sized to the site.
How can customers request project-selection support?
Contact the project support team with your site conditions and target illuminance for selection guidance, sizing and a quotation.
