400W\u2013800W range
Three documented models for large-area sports and high-mast applications.
Product overview

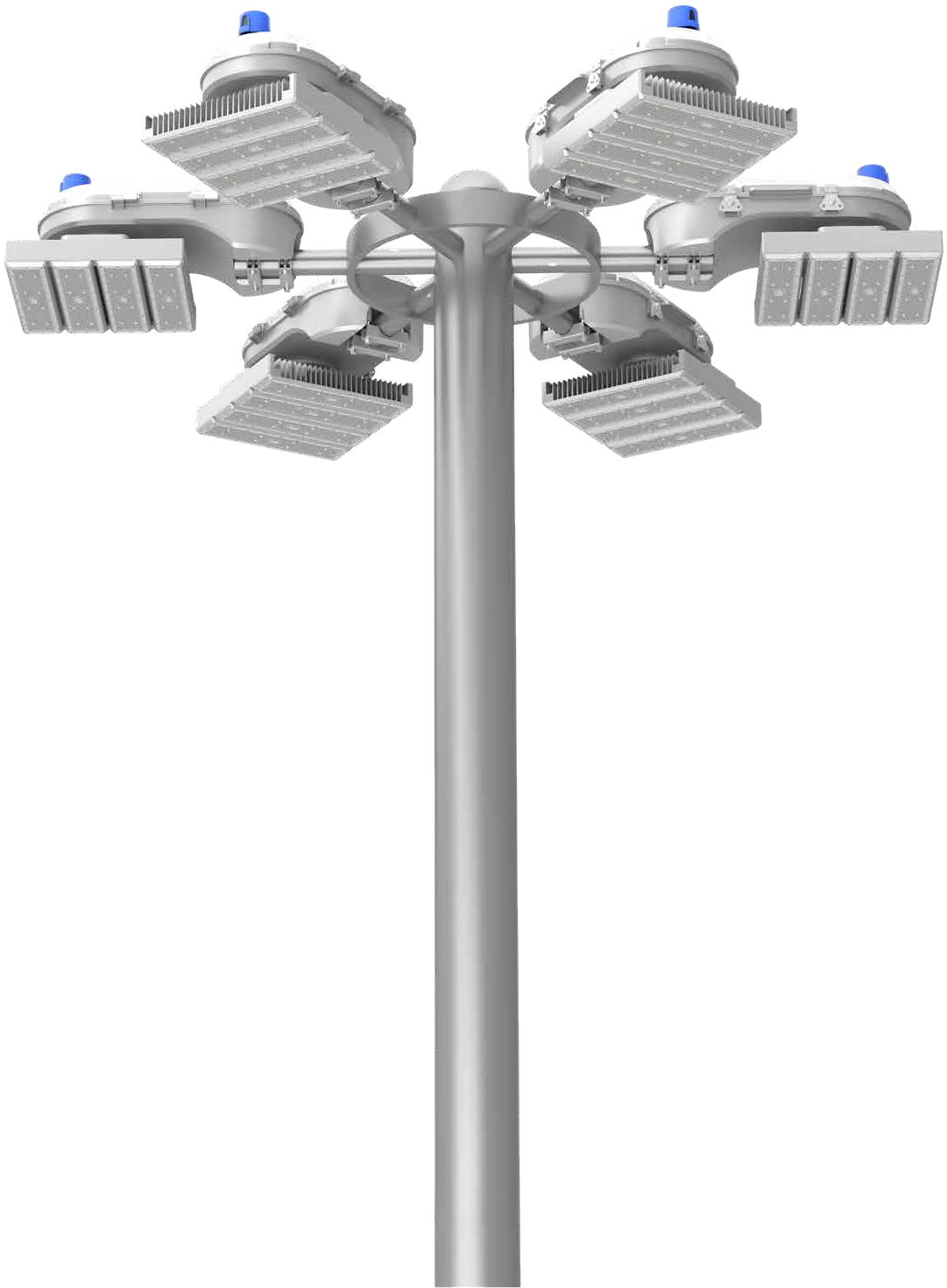

SKYWING SF09
High Mast Light.
SKYWING SF09 is a die-cast ADC12 high-mast LED light family documented from 400W to 800W in three models. The catalog lists six optical distributions \u2014 30\u00b0, 45\u00b0, 60\u00b0, 90\u00b0, 140\u00d780\u00b0 and 120\u00d740\u00d760\u00b0 \u2014 for controlled area and spill-light control.
The family uses Lumileds chips with a UV-resistant polycarbonate optical lens (94% transmittance), AC100-277V input, an IP66 / IK08 enclosure and 10-20KV surge protection. Housings scale from a 672\u00d7430\u00d7304mm unit to a 728\u00d7430\u00d7304mm unit.
Selection note: confirm mounting height, target area and required illuminance against the site before finalising CCT, driver and control options.
Six optics
30\u00b0, 45\u00b0, 60\u00b0, 90\u00b0, 140\u00d780\u00b0 and 120\u00d740\u00d760\u00b0 distributions.
Die-cast ADC12
Cast-aluminium housing with excellent thermal management.
IP66 / IK08
Documented environmental and impact rating plus 10-20KV surge protection.
Model configurator
Three models. Every verified value.
SKYWING SF09 \u00b7 High Mast Light
ISL-SF09-A-400W
Rated 400W \u00b7 56,000lm \u00b7 672\u00d7430\u00d7304mm
Optical distributions
Beam patterns.
The catalog publishes polar plots for six optical distributions across the SKYWING SF09 family.

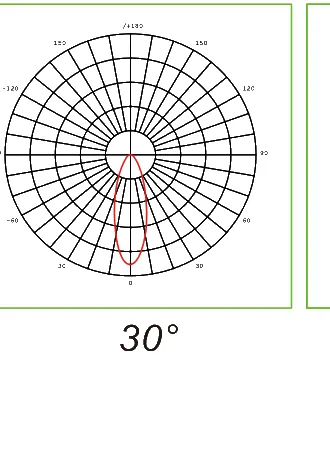

30\u00b0

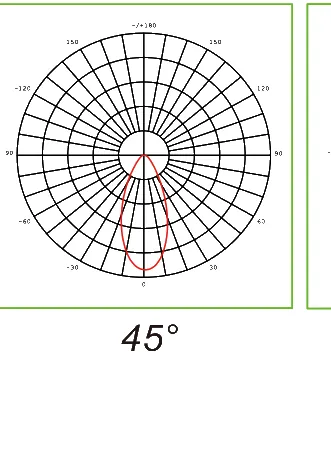

45\u00b0

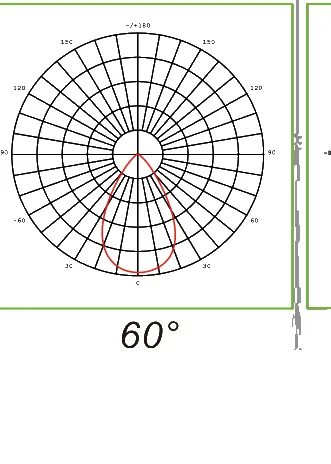

60\u00b0

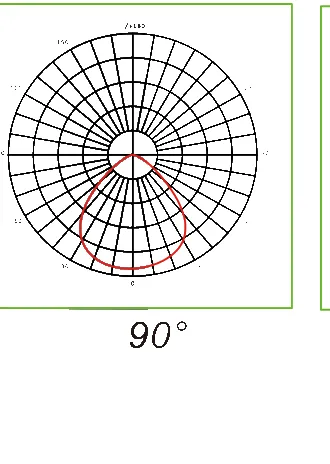

90\u00b0

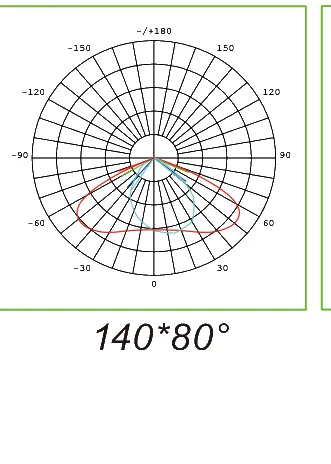

140\u00d780\u00b0

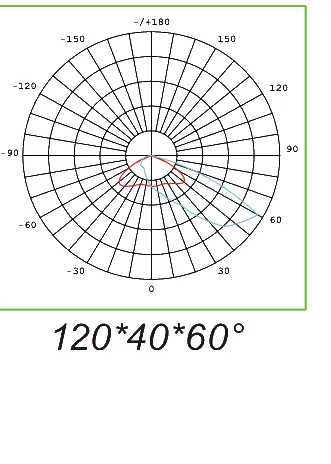

120\u00d740\u00d760\u00b0FAQ
High-mast lighting questions, answered.
What power options are available for the SKYWING SF09?
The catalog documents three models \u2014 ISL-SF09-A-400W, 600W and 800W \u2014 with rated power from 400W to 800W.
Which beam angles or optical distributions are documented?
Six distributions are listed: 30\u00b0, 45\u00b0, 60\u00b0, 90\u00b0, 140\u00d780\u00b0 and 120\u00d740\u00d760\u00b0, with polar plots published for each.
Which luminous flux values are documented?
The catalog lists 56,000lm for the 400W model, 84,000lm for the 600W model and 112,000lm for the 800W model.
What information should be confirmed before high-mast light selection?
Mounting height, target area, required illuminance and beam angle must be confirmed against the site, together with CCT, driver and control options.
Which installation or dimensional details are documented?

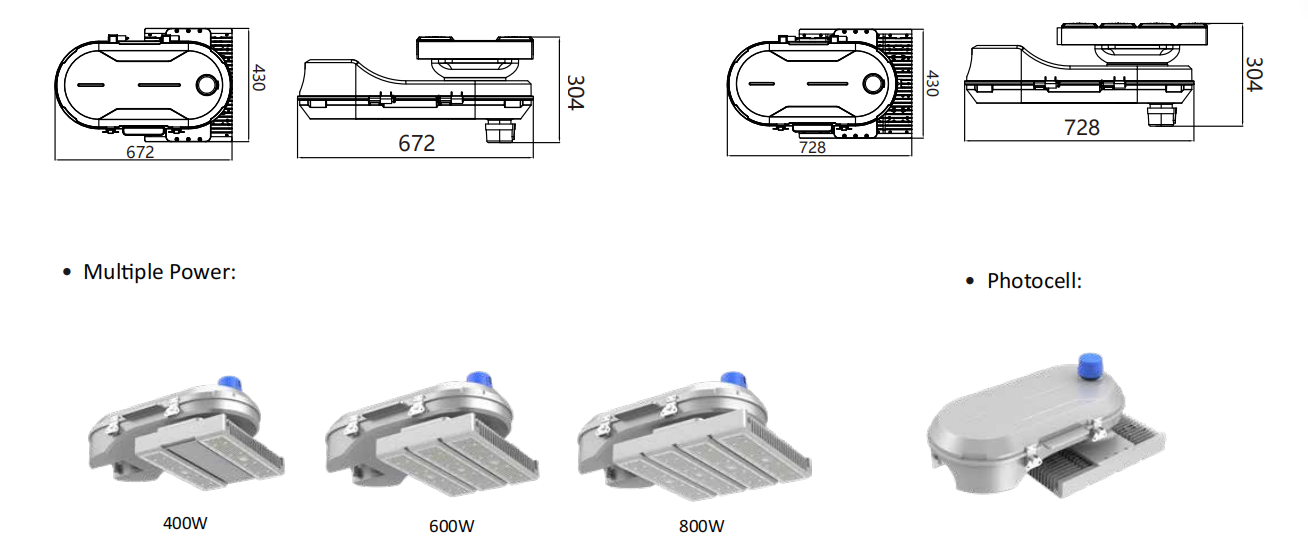

The catalog records 672\u00d7430\u00d7304mm for the 400W and 600W units and 728\u00d7430\u00d7304mm for the 800W unit.
What project information is needed for a quotation?
Share the pole or tower height, target area, required lux level, beam angle and operating schedule so the model and optics can be sized to the site.
How can customers request project-selection support?
Contact the project support team with your site conditions and target illuminance for selection guidance, sizing and a quotation.
Plan your SF09 high-mast lighting project.
Send your mounting or tower height, target area, required illuminance, desired beam angle and operating schedule for model selection and application guidance.
