SDPO 16kW Split-Phase Hybrid Inverter

A 16 kW split-phase hybrid inverter with two battery inputs, 24 kVA apparent power and 12 kW + 12 kW of PV input.

Downloads

Print-ready PDF — specifications and installation in one place, no login required.

Key features

  • 16 kW continuous output at 120/240 Vac, 24 kVA apparent power
  • Two independent battery inputs for larger or dual banks
  • 300 A charging and 340 A discharge across the battery side
  • Two MPPT inputs, 12 kW + 12 kW PV at 36 A + 36 A
  • 90 A AC input and output with a 100 A continuous bypass
  • 37.5 kg in a 720 × 482 × 149 mm enclosure, above 93.5% EU efficiency

Technical specifications

Values below are transcribed from the supplied datasheet. Items marked "to be confirmed" are pending supplier verification and are not commercial commitments.

Rated AC power16 000 W
Max. AC apparent power24 000 (unit as printed in source)
Battery voltage range40–60 Vdc
Max. charging current300 A
Max. discharging current340 A
Battery inputs2
Max. PV input power12 000 W + 12 000 W
Rated PV input voltage222 V
Max. PV input current36 A + 36 A
Rated / max. AC input-output current90 A / 90 A
Max. continuous bypass current100 A
EU efficiency / MPPT efficiency> 93.5%
Enclosure (W x H x D)720 × 482 × 149 mm
Net weight37.5 kg
Output voltage120 Vac (L1/N, L2/N) / 240 Vac (L1/L2) ±5%
Output frequency47±0.3–55±0.3 Hz (50 Hz) / 57±0.3–65±0.3 Hz (60 Hz)
MPPT count2 (range 90–450 Vdc, max PV 500 Vdc, start 120 V)
Off-grid peak (1.5x rated)1.5× rated for 10 s
THDi / DC injection3% / < 0.5%
ProtectionShort circuit, over/under voltage, overload, reverse feed; anti-islanding: yes; surge Class II
CommunicationUSB / RS485 / (WiFi / GPRS) / dry-node control; WiFi
Operating temperature / humidity−10 to 55 °C (derate above 45 °C); 5–95% RH
Altitude / noise2 000 m / ≤ 60 dB
IP rating / topologyIP20 / non-isolated
Overvoltage categoryDC OVC II / AC OVC III
Battery typeLithium-ion or lead-acid; lithium BMS self-adaptive

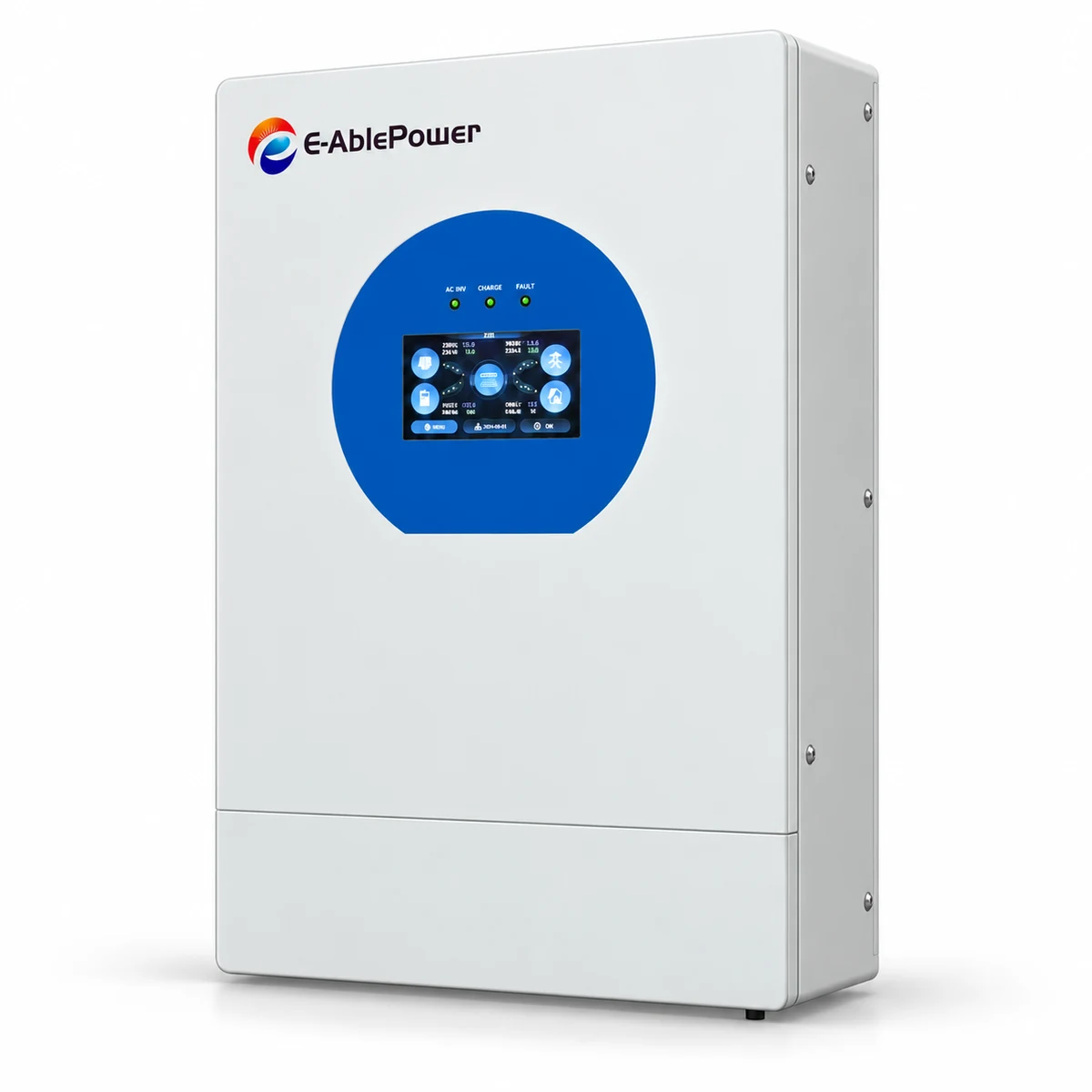

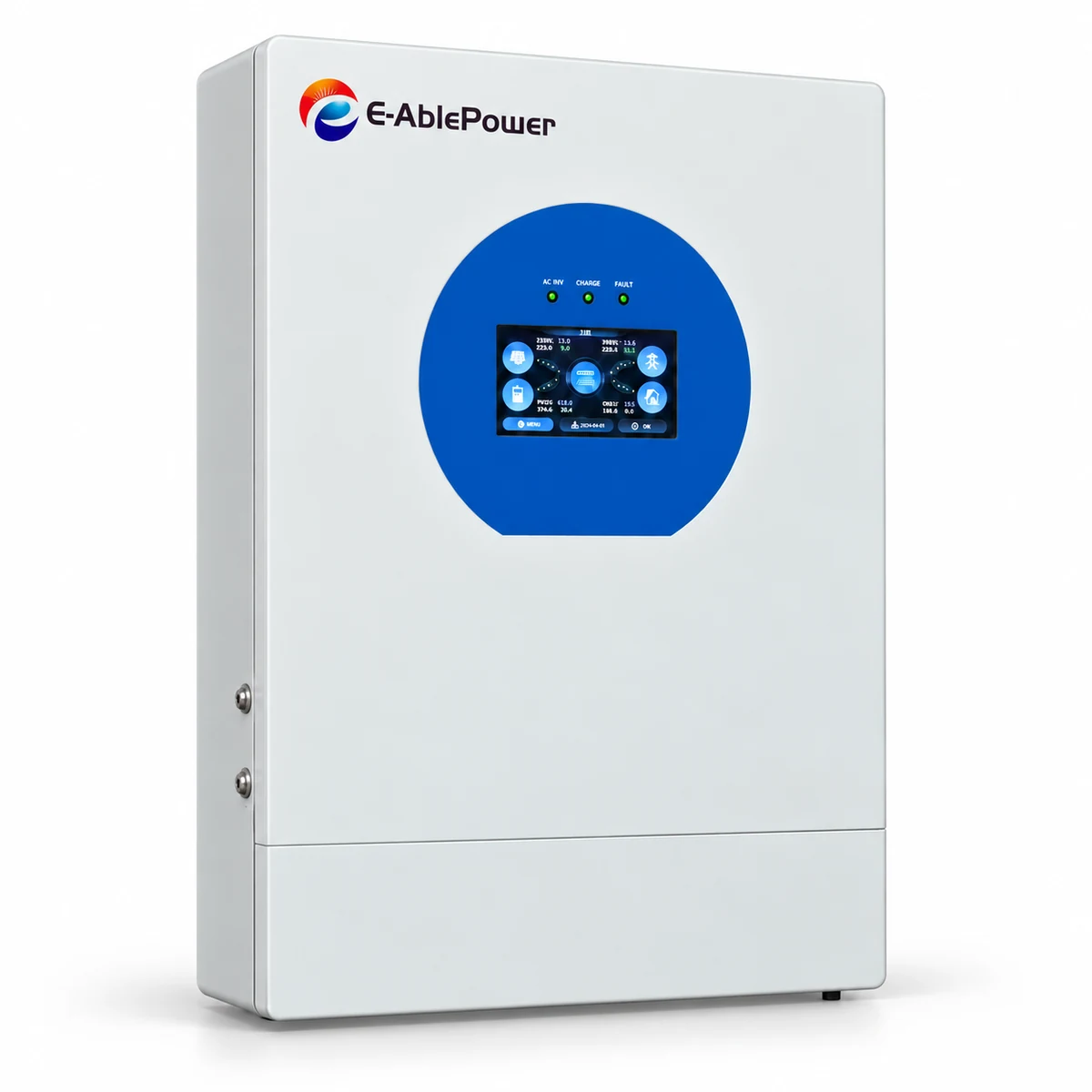

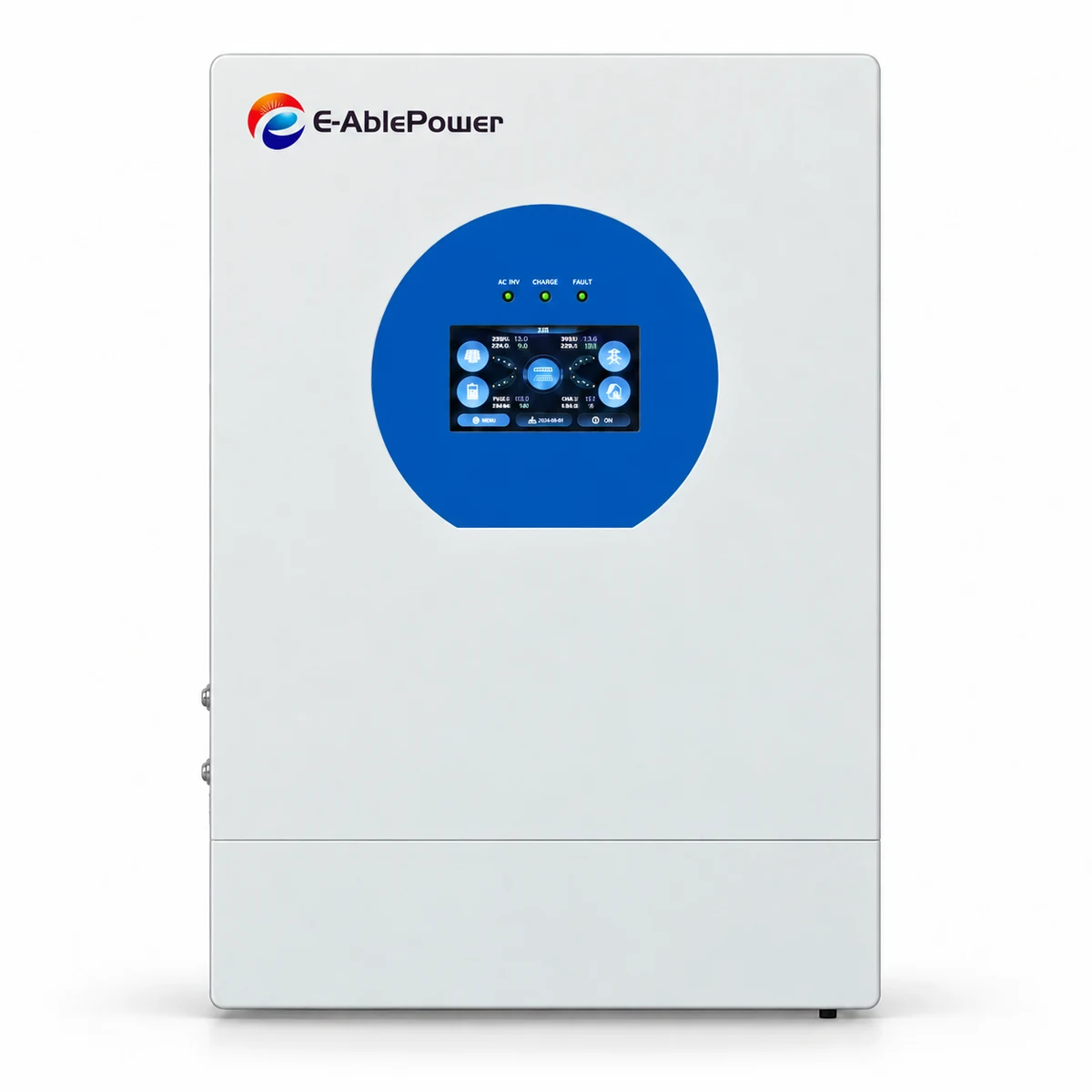

Product views

PV and battery matching

This is the first model in the range with two battery inputs, running 40–60 Vdc and accepting 300 A of charge and 340 A of discharge. Two inputs let you keep an existing bank and add a new one, or split the load so one bank can be isolated for service without dropping the backup supply.

PV capability matches the rating: 12 kW + 12 kW at 36 A per tracker, 222 V rated input, 90–450 Vdc tracking and 500 Vdc open circuit. A 24 kW array on a 16 kW inverter is a DC/AC ratio of 1.5, so clipping is expected at midday and the design should be judged on annual yield rather than peak output.

AC input and output are rated 90 A with a 100 A continuous bypass, and EU efficiency is above 93.5%. At 37.5 kg and 720 × 482 × 149 mm the unit needs two people and a solid mounting surface; it is still IP20, so it belongs indoors.

Frequently asked questions

What do two battery inputs actually give me?

Two separate DC connections into one inverter: you can parallel two banks of the same chemistry for capacity, or keep two banks physically separate so one can be serviced or isolated while the other keeps the backup output live. It also removes the single point of failure a lone DC bus introduces.

Is 24 kVA surge real capacity?

It is the maximum AC apparent power the unit can deliver briefly. The datasheet does not state a duration for that figure, so treat it as a short-term motor-starting allowance and size continuous loads to the 16 kW rating.

16 kW or 12 kW?

Choose 16 kW when the load list includes two EVs, electric resistance heat or a large well pump alongside normal household loads, or when you need two battery inputs and 300 A charging. A single-EV home usually does not need the extra 4 kW.

How much PV should I plan?

Up to 12 kW on each tracker at 36 A, under 500 Vdc open circuit. Because charge current reaches 300 A, the array and the battery bank should be sized together: a large array with a small bank will simply clip.

Is it certified for grid connection?

No certification documents were supplied for this model. We do not claim grid-connection approval, so request the certificates applicable to your market before submitting an interconnection application.
