Smart Wind HybridStreet Light

Smart City Infrastructure | Multi-Functional Hybrid Pole

Smart Wind & Solar Hybrid Street Light Series

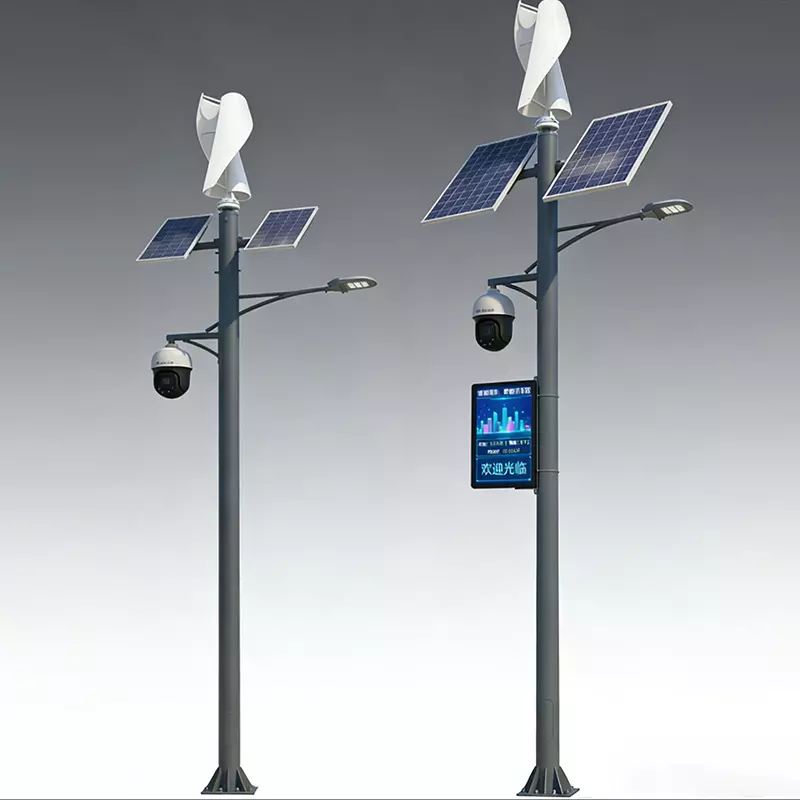

Multi-functional off-grid poles combining Helix wind turbine + dual MONO solar panels + LiFePO4 battery + MPPT hybrid controller. Two models: EA-N60W with integrated 24/7 CCTV security, and EA-N80W with CCTV plus dual-sided LED advertising display — one pole delivers lighting, surveillance, and commercial messaging.

Dedicated 24/7 CCTV Power

The MPPT hybrid controller features a continuous bypass output (12V/24V/POE) that keeps CCTV cameras active day and night, during charging and discharging. Unlike basic solar controllers where the load output shuts off during daytime charging, this architecture ensures zero surveillance downtime — critical for government security installations, remote site monitoring, and crime-prone public areas.

Smart Energy Management

Intelligent discharge logic prioritizes essential functions during low-battery events. The controller maintains 100% power to lighting and security while automatically shedding the LED advertising screen — ensuring that municipal safety obligations are met before commercial display functions. When battery state-of-charge recovers above the threshold, the screen reactivates automatically without manual intervention.

Reinforced Structural Engineering

Every pole is structurally re-calculated per project for the combined wind load of the turbine, solar panels, CCTV bracket, and LED screens. The EA-N80W uses a Φ165mm reinforced pole with thicker wall gauge to support the additional weight and wind profile of dual-sided displays. Hot-dip galvanization ensures 15+ years of corrosion protection in coastal and high-humidity environments.

Government pilot projects requiring cable-free independence with integrated security monitoring

Government districts, supermarkets & public squares needing active 24/7 CCTV surveillance

High-traffic urban centers utilizing dual-sided LED advertising displays for revenue generation

Wind-heavy areas where turbine power compensates for cloudy monsoon seasons and remote access

Should I choose EA-N60W (Security) or EA-N80W (Commercial Display)?

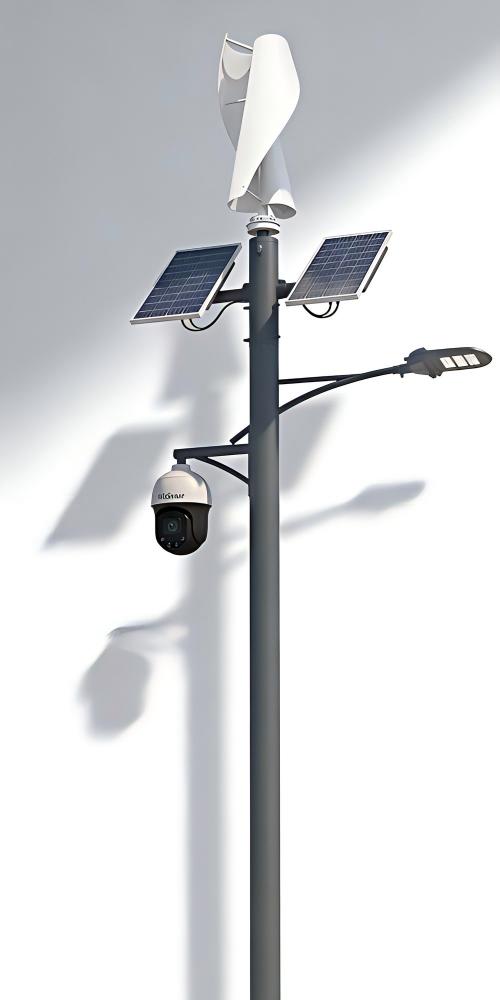

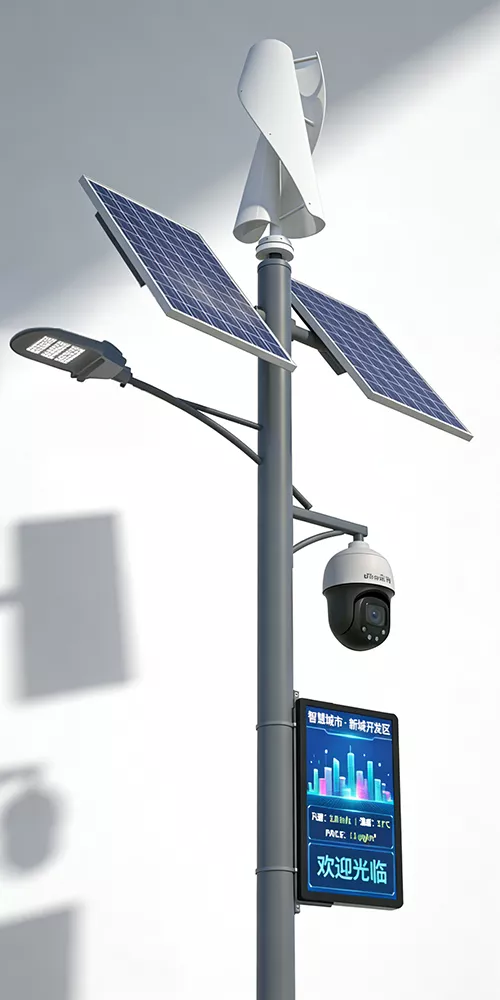

The decision hinges on whether you need LED advertising capability. Choose EA-N60W if your primary requirement is lighting + CCTV surveillance — government security zones, remote site monitoring, parking lots, and public safety installations. Choose EA-N80W if you want the pole to generate revenue or deliver public information via dual-sided LED screens — city center plazas, pedestrian shopping streets, municipal branding projects, and transit hubs. The EA-N80W also has a larger turbine (500W vs 300W), larger battery (1080Wh vs 840Wh), and a reinforced 8M pole to support the additional screen weight and wind profile.

How does the CCTV stay powered 24/7 without interrupting the lighting?

The MPPT hybrid controller includes a dedicated continuous bypass circuit separate from the main lighting load. The CCTV camera receives uninterrupted 12V/24V/POE power regardless of whether the system is charging from solar/wind, discharging to the LED, or in low-battery protection mode. During extreme low-battery events, the controller sheds the LED screen first (EA-N80W), then dims the lighting — but never cuts CCTV power. This architecture is specifically designed for government and security applications where surveillance uptime is non-negotiable.

Can the pole, turbine size, screen dimensions, and battery be customized?

Yes — every system is project-configured. Customizations include: pole height (6-12m range), turbine wattage (300W to 1kW Helix options), solar panel count and wattage, battery capacity for extended autonomy, CCTV resolution and brand (Hikvision/Dahua integration supported), LED screen size and pixel pitch, and pole finish/color. Each order includes a structural wind-load calculation for the specific configuration. Lead time is typically 30-45 days for customized builds. Provide your requirements and our engineering team returns a complete proposal with DIALux lighting simulation and structural drawings.
