View Product| E-ABLE POWER — PRODUCT DATASHEET COMMERCIAL ENERGY STORAGE SOLUTIONS | C&I STACKABLE MODULE48.23-241.15kWh / RACK4-15 MODULES / RACK |
Key Specifications at a Glance
| Product Type | High-Voltage Stackable LFP Battery | Module Rating | 51.2V / 314Ah / 16.08kWh |
| Series Configuration | 4-15 Modules | System Energy | 48.23-241.15kWh |
| Rated System Voltage | 204.8-768V | Operating Voltage Range | 179.2-230.4V (4S) / 672-864V (15S) |
| Recommended Charge / Discharge | 157A / 157A | Communication | CAN |
| Inverter Compatibility | Growatt, Solis, Goodwe, Sol-Ark, SRNE, DEYE | Module Dimensions / Weight | 798 x 478 x 278mm / 119.4kg |
| IP Rating | IP20 | Warranty | 10 Years |
Key Engineering Advantages
Ultimate Cycle LifeMore than 6,000 cycles at 0.5C, 25°C and 90% DOD are specified for the GHS-314. The LFP chemistry is paired with a 10-year warranty. | Modular ScalabilitySeries configuration supports 4 to 15 modules, covering 48.23–241.15kWh and a rated voltage range of 204.8–768V. Confirm the final series count against the inverter DC-voltage window before ordering. | Broad Inverter EcosystemThe datasheet lists Growatt, Solis, Goodwe, Sol-Ark, SRNE and DEYE as compatible inverter brands. CAN is the specified communication port; confirm the exact inverter model and protocol before project release. |
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| General | Model / Product Type | GHS-314 / High-Voltage Stackable LFP Battery |
| Topology | Recommended charge / discharge current: 157A / 157A | |
| Application | Charging: 0–55°C; Discharging: −20–60°C; Storage: −10–40°C | |
| Battery System | Cell Chemistry | LiFePO4 (LFP) / 51.2V / 314Ah |
| Module / Rack Capacity | 16.08kWh per Module / 48.23kWh (4S) to 241.15kWh (15S) | |
| DC Voltage Range | Rated: 204.8V (4S) to 768V (15S); Operating: 179.2–230.4V (4S) / 672–864V (15S) | |
| Cycle Life / DOD | ≥ 6,000 Cycles at 25°C, 0.5C, 90% DOD | |
| Integration | Compatible Inverters | Growatt, Solis, Goodwe, Sol-Ark, SRNE, DEYE (confirm inverter model before order) |
| Communication | CAN | |
| Humidity | Operating: 10%–95% non-condensing; Storage: 5%–95% non-condensing | |
| Physical | Module Dimensions / Weight | 798 × 478 × 278 mm / 119.4 kg per Module |
| Ingress / Installation | IP20 | |
| Warranty | 10 Years / >6,000 Cycles (0.5C @ 25°C, 90% DOD) | |
Table 1.0 — GHS-314 technical specifications. The datasheet states that listed values are experimental data; the actual product shall prevail. Confirm final series configuration and inverter compatibility for each project.
C&I Application Scenarios
| Industrial Peak Shaving Reduce demand charges by discharging during peak tariff windows. | Data Centers Critical UPS backup with high-voltage DC efficiency. | EV Charging Hubs Buffer rapid chargers to mitigate grid impact and upgrade costs. | Agricultural Microgrids Scalable energy autonomy for remote farming operations. |
Frequently Asked Questions
Q: What is the GHS-314 series configuration range?
The GHS-314 supports 4 modules in series at minimum and 15 modules at maximum. The datasheet gives a rated energy range of 48.23–241.15kWh, rated voltage of 204.8–768V, and operating-voltage ranges of 179.2–230.4V (4S) or 672–864V (15S). Select the final configuration only after matching the inverter DC-voltage requirement.
Q: How is inverter compatibility validated for my project?
The current GHS-314 datasheet lists Growatt, Solis, Goodwe, Sol-Ark, SRNE and DEYE as compatible inverters, with CAN as the port communication. Provide the exact inverter model and DC-voltage window before order so the series configuration and protocol can be confirmed.
Q: What configuration information is needed for a GHS-314 project?
Specify the selected 4–15 module series count, inverter make/model, DC-voltage window and project energy target. The published module rating is 51.2V / 314Ah / 16.08kWh, with recommended charge and discharge current of 157A. The product carries a 10-year warranty.
Q: What environmental conditions are specified for the GHS-314?
The datasheet specifies charging at 0–55°C, discharging at −20–60°C, and storage at −10–40°C. Operating humidity is 10%–95%, non-condensing; storage humidity is 5%–95%, non-condensing. The enclosure rating is IP20. Design the installation and service clearances in accordance with the local electrical code and the final project drawings.
GHS-314 highlights: LFP chemistry, CAN communication, IP20 protection, >6,000 cycle life (0.5C @ 25°C, 90% DOD), and a 10-year warranty. The datasheet notes that actual product parameters shall prevail.
Related Products
Explore Related Products

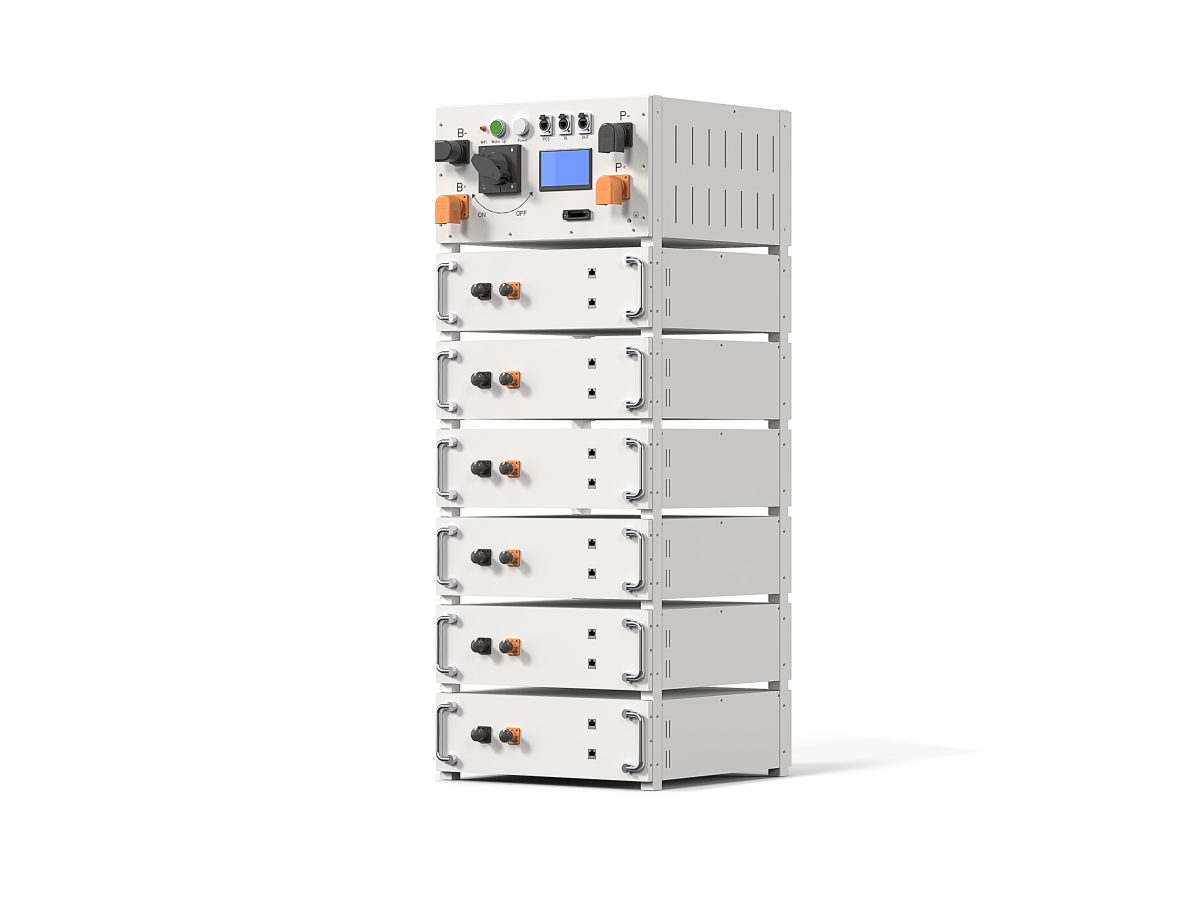

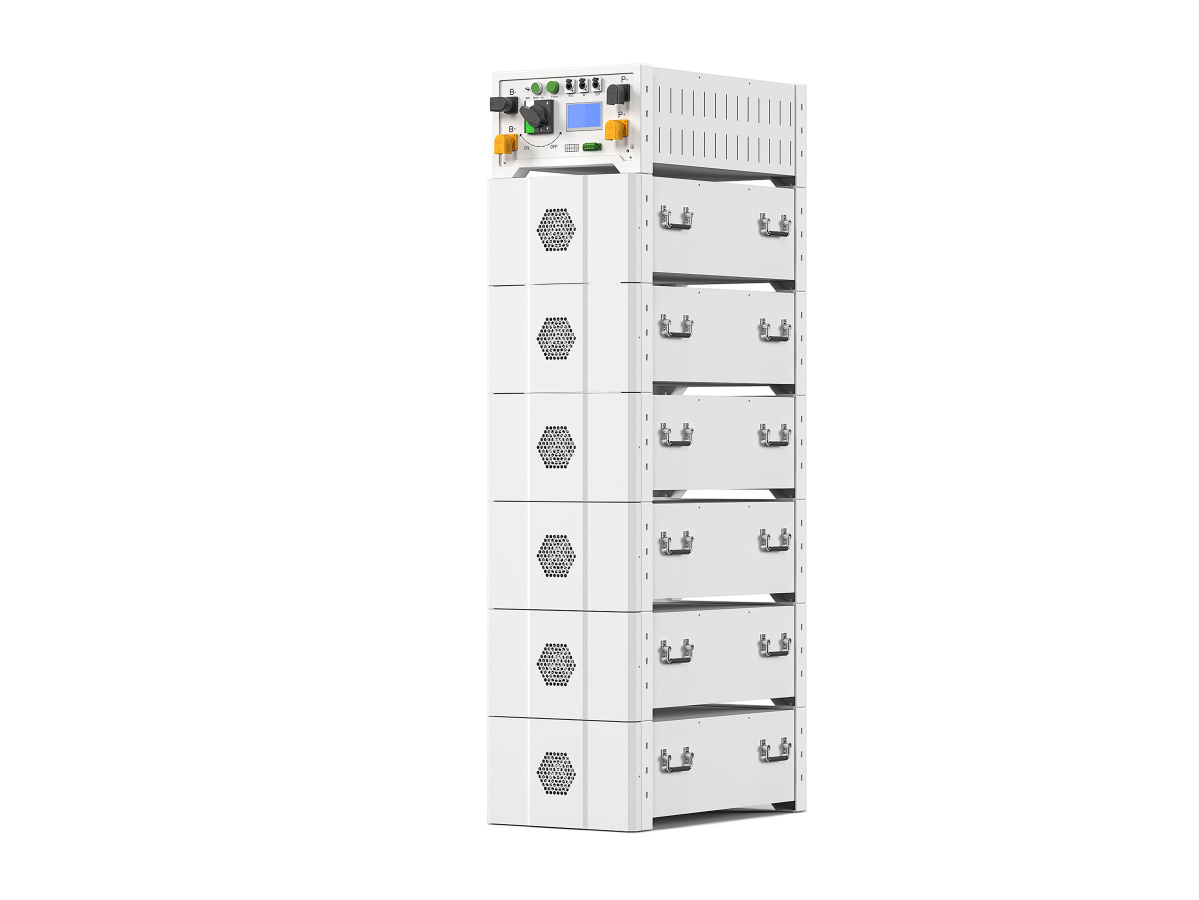

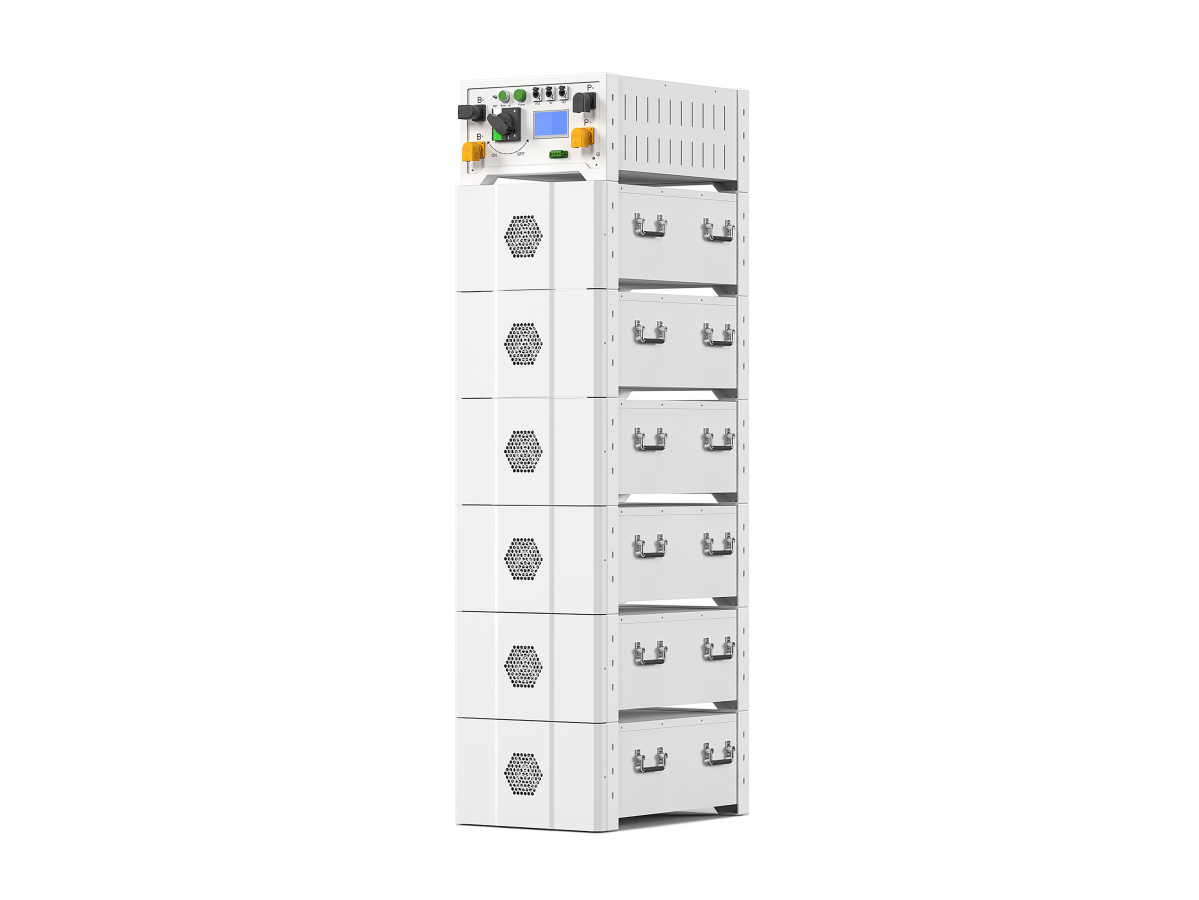

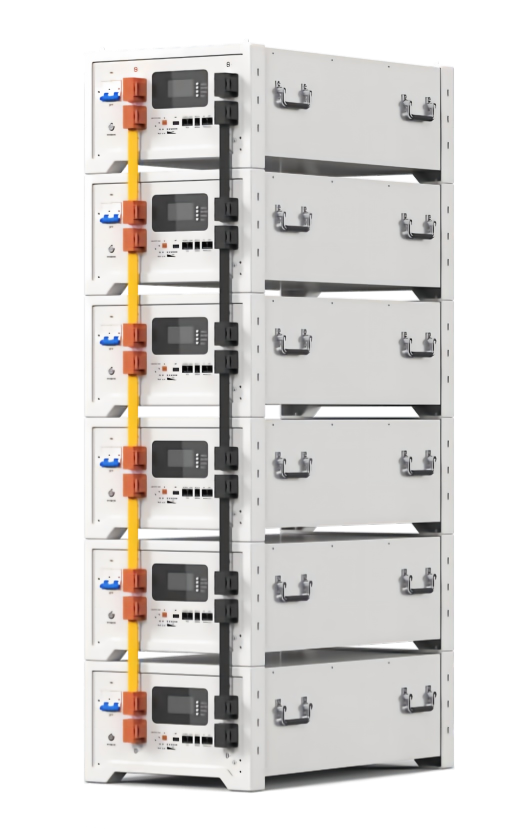

GLR-314 High-Voltage Battery Module FAQ
