400W–1200W range
Six documented models for large-area sports and high-mast applications.
Product overview

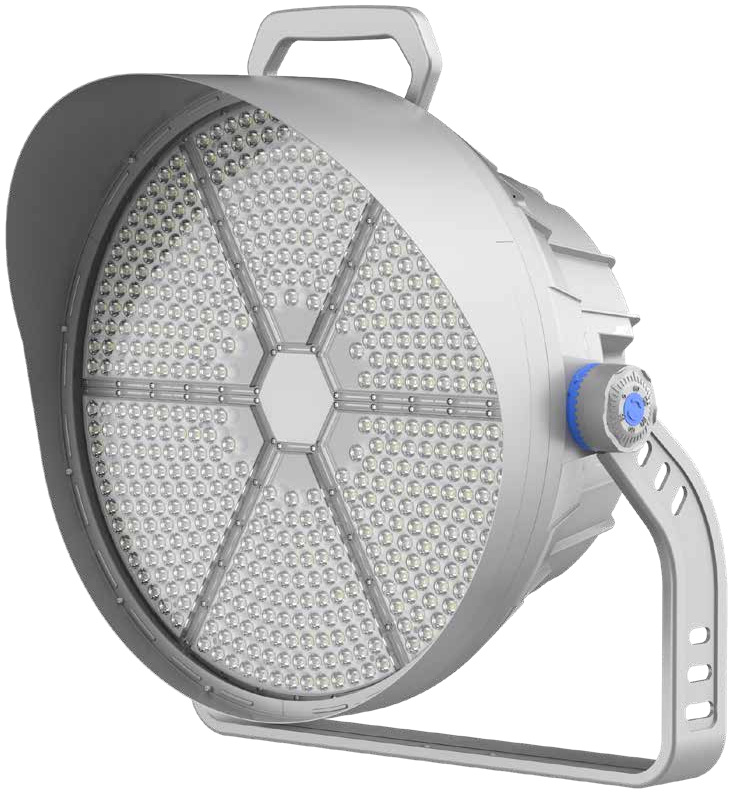

SKYWING SF06
Sports & High Mast Light.
SKYWING SF06 is a die-cast aluminum sports and high-mast LED light family documented from 400W to 1200W in six models. The supplied data lists ten, fifteen, twenty-five, forty-five, sixty and ninety-degree distributions for controlled spill light and upward-light reduction.
The family uses Lumileds / Osram LEDs, a polycarbonate optical lens, AC100-277V input and an IP66 / IK08 enclosure. Sizes scale with wattage from a 522×509×389mm housing to a 681×660×497mm housing.
Selection note: confirm mounting height, target illuminance and beam angle against the site before finalising CCT, driver and control options.
Six beam angles
10°, 15°, 25°, 45°, 60° and 90° distributions with published polar plots.

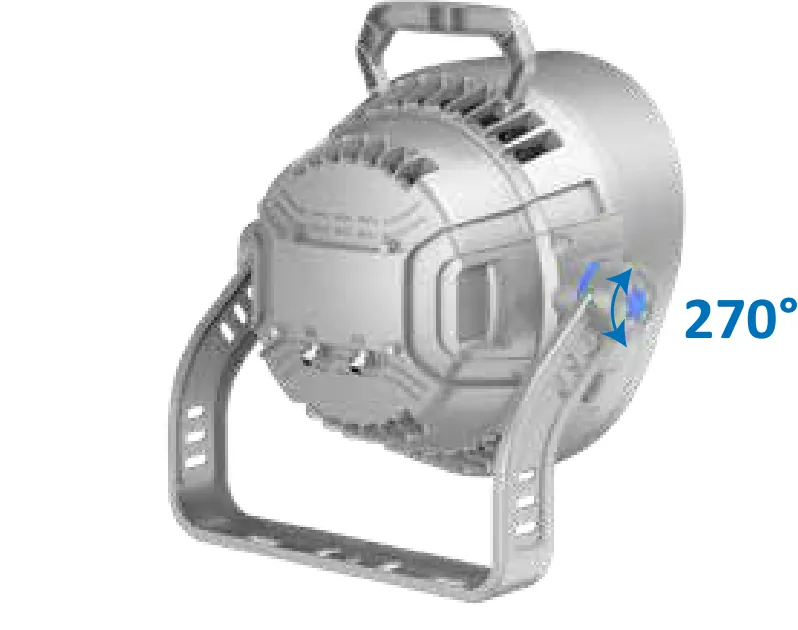

270° racked angle
A 270° adjustable bracket with 10° steps for precise installation aiming.
IP66 / IK08 build
Documented environmental and impact ratings for outdoor sports installs.
Model configurator
Six models. Every verified value.
SKYWING SF06 · Sports & High Mast Light
ISL-SF06-A-400W
Rated 400W · 60,000lm · 522×509×389mm
Electrical & light source
- Rated power
- 400W
- Input voltage
- AC100-277V, 50/60Hz
- LED brand
- Lumileds / Osram
- Driver / control
- 1-10V, DALI
Optical performance
- CCT
- 3000K / 4000K / 5000K / 5700K / 6500K
- Beam angle
- 10° / 15° / 25° / 45° / 60° / 90°
- CRI
- Ra ≥ 70 / 80 / 90
- Luminous flux
- 60,000lm
Construction & dimensions
- Housing
- Die-cast aluminum
- Fixture size
- 522×509×389mm
- Lens material
- Polycarbonate
- Glass
- 4mm tempered glass (optional)
Operating, options & certification
- IP rating
- IP66
- IK rating
- IK08
- Life span
- 50,000Hrs (Pending: TDS 60,000Hrs)
- Certification
- UL / CQC / CB / CE / ENEC / SAA / FCC / RoHS
Beam patterns
Beam patterns.

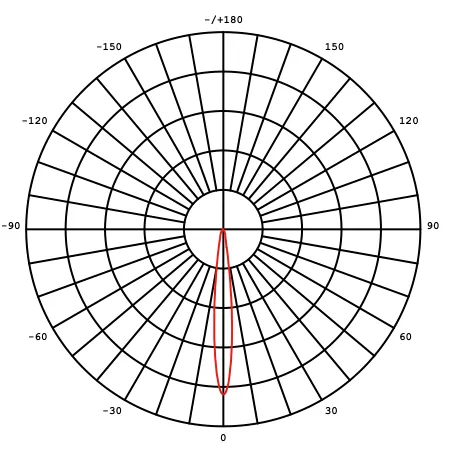

10°

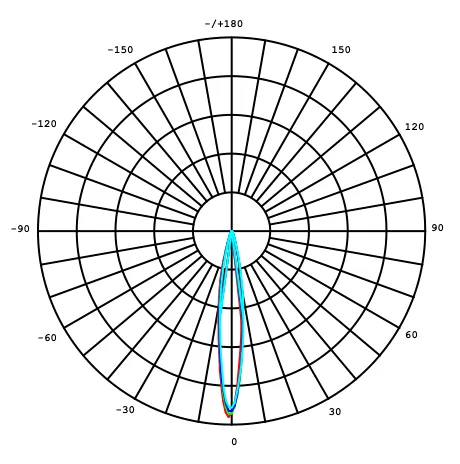

15°

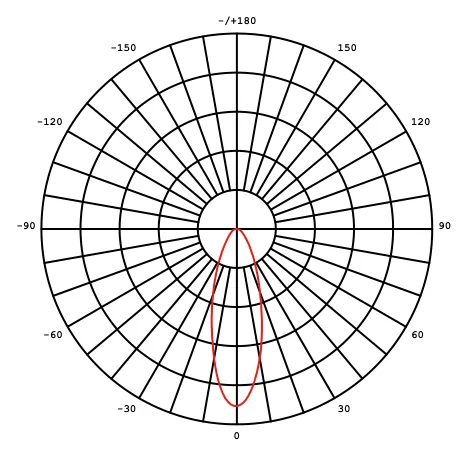

25°

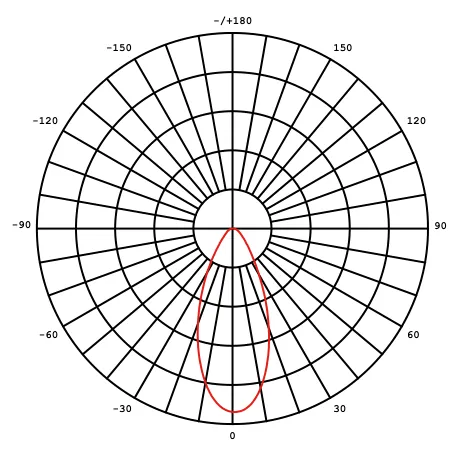

45°

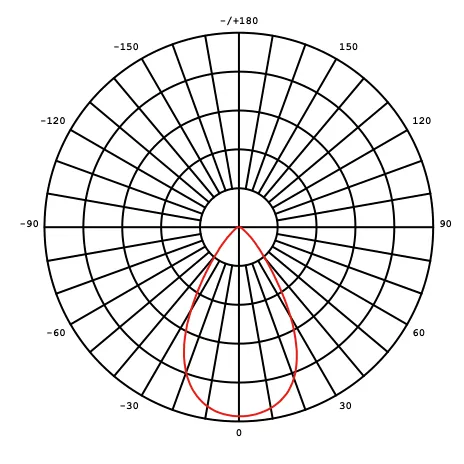

60°

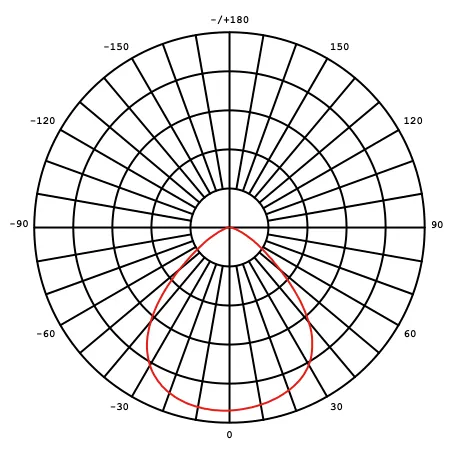

90°Application settings
Application settings.
Soccer Field
Basketball Court
Hockey Field
Tennis Court
Athletic Field
Baseball Field
Badminton Court
Stadium Arena
Airport

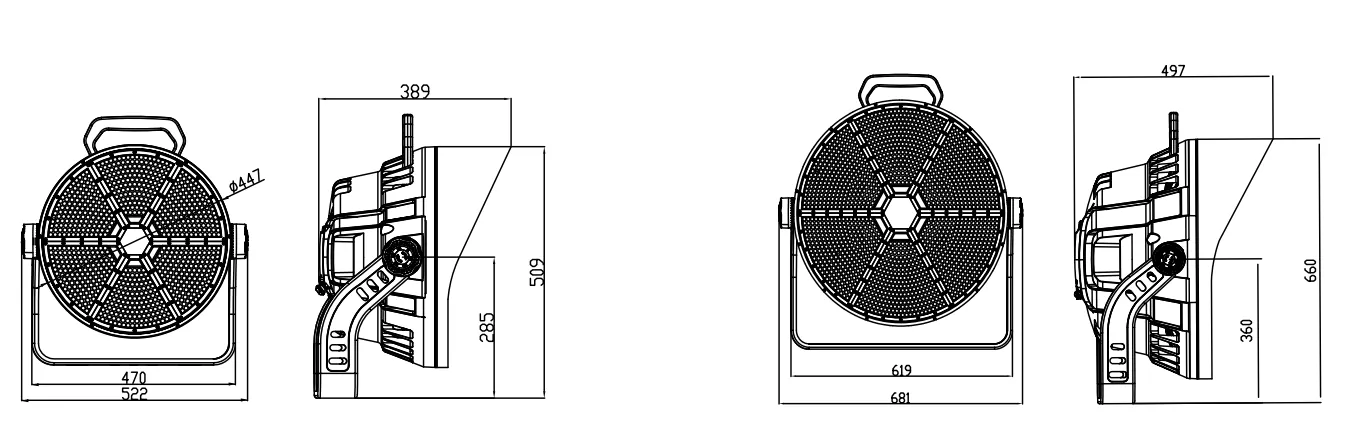

Dimension drawing · 681/660mm housing (619mm front)Dimensions & installation
Dimensions & installation.
The catalog documents a 270° adjustable racked angle with 10° installation steps, and two housing footprints: a 522×509×389mm housing and a 681×660×497mm housing.
Confirmation needed: net weight, gross weight and carton dimensions are listed differently between the two supplied documents and are left for project confirmation.
FAQ
High-mast lighting questions, answered.
What power options are available for the SKYWING SF06?
The catalog documents six models — ISL-SF06-A-400W, 500W, 600W, 800W, 1000W and 1200W — with rated power from 400W to 1200W.
Which beam angles or optical distributions are documented?
Six distributions are listed: 10°, 15°, 25°, 45°, 60° and 90°, with polar plots published for each.
Which application settings are illustrated in the supplied data sheet?
The data sheet illustrates soccer, basketball, hockey and tennis court settings, plus athletic field, baseball field, badminton court, stadium arena and airport.
What information should be confirmed before high-mast light selection?
Mounting height, target area, required illuminance and beam angle must be confirmed against the site, together with CCT, driver and control options.
Which installation or dimensional details are documented?
The catalog records a 270° adjustable racked angle with 10° steps, plus dimensions for the 470/522mm and 681/660mm housings and a 285/389/509mm side profile.
What project information is needed for a quotation?
Share the pole or tower height, target area, required lux level, beam angle and operating schedule so the model and optics can be sized to the site.
How can customers request project-selection support?
Contact the project support team with your site conditions and target illuminance for selection guidance, sizing and a quotation.
Plan your SF06 sports & high-mast lighting project.
Send your mounting or tower height, target area, required illuminance, desired beam angle and operating schedule for model selection and application guidance.
