E-ABLE POWER / ENERGY STORAGE

GWR SeriesWall-Mounted LFP

GWR wall-mounted LFP battery from 5.12kWh to 10.24kWh, delivering safe, low-voltage storage in a slim wall unit. Stackable and BMS-protected, it pairs with hybrid inverters for home backup.

EXPLORE THE RANGE →REQUEST PROJECT SUPPORT
E-ABLE POWER — PRODUCT DATASHEET
RESIDENTIAL & SMALL COMMERCIAL ENERGY STORAGE
WALL-MOUNTED LFP5-10kWh / 51.2VFULLY CONFIGURABLE

GWR Series | Ultra-Thin Wall-Mounted LFP Battery

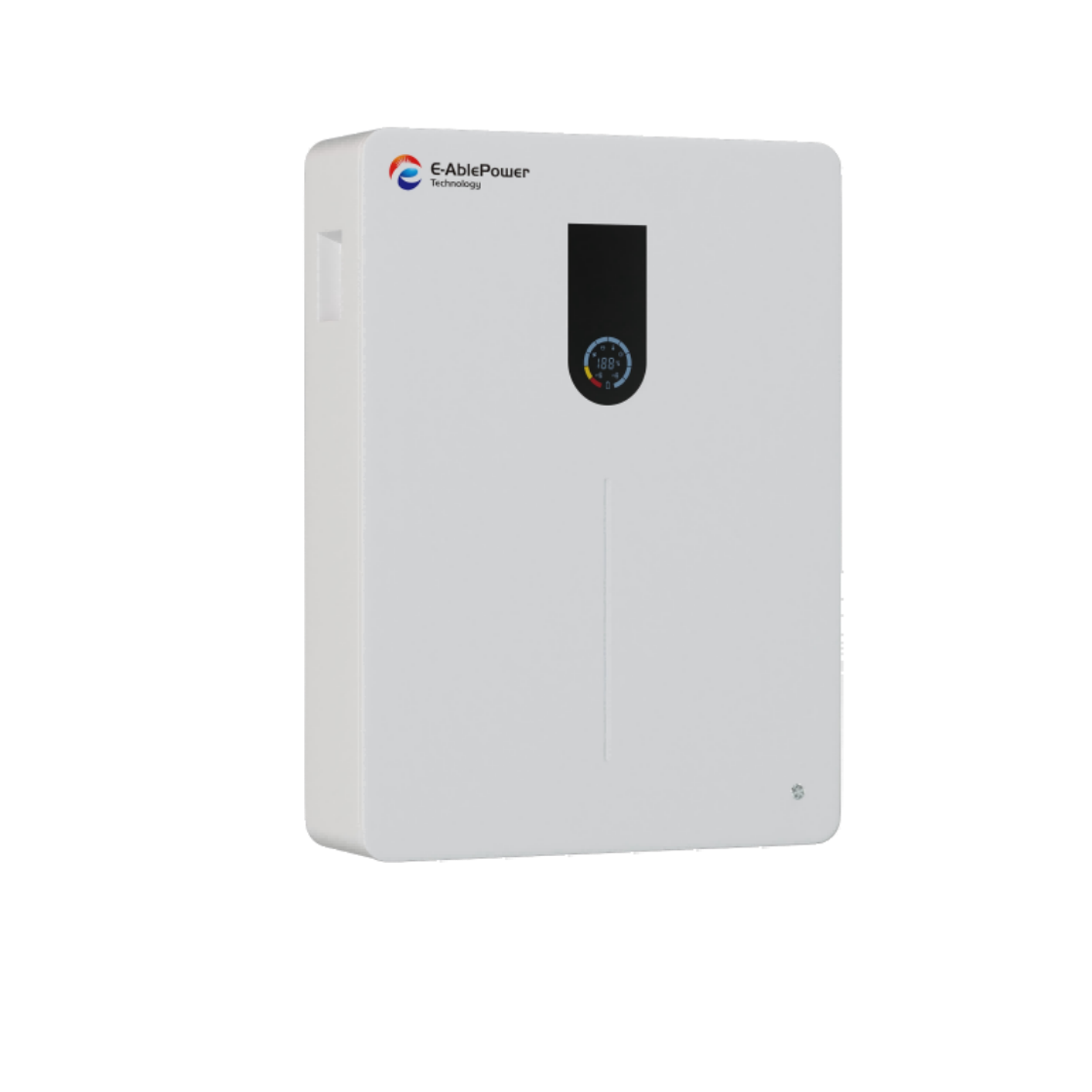

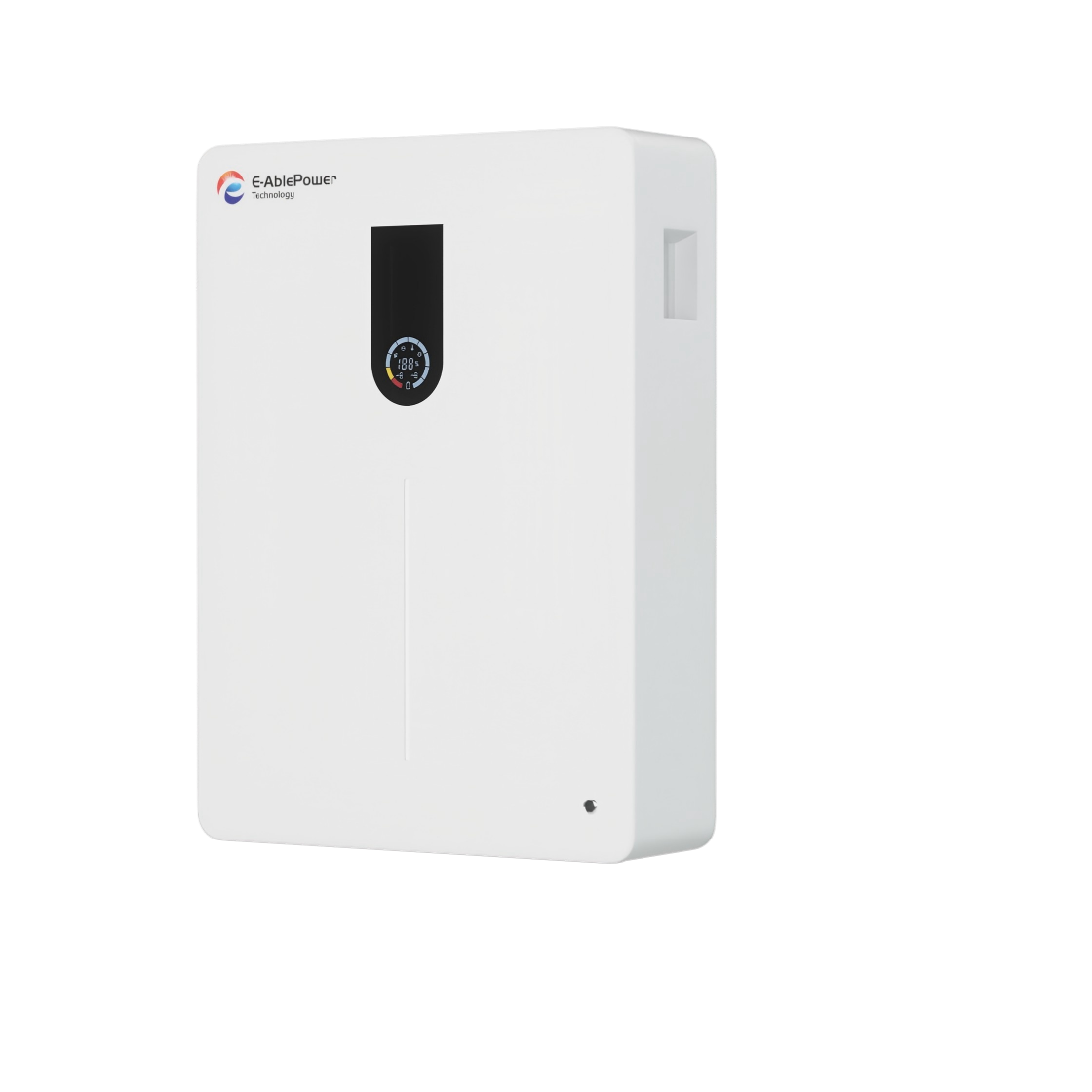

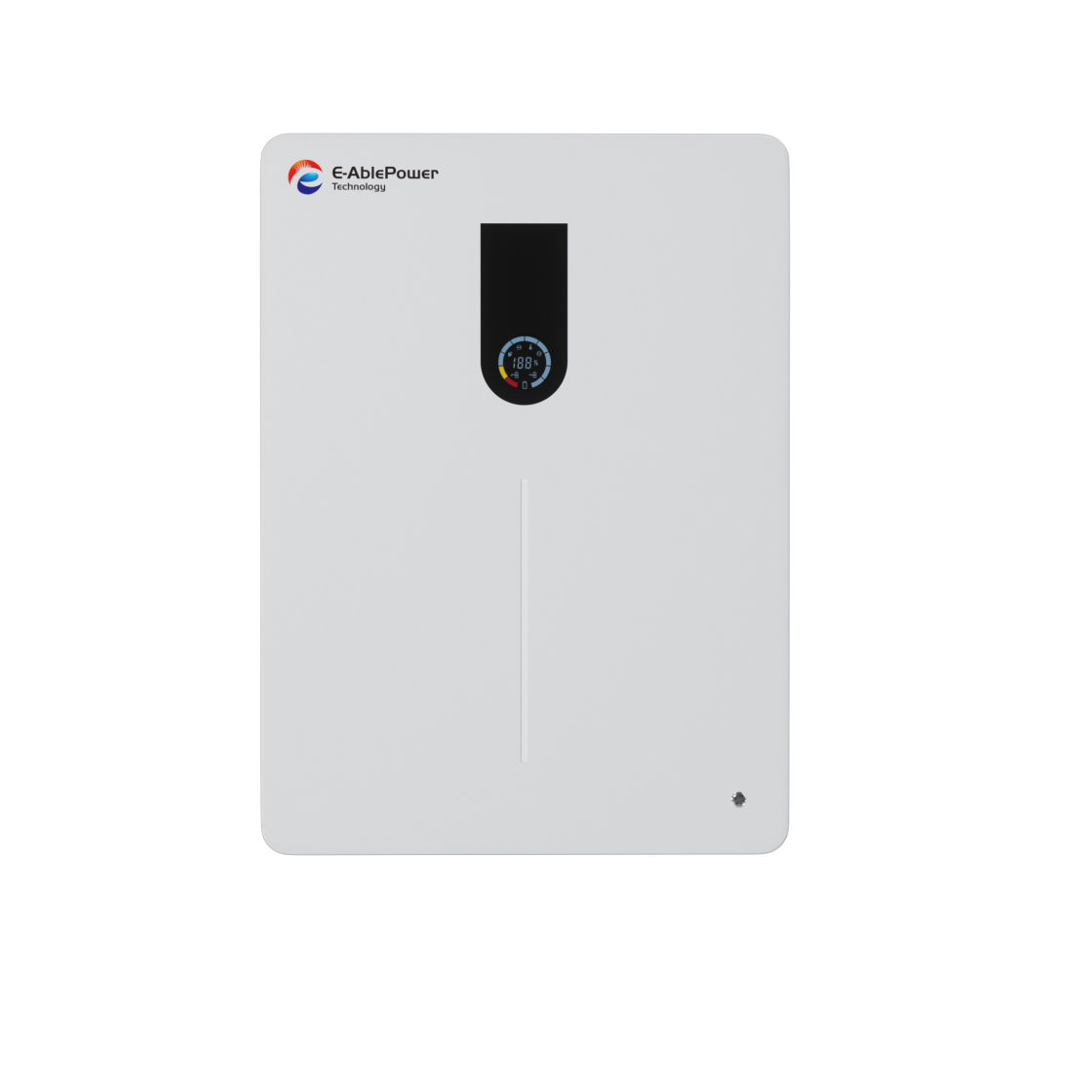

GWR Series Wall-Mounted LFP Battery

An ultra-thin wall-mounted LFP battery engineered for residential and small commercial energy storage, delivering reliable whole-home backup and grid independence in a space-saving vertical cabinet. Two models — GWR 48-100 (5.12kWh, 45kg) and GWR 48-200 (10.24kWh, 95kg) — run on a low-voltage 51.2Vdc SELV architecture with Grade A prismatic cells and an integrated Smart BMS, supporting RS485 / CAN 2.0 / RS232 / WiFi and pre-tested with 7 major inverters.

Model: GWR 48-100 (5.12kWh) · GWR 48-200 (10.24kWh)

Brand: E-Able Power | Platform: 51.2Vdc Low-Voltage SELV

Capacity: 5.12 / 10.24 kWh | Net Weight: 45 / 95 kg

 GWR Series Wall-Mounted LFP Battery
Smart BMS

24/7 cell-level monitoring with overcharge, over-discharge, short-circuit and temperature protection, plus active cell balancing.

Wall-Mount

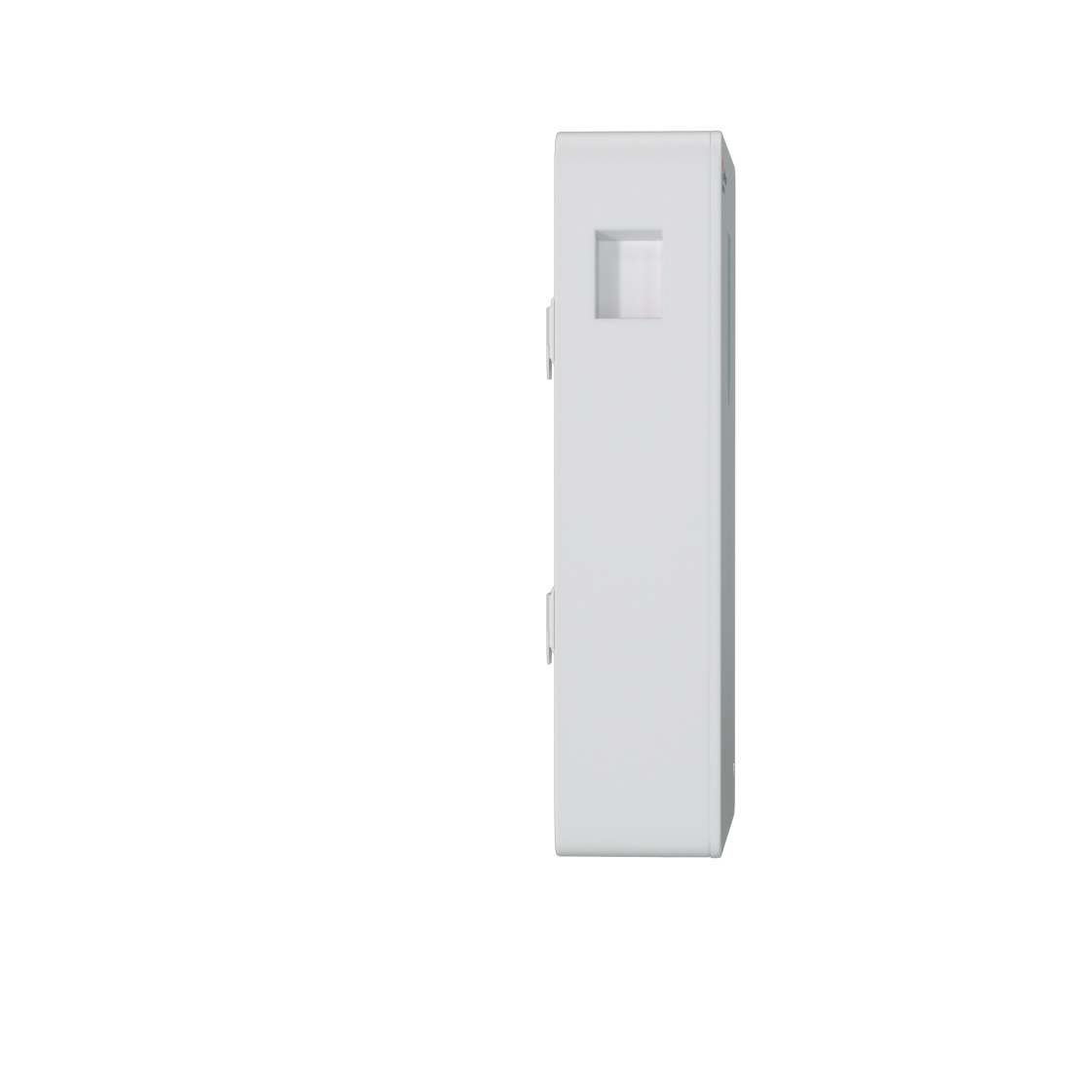

Ultra-thin vertical profile (133mm / 180mm depth) mounts directly on the wall with included brackets — zero floor space required.

Inverter Compatible

Plug-and-play with Deye, Growatt, Victron, Goodwe, Solis, Luxpower and Sofar over RS485/CAN; safe 51.2Vdc SELV architecture.

Key Specifications at a Glance

ParameterGWR 48-100GWR 48-200
Product TypeUltra-Thin Wall-Mounted LFP Battery
Nominal Energy5.12 kWh (100Ah)10.24 kWh (200Ah)
Cell ChemistryLiFePO4 (LFP) Grade A Prismatic Cells
Nominal Voltage51.2 Vdc (Low-Voltage SELV, Operating Range: 43.2 – 57.6 Vdc)
TopologyDC-Coupled with Low-Voltage Hybrid Inverter
Application ScopeResidential Backup, Home Solar ESS, Small Retail, Off-Grid
Capacity / DOD100 Ah / 90% DOD200 Ah / 90% DOD
Max Charge / Discharge & Life100A Charge & Discharge — 6,000+ Cycles at 25°C, 0.5C
CommunicationRS485 / CAN 2.0 / RS232 / WiFi (Optional) — Modbus RTU
Inverter SupportDeye / Growatt / Victron / Goodwe / Solis / Luxpower / Sofar
Dimensions (W×D×H)442 × 133 × 600 mm480 × 180 × 850 mm
Net Weight / IP Grade45 kg / IP20 (Indoor)95 kg / IP20 (Indoor)

Installation Cases

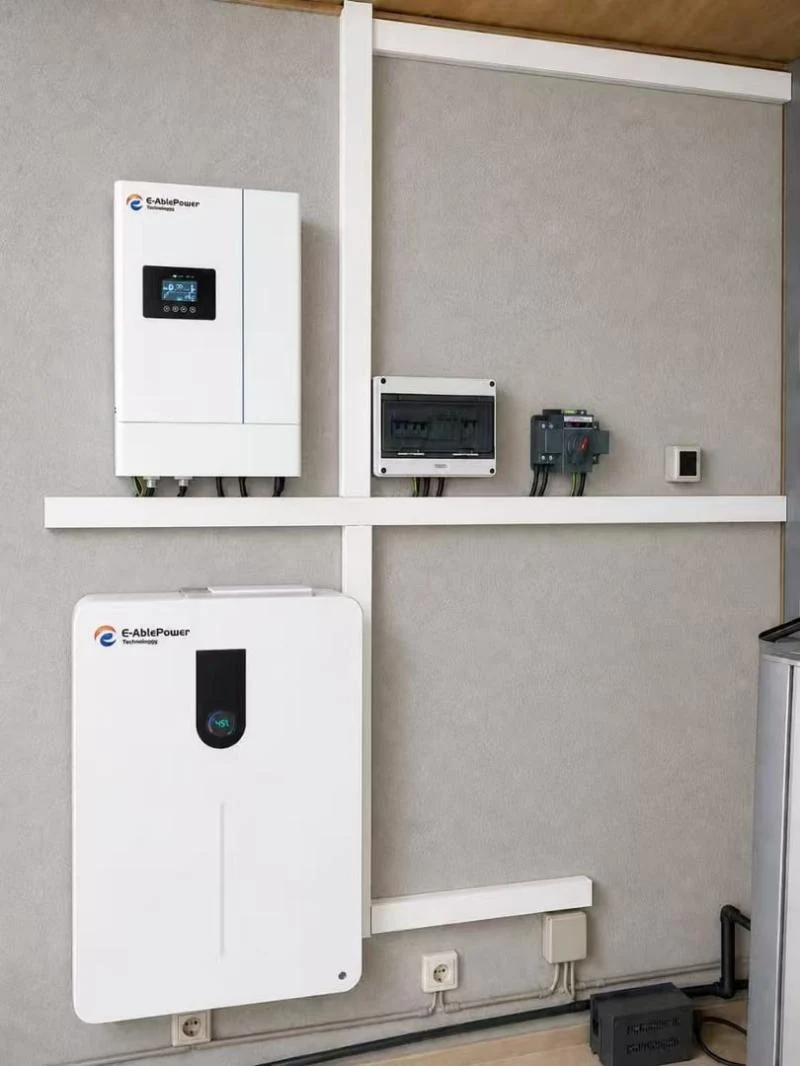

Installation Cases 1
Installation Cases 2
Installation Cases 3
Installation Cases 4
Installation Cases 5

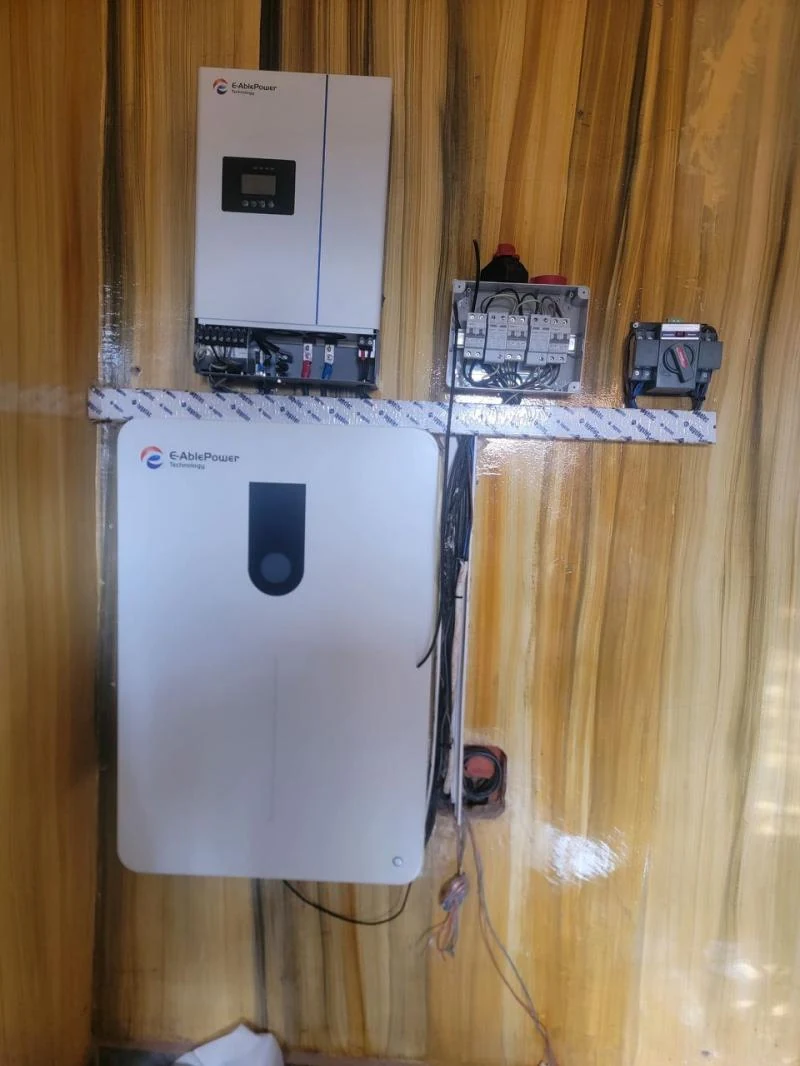

Installation Cases 6

Production

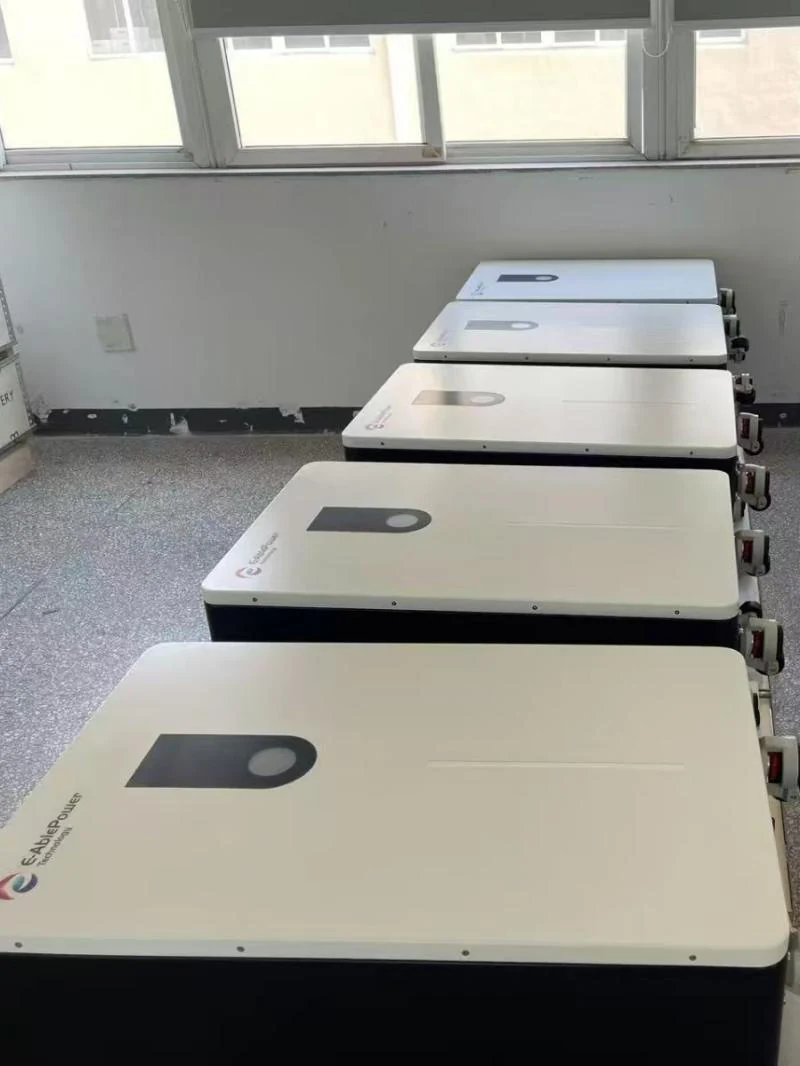

Production 1
Production 2
Production 3

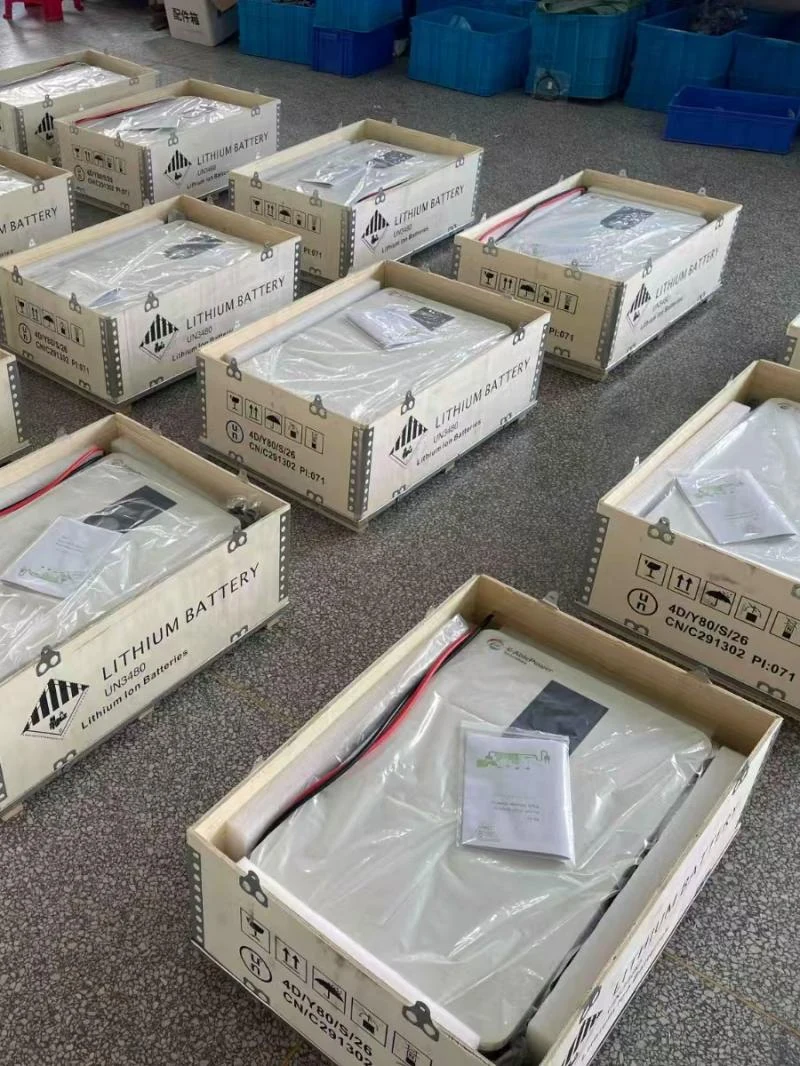

Production 4
Production 5

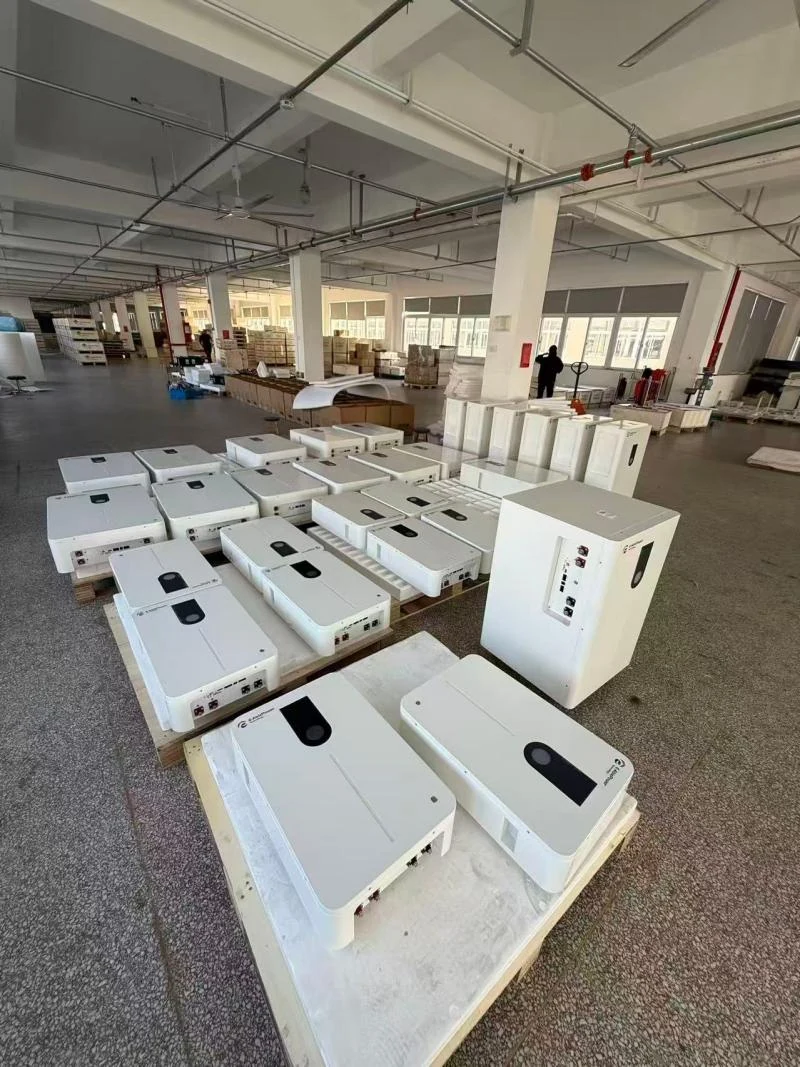

Production 6

Shipping

Shipping 1
Shipping 2

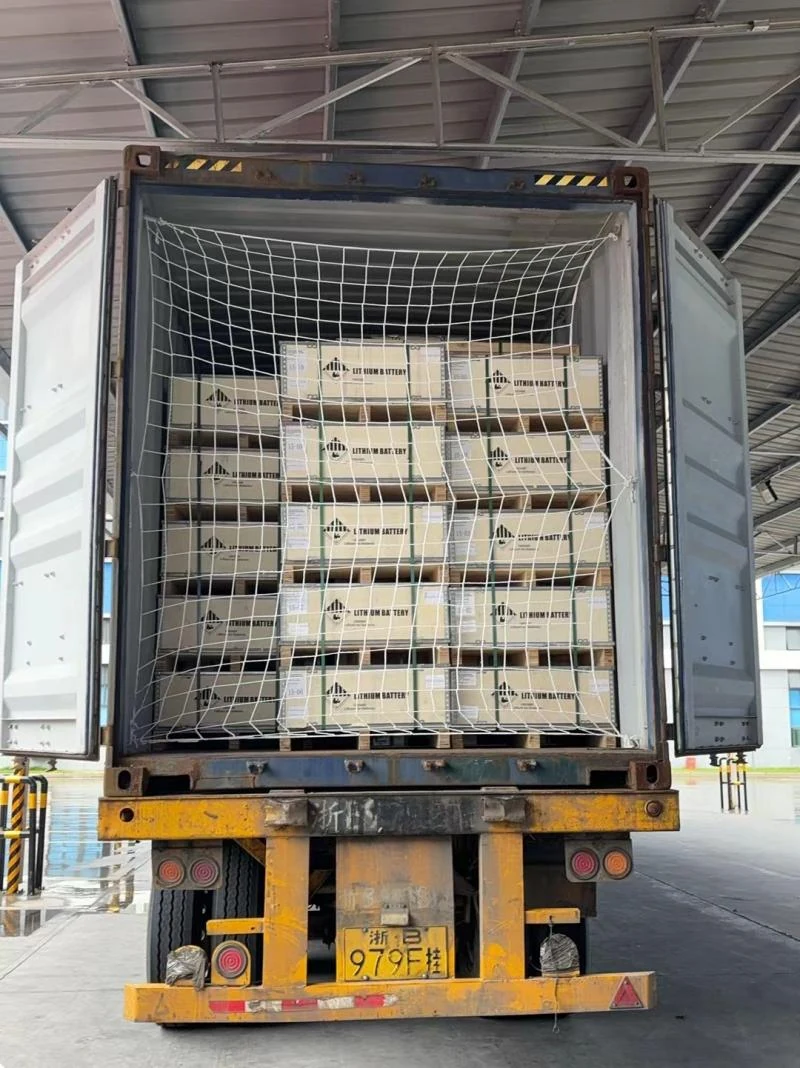

Shipping 3
Shipping 4
Shipping 5
Shipping 6

Related Products

Explore Related Products

Frequently Asked Questions

What is the GWR Series's rated output or capacity?

The GWR Series is available in capacities up to 5.12 kWh (100Ah) / 10.24 kWh (200Ah).

What battery technology does the GWR Series use?

It uses Grade A LFP prismatic. It is rated for 6,000+ cycles at 0.5C (90% DOD).

What voltage and configuration does the GWR Series support?

It operates at 51.2 Vdc (low-voltage SELV).

What control and communication does the GWR Series support?

Communication via RS485 / CAN 2.0 / RS232 / etc.. Compatible with Deye, Growatt, Victron, Goodwe.Includes Integrated smart BMS.

Can the GWR Series be configured for a project?

Yes — configuration can be adapted for a project. It carries a 5 years warranty. Contact us with your site and energy or lighting requirements for sizing and a quotation.

Is the GWR Series safe for wall-mounted indoor use?

Yes — it operates on a 51.2Vdc Safety Extra-Low Voltage (SELV) architecture, rated IP20 (Indoor), and the integrated Smart BMS provides overcharge, over-discharge, short-circuit and temperature protection.
