E-ABLE POWER / ENERGY STORAGE

Wall-Mounted ESS3.6kW/6.5kW

Wall-mounted all-in-one ESS in 3.6kW and 6.5kW sizes that integrate inverter and LFP battery for clean, compact home storage. Hybrid inverter and battery in one wall unit for backup and self-use.

EXPLORE THE RANGE →REQUEST PROJECT SUPPORT
E-ABLE POWER — PRODUCT DATASHEET
RESIDENTIAL & COMMERCIAL ENERGY STORAGE
WALL-MOUNTEDLiFePO43.6 / 6.5 kW

Wall-Mounted All-In-One Energy Storage | 25.6V / 51.2V

Wall-Mounted All-In-One Energy Storage System

A compact wall-mounted ESS combining a 3.6kW or 6.5kW hybrid inverter, MPPT solar charger, Grade A LiFePO4 battery (2.56 – 5.12 kWh) and intelligent BMS in one slim cabinet — 25.6V / 51.2V low-voltage platforms, pure sine wave output and 10ms UPS-grade switchover for apartments, small homes and light commercial use.

Model: 25.6V 100Ah + 3.6kW / 25.6V 200Ah + 3.6kW / 51.2V 100Ah + 6.5kW

Brand: E-Able Power | Mounting: Wall-mounted, indoor (IP21)

Power Range: 3.6kW / 6.5kW | Capacity: 2.56 / 5.12 kWh (100Ah / 200Ah)

 Wall-Mounted All-In-One Energy Storage System

Main Product Images

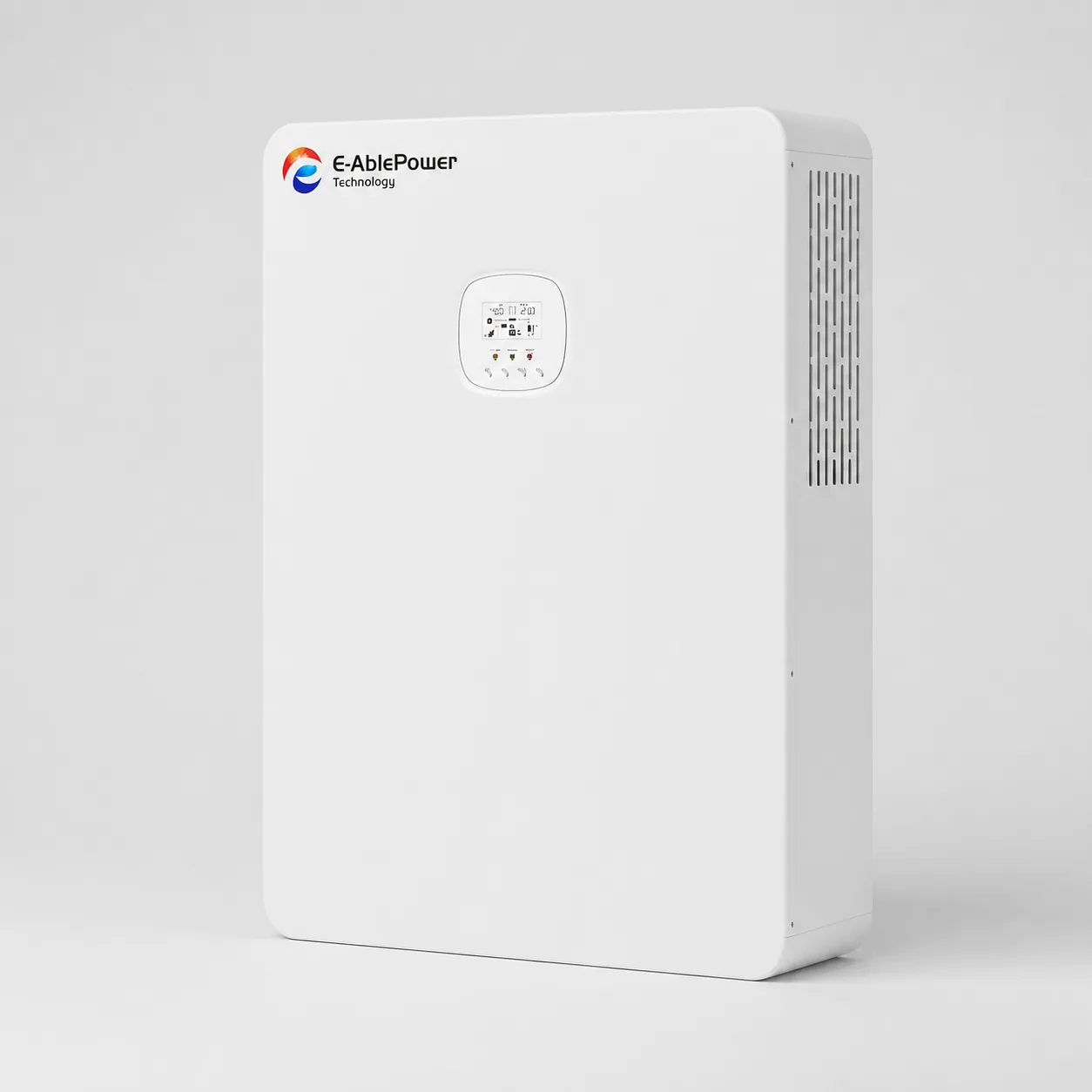

Wall-Mounted All-In-One Energy Storage System view Wall-Mounted All-In-One Energy Storage System cabinet Wall-Mounted All-In-One Energy Storage System 6.5kW model

Key Specifications at a Glance

Specification Value Specification Value
Product Type Wall-Mounted All-In-One ESS (Inverter + Battery + BMS) Models 3 variants — 3.6kW & 6.5kW inverter platforms
Capacity Range 2.56 / 5.12 / 5.12 kWh (100Ah / 200Ah) Nominal Voltage 25.6V / 51.2Vdc (Low-Voltage Architecture)
Cell Chemistry Grade A LiFePO4 AC Output 3.6kW / 6.5kW — Pure Sine Wave
Surge Power 7.2kVA / 12kVA Switch Time 10ms (UPS/APP) / 20ms (GEN)
PV Input MPPT 40–450 / 60–450VDC, max 500VDC Max Charge Current 100A (3.6kW) / 120A (6.5kW)
Cycle Life 6,000+ at 80% DOD Communication RS232 / RS485 / CAN / WiFi / BT
Display LCD (5-inch on 6.5kW model) Mounting Wall-mounted, indoor (IP21)
Certifications CE / ROHS / FCC / UN38.3 / MSDS Warranty 2 years (system & battery)

Key Innovation Advantages

True All-In-One Design

Hybrid inverter, MPPT charger, LiFePO4 battery and BMS pre-integrated in one slim wall-mounted cabinet — no separate battery box, no external DC wiring, minimal installation time.

Plug & Play Operation

Pre-wired and pre-configured at the factory. Connect solar panels and AC load to start using immediately — no professional electrician required for basic setup.

UPS-Grade Switchover

10ms transfer time keeps computers, medical devices and security systems running through grid failures without interruption — 20ms in generator mode.

Intelligent BMS

Real-time cell-level monitoring of voltage, current and temperature with automatic cell balancing — maximizing usable capacity and extending service life.

Dual Voltage Platform

Choose the 25.6V platform for compact 3.6kW setups or the 51.2V platform with 94% battery-mode efficiency for the 6.5kW model — both safe low-voltage architectures.

Smart Monitoring

WiFi / Bluetooth connectivity (optional) with a mobile app: power flow visualization, battery SOC, energy statistics and fault alerts in real time.

Multi-Mode Operation

Solar priority, utility priority, UPS backup and off-grid modes with automatic source switching — maximize self-consumption, shift peak loads or run fully independent.

Compact Wall-Mounted Design

Slim cabinet designed for indoor wall mounting — ideal for apartments and small homes where floor space is limited. IP21 rated with a 2-year warranty.

Technical Specification Matrix

Values are based on manufacturer specification. Final configuration confirmed per order.

Parameter 25.6V 100Ah
+ 3.6kW		 25.6V 200Ah
+ 3.6kW		 51.2V 100Ah
+ 6.5kW
AC Input
Rated Input Voltage (VAC) 208 / 220 / 230 / 240; L+N+PE
Voltage Range (VAC) 90~280 ±3 (Normal mode) | 170~280 ±3 (UPS mode)
Frequency (Hz) 50 / 60 (Auto Adaptive)
AC Output
Rated Capacity (kW) 3.6 3.6 6.5
Surge Power (kVA) 7.2 7.2 12
Voltage (VAC) 208 / 220 / 230 / 240
Power Factor (PF) 1
Frequency 50/60Hz ±0.1%
Switch Time (ms) 10 (UPS/APP)
20 (GEN)		 10 (UPS/APP)
20 (GEN)		 10 (Normal)
10 (UPS)
Wave Form Pure Sine Wave
Overload Capacity (Battery Mode) 60s@102-110%
10s@110-130%
3s@130-150%
0.2s@>150%		 60s@102-110%
10s@110-130%
3s@130-150%
0.2s@>150%		 1min@102-110%
10s@>110%
Max. Efficiency (Battery Mode) 92.7% @24VDC 92.7% @24VDC 94% @48VDC
Charger (PV / AC)
Solar Charger Type MPPT
Max PV Input Current / Power 18A / 5000W 18A / 5000W 27A / 9000W
MPPT Range @ Operating Voltage (VDC) 40–450 40–450 60–450
Max PV Open Circuit Voltage (VDC) 500
Max. Charge Current (PV/AC/PV+AC) (A) 100 100 120
Battery
Standard Voltage (V) 25.6 25.6 51.2
Standard Capacity (Ah) 100 200 100
Rated Capacity (kWh) 2.56 5.12 5.12
Battery Type LiFePO4 (Lithium Iron Phosphate)
Suggested DOD 80%
Cycle Life > 6,000 cycles
Communication BT (optional) BT (optional) RS232/CAN/RS485
(WiFi/BT optional)
Display LCD (optional) LCD (optional) LCD 5-inch
(touch optional)
Warranty 2 Years
Interface
HMI LCD LCD 5-inch LCD
Interface RS485/CAN/RS232
Dry Contact		 RS485/CAN/RS232
Dry Contact		 RS232/RS485/CAN
Monitoring WiFi (optional / external) WiFi (optional / external) WiFi (optional / built-in / external)
General Data
Ingress Protection IP21
Operating Temperature -10°C ~ 60°C
Protection Function Undervoltage, overvoltage, overload, over-temperature, short circuit, reverse connection (fuse)
Certificate UN38.3 / MSDS / CE / ROHS / FCC

Table 1.0 — Wall-Mounted all-in-one ESS model variants. The 25.6Vdc platform powers the 3.6kW inverter models; the 51.2Vdc platform powers the 6.5kW model at up to 94% battery-mode efficiency. Pure sine wave output, 10ms UPS switchover, IP21 indoor rated. UN38.3 / MSDS / CE / ROHS / FCC certified.

Frequently Asked Questions

How do I choose between the 3.6kW and 6.5kW inverter platforms?

The 3.6kW platform is ideal for apartments, small homes and flats with essential loads (lighting, fridge, router, TV), while the 6.5kW platform supports larger homes with more appliances, higher surge loads and up to 5.12 kWh of storage. Send your daily kWh consumption and connected load list for a free sizing recommendation.

What is the difference between the 25.6V and 51.2V platforms?

The 25.6V platform is a compact, lower-cost option for small 3.6kW setups, while the 51.2V platform delivers 94% battery-mode efficiency and pairs with the 6.5kW inverter for higher output. Both are low-voltage, SELV-style architectures that are safe to install indoors without high-voltage isolation.

What can I power during a grid outage and for how long?

With a 10ms UPS-grade switchover, the system takes over automatically when the grid fails. A 2.56 kWh unit keeps lighting, a fridge, router and a TV running through an evening, while 5.12 kWh extends runtime for larger essential-load backup. Exact runtime depends on your connected load.

Where can the wall-mounted unit be installed?

The slim cabinet is designed for indoor wall mounting (IP21) in a utility room, garage, balcony or hallway — ideal for apartments and small homes where floor space is limited. It pairs with a hybrid inverter and solar panels for a tidy home battery backup installation.

How many kWh do I need to run my home on battery backup?

For home battery backup sizing, a 2.56–5.12 kWh wall-mounted unit covers emergency loads (Wi-Fi, lighting, fridge, phone charging). If you want to power more appliances or run longer, choose the 6.5kW platform with 5.12 kWh, or pair it with a larger floor-standing battery. Our engineers can size your system from your load profile.

What certifications and warranty are included?

The wall-mounted all-in-one ESS is certified UN38.3, MSDS, CE, ROHS and FCC, with a 5-year warranty on the system and battery. OEM/ODM branding and packaging are available with MOQ, with remote technical support and spare parts for all projects.
