SOLARWRAP / HEXAGON VERTICAL SOLAR MODULE

Vertical solar panels that wrap the pole.

Six PV faces on one slim hexagonal cylinder. 140 W or 200 W, clamped onto the pole you already have — no foundation, no re-poling, no shadow under the luminaire.

Downloads

Print-ready PDF — specifications and installation in one place, no login required.

Product overview

What the format does

Built for poles that already carry a luminaire, a camera or a sign.

A vertical array is not a flat panel stood on end. The cells sit on six faces of a closed hexagonal cylinder, so roughly half the array faces the sun at any hour. There is no orientation decision on site and no single direction that goes dark in winter.

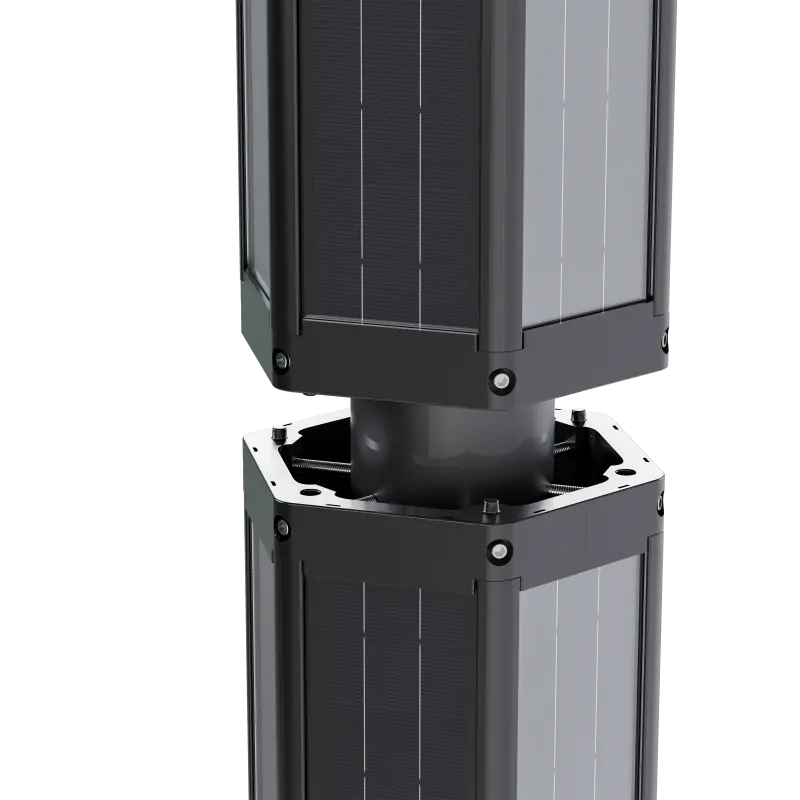

The module clamps to the pole at the top and bottom, which is what makes a retrofit possible: the existing pole, foundation and wiring stay where they are. Two sections stack on the same pole when the controller needs more voltage.

Because the faces are vertical, rain runs down and takes the dust with it. On a coastal or desert corridor that removes the washing route from the maintenance contract — usually the largest running cost of a pole-mounted array.

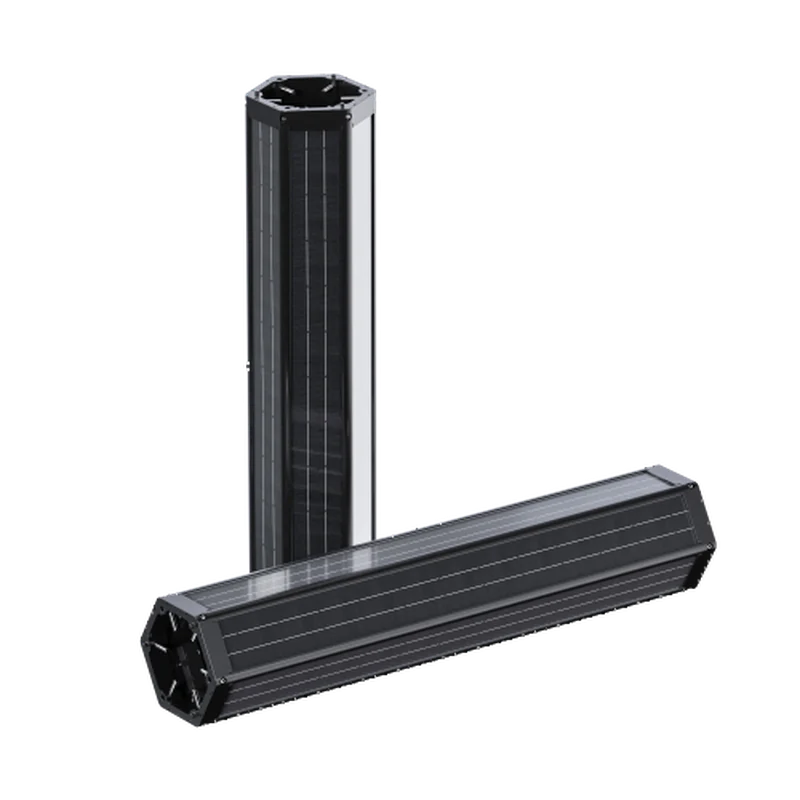

SolarWrap Hexagon vertical solar panel Q140 Q200 mounted on a light pole
Technical data

Verified module specifications

Nameplate values at STC. Where the factory sheet and the price list disagree, the datasheet value is used.

PropertyQ140Q200
Rated power (Pmax)140 W200 W
Dimensions (mm)228 × 200 × 1560228 × 200 × 2060
Voltage at Pmax (Vmp)18 V / 36 V18 V / 36 V
Current at Pmax (Imp)7.78 A / 3.89 A11.11 A / 5.56 A
Open-circuit voltage (Voc)21.6 V / 43.2 V21.6 V / 43.2 V
Short-circuit current (Isc)8.56 A / 4.28 A12.22 A / 6.72 A
Power tolerance±3%±3%
Cell typeMonocrystalline, made in TaiwanMonocrystalline, made in Taiwan
Module efficiency21.20%21.20%
Cable / connector2.5 mm² · MC42.5 mm² · MC4
Front glassHigh-strength tempered glassHigh-strength tempered glass
FrameAluminium, powder coatedAluminium, powder coated
Mechanical loadFront 5400 Pa / back 2400 PaFront 5400 Pa / back 2400 Pa
Ingress protectionIP66 / IK08IP66 / IK08
Max. pole diameter≤ 150 mm≤ 150 mm
Operating temperature−20 °C to +70 °C−20 °C to +70 °C
Expected lifetime> 20 years> 20 years
Warranty5 years5 years
Also available with a UPVC frame as Q140-B and Q200-B: same module, polymer profile, 50-piece minimum. Wind resistance to IEC 60598-2-3, test report LCS201222096BS-EA-2026. Mechanical load figures are test values, not a site-specific structural approval. CE / EMC documentation is not claimed for the module — request the current compliance file before tendering.
Why vertical

Six things that matter on site

360° capture

PV faces wrap the pole, so half the array always faces the sun. Output holds at low sun angles and in short winter days.

Self-cleaning face

Rain sheets dust and sand off a vertical surface. No scheduled washing on coastal, desert or industrial corridors.

Low wind load

A slim vertical module sheds gust load instead of levering it. Wind resistance tested to IEC 60598-2-3.

No snow hold

Nothing settles on a vertical face, so winter yield does not collapse after a snowfall.

Modular stack

Slide further modules onto the same pole to raise array power without changing the luminaire or the foundation.

Retrofit ready

Clamps onto the pole you already own. No new foundation, no re-poling, no street closure.

Selection

Which model for which job

Starting points, not a substitute for a yield calculation.

Typical installationModule and battery to specify
30–50 W LED street light, 4–6 m poleQ140 × 1 at 12 V, or Q200 × 1 at 24 V
60–80 W LED street light, 7–8 m poleQ200 × 2 at 24 V, 538–768 Wh LiFePO4
100–120 W head, 10–12 m poleQ140 × 4 or Q200 × 4, 921–1,075 Wh
CCTV, Wi-Fi or sensor mastQ140 × 1 with an MPPT controller and a 12 V pack
Straight about the trade-off. A vertical array gives up yield per watt against an optimally tilted flat panel. It wins the difference back on cleaning, wind load, snow and permits — and it is the only option when the pole must stay a pole.

Frequently asked questions

Answers to common questions about SolarWrap Hexagon vertical solar modules sizing, solar pole light fitment, weatherproofing, wind rating and warranty.

1

What is a SolarWrap Hexagon vertical solar module?

+

A SolarWrap Hexagon is a pole-mounted vertical solar module that wraps six flat photovoltaic faces around a street light pole in a hexagonal geometry. The Q140 and Q200 models produce 140W and 200W respectively, turning a standard municipal street light, garden light or area lighting pole into its own solar charging tower.

2

What is the difference between the Q140 and Q200 solar pole light models?

+

Both share the same 228 x 200 mm extruded hexagon width. The Q140 is 1560 mm long, outputs 140W and delivers 18V/36V at 7.78A/3.89A. The Q200 is 2060 mm long, outputs 200W and delivers 18V/36V at 11.11A/5.56A. Choose the Q200 solar street light panel where a longer pole footprint and higher daily yield are available.

3

Which pole sizes do the Hexagon vertical solar panels fit?

+

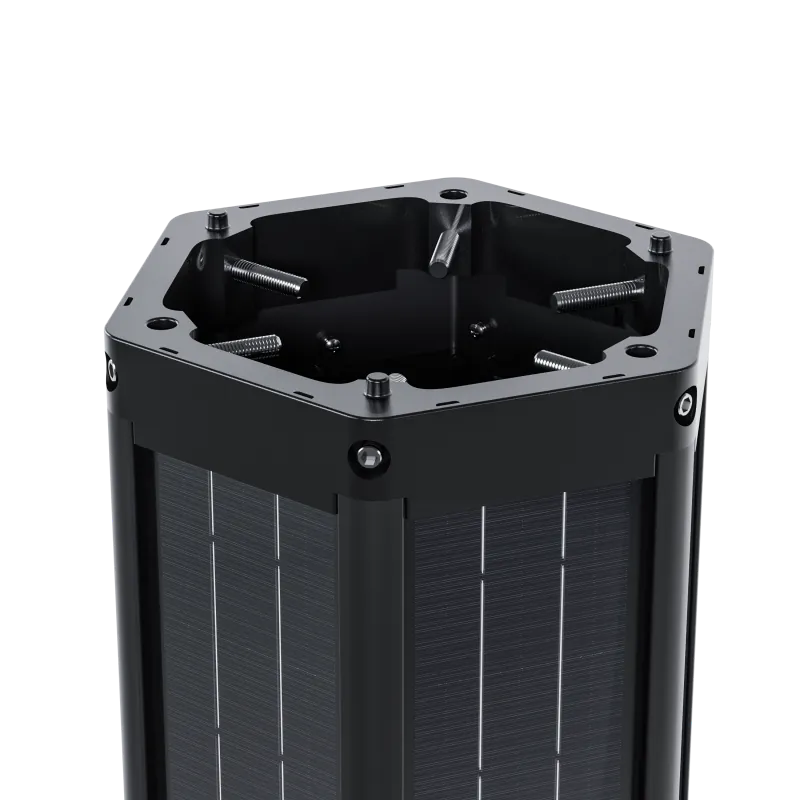

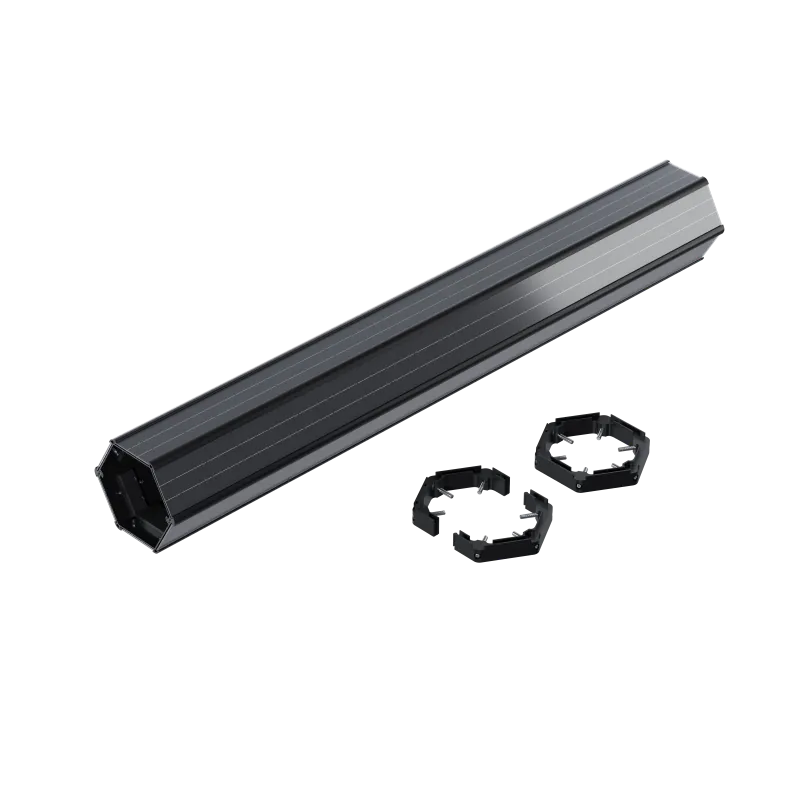

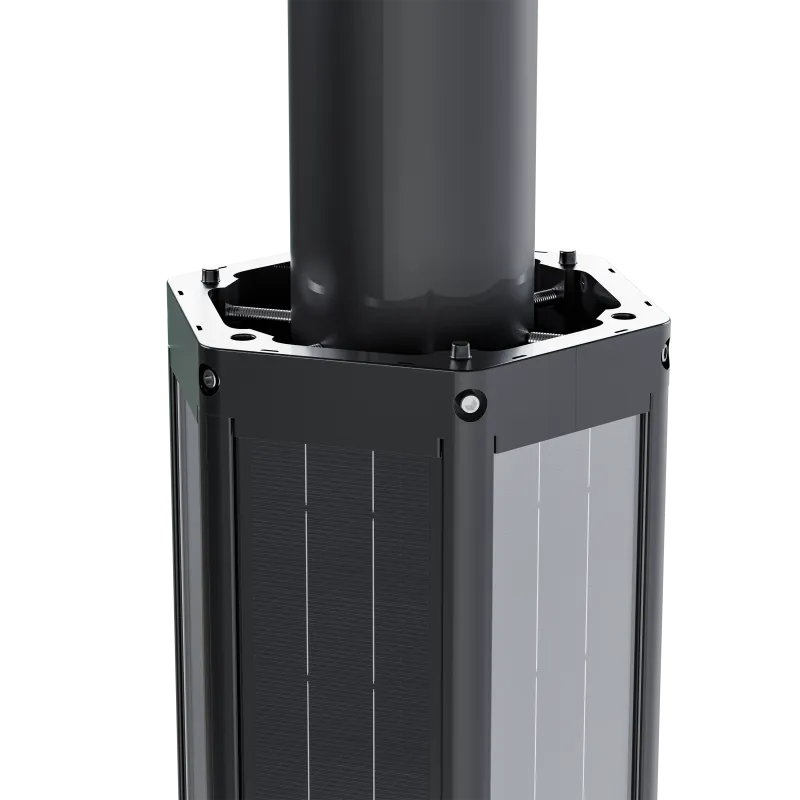

The modular clamp-and-bracket system fits poles up to 150 mm maximum diameter. The lower and upper modular brackets are clamped around the pole and tightened with the supplied set screws, so the hexagonal module can be retrofitted onto most standard galvanised steel or aluminium lighting poles without welding or drilling.

4

Are the vertical solar modules waterproof and impact resistant?

+

Yes. The die-cast aluminium housing is IP66 rated for weatherproof outdoor use and IK08 rated for impact resistance, delivering reliable operation in rain, coastal salt, high wind and dusty environments. The enclosed PV cells are protected against moisture and physical impact.

5

How do vertical solar panels compare to a flat solar panel on a pole?

+

The vertical hexagon faces capture sunlight from multiple angles through the day, which is especially useful where mounting space is tight or where a flat panel would be shaded by the luminaire or buildings. The vertical surface also sheds snow, sand and dust, keeping output stable and reducing cleaning and maintenance costs.

6

What is the warranty and expected lifespan of a solar wrap street light panel?

+

SolarWrap Hexagon modules are backed by a 5-year warranty from E-Able Power. The die-cast aluminium body, encapsulated PV cells and seamless pole integration are engineered for long-life, low-maintenance municipal, commercial and community lighting installations, typically exceeding 25 years of service.

Plan your SolarWrap Hexagon Vertical Solar Modules Q140 Q200 project.

Send your site conditions, lighting requirements or load profile for a system engineered to your location — DIALux simulation, sizing and pricing within 2–3 business days.

Choosing the module format for a pole? Read the vertical solar panel design guide for yield, wind and mounting trade-offs.
