SolarWrap / Square vertical solar module

Square vertical solar for slim poles.

A 220 mm square section with four large flat faces. 140 W to 260 W on poles up to 140 mm, plus a 180 mm series for poles that will not take the wider module.

Downloads

Print-ready PDF — specifications and installation in one place, no login required.

Product overview

What the format does

Built for poles that already carry a luminaire, a camera or a sign.

Four flat faces, more area per metre. The square section carries more glass on the same pole length than the hexagonal or circular format, which is what makes 220 W and 260 W possible without stacking two modules.

It suits square and rectangular poles and reads as part of the column rather than an add-on. Where the pole is slim, the 180 mm series (SM124, SQ164, SM188, SM268) keeps the module inside the kerb line.

Clamping is the same top-and-bottom bracket arrangement as the rest of the range, so a square module can be retrofitted to an existing column without touching the foundation.

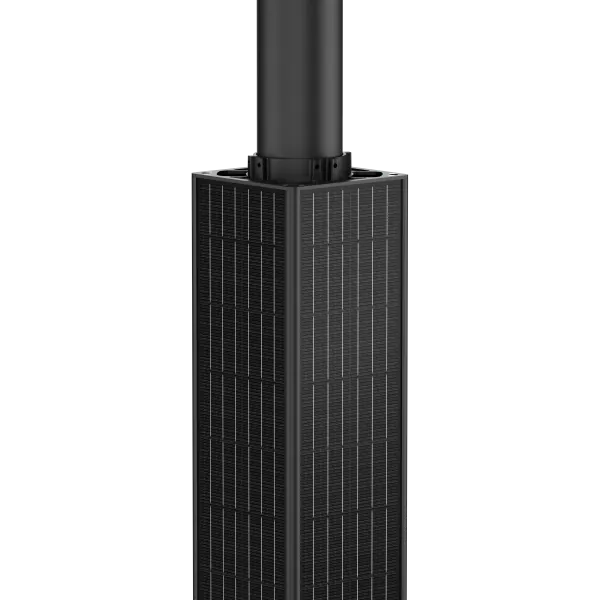

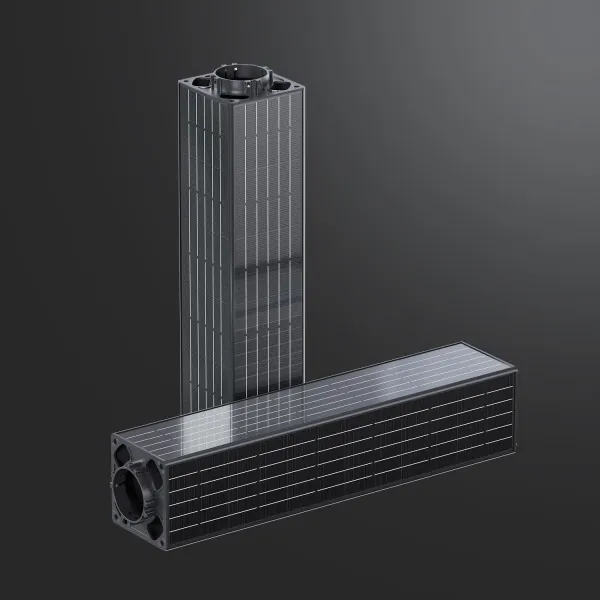

SolarWrap Square vertical solar module SQ140 SQ220 SQ260 on a square pole
Technical data

Verified module specifications

Nameplate values at STC. Where the factory sheet and the price list disagree, the datasheet value is used.

PropertySQ140SQ220SQ260
Rated power (Pmax)140 W220 W260 W
Dimensions (mm)220 × 220 × 1040220 × 220 × 1540220 × 220 × 1820 *
Voltage at Pmax (Vmp)18 V / 36 V18 V / 36 V36 V
Current at Pmax (Imp)7.78 A / 3.89 A12.20 A / 6.10 Aon request
Open-circuit voltage (Voc)21.6 V / 43.2 V21.60 V / 43.20 Von request
Short-circuit current (Isc)8.56 A / 4.28 A13.40 A / 6.72 Aon request
Power tolerance±3%±3%±3%
Cell typeMonocrystalline, made in TaiwanMonocrystalline, made in Taiwanon request
Module efficiency22.30%22.30%on request
Cable / connector2.5 mm² · MC42.5 mm² · MC42.5 mm² · MC4
Front glassHigh-strength tempered glassHigh-strength tempered glassHigh-strength tempered glass
FrameAluminium, powder coatedAluminium, powder coatedAluminium, powder coated
Mechanical loadFront 5400 Pa / back 2400 PaFront 5400 Pa / back 2400 PaFront 5400 Pa / back 2400 Pa
Ingress protectionIP66IP66IP66
Max. pole diameter≤ 120 mm≤ 120 mm≤ 140 mm
Operating temperature−20 °C to +70 °C−20 °C to +70 °C−20 °C to +70 °C
Expected lifetime> 20 years> 20 years> 20 years
Warranty5 years5 years5 years
SQ260 dimensions follow the 2026 price list pending a factory drawing (*). The 180 mm series is quoted on the same list; electrical data for that section is issued per project. Wind resistance to IEC 60598-2-3, test report LCS201222096BS-EA-2026. Mechanical load figures are test values, not a site-specific structural approval. CE / EMC documentation is not claimed for the module — request the current compliance file before tendering.
Why vertical

Six things that matter on site

360° capture

PV faces wrap the pole, so half the array always faces the sun. Output holds at low sun angles and in short winter days.

Self-cleaning face

Rain sheets dust and sand off a vertical surface. No scheduled washing on coastal, desert or industrial corridors.

Low wind load

A slim vertical module sheds gust load instead of levering it. Wind resistance tested to IEC 60598-2-3.

No snow hold

Nothing settles on a vertical face, so winter yield does not collapse after a snowfall.

Modular stack

Slide further modules onto the same pole to raise array power without changing the luminaire or the foundation.

Retrofit ready

Clamps onto the pole you already own. No new foundation, no re-poling, no street closure.

Selection

Which model for which job

Starting points, not a substitute for a yield calculation.

Typical installationModule and battery to specify
40–60 W street light, 5–6 mSQ140 × 1
80–100 W head, 7–9 mSQ220 × 1
120 W head, 10–12 mSQ260 × 1
Slim pole, tight verge180 mm series: SM124 or SQ164
Straight about the trade-off. A square section has a larger fixed silhouette than a tube, so it needs a pole that can take the wind area at the site speed. We check the pole and the clamp height before quoting.

Frequently asked questions

Answers to common questions about SolarWrap Square vertical solar modules sizing, pole fitment, weatherproofing, wind rating and warranty.

1

What is a SolarWrap Square vertical solar module?

+

A SolarWrap Square is a pole-mounted vertical solar module that wraps flat photovoltaic faces around a light pole in a clean square profile. The SQ140 and SQ220 models produce 140W and 220W respectively, turning a standard street or garden lighting pole into its own solar charging tower.

2

What is the difference between the SQ140 and SQ220 models?

+

The SQ140 is 1040 mm long at 140W, while the SQ220 is 1540 mm long at 220W. Both share a 220 x 220 mm square profile. Choose the SQ220 for a longer pole footprint and a higher daily yield.

3

Which pole sizes do the Square modules fit?

+

Both models fit poles up to 120 mm maximum diameter using the compatible bracket system, enabling a weld-free retrofit onto most standard galvanised steel or aluminium lighting poles.

4

Are the Square modules waterproof and impact resistant?

+

Yes. The IP66 weatherproof housing with MC4 connections delivers reliable performance in rain, coastal salt and high-wind conditions, with impact-resistant tempered encapsulation.

5

How do square vertical modules compare to a flat solar panel?

+

The four square faces collect sunlight from multiple angles through the day, ideal where a flat panel would be shaded. The low-drag square profile also minimises wind loading and sheds dust and water.

6

What is the warranty and expected lifespan?

+

SolarWrap Square modules are backed by a 5-year warranty from E-Able Power, engineered for long-life, low-maintenance municipal and commercial lighting installations.

Plan your SolarWrap Square Vertical Solar Modules SQ140 SQ220 project.

Send your site conditions, lighting requirements or load profile for a system engineered to your location — DIALux simulation, sizing and pricing within 2–3 business days.
