View Product| E-ABLE POWER — IP-PLUS INVERTER SERIES 12kW-P / 16kW-P | UL1741 LISTED | UL1741 LISTEDSPLIT-PHASE12 kW / 16 kW |
IP-Plus Series | On & Off Grid Hybrid Inverter (US Model) IP-PLUS SPLIT HYBRID INVERTER — 12kW-P & 16kW-P | UL1741 ListedA UL1741 Listed split-phase hybrid inverter series with 12kW-P and 16kW-P models. Both support 120/240Vac output, dual MPPT and a 51.2V battery platform; see the table for model-specific ratings. Models: IP-Plus 12kW-P / 16kW-P | Brand: E-Able Power Output: Split-phase 120/240 Vac PV input: Dual MPPT | Maximum PV open-circuit voltage: 500 Vdc |  |

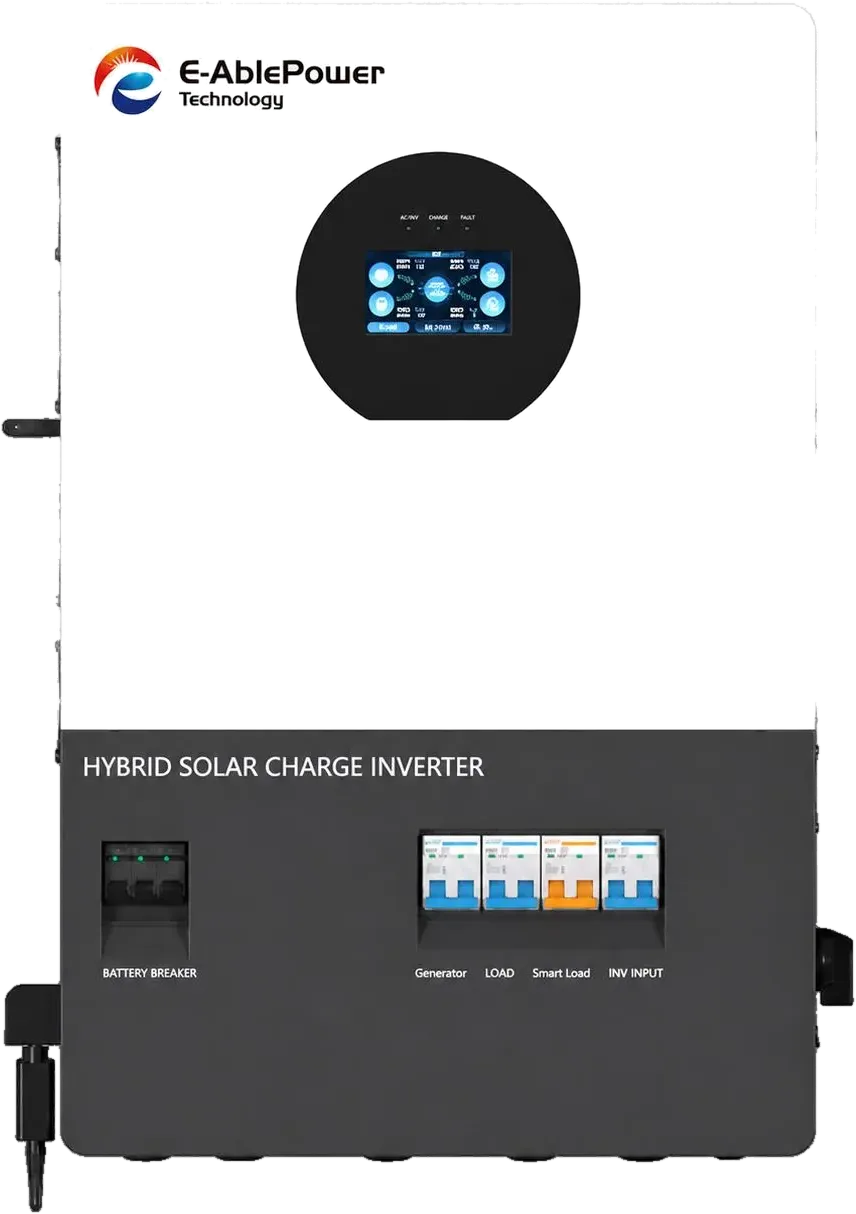

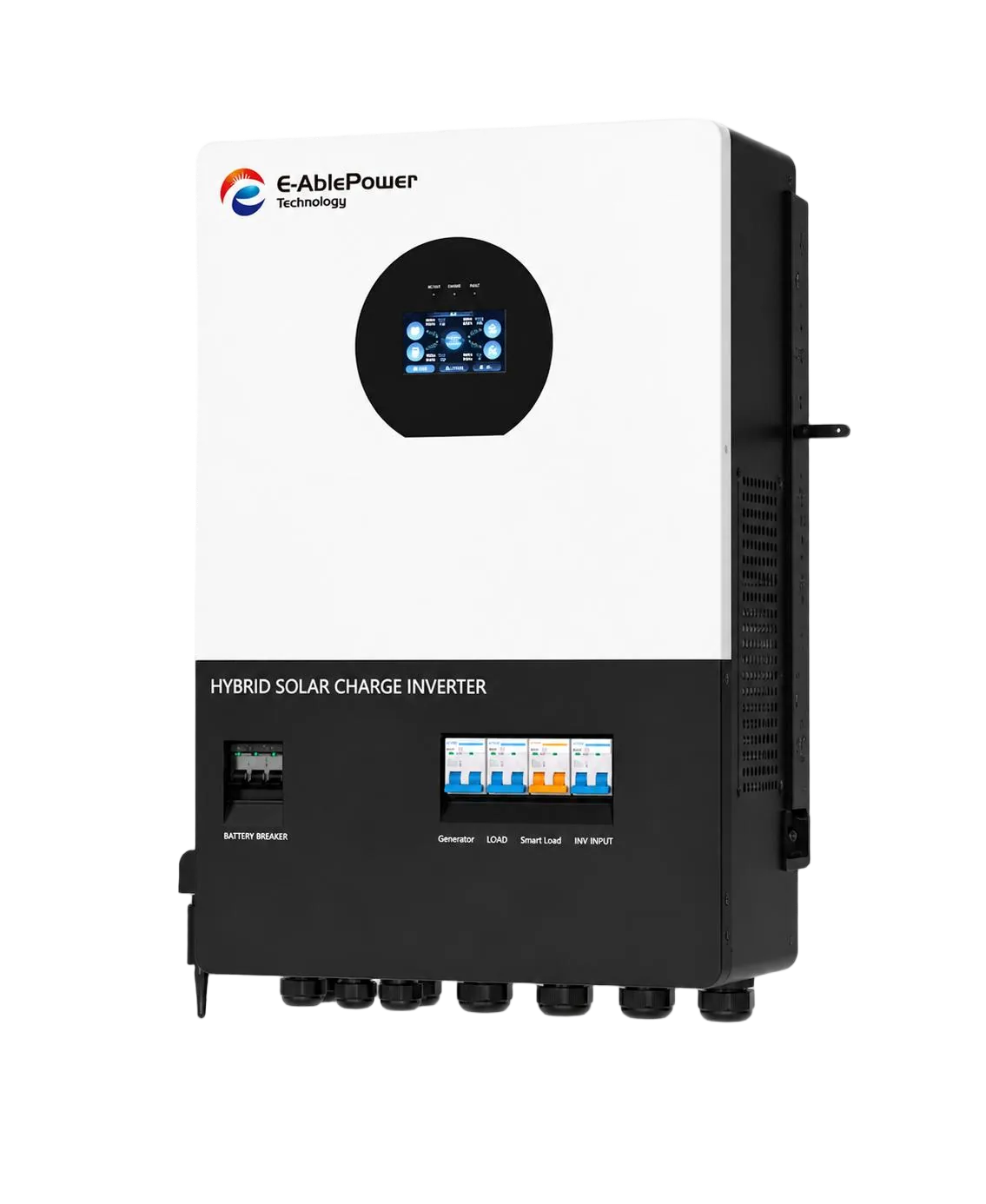

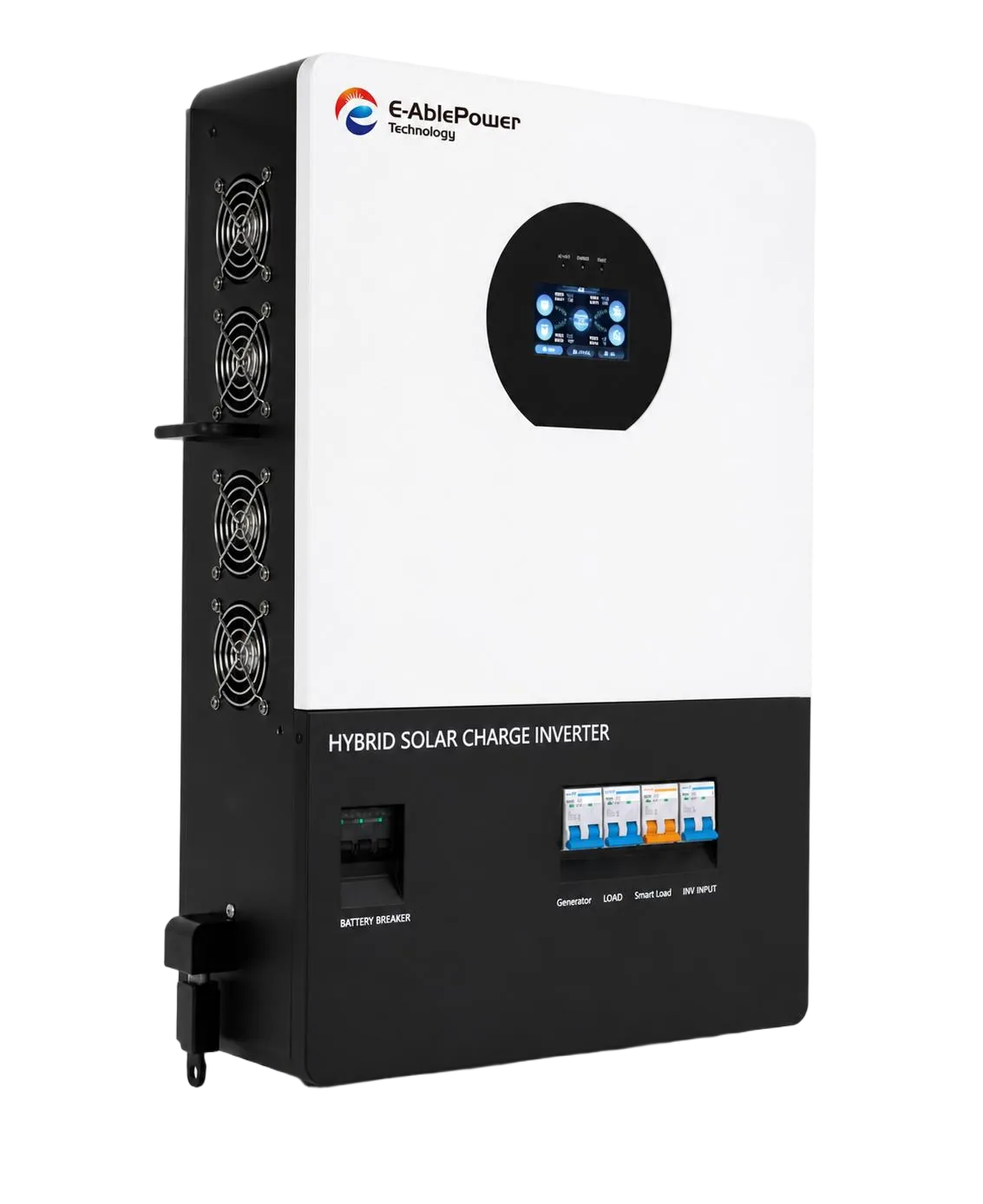

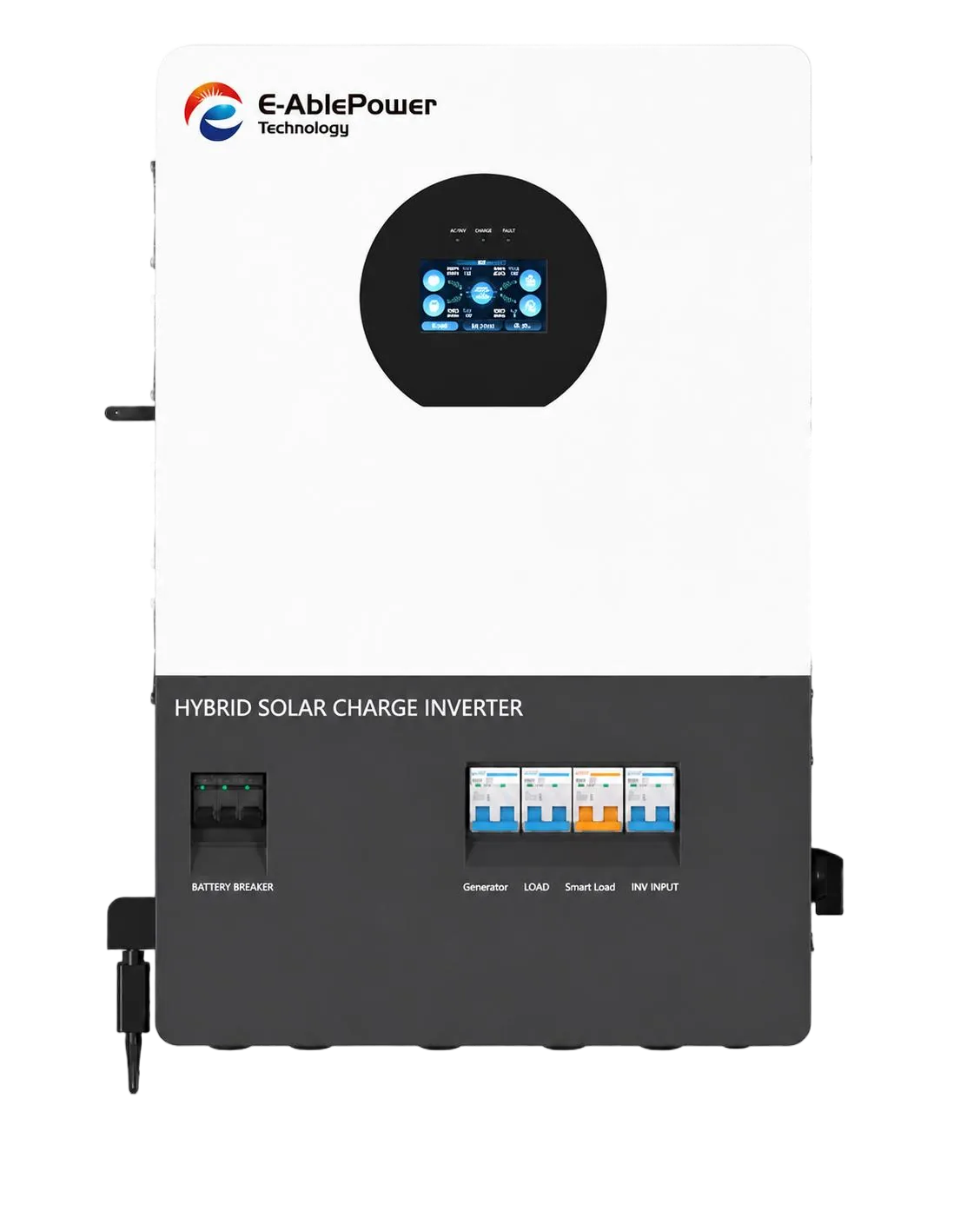

Main Product Images
 |  |  |
Key Specifications at a Glance
| Parameter | 12kW-P | 16kW-P |
|---|---|---|
| Product type | Split-phase on/off-grid hybrid inverter (US model) | Split-phase on/off-grid hybrid inverter (US model) |
| Certification | UL1741 Listed | UL1741 Listed |
| Rated output power (split-phase) | 12,000 W / 12,000 VA | 16,000 W / 16,000 VA |
| Peak output power | 18,000 VA | 24,000 VA |
| Output voltage | 120/240 Vac | 120/240 Vac |
| Waveform | Pure sine wave | Pure sine wave |
| PV input power | 12,000 W + 12,000 W | |
| Maximum PV open-circuit voltage | 500 Vdc | 500 Vdc |
| MPPT groups | 2 | 2 |
| MPPT efficiency | Up to 99.9% | Up to 99.9% |
| Maximum AC/generator charge current | 160 A | 200 A |
| Maximum PV charge current | 250 A | 300 A |
| Battery | 51.2 V LiFePO₄ (40–58.6 Vdc), external | 51.2 V LiFePO₄ (40–58.6 Vdc), external |
| AC-mode efficiency | >95% | >93.5% |
| Inverter efficiency | >91% | >93.5% |
| Transfer time | 10 ms (typical) | 10 ms (typical) |
| Loaded motor capability | 6 HP | 6 HP |
| Noise | ≤60 dB | ≤60 dB |
| PV operating voltage range | 90–485 Vdc | 90–500 Vdc |
| Maximum PV input current | 32 A + 32 A | 36 A + 36 A |
| Dimensions (L × W × D) | 710 × 485 × 145 mm | 760 × 485 × 160.8 mm |
| Weight | 37.5 kg | 40.5 kg |
Key Innovation Advantages
UL1741 ListedCertified to UL1741 for safe US grid interconnection — the certification US utilities and local inspectors recognize for grid-tied and backup installations. | True Split-Phase Output120V(L1/N, L2/N) and 240V(L1/L2) output for standard US panels — powers 120V circuits, 240V well pumps, dryers and HVAC loads. | Dual MPPT 12kW + 12kWTwo independent MPPT trackers support separate PV arrays. The 12kW-P model has a PV input rating of 12,000 W + 12,000 W; MPPT efficiency is up to 99.9%. | 10ms UPS SwitchoverAutomatic bypass-to-inverter transfer in ~10ms keeps computers, medical devices and security systems running through grid failures. |
Four Charging ModesPV charging, utility charging, PV-priority and hybrid charging; maximum AC/generator charge current is 160A (12kW-P) / 200A (16kW-P), and PV charge current is 250A / 300A, respectively. | Three Output ModesPhotovoltaic, inverter and mains-bypass output modes with automatic source priority — maximize self-consumption or run fully off-grid. | 6HP Motor CapabilityPeak power is 18,000VA for 12kW-P and 24,000VA for 16kW-P; both list a 6HP loaded motor capability. | Smart MonitoringUSB / RS485 communication with optional WiFi/GPRS and dry-node control — monitor power flow, SOC and system status remotely. |
Technical Specification Matrix
Model-specific technical specifications are listed below.
| Parameter | 12kW-P | 16kW-P |
|---|---|---|
| Parallel Mode | ||
| Permitted Parallel Number | 1–6 | 1–6 |
| AC Mode | ||
| Rated Input Voltage (VAC) | 120(L1/N, L2/N) / 240(L1/L2) | 120(L1/N, L2/N) / 240(L1/L2) |
| Input Phase Voltage Range | (85Vac~140Vac) ±2% | (85Vac~140Vac) ±2% |
| Frequency (Hz) | 50 / 60 (Auto detection) | 50 / 60 (Auto detection) |
| Frequency Range (Hz) | 47±0.3 ~ 55±0.3 (50Hz) | 57±0.3 ~ 65±0.3 (60Hz) | 47±0.3 ~ 55±0.3 (50Hz) | 57±0.3 ~ 65±0.3 (60Hz) |
| Overload / Short Circuit Protection | Circuit breaker | Circuit breaker |
| Efficiency (AC Mode) | >95% | >93.5% |
| Conversion Time (Bypass <> Inverter) | 10ms (typical) | 10ms (typical) |
| AC Reverse Protection | Yes | Yes |
| Max Bypass Phase Overload Current | 2pole, 200A/200A (L1/L2) | 2pole, 200A/200A (L1/L2) |
| Inverter Mode | ||
| Output Voltage Waveform | Pure Sine Wave | Pure Sine Wave |
| Rated Output Power (VA) | 12,000 | 16,000 |
| Rated Output Power (W) | 12,000 | 16,000 |
| Power Factor | 1 | 1 |
| Rated Output Voltage (VAC) | 120(L1/N, L2/N) / 240(L1/L2) | 120(L1/N, L2/N) / 240(L1/L2) |
| Output Voltage Error | ±5% | ±5% |
| Output Frequency Range (Hz) | 50 ±0.3 / 60 ±0.3 | 50 ±0.3 / 60 ±0.3 |
| Maximum Efficiency (Inverter) | >91% | >93.5% |
| Overload Protection | 105%<load<110%±5%: alarm, off after 5 min | 110%<load<125%±5%: off after 10s | load>125%±5%: off after 5s | 105%<load<110%±5%: alarm, off after 5 min | 110%<load<125%±5%: off after 10s | load>125%±5%: off after 5s |
| Peak Power (VA) | 18,000 | 24,000 |
| Loaded Motor Capability | 6HP | 6HP |
| Output Short Circuit Protection | Protects after 1s continuous short circuit | Protects after 1s continuous short circuit |
| Bypass Circuit Breaker Phase Spec | 2pole, 200A/200A (L1/L2) | 2pole, 200A/200A (L1/L2) |
| Rated Battery Input Voltage | 51.2V (minimum starting voltage 44V) | 51.2V (minimum starting voltage 44V) |
| General | ||
| Battery Voltage Range | 40.0Vdc ~ 58.6Vdc ±0.6Vdc (alarm / shutdown / recovery settable on LCD) | 40.0Vdc ~ 58.6Vdc ±0.6Vdc (alarm / shutdown / recovery settable on LCD) |
| Power-Saving Mode Self-Consumption | Load per phase <25W enters power-saving mode | Load per phase <25W enters power-saving mode |
| AC Charging | ||
| Battery Type | Lead acid or lithium battery | Lead acid or lithium battery |
| Maximum Charge Current (settable) | 160A | 200A |
| Charge Current Error | ±5Adc | ±5Adc |
| Charge Voltage Range | 40-58.6Vdc | 40-58.6Vdc |
| Short Circuit Protection | Circuit breaker and blown fuse | Circuit breaker and blown fuse |
| Circuit Breaker Phase Spec | 2pole, 63A/63A (L1/L2) | 2pole, 63A/63A (L1/L2) |
| Generator Mode | ||
| Rated Input Voltage (VAC) | 120(L1/N, L2/N) / 240(L1/L2) | 120(L1/N, L2/N) / 240(L1/L2) |
| Input Phase Voltage Range | (85Vac~140Vac) ±2% | (85Vac~140Vac) ±2% |
| Frequency Range (Hz) | 40±0.3 ~ 70±0.3 | 40±0.3 ~ 70±0.3 |
| Maximum Charge Current (settable) | 160A | 200A |
| Overload / Short Circuit Protection | Circuit breaker | Circuit breaker |
| Circuit Breaker Phase Spec | 2pole, 63A/63A (L1/L2) | 2pole, 63A/63A (L1/L2) |
| PV Charging | ||
| Number of MPPT Groups | 2 | 2 |
| Maximum PV Open Circuit Voltage | 500Vdc | 500Vdc |
| PV Operating Voltage Range | 90–485Vdc | 90–500Vdc |
| MPPT Voltage Range | 90Vdc ~ 450Vdc | 90Vdc ~ 450Vdc |
| Battery Voltage Range | 40-58.6Vdc | 40-58.6Vdc |
| Maximum PV Input Power | 12,000W + 12,000W | |
| Maximum PV Input Current | 32A + 32A | 36A + 36A |
| PV Charge Current (settable) | 250A | 300A |
| Charging Short Circuit Protection | Circuit breaker | Circuit breaker |
| Wiring Protection | Reverse polarity protection | Reverse polarity protection |
| Hybrid Charging (AC + PV) | ||
| Max Charger Current (settable) | 0–250A | 0–300A |
| Certified Specifications | ||
| Certification | UL1741 — US Grid-Interconnection Safety Standard | UL1741 — US Grid-Interconnection Safety Standard |
| EMC Certification Level | FCC Part 15, Class B | FCC Part 15, Class B |
| Operating Temperature Range | -10℃ ~ 55℃ (>45℃ derating) | -10℃ ~ 55℃ (>45℃ derating) |
| Storage Temperature Range | -25℃ ~ 60℃ | -25℃ ~ 60℃ |
| Humidity Range | 5% ~ 95% (conformal coating protection) | 5% ~ 95% (conformal coating protection) |
| Noise | ≤60dB | ≤60dB |
| Heat Dissipation | Forced air cooling, variable-speed fan | Forced air cooling, variable-speed fan |
| Communication Interface | USB / RS485 (WiFi / GPRS) / Dry-node control | USB / RS485 (WiFi / GPRS) / Dry-node control |
| Size (L×W×D) | 710 × 485 × 145 mm | 760 × 485 × 160.8 mm |
| Weight (kg) | 37.5kg | 40.5kg |
IP-Plus 12kW-P / 16kW-P split-phase hybrid inverter series. UL1741 Listed; FCC Part 15 Class B. Both models feature 120/240Vac split-phase output and a 51.2V battery platform.
Frequently Asked Questions
Q: What does UL1741 Listed mean for my installation?
UL1741 is the US safety standard for grid-interconnected inverters. A UL1741 Listed inverter meets the electrical safety, grid-protection and anti-islanding requirements that US utilities and local inspectors recognize — which simplifies permit approval and utility interconnection for your solar + storage project.
Q: What is split-phase output and why does it matter?
Both models provide 120V on each leg (L1/N, L2/N) and 240V between legs (L1/L2), supporting common split-phase loads.
Q: Can the IP-Plus 12kW-P and 16kW-P be paralleled?
The series supports 1–6 units in parallel. Contact E-Able Power to discuss a configuration for your project.
Q: Which battery works with these inverters?
Both models use an external 51.2V battery bank (40–58.6Vdc range). Maximum AC/generator charge current is 160A for 12kW-P and 200A for 16kW-P; maximum PV charge current is 250A and 300A, respectively. The system supports lead-acid or lithium batteries.
Q: What monitoring and communication options are available?
The unit provides USB and RS485 interfaces with optional WiFi/GPRS for remote monitoring, plus dry-node control for generator or alarm signaling. The LCD panel shows system status, battery SOC and fault alarms, with power-saving mode below 25W per-phase load.
