E-ABLE POWER / SOLAR LIGHTING

SolaraAll-In-One Solar

Solara all-in-one solar street light integrating panel, battery and LED for fast installation and reliable, trench-free operation. Compact sealed design suits roads and public spaces.

EXPLORE THE RANGE →REQUEST PROJECT SUPPORT
E-ABLE POWER — PRODUCT DATASHEET
ALL-IN-ONE SOLAR LIGHTING
INTEGRATED TECH             180LM/W             40W – 150W

Solara DL-Series | Integrated All-in-One Platform

Solara Series All-in-One Solar Street Light

A fully integrated all-in-one solar street lighting platform with 180LM/W Bridgelux/Philips LED efficacy, monocrystalline solar panel, LiFePO4 battery, and MPPT controller — all in a single IP66 aerospace-grade aluminum chassis. 6 models from 40W to 150W. 5-minute installation with integrated microwave motion sensor for adaptive energy savings.

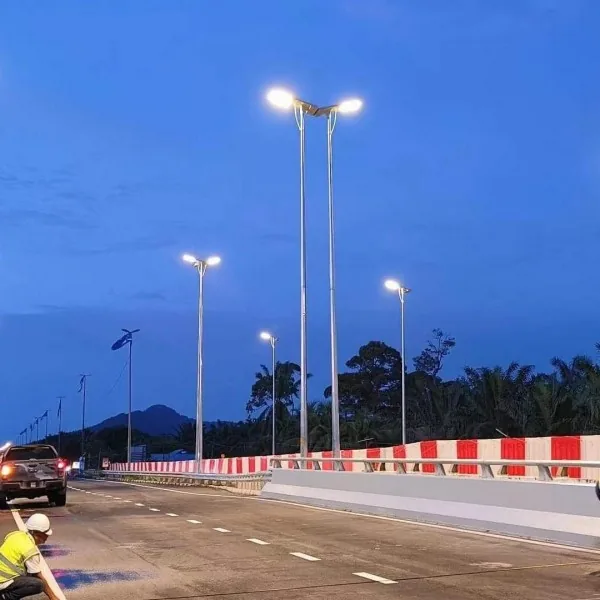

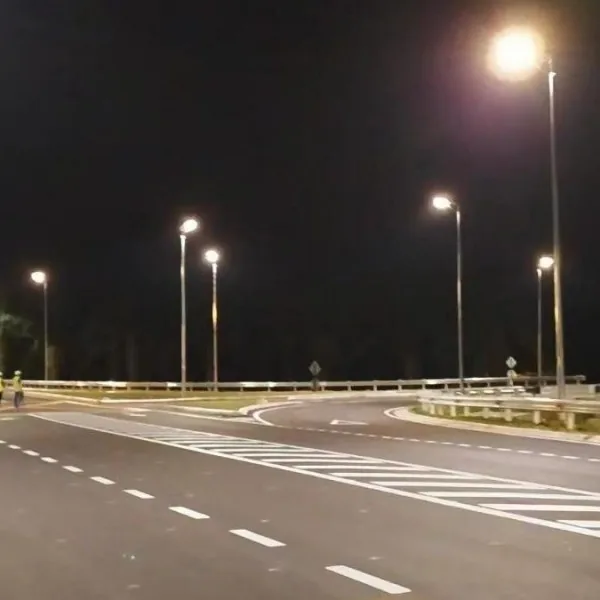

A quiet road stretches toward the horizon under a vibrant pink and purple sunset, lined with lit streetlights and a car in the distance.             A newly constructed road at dusk is illuminated by tall double-headed streetlights, with a worker and pickup truck in the foreground.             A quiet, empty curved road at night illuminated by several tall streetlights.

Key Specifications at a Glance

Architecture Fully Integrated All-in-One LED Power Range 40W – 150W (6 Models)
System Efficacy 180 lm/W — Bridgelux/Philips 3030 Luminous Flux 8,000 – 28,500 lm
Solar Panel 80W – 210W Monocrystalline Silicon Battery Capacity LiFePO4 384 – 1,228 Wh
Charge Controller MPPT — Microwave Motion Sensor Autonomy 3–5 Nights (Adaptive Dimming)
IP Rating IP66 Waterproof & Dustproof Certifications CE / RoHS / ISO9001 / ISO14001

Core Engineering Highlights

5-Minute Deployment

Fully integrated design — solar panel, LED, battery, and controller in one sealed chassis. One fixture mounts to the pole arm with no external battery boxes, no controller enclosures, no inter-component wiring. Installation labor reduced by 60-70% versus split systems.

180LM/W Luminous Supremacy

Bridgelux/Philips 3030 SMD chips at 180 lumens per watt deliver 20-30% more light per watt than standard 140-150LM/W fixtures. This means wider pole spacing, fewer fixtures per kilometer, and lower total project cost — or higher lux levels on the same layout.

Adaptive MPPT + Microwave Sensor

Built-in microwave motion sensor detects vehicles and pedestrians within 8-15m, triggering full brightness. During vacant periods, the light dims to 20-30% standby. MPPT controller optimizes charge efficiency. Combined, this extends autonomy from 2 nights to 5+ nights without increasing battery size.

Solara DL-Series Model Matrix

Model LED Power Solar PV (Mono) LiFePO4 Battery Luminous Flux LED Modules Suggested Use
DL-40W 40W 80W 384 Wh 8,000 lm 48pcs × 2 Residential streets, parks
DL-60W 60W 100W 460 Wh 11,400 lm 48pcs × 2 Collector roads, plazas
DL-80W 80W 120W 614 Wh 16,000 lm 48pcs × 2 Arterial roads, industrial
DL-100W 100W 150W 768 Wh 20,000 lm 48pcs × 3 Highways, logistics yards
DL-150W 150W 210W 1,228.8 Wh 28,500 lm 48pcs × 4 Expressways, ports, large yards
* All models: IP66 rated, 180LM/W Bridgelux/Philips 3030 chip, MPPT controller, LiFePO4 battery, microwave motion sensor, aerospace-grade aluminum chassis, CE / RoHS / ISO9001 certified, 3-year warranty.

Frequently Asked Questions

How does the microwave motion sensor extend battery autonomy?
The built-in microwave sensor detects vehicles and pedestrians within 8-15 meters. When the road is empty, the fixture dims to 20-30% standby brightness. On detection, it ramps to 100% output in under 0.5 seconds. On a typical collector road with intermittent nighttime traffic, this reduces energy consumption by 50-70% per night — extending autonomy from 2 nights to 5+ nights on the same battery, or enabling a smaller, lower-cost battery for the same performance target.
Which DL model should I select for my road project?
Selection depends on pole height, road width, and required lux level. DL-40W/60W for 5-7m poles on residential streets and park roads. DL-80W/100W for 7-10m poles on arterial roads and industrial zones. DL-150W for 10-12m poles on expressways and large logistics yards. Provide your road cross-section and our team delivers a free DIALux simulation with lux maps — ensuring the selected model meets your local roadway lighting standards.
Is 5-minute installation realistic for field deployment?
Yes. The all-in-one design means the fixture arrives as a single pre-assembled unit — solar panel, LED array, battery, and controller already integrated and sealed. On site, the pole is erected, the fixture is lifted onto the pole arm and secured with the clamp bracket. No battery box at the base, no controller wiring, no panel bracket assembly. Verified across multiple project deployments: 5 minutes per pole from fixture lift to operational, versus 20-30 minutes for split systems with separate components.

Explore Related Products

Plan your Solara All-In-One Solar Power Street Light project.

Send your site conditions, lighting requirements or load profile for a system engineered to your location — DIALux simulation, sizing and pricing within 2–3 business days.
