E-ABLE POWER / SOLAR GARDEN LIGHTING

ZTD-4205 PrismSolar Pillar Light

A square-prism solar pillar light with a 5V / 10W monocrystalline panel, 3.2V / 12000mAh LiFePO4 battery and 60 LEDs on a die-cast aluminum + PC body. High-output lattice for gateways and driveways.

Overview

01

Product overview

Light the space.
Keep it efficient.

ZTD-4205 is a square-prism solar pillar light from E-Able Power, pairing a 5V / 10W monocrystalline panel with a 3.2V / 12000mAh LiFePO4 battery and 60 LEDs in a die-cast aluminum + PC housing.

The high-output lattice cap delivers bold illumination for entrance gateways, driveways and prominent pillar settings.

Selection note: selection note: match the base plate to the post size and confirm site conditions before final configuration.

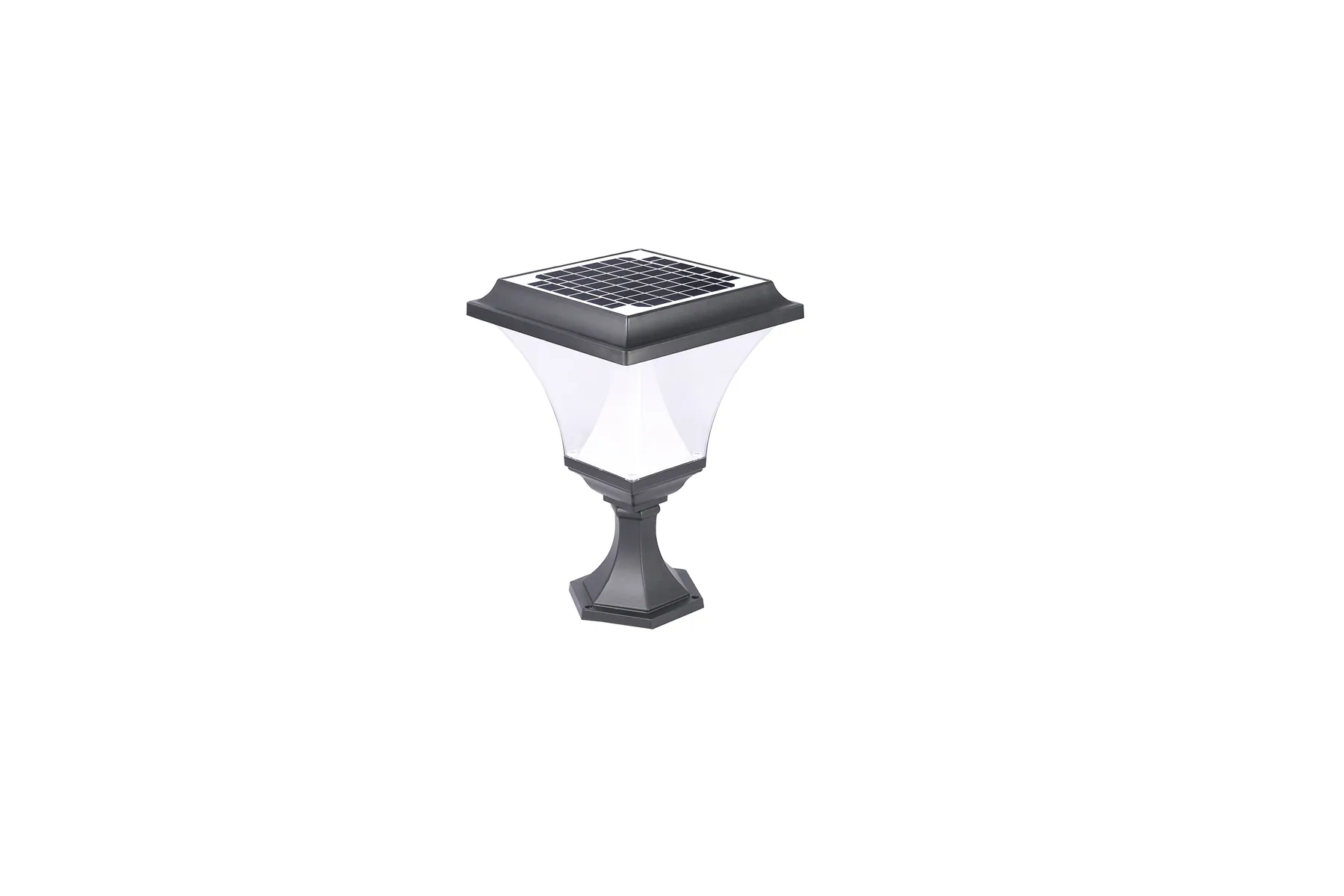

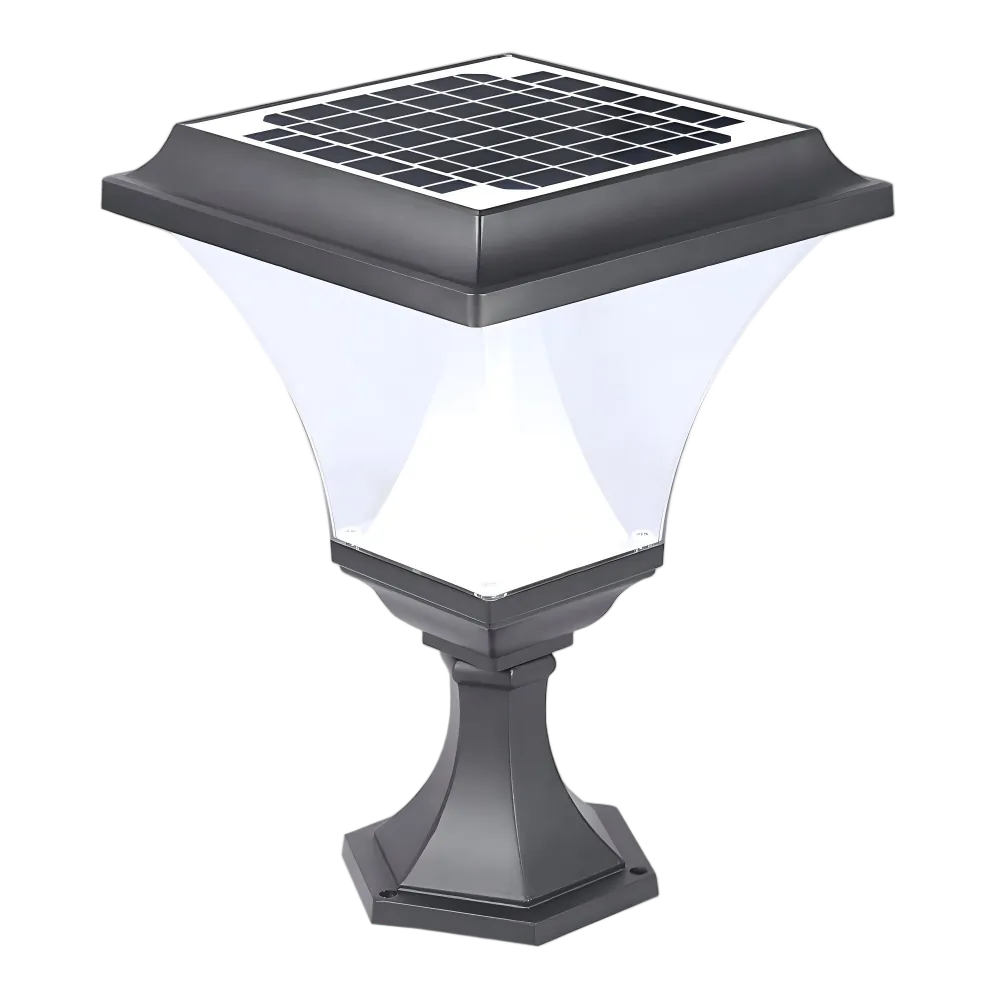

ZTD-4205 Solar Pillar Light

Features

02

Monocrystalline panel

5V / 10W solar input for wire-free operation.

LiFePO4 battery

3.2V / 12000mAh battery for reliable nightly output.

High-output lattice

60 LEDs for bold gateway illumination.

Weather-protected housing

IP65 rated die-cast aluminum + PC construction.

Technical data

03
Solar & electrical
Solar panel5V / 10W
Battery3.2V / 12000mAh
Rated power10W
Input voltageDC 3.2V
Working time3 – 5 rainy days
Optical performance
Light source2835 LED
LED quantity60 pcs
Colour temperature3000K – 6500K
Luminous fluxhigh CRI output
Colour rendering>80
Beam angle180°
Construction & dimensions
MaterialDie-cast aluminum + PC
Lamp colourBlack
Net weight—
Size300 × 185 × H340 mm
MountingPost-top cap / pillar
Operating environment
Waterproof levelIP65
Operating temperature-25°C – 50°C
Working humidity10% – 90%

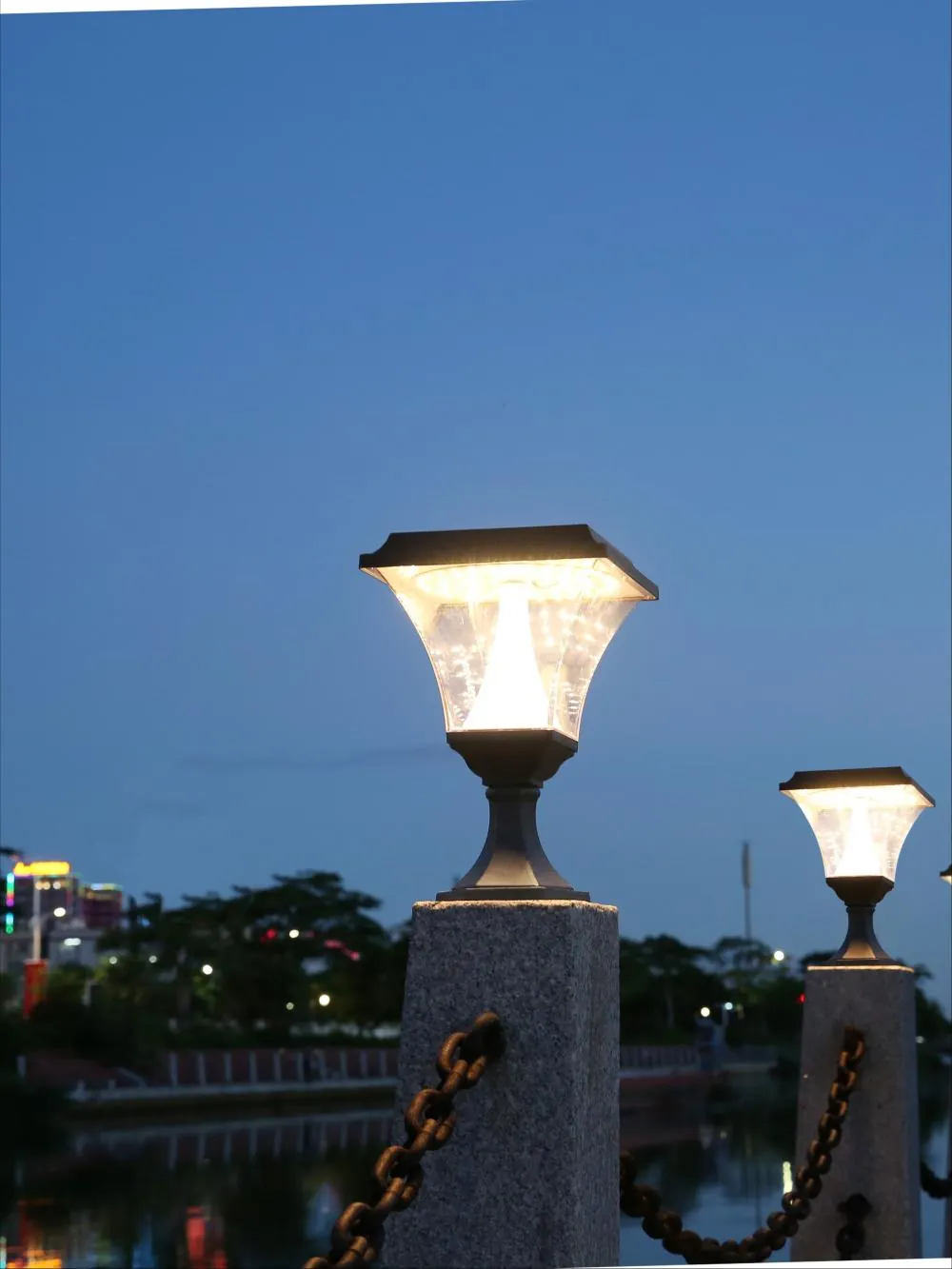

ZTD-4205 Solar Pillar Light installed at a pillar-top site at dusk

Applications

04
ZTD-4205 Solar Pillar Light

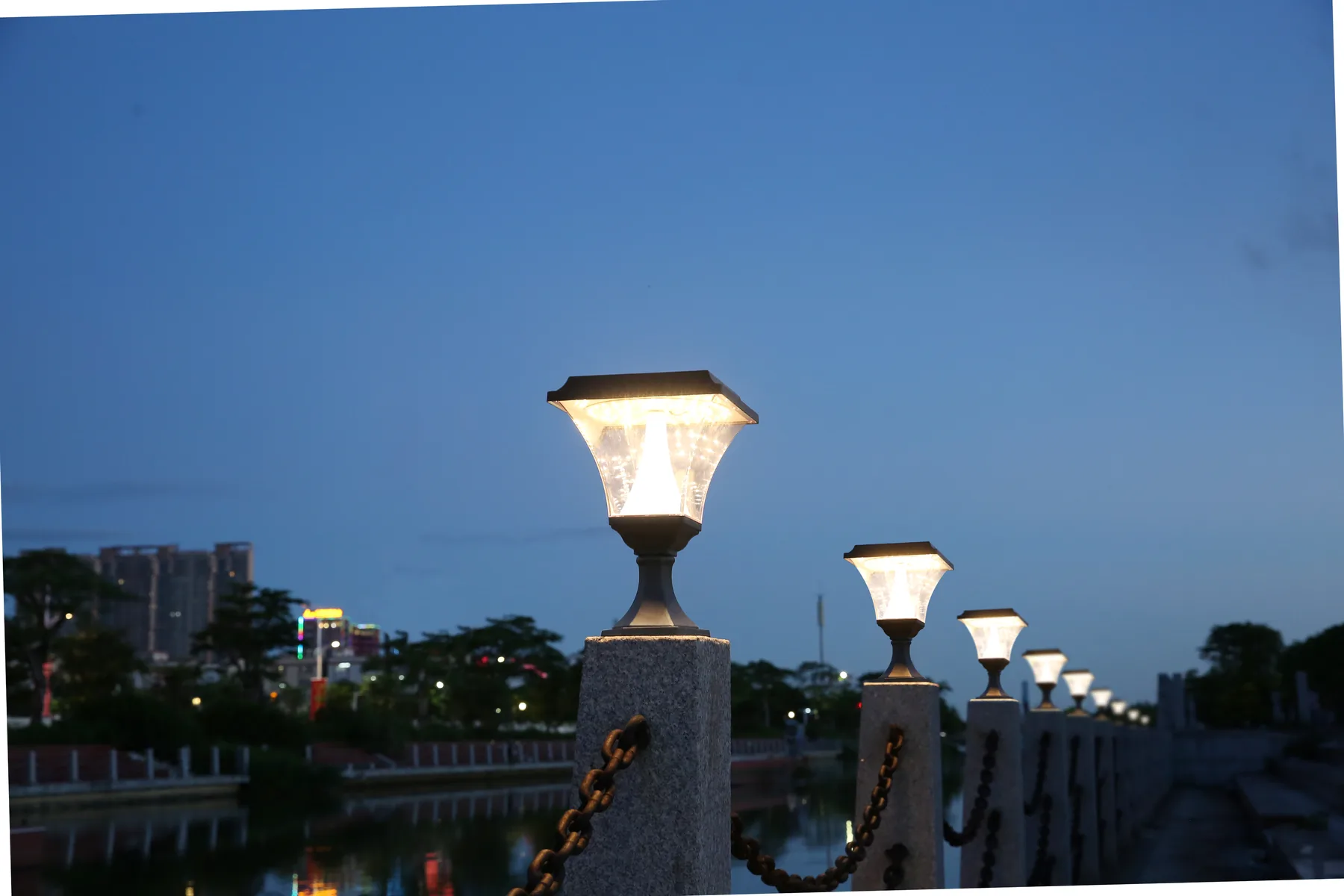

Pillar-top lighting
ZTD-4205 Solar Pillar Light

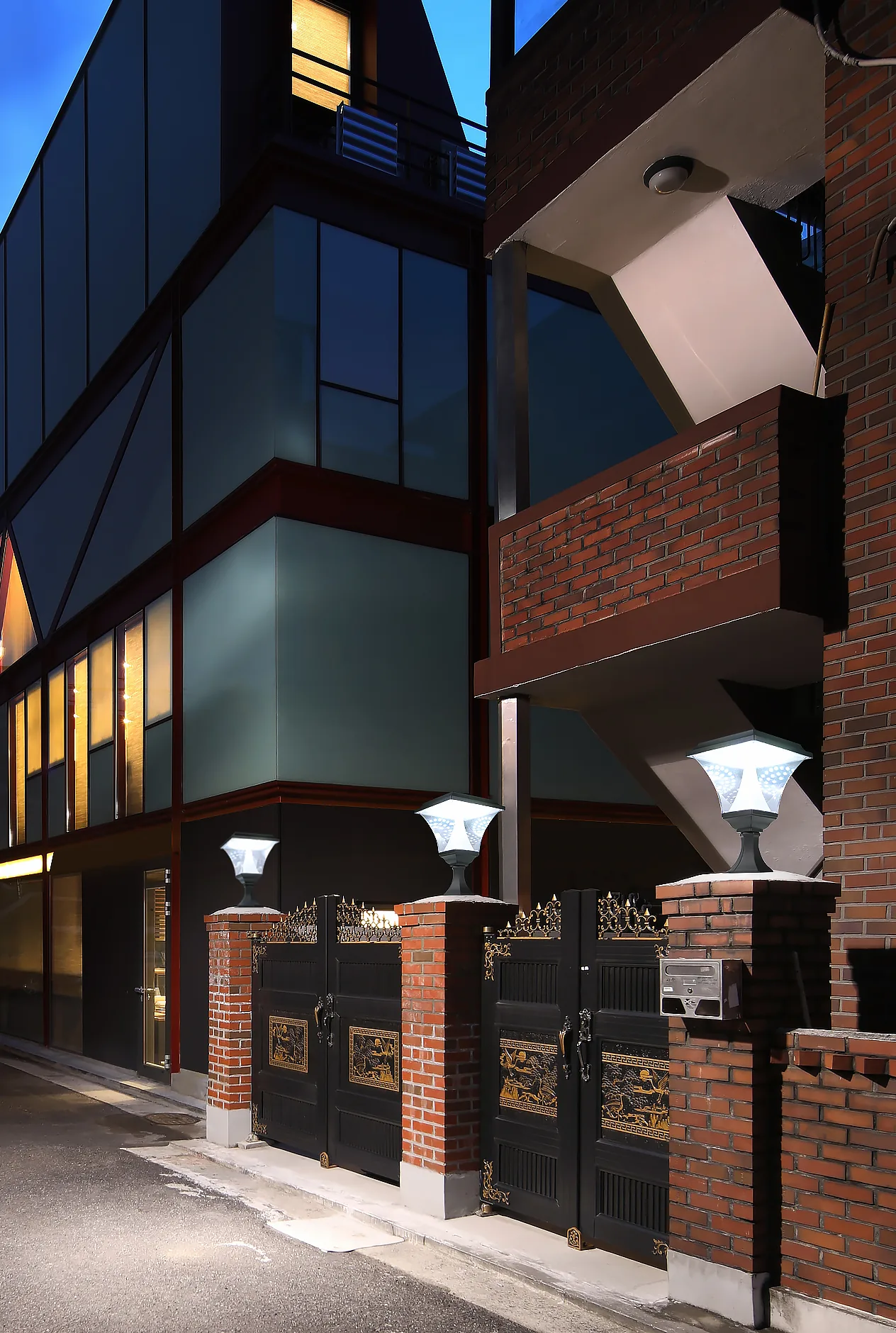

Gateway and driveway lighting
ZTD-4205 Solar Pillar Light
Courtyard lighting
ZTD-4205 Solar Pillar Light

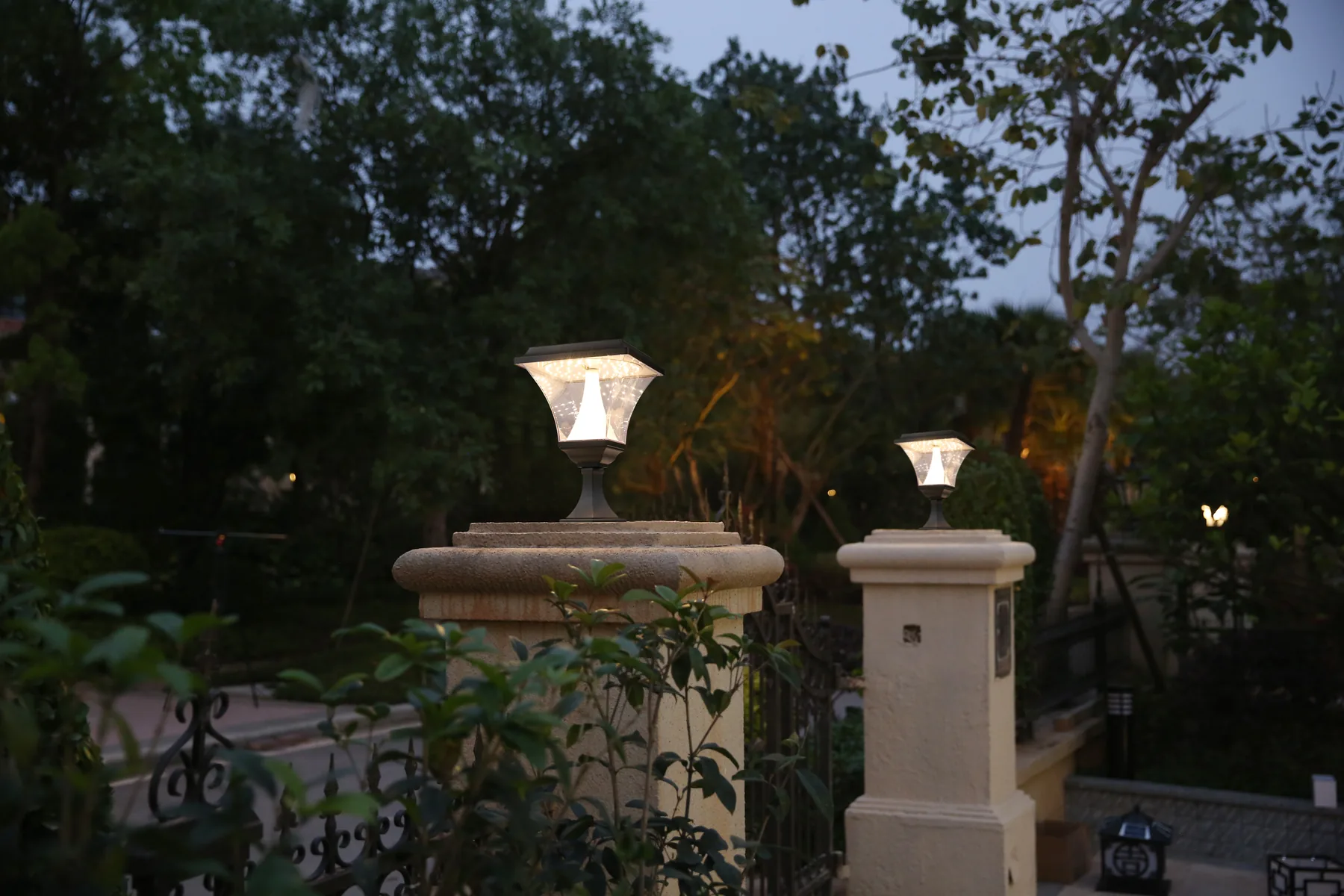

Entrance and boundary lighting
ZTD-4205 Solar Pillar Light

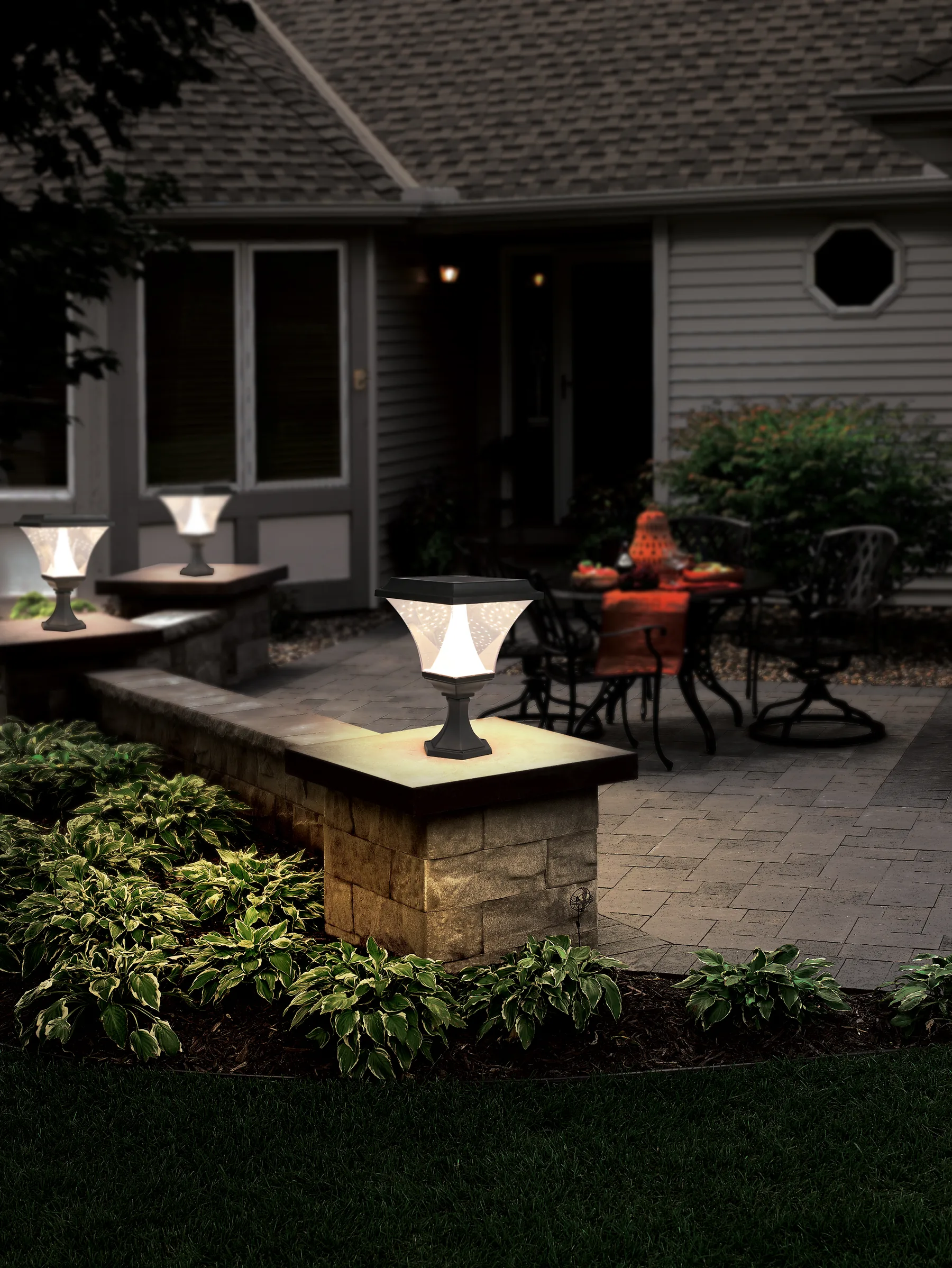

Patio lighting

Frequently asked questions

05
What sizes is the ZTD-4205 available in?

The ZTD-4205 cap measures 300 × 185 × H340 mm.

Is the ZTD-4205 weatherproof?

Yes. It is built from die-cast aluminum + PC and rated IP65 for outdoor exposure.

What colour temperature does the ZTD-4205 offer?

It offers 3000K – 6500K for warm or bright daylight light.

How is the ZTD-4205 mounted?

It is a post-top cap that sits on gate pillars and fence posts.

What powers the ZTD-4205?

A 5V / 10W monocrystalline solar panel charges the on-board battery.

Can the ZTD-4205 be customised for a project?

Yes — configuration and colour options can be adapted. Contact us.

Specifications are nominal and may change without notice; the contractual revision is the one confirmed in the order acknowledgement.

Project support

Plan your solar lighting layout.

Share the layout, installation height and preferred colour temperature. Our team can help review a suitable ZTD-4205 configuration.
