E-ABLE POWER / SOLAR GARDEN LIGHTING

ZTD-2104Solar Pillar Light

A fluted-cup solar pillar light with a 5V / 4.5W monocrystalline panel, 3.2V / 8000mAh LiFePO4 battery and 30 LEDs on a die-cast aluminum + PC body. Upright cup glows cleanly.

Overview

01

Product overview

Light the space.
Keep it efficient.

ZTD-2104 is a fluted-cup solar pillar light from E-Able Power, pairing a 5V / 4.5W monocrystalline panel with a 3.2V / 8000mAh LiFePO4 battery and 30 LEDs in a die-cast aluminum + PC housing.

The upright fluted cup delivers a clean, modern glow well suited to contemporary gates and pillars.

Selection note: selection note: match the base plate to the post size and confirm site conditions before final configuration.

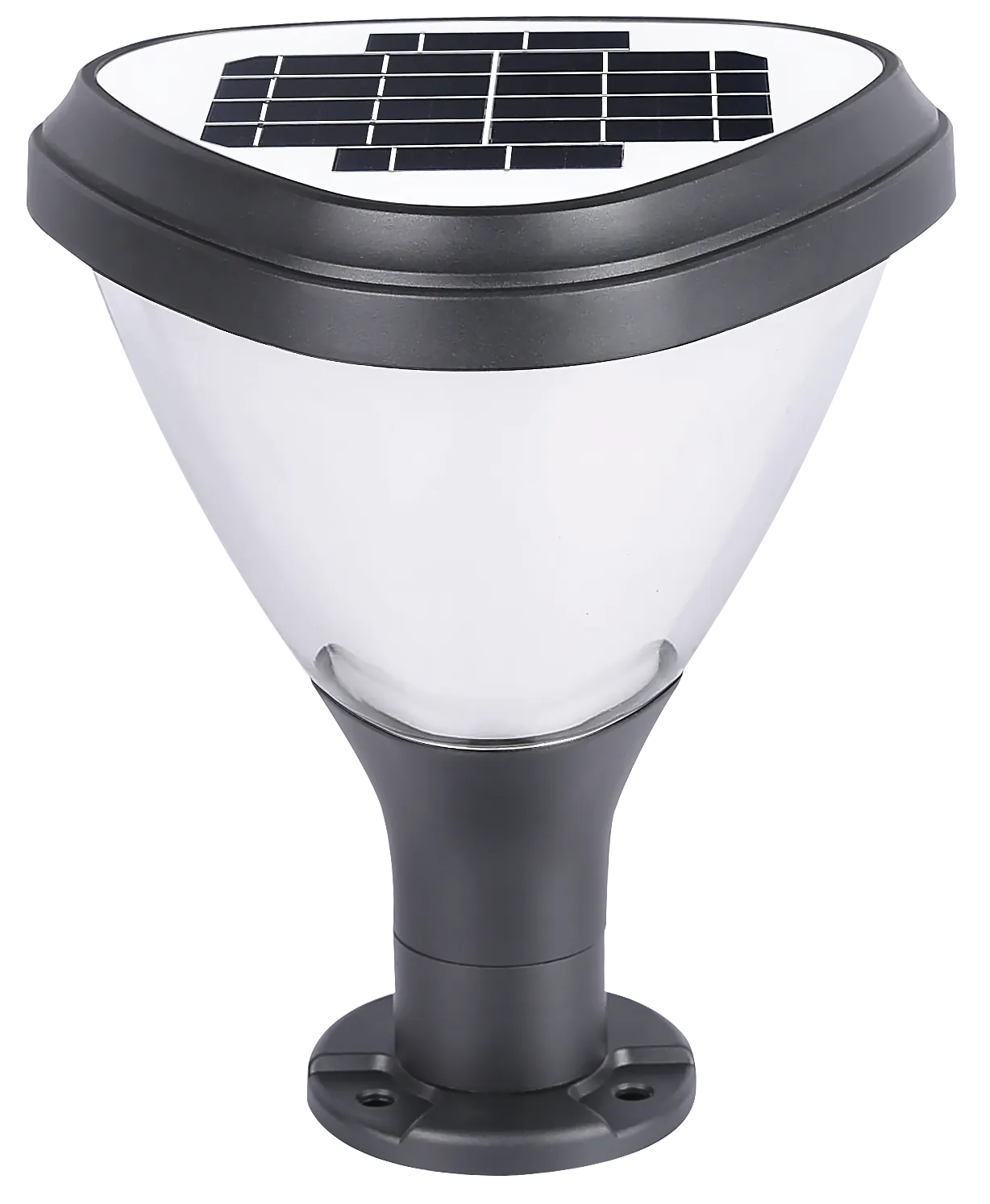

ZTD-2104 Solar Pillar Light

Features

02

Monocrystalline panel

5V / 4.5W solar input for wire-free operation.

LiFePO4 battery

3.2V / 8000mAh battery for reliable nightly output.

Fluted-cup shade

Upright cup glows with a clean, even wash.

Weather-protected housing

IP65 rated die-cast aluminum + PC construction.

Technical data

03
Solar & electrical
Solar panel5V / 4.5W
Battery3.2V / 8000mAh
Rated power4.5W
Input voltageDC 3.2V
Working time3 – 5 rainy days
Optical performance
Light source2835 LED
LED quantity30 pcs
Colour temperature3000K – 6500K
Luminous fluxhigh CRI output
Colour rendering>80
Beam angle180°
Construction & dimensions
MaterialDie-cast aluminum + PC
Lamp colourBlack
Net weight—
Sizeφ260 × 120 × H310 mm
MountingPost-top cap / pillar
Operating environment
Waterproof levelIP65
Operating temperature-25°C – 50°C
Working humidity10% – 90%

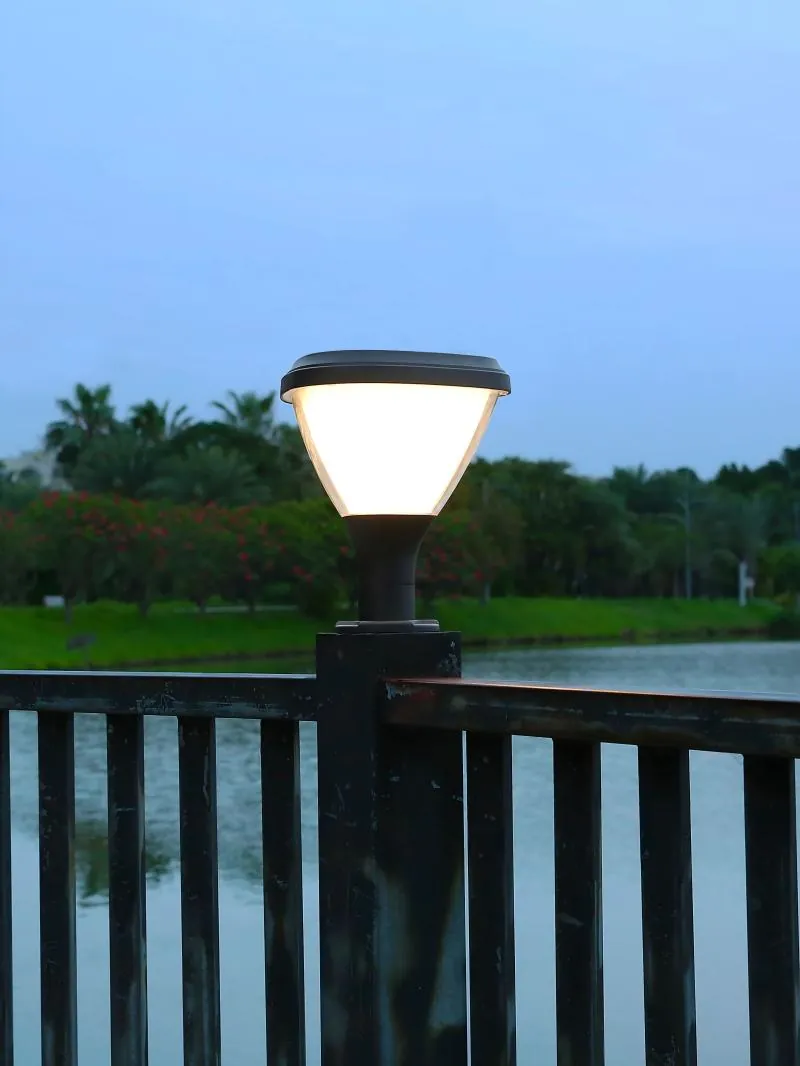

ZTD-2104 Solar Pillar Light installed at a pillar-top site at dusk

Applications

04
ZTD-2104 Solar Pillar Light
Pillar-top lighting
ZTD-2104 Solar Pillar Light

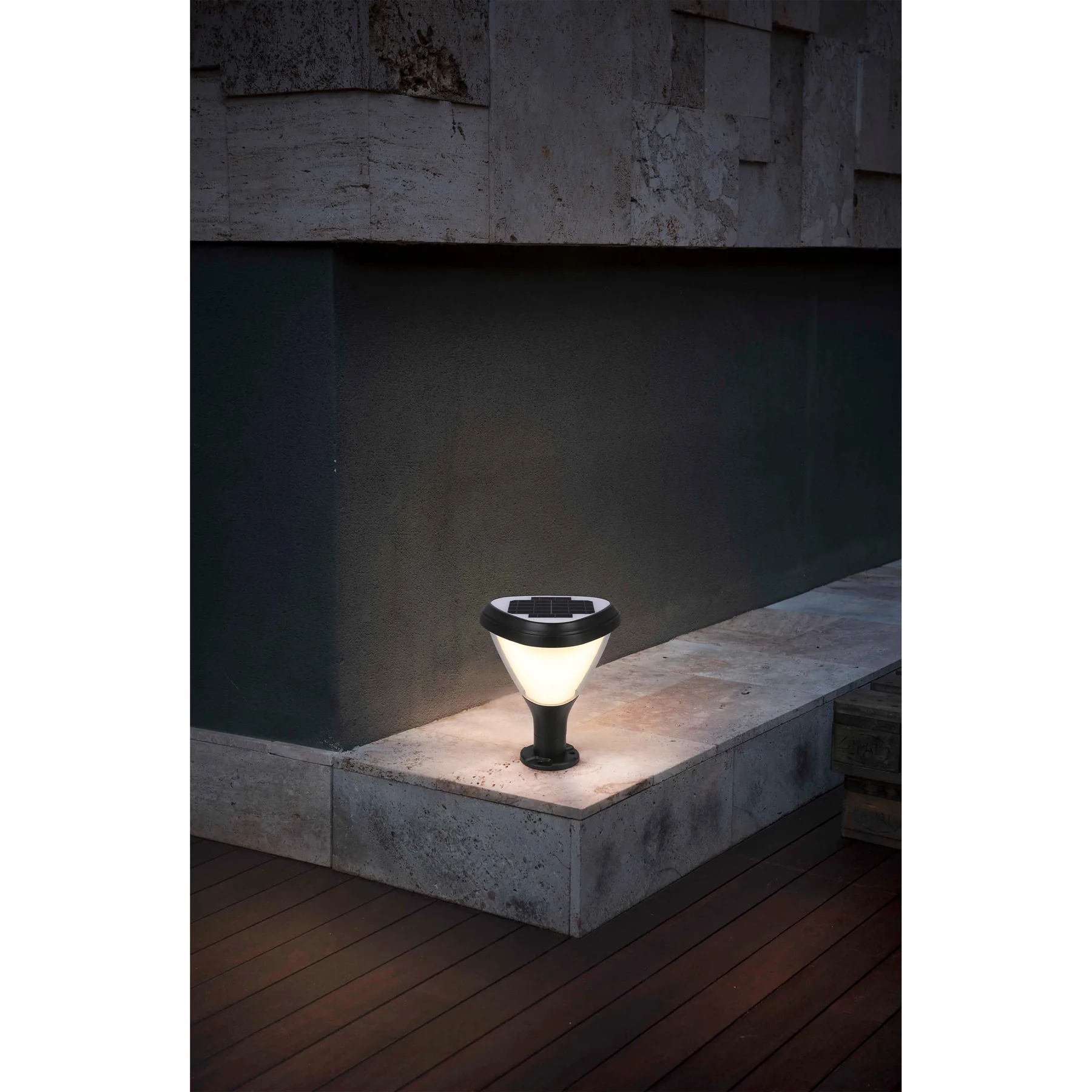

Entry and gate lighting
ZTD-2104 Solar Pillar Light

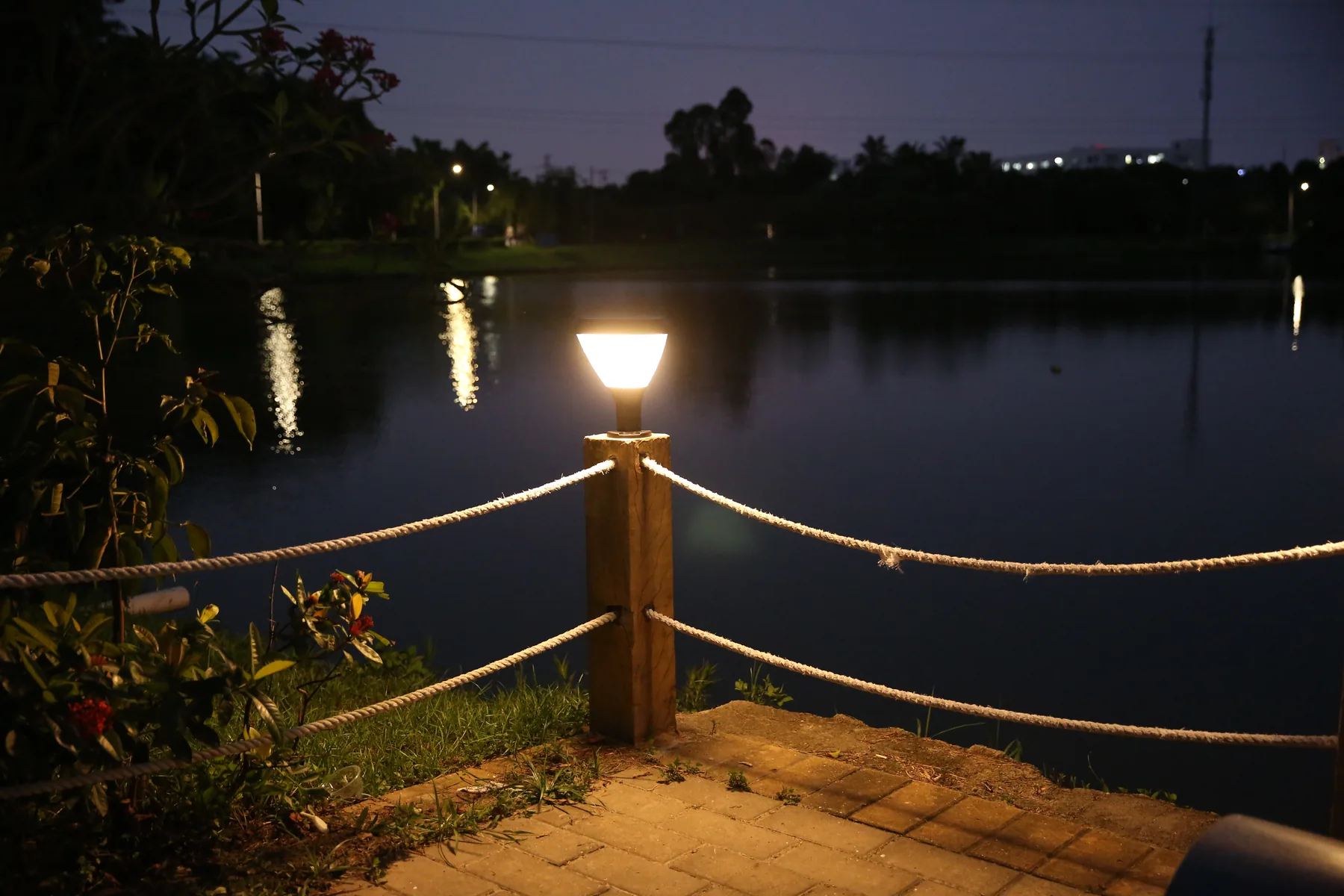

Courtyard lighting
ZTD-2104 Solar Pillar Light

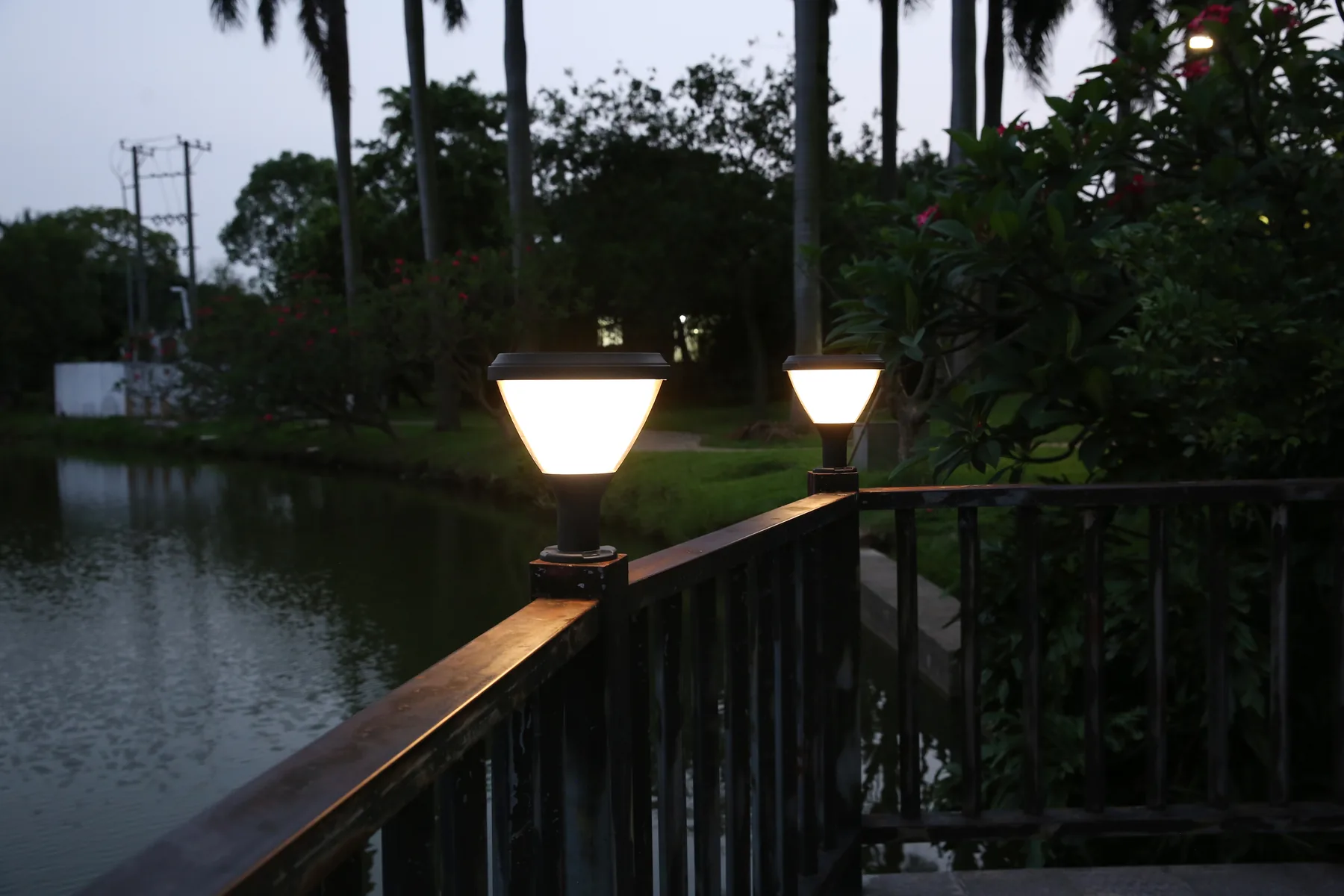

Garden and boundary lighting
ZTD-2104 Solar Pillar Light
Patio lighting

Frequently asked questions

05
What sizes is the ZTD-2104 available in?

The ZTD-2104 cap measures φ260 × 120 × H310 mm.

Is the ZTD-2104 weatherproof?

Yes. It is built from die-cast aluminum + PC and rated IP65 for outdoor exposure.

What colour temperature does the ZTD-2104 offer?

It offers 3000K – 6500K for warm or bright daylight light.

How is the ZTD-2104 mounted?

It is a post-top cap that sits on gate pillars and fence posts.

What powers the ZTD-2104?

A 5V / 4.5W monocrystalline solar panel charges the on-board battery.

Can the ZTD-2104 be customised for a project?

Yes — configuration and colour options can be adapted. Contact us.

Specifications are nominal and may change without notice; the contractual revision is the one confirmed in the order acknowledgement.

Project support

Plan your solar lighting layout.

Share the layout, installation height and preferred colour temperature. Our team can help review a suitable ZTD-2104 configuration.
