Monocrystalline panel
5V / 2W solar input for wire-free operation.
Product overview

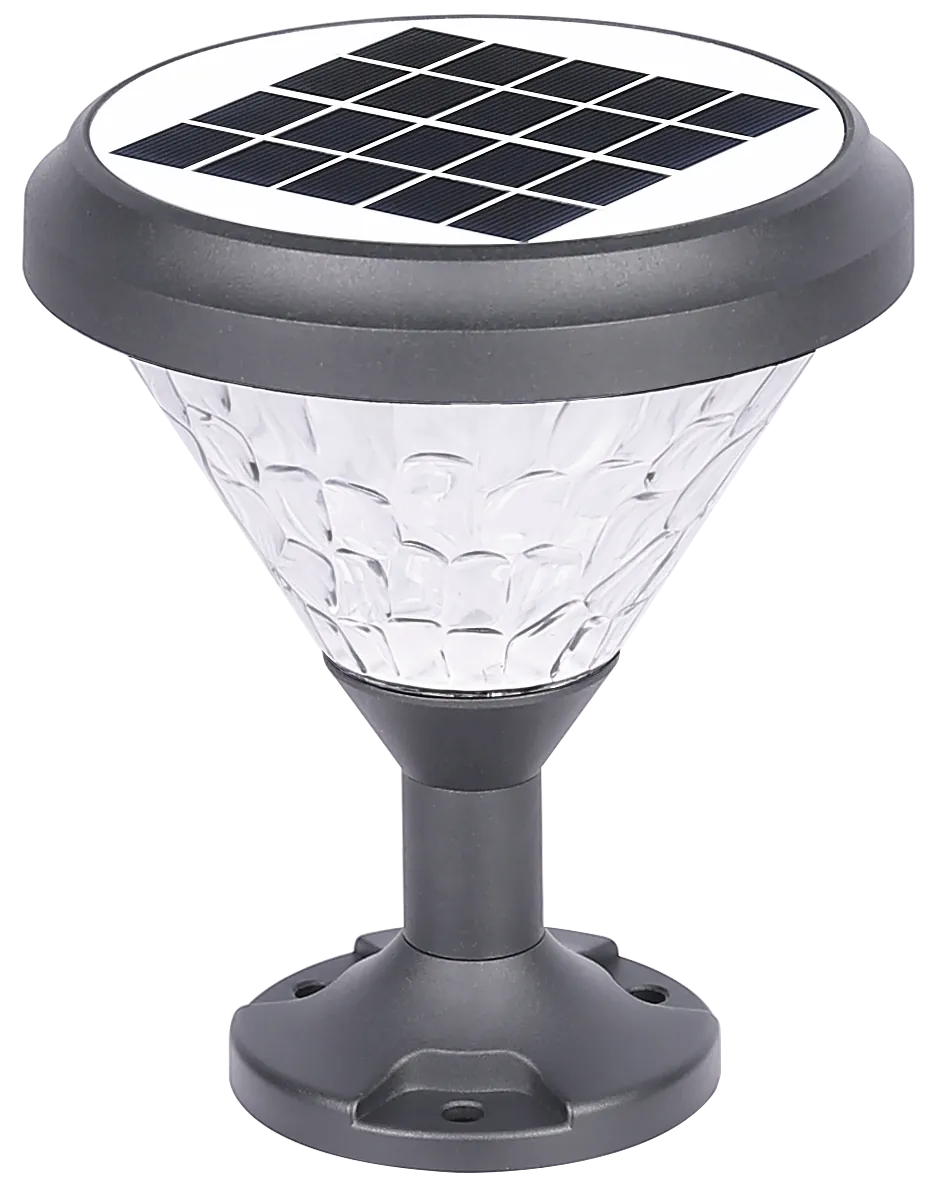

ZTD-0907 is a diamond-facet solar pillar light from E-Able Power, pairing a 5V / 2W monocrystalline panel with a 3.2V / 3000mAh LiFePO4 battery and 20 LEDs in a die-cast aluminum + PC housing.

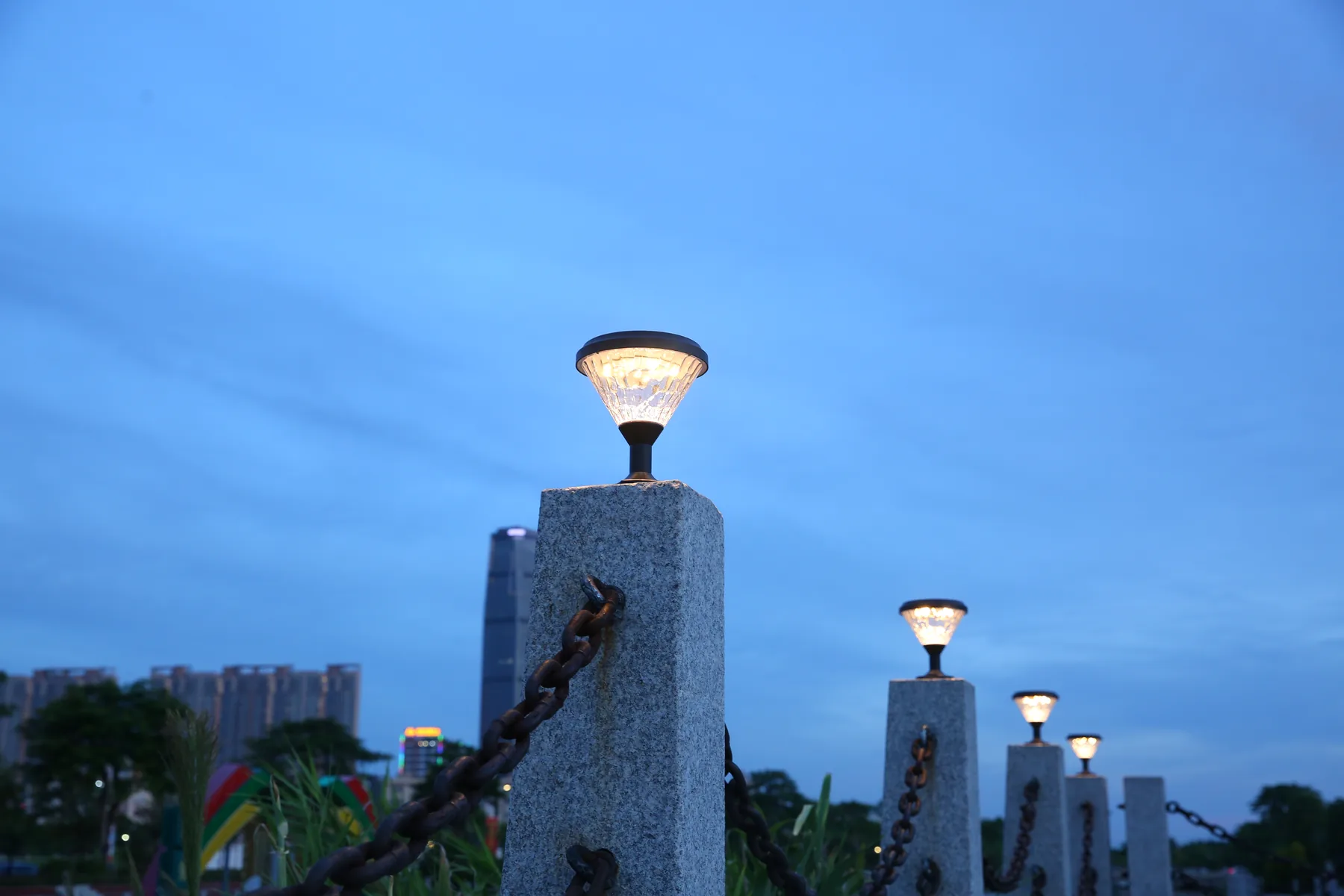

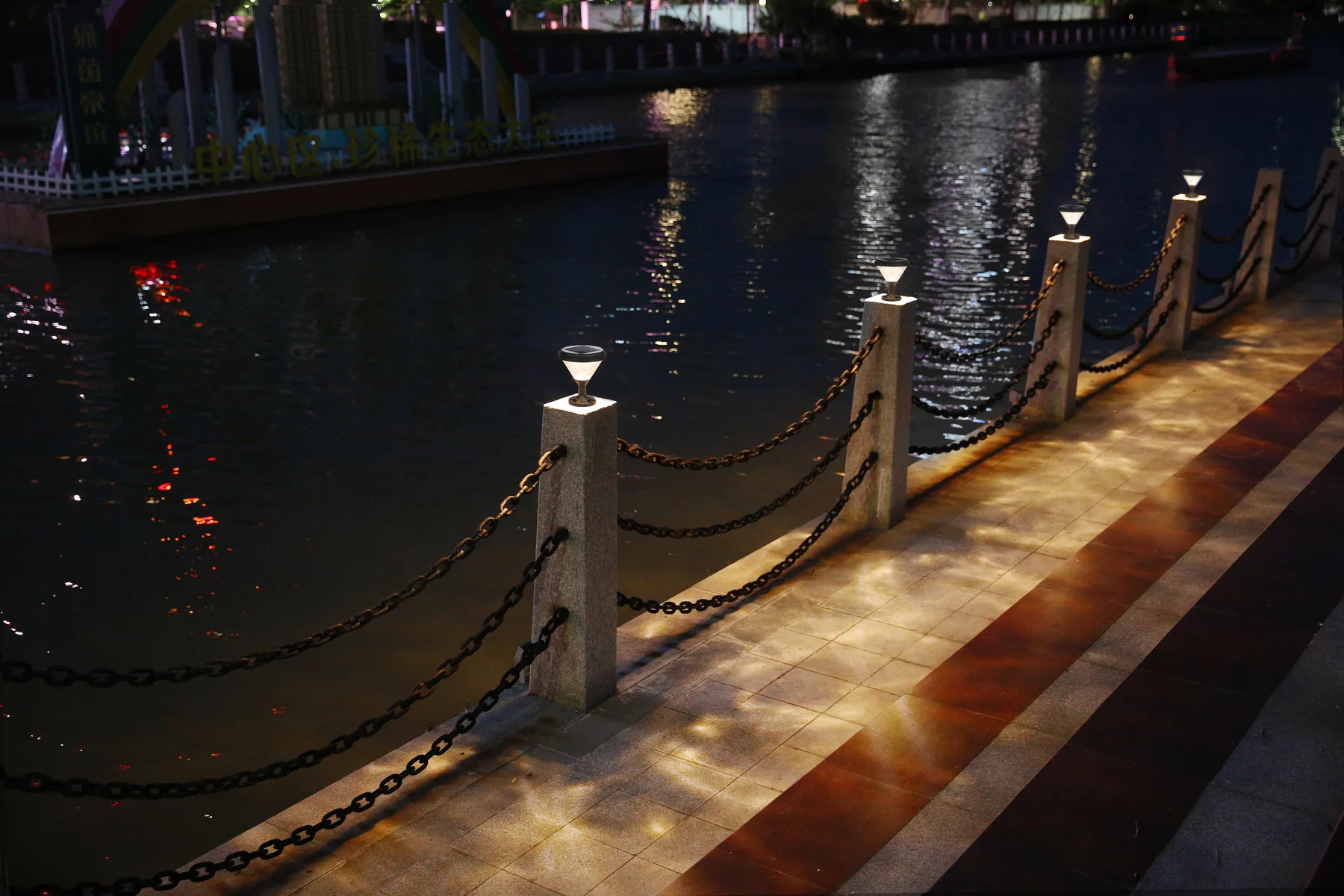

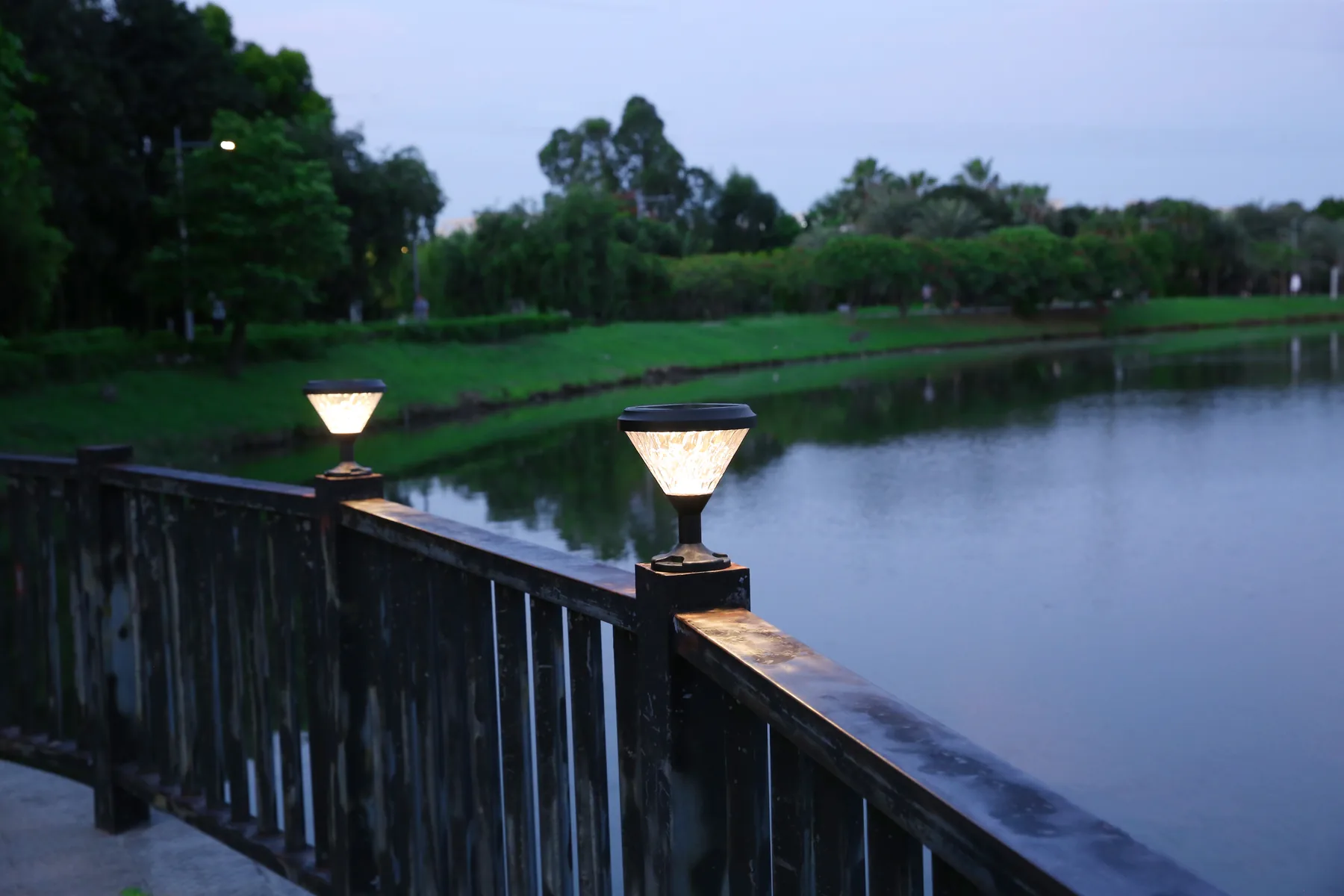

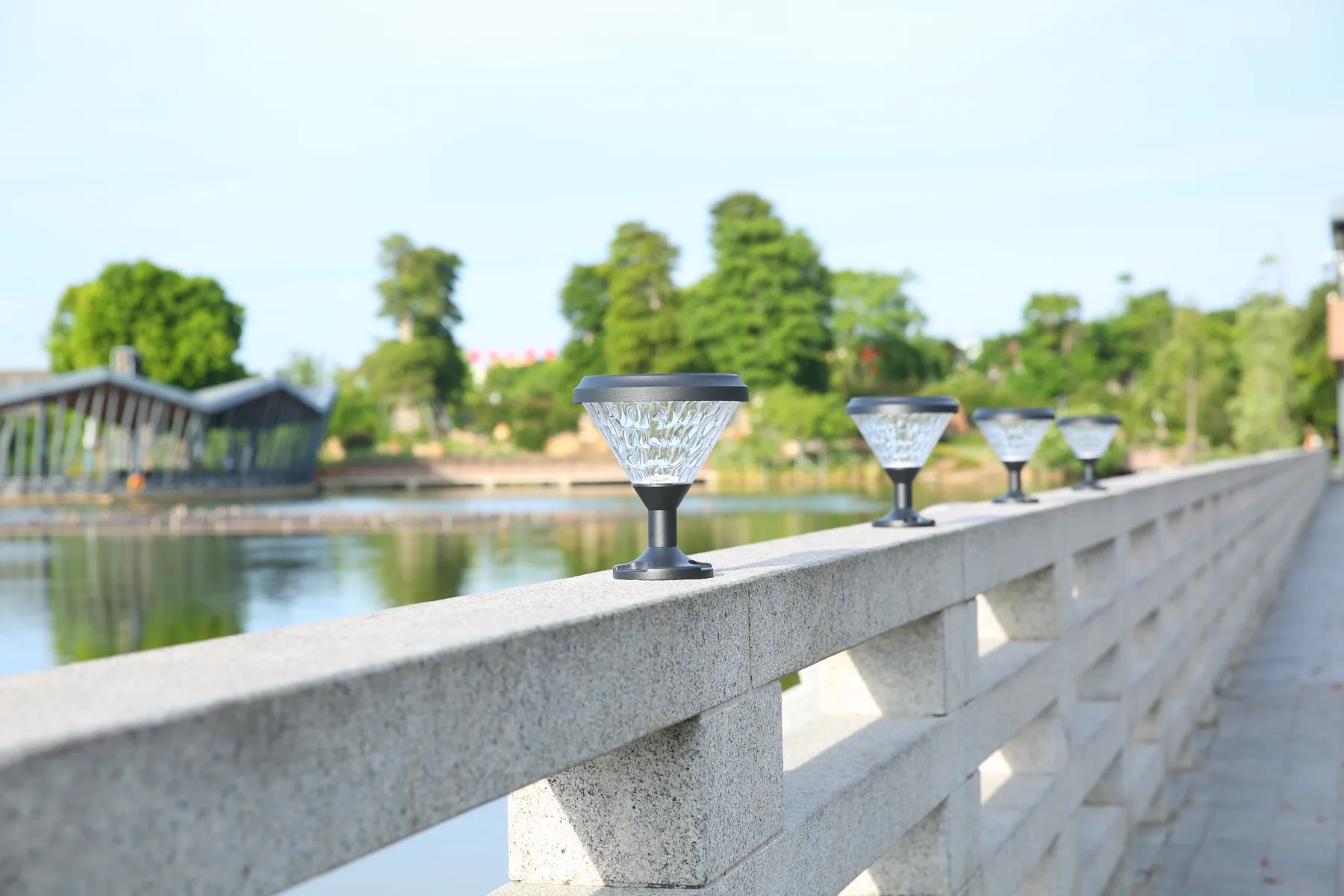

The faceted shade catches and refracts the light for an elegant sparkle along gate pillars, fences and garden edges.

5V / 2W solar input for wire-free operation.
3.2V / 3000mAh battery for reliable nightly output.
Faceted shade refracts light for a sparkle.
IP65 rated die-cast aluminum + PC construction.
| Solar & electrical | |
| Solar panel | 5V / 2W |
| Battery | 3.2V / 3000mAh |
| Rated power | 2W |
| Input voltage | DC 3.2V |
| Working time | 3 – 5 rainy days |
| Optical performance | |
| Light source | 2835 LED |
| LED quantity | 20 pcs |
| Colour temperature | 3000K – 6500K |
| Luminous flux | high CRI output |
| Colour rendering | >80 |
| Beam angle | 180° |
| Construction & dimensions | |
| Material | Die-cast aluminum + PC |
| Lamp colour | Black |
| Net weight | — |
| Size | φ185 × 105 × H225 mm |
| Mounting | Post-top cap / pillar |
| Operating environment | |
| Waterproof level | IP65 |
| Operating temperature | -25°C – 50°C |
| Working humidity | 10% – 90% |






The ZTD-0907 cap measures φ185 × 105 × H225 mm.
Yes. It is built from die-cast aluminum + PC and rated IP65 for outdoor exposure.
It offers 3000K – 6500K for warm or bright daylight light.

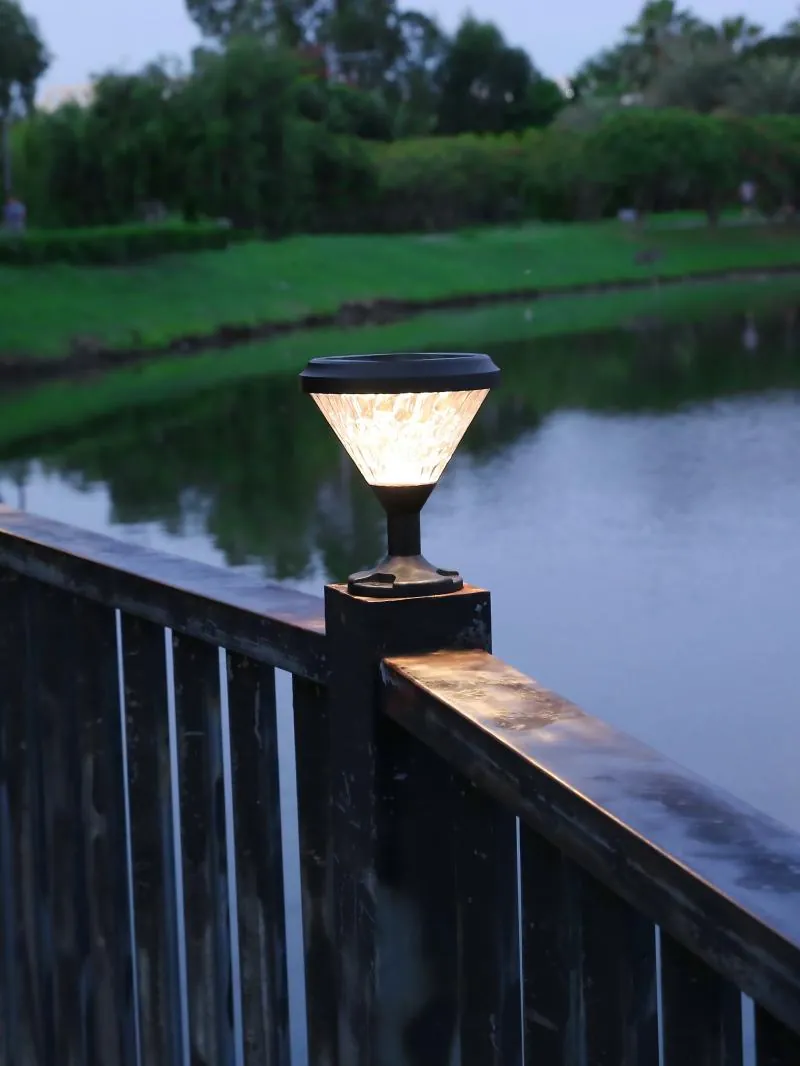

It is a post-top cap that sits on gate pillars and fence posts.
A 5V / 2W monocrystalline solar panel charges the on-board battery.
Yes — configuration and colour options can be adapted. Contact us.
Specifications are nominal and may change without notice; the contractual revision is the one confirmed in the order acknowledgement.
Project support
Share the layout, installation height and preferred colour temperature. Our team can help review a suitable ZTD-0907 configuration.
