E-ABLE POWER / SOLAR GARDEN LIGHT

CPD-9208Solar Lawn Light

A compact solar lawn light from E-Able Power with a 8.5W / 5V monocrystalline panel, 3.2V / 12000mAh LiFePO4 battery and IP65 construction. Suitable for pathways, courtyards and landscape areas.

Overview

01

Product overview

Light the space.
Keep it efficient.

CPD-9208 is a solar lawn light from E-Able Power, combining a 8.5W solar panel, 3.2V / 12000mAh battery and 3030 chip output in a weather-protected IP65 housing.

The source-pack specification documents 320 mm × 150 mm × H800 – 1000 mm. It is designed for ground-level installation in garden beds, landscape borders and courtyard pathways.

Selection note: select the preferred size and colour temperature for the layout, then confirm local site conditions before final configuration.
CPD-9208 product profile

Features

02

Monocrystalline panel

8.5W / 5V solar input for the solar-powered version.

LiFePO4 battery

3.2V / 12000mAh battery configuration from the supplied specification.

Weather-protected housing

IP65 rated construction for outdoor use.

Even light distribution

3030 chip source with 3000K – 6500K colour temperature range.

Technical data

03
Solar & electrical
Solar panel8.5W / 5V
Battery3.2V / 12000mAh
Rated power8.5W
Input voltageDC 3.2V
Working time12 hrs (3 – 5 rainy days)
Optical performance
Light source3030 chip
LED quantity3030 chip
Colour temperature3000K – 6500K
Luminous flux1386.68 lm (3000K) / 1420.45 lm (6500K)
Colour rendering>80
Beam angle180°
Construction & dimensions
MaterialDie-cast aluminum + tempered glass
Lamp colourBlack; other colours can be customized
Net weight5.18 / 5.85 kg
Size320 mm × 150 mm × H800 – 1000 mm
InstallationGround-mount lawn light
Operating environment
Waterproof levelIP65
Operating temperature-25°C – 50°C
Working humidity10% – 90%

Applications

04

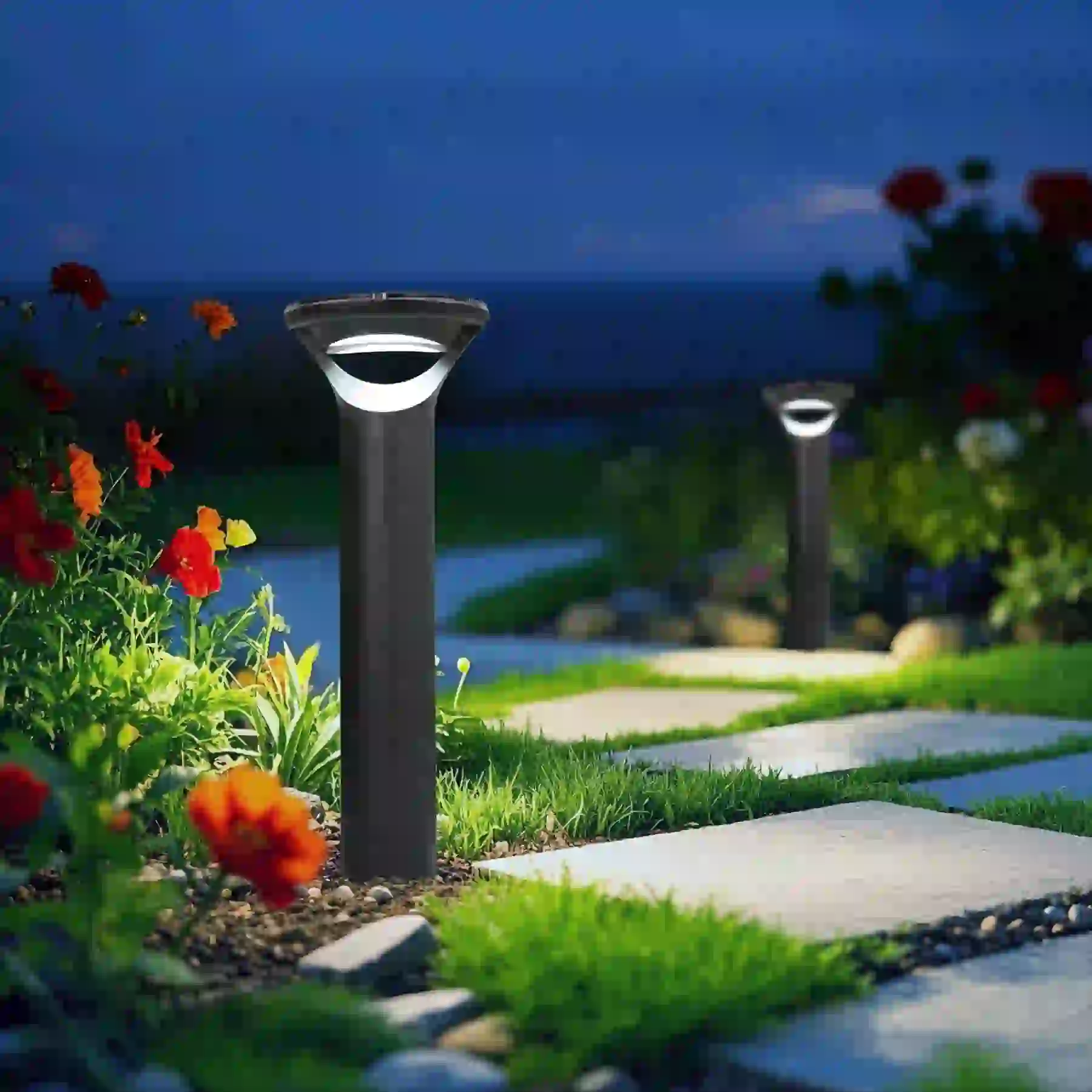

CPD-9208 solar lights along a garden path
Pathway lighting

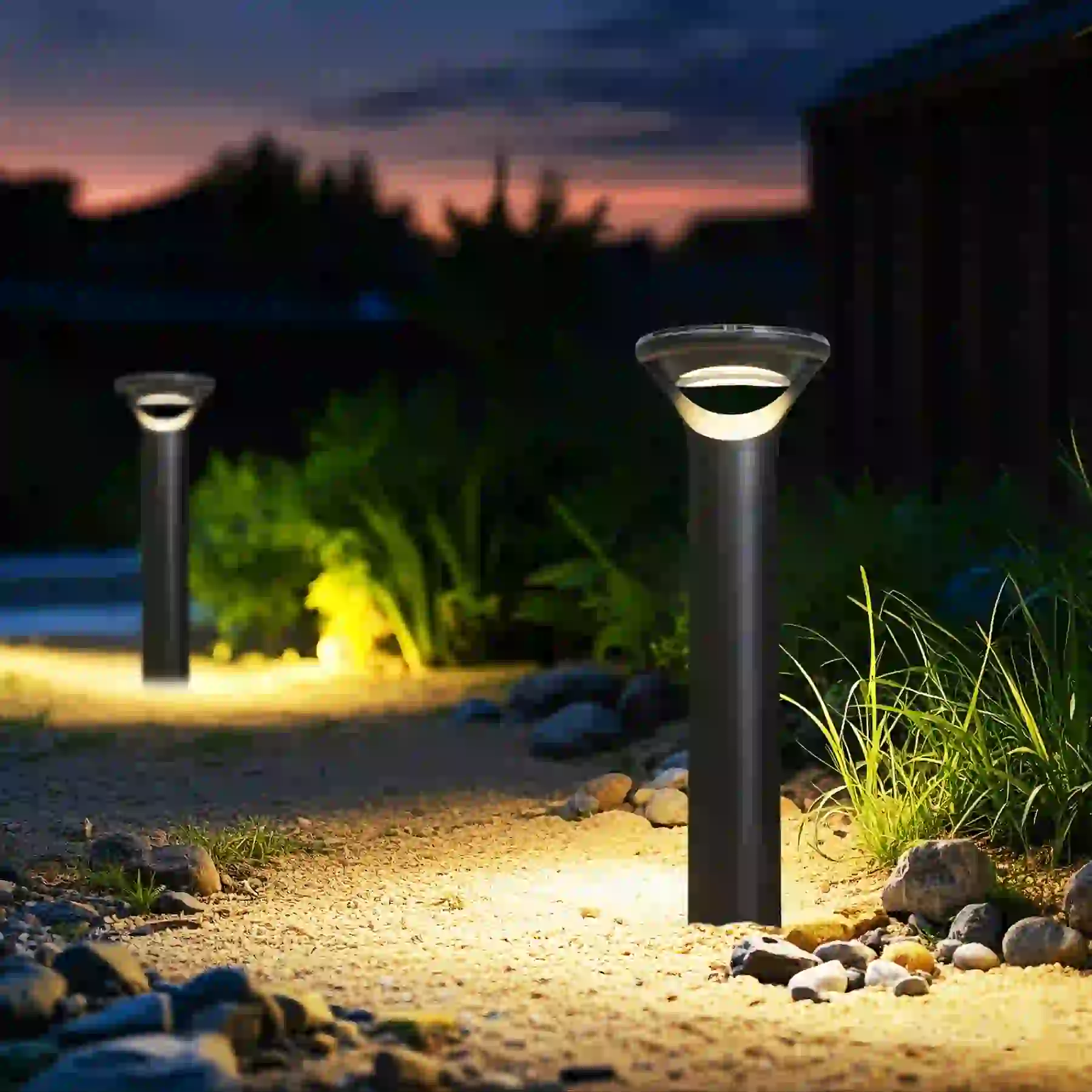

CPD-9208 solar lights beside a residential entry
Entry and step lighting

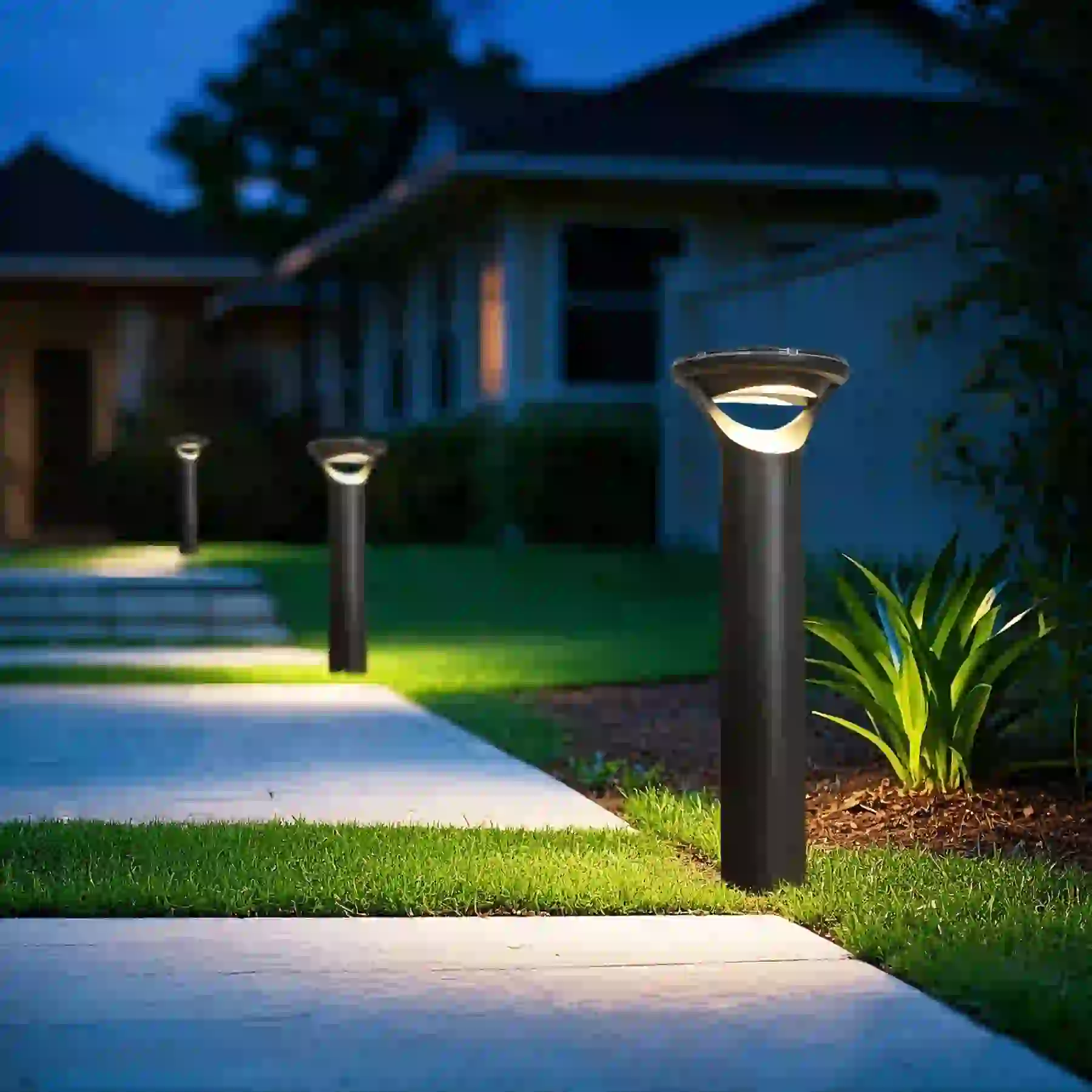

CPD-9208 solar lights in a courtyard
Courtyard lighting

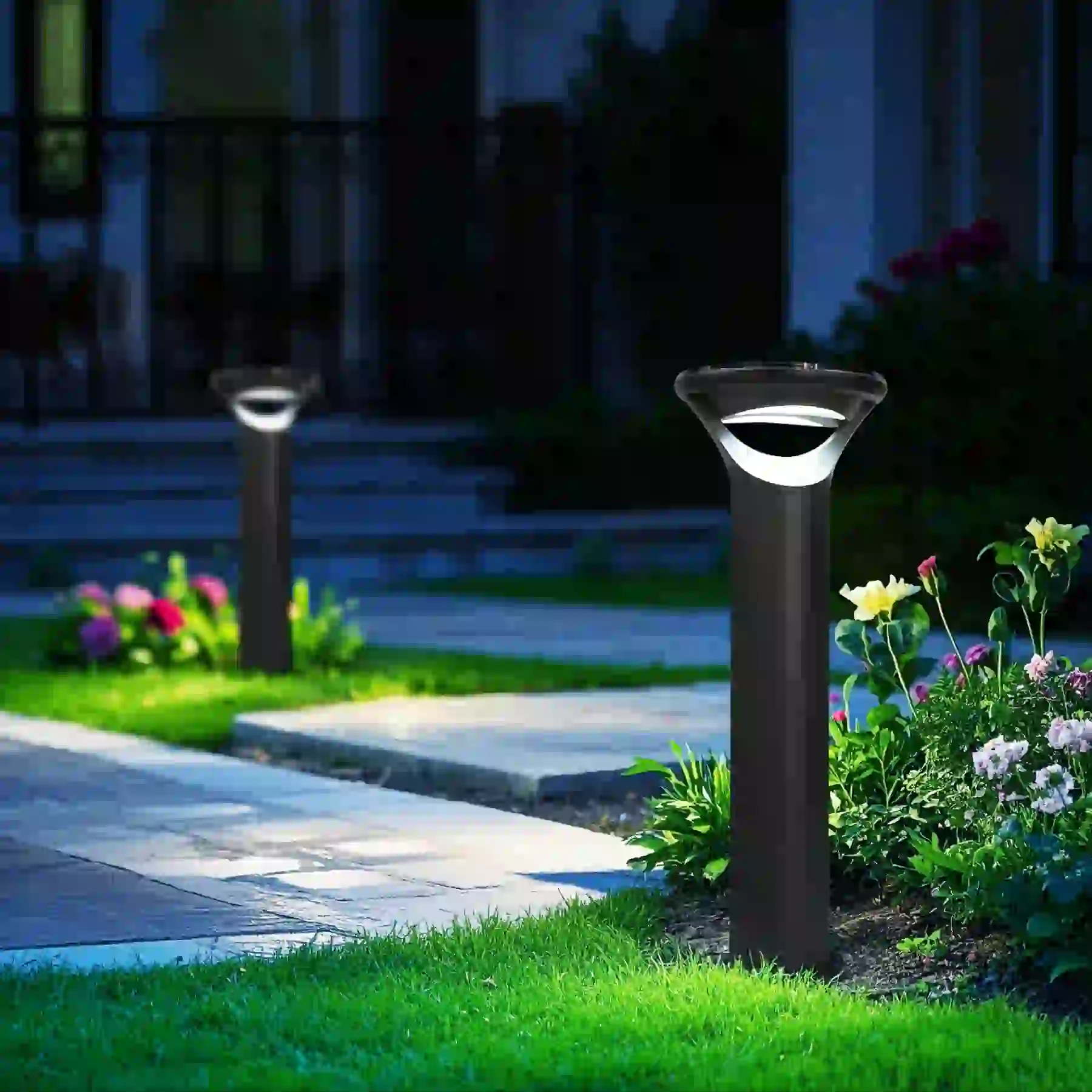

CPD-9208 solar light in a planted garden bed
Garden bed lighting

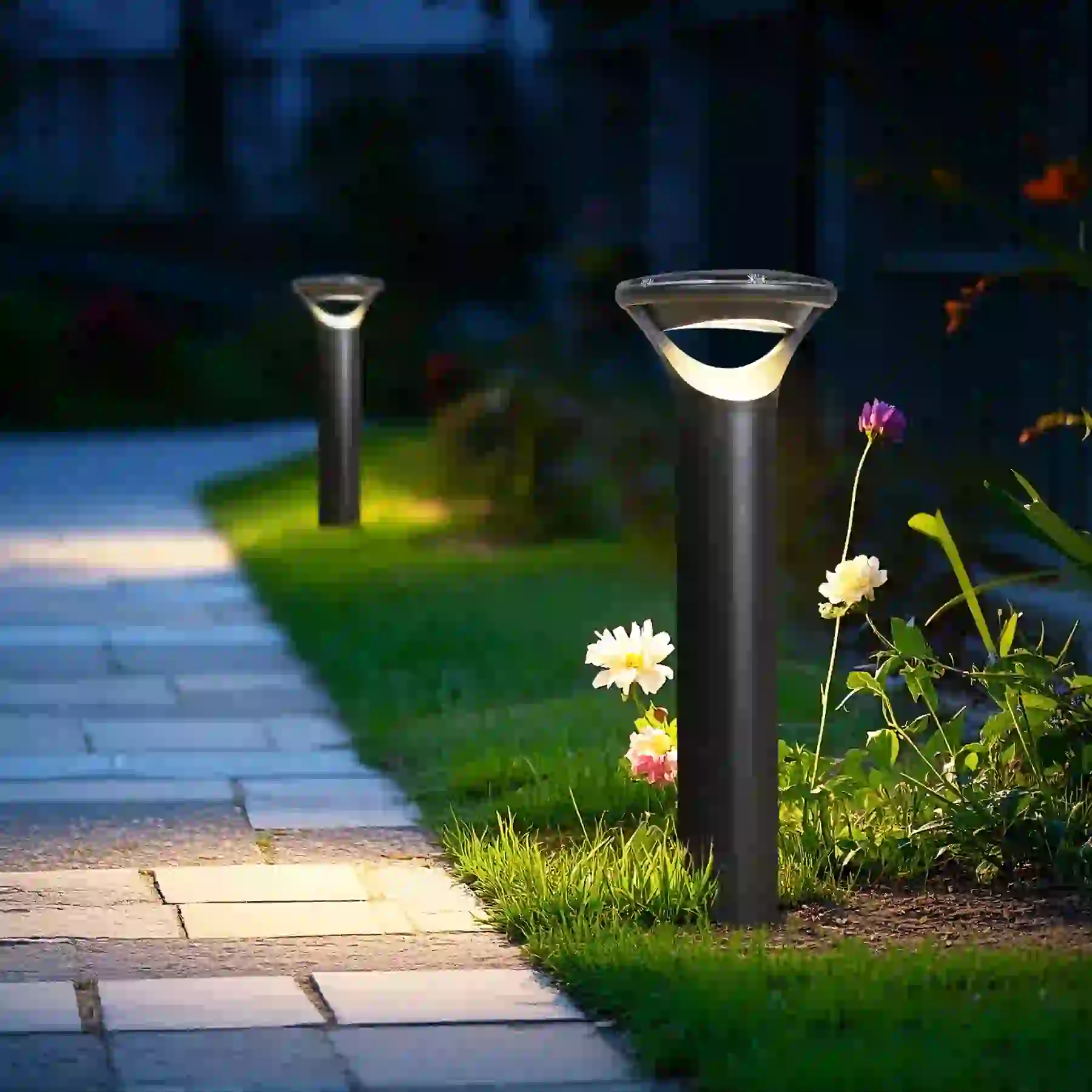

CPD-9208 solar light beside a patio seating area
Patio lighting

More views

06

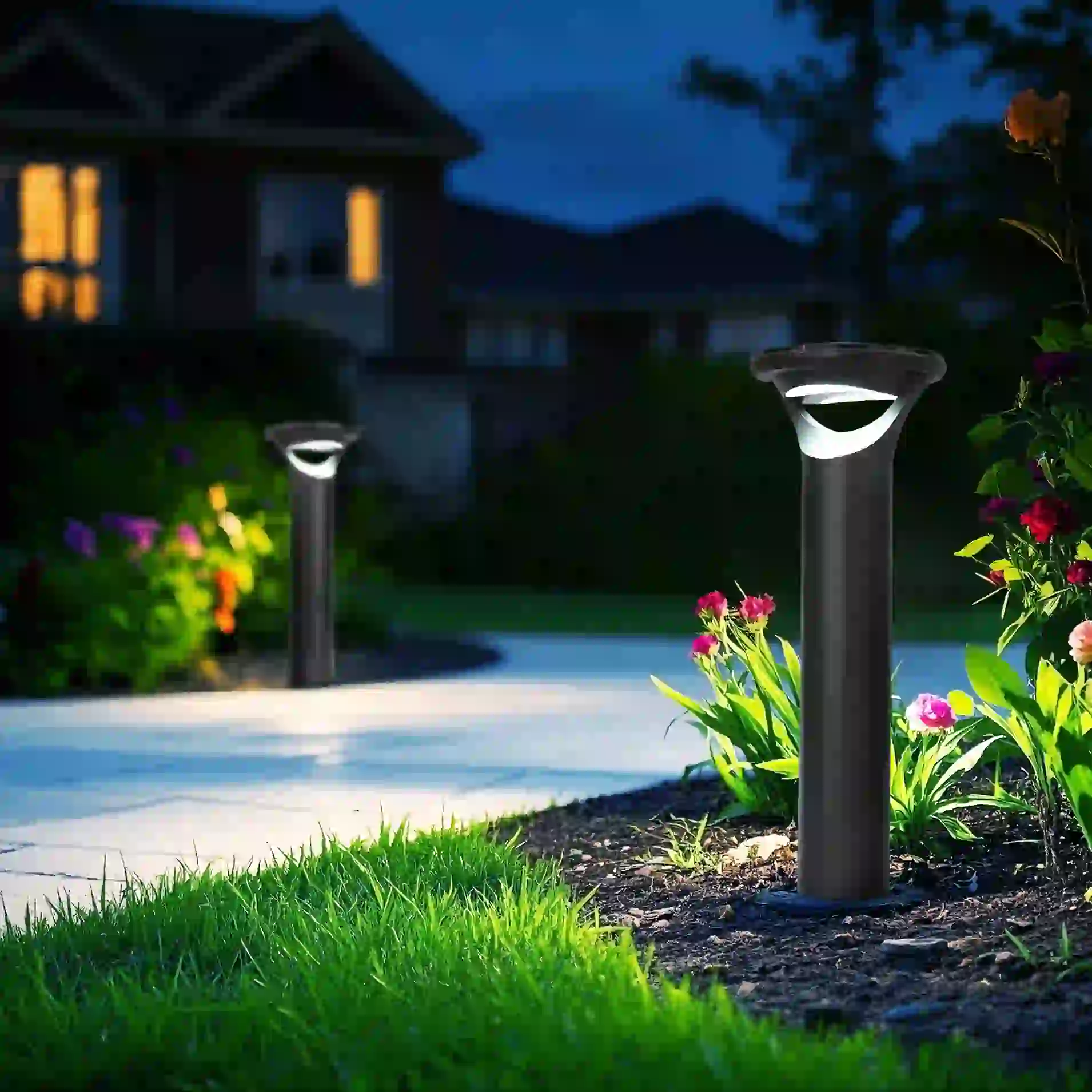

CPD-9208 solar lights lining a landscaped area

Frequently asked questions

05
What sizes is the CPD-9208 available in?

The CPD-9208 comes in 320 mm × 150 mm × H800 – 1000 mm.

How long does the CPD-9208 run on a full charge?

It runs on a 3.2V / 12000mAh battery and provides 12 hrs (3 – 5 rainy days) of working time.

Is the CPD-9208 weatherproof?

Yes. It is built from Die-cast aluminum + tempered glass and rated IP65 for outdoor exposure.

What colour temperature and brightness does the CPD-9208 offer?

It offers 3000K – 6500K with roughly 1386.68 lm (3000K) / 1420.45 lm (6500K) luminous flux.

How and where should the CPD-9208 be installed?

It is designed for ground-level landscape installation and weighs 5.18 / 5.85 kg.

What powers the CPD-9208?

A 8.5W / 5V monocrystalline solar panel charges the on-board battery.

Can the CPD-9208 be customised for a project?

Yes — configuration and colour options can be adapted. Contact us with your site and lighting requirements to review a CPD-9208 configuration.

Specifications are nominal and may change without notice; the contractual revision is the one confirmed in the order acknowledgement.

Project support

Plan your solar lighting layout.

Share the layout, installation height and preferred colour temperature. Our team can help review a suitable CPD-9208 configuration.
