E-ABLE POWER / SOLAR GARDEN LIGHT

CPD-8804Solar Lawn Light

A compact solar lawn light from E-Able Power with a 4.5W / 5V monocrystalline panel, 3.2V / 6000mAh LiFePO4 battery and IP65 construction. Suitable for pathways, courtyards and landscape areas.

Downloads

Model datasheet (PDF) in three languages — print-ready, no login required.

EN ES FR

Overview

01

Product overview

Light the space.
Keep it efficient.

CPD-8804 is a solar lawn light from E-Able Power, combining a 4.5W solar panel, 3.2V / 6000mAh battery and 2835 LED output in a weather-protected IP65 housing.

The source-pack specification documents φ257 mm × 110 mm × 60 mm (600/800/1000 mm). It is designed for ground-level installation in garden beds, landscape borders and courtyard pathways.

Selection note: select the preferred size and colour temperature for the layout, then confirm local site conditions before final configuration.
CPD-8804 product profile

Features

02

Monocrystalline panel

4.5W / 5V solar input for the solar-powered version.

LiFePO4 battery

3.2V / 6000mAh battery configuration from the supplied specification.

Weather-protected housing

IP65 rated construction for outdoor use.

Even light distribution

2835 LED source with 3000K – 6500K colour temperature range.

Technical data

03
Solar & electrical
Solar panel4.5W / 5V
Battery3.2V / 6000mAh
Rated power4.5W
Input voltageDC 3.2V
Working time3 – 5 rainy days
Optical performance
Light source2835 LED
LED quantity2835 LED
Colour temperature3000K – 6500K
Luminous flux246.07 lm (3000K) / 259.8 lm (6500K)
Colour rendering>79
Beam angle180°
Construction & dimensions
MaterialDie-cast aluminum + PC lens
Lamp colourBlack; other colours can be customized
Net weight—
Sizeφ257 mm × 110 mm × 60 mm (600/800/1000 mm)
InstallationGround-mount lawn light
Operating environment
Waterproof levelIP65
Operating temperature-25°C – 50°C
Working humidity10% – 90%

Applications

04

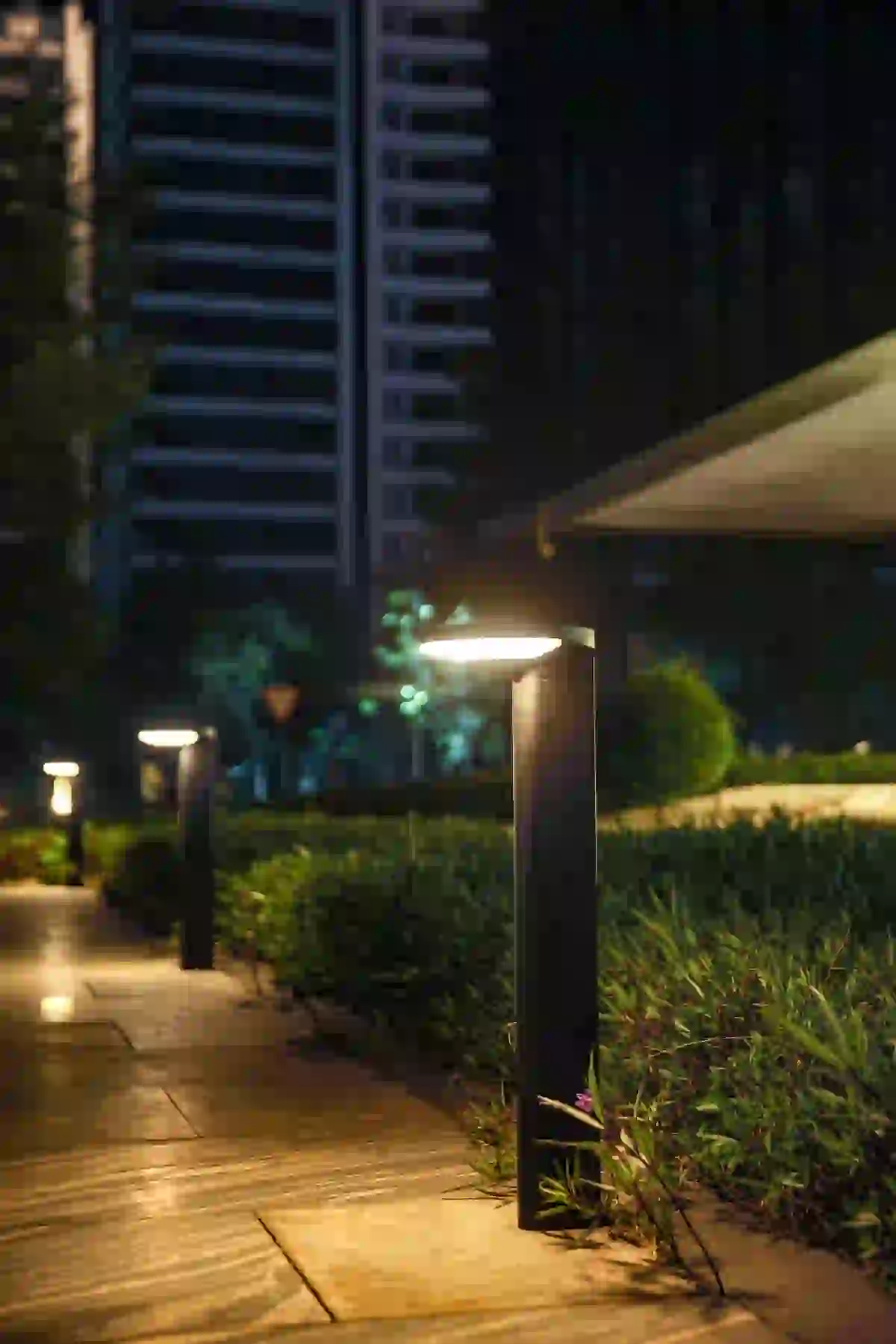

CPD-8804 solar lights along a garden path
Pathway lighting

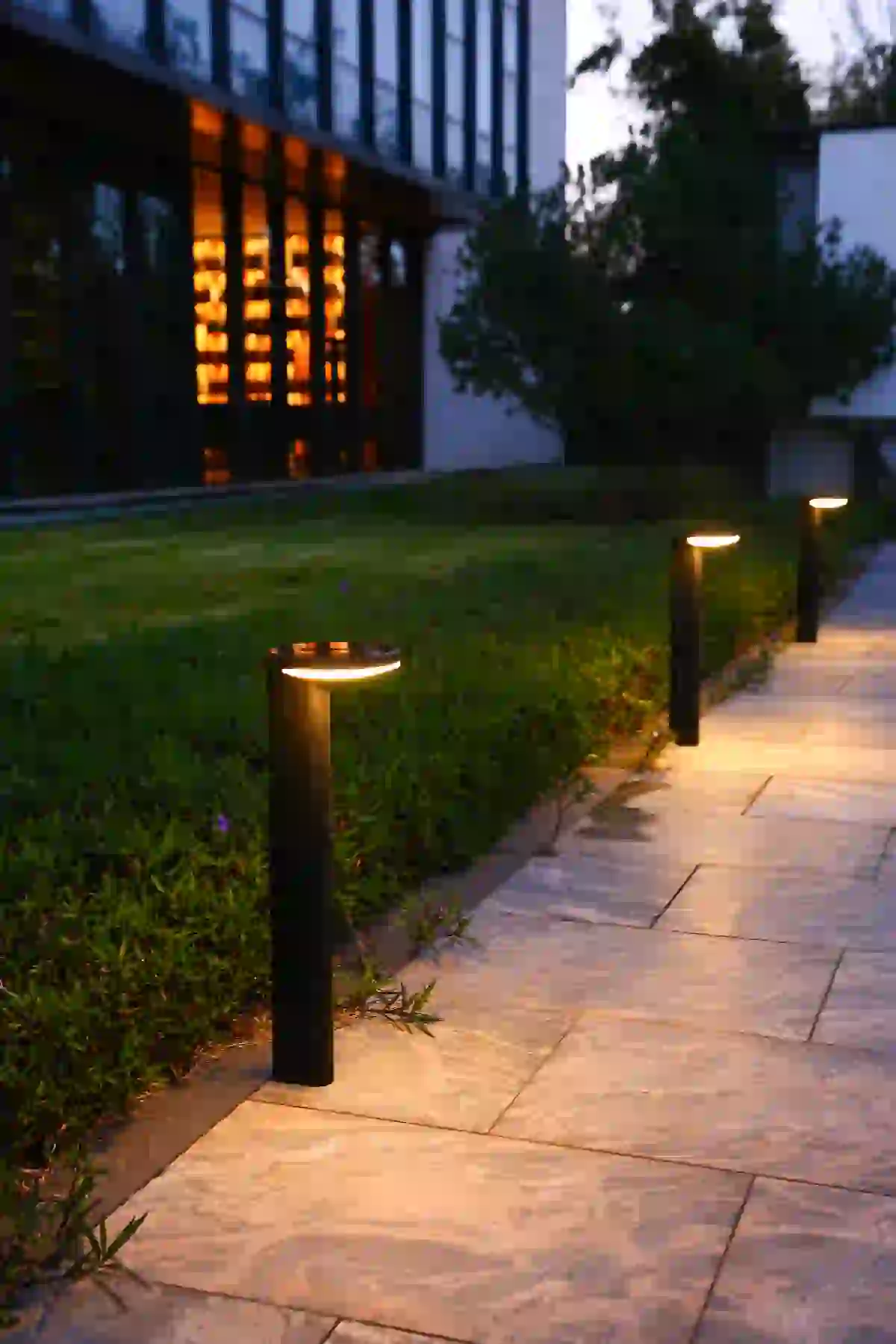

CPD-8804 solar lights beside a residential entry
Entry and step lighting

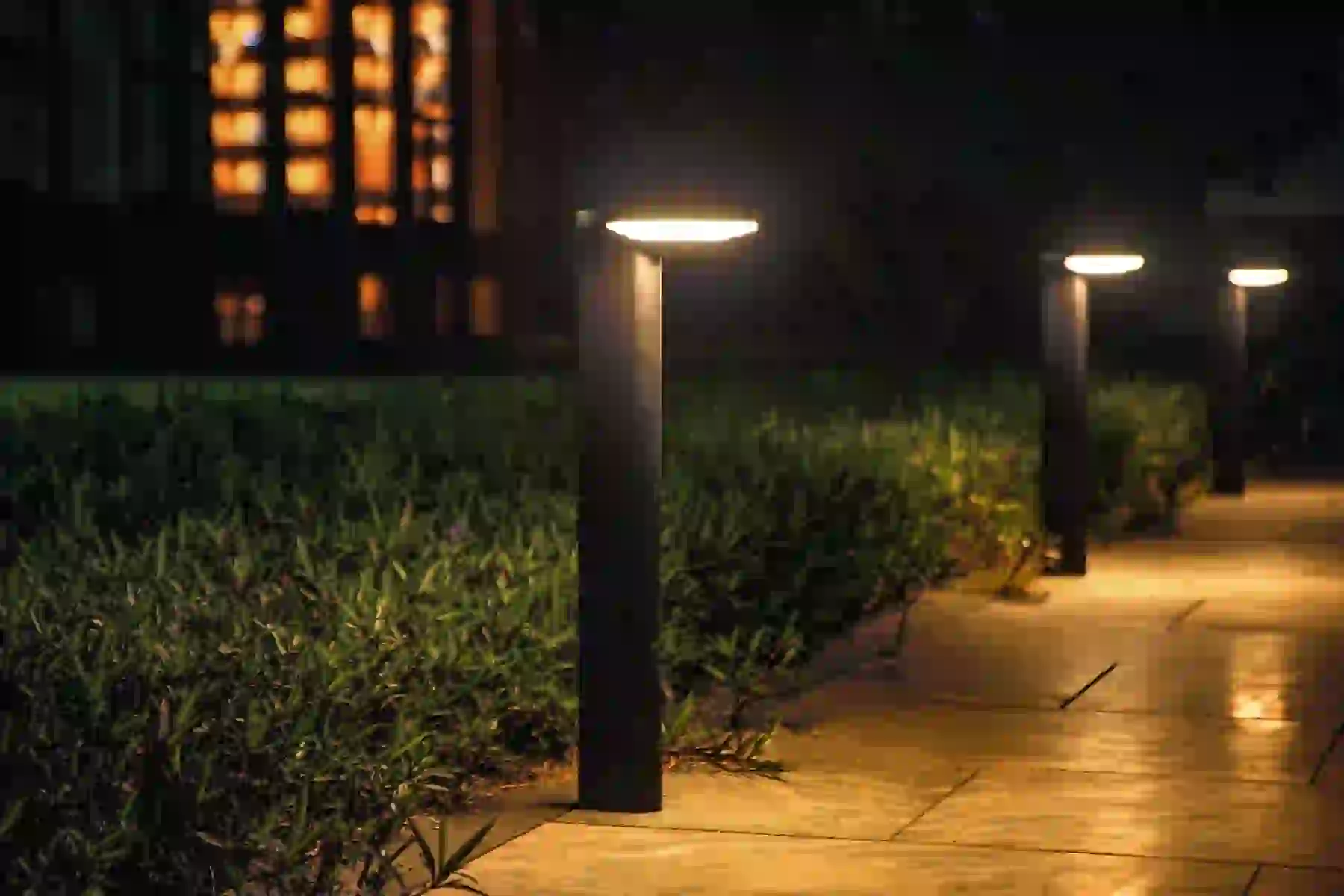

CPD-8804 solar lights in a courtyard
Courtyard lighting

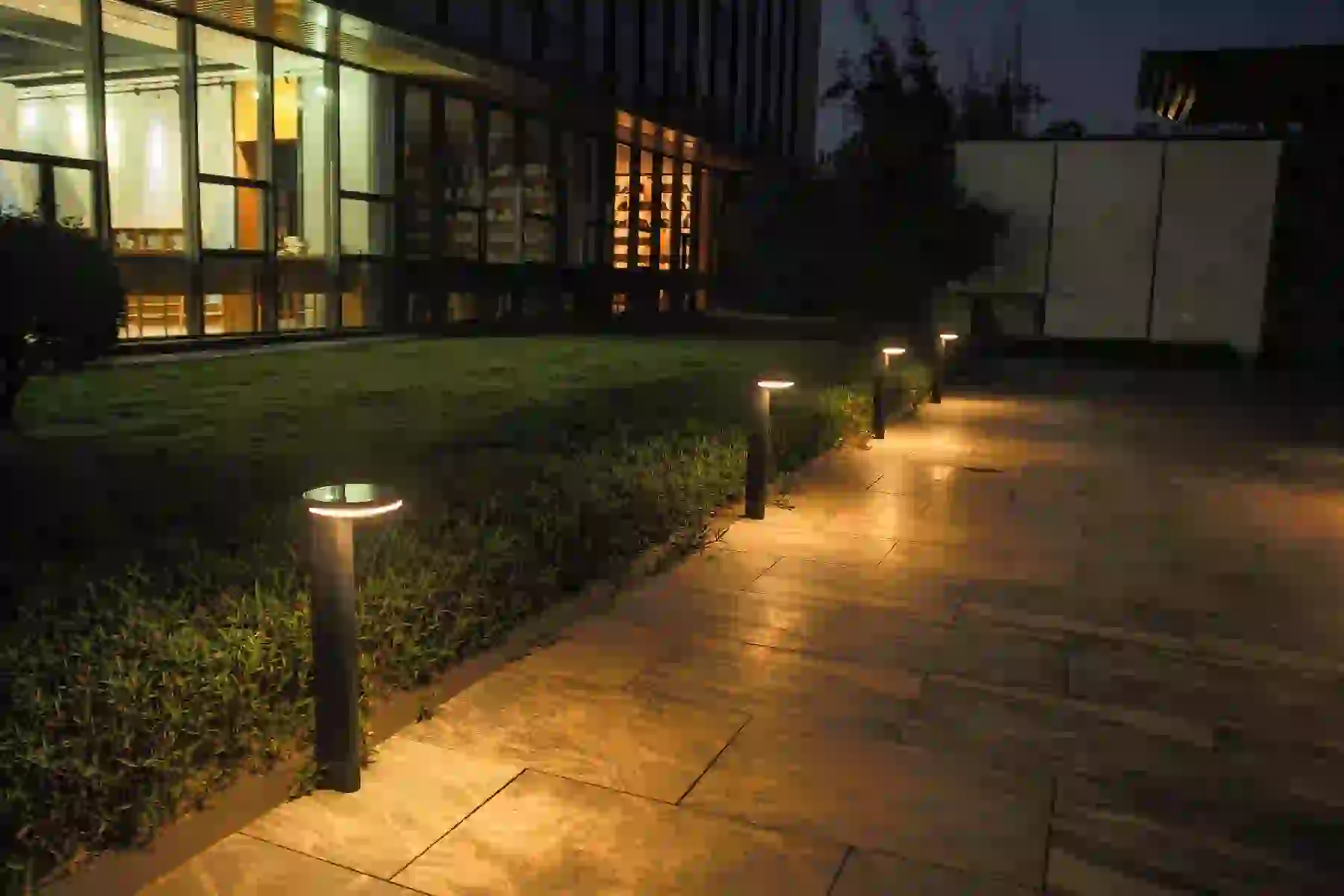

CPD-8804 solar light in a planted garden bed
Garden bed lighting

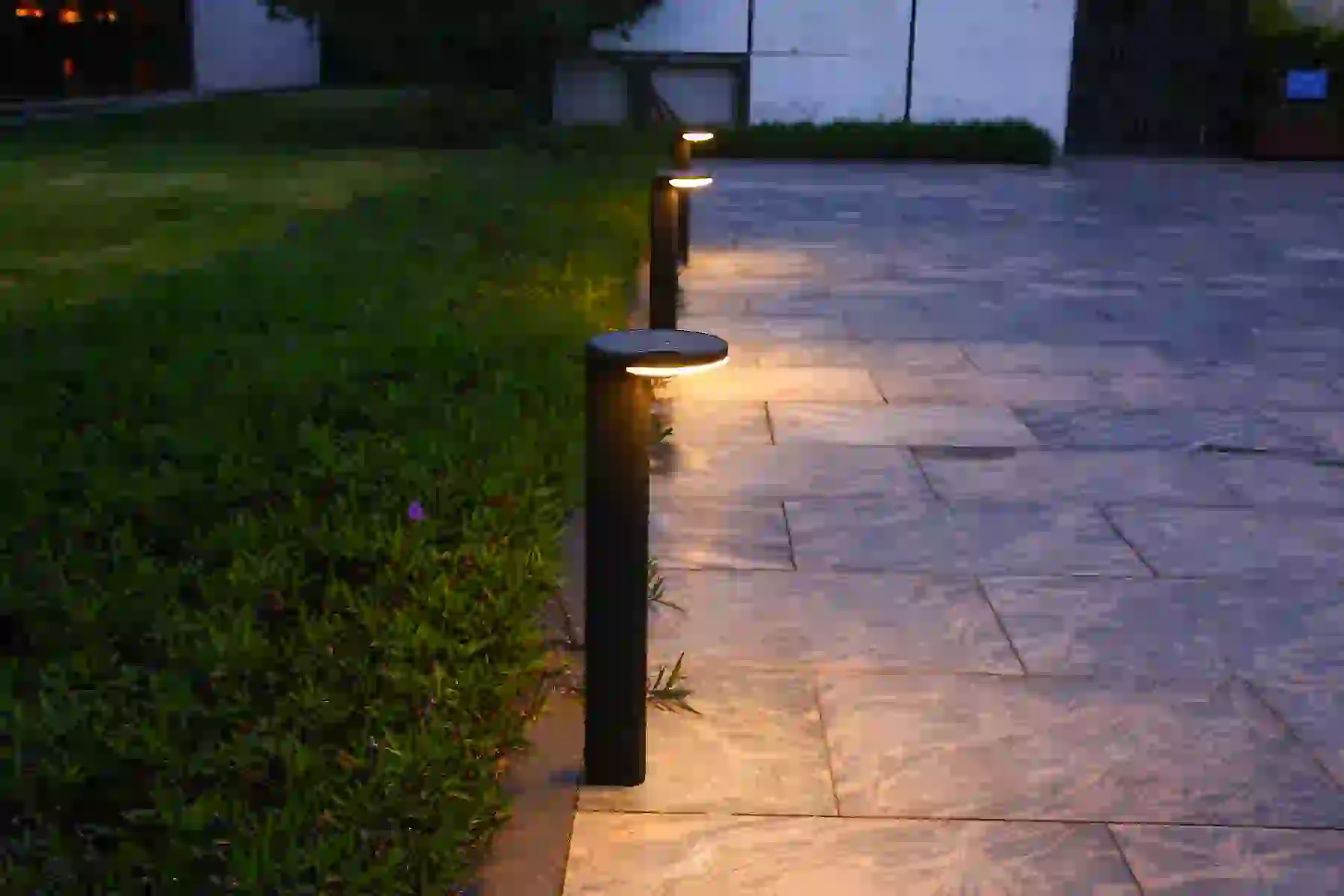

CPD-8804 solar light beside a patio seating area
Patio lighting

More views

06

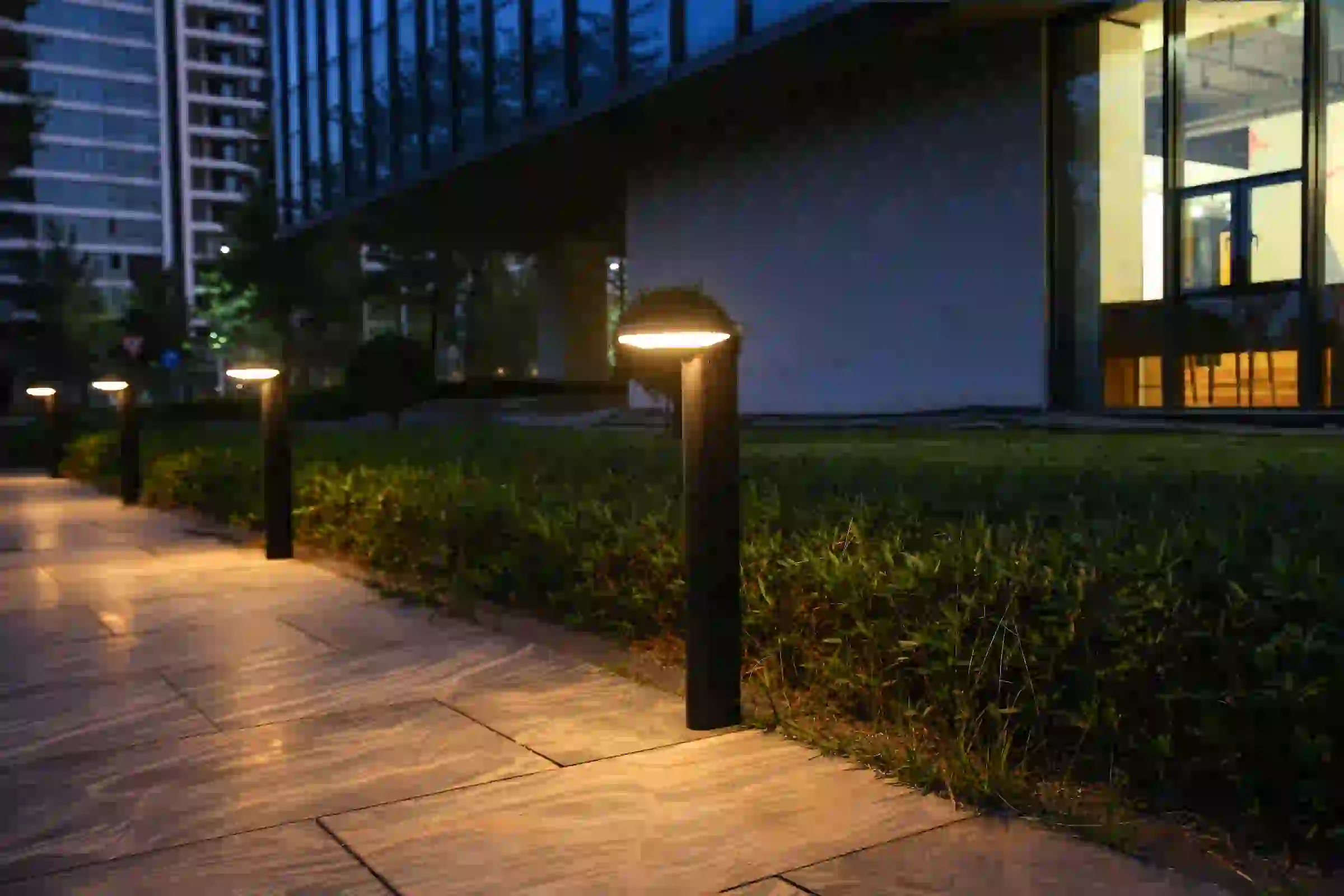

CPD-8804 solar lights lining a landscaped area

Frequently asked questions

05
What sizes is the CPD-8804 available in?

The CPD-8804 comes in φ257 mm × 110 mm × 60 mm (600/800/1000 mm).

How long does the CPD-8804 run on a full charge?

It runs on a 3.2V / 6000mAh battery and provides 3 – 5 rainy days of working time.

Is the CPD-8804 weatherproof?

Yes. It is built from Die-cast aluminum + PC lens and rated IP65 for outdoor exposure.

What colour temperature and brightness does the CPD-8804 offer?

It offers 3000K – 6500K with roughly 246.07 lm (3000K) / 259.8 lm (6500K) luminous flux.

How and where should the CPD-8804 be installed?

It is designed for ground-level landscape installation.

What powers the CPD-8804?

A 4.5W / 5V monocrystalline solar panel charges the on-board battery.

Can the CPD-8804 be customised for a project?

Yes — configuration and colour options can be adapted. Contact us with your site and lighting requirements to review a CPD-8804 configuration.

Specifications are nominal and may change without notice; the contractual revision is the one confirmed in the order acknowledgement.

Project support

Plan your solar lighting layout.

Share the layout, installation height and preferred colour temperature. Our team can help review a suitable CPD-8804 configuration.
