E-ABLE POWER / SOLAR GARDEN LIGHT

CPD-5004 CubeSolar Lawn Light

A compact solar lawn light from E-Able Power with a 5W / 5V monocrystalline panel, 3.2V / 6000mAh LiFePO4 battery and IP65 construction. Suitable for pathways, courtyards and landscape areas.

Overview

01

Product overview

Light the space.
Keep it efficient.

CPD-5004 is a solar lawn light from E-Able Power, combining a 5W solar panel, 3.2V / 6000mAh battery and 2835 LED output in a weather-protected IP65 housing.

The source-pack specification documents 200 mm × 140 mm × H400 / 600 / 800 mm. It is designed for ground-level installation in garden beds, landscape borders and courtyard pathways.

Selection note: select the preferred size and colour temperature for the layout, then confirm local site conditions before final configuration.
CPD-5004 product profile

Features

02

Monocrystalline panel

5W / 5V solar input for the solar-powered version.

LiFePO4 battery

3.2V / 6000mAh battery configuration from the supplied specification.

Weather-protected housing

IP65 rated construction for outdoor use.

Even light distribution

2835 LED source with 3000K – 6500K colour temperature range.

Technical data

03
Solar & electrical
Solar panel5W / 5V
Battery3.2V / 6000mAh
Rated power5W
Input voltageDC 3.2V
Working time3 – 5 rainy days
Optical performance
Light source2835 LED
LED quantity2835 LED
Colour temperature3000K – 6500K
Luminous flux169.87 lm (3000K) / 168.46 lm (6500K)
Colour rendering>79
Beam angle180°
Construction & dimensions
MaterialDie-cast aluminum + PC lens
Lamp colourBlack; other colours can be customized
Net weight1.55 / 2 / 2.42 kg
Size200 mm × 140 mm × H400 / 600 / 800 mm
InstallationGround-mount lawn light
Operating environment
Waterproof levelIP65
Operating temperature-25°C – 50°C
Working humidity10% – 90%

Applications

04

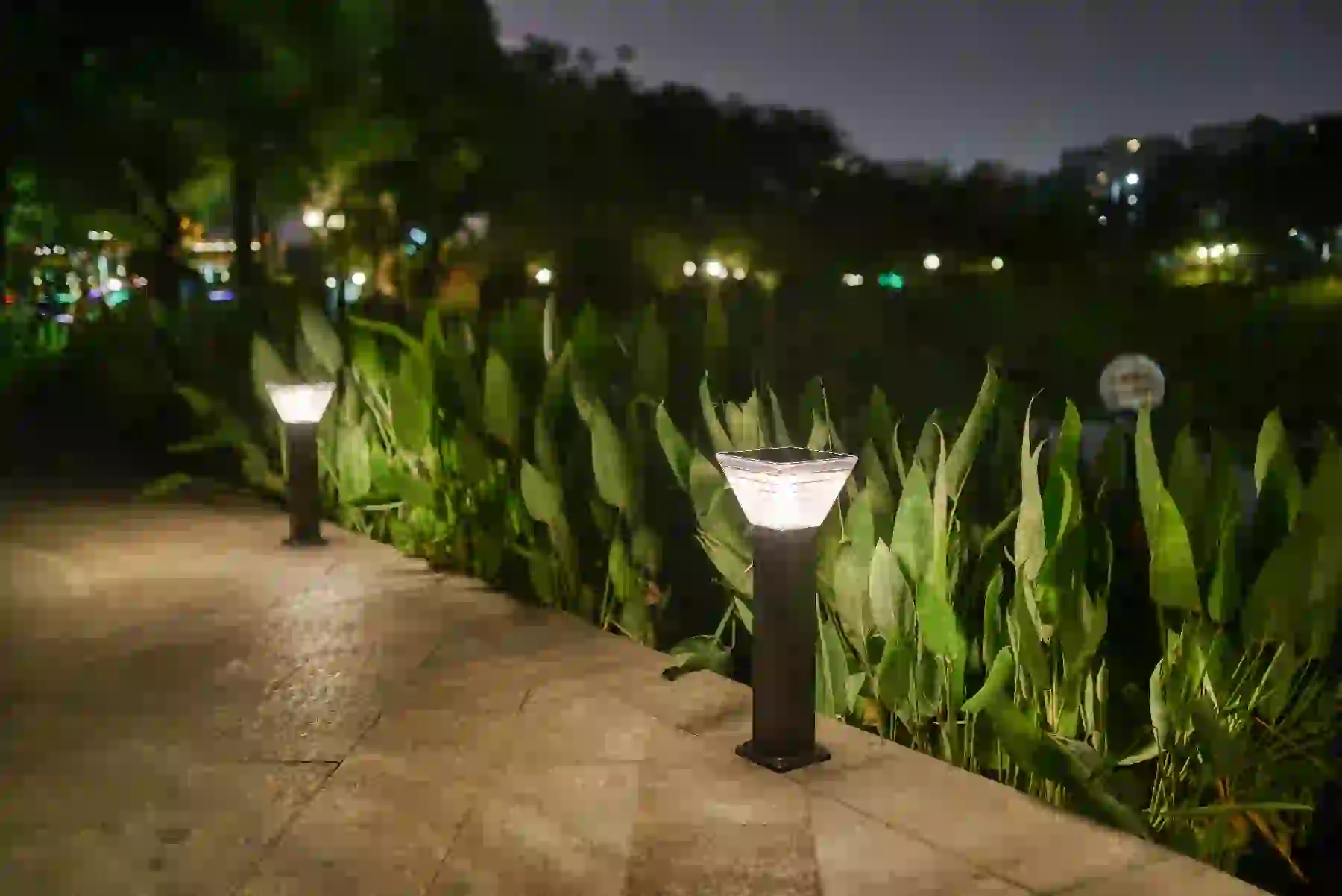

CPD-5004 solar lights along a garden path
Pathway lighting

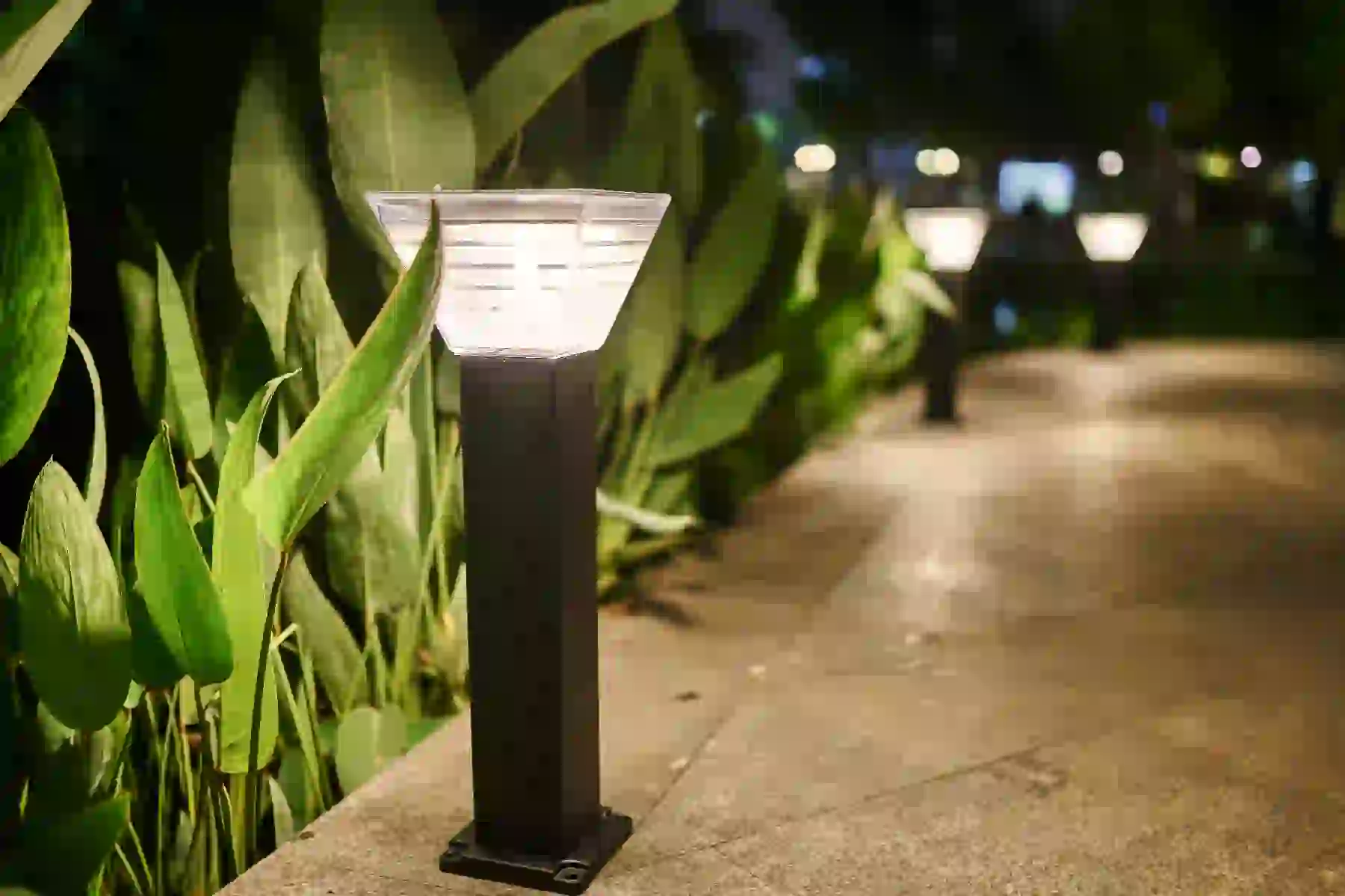

CPD-5004 solar lights beside a residential entry
Entry and step lighting

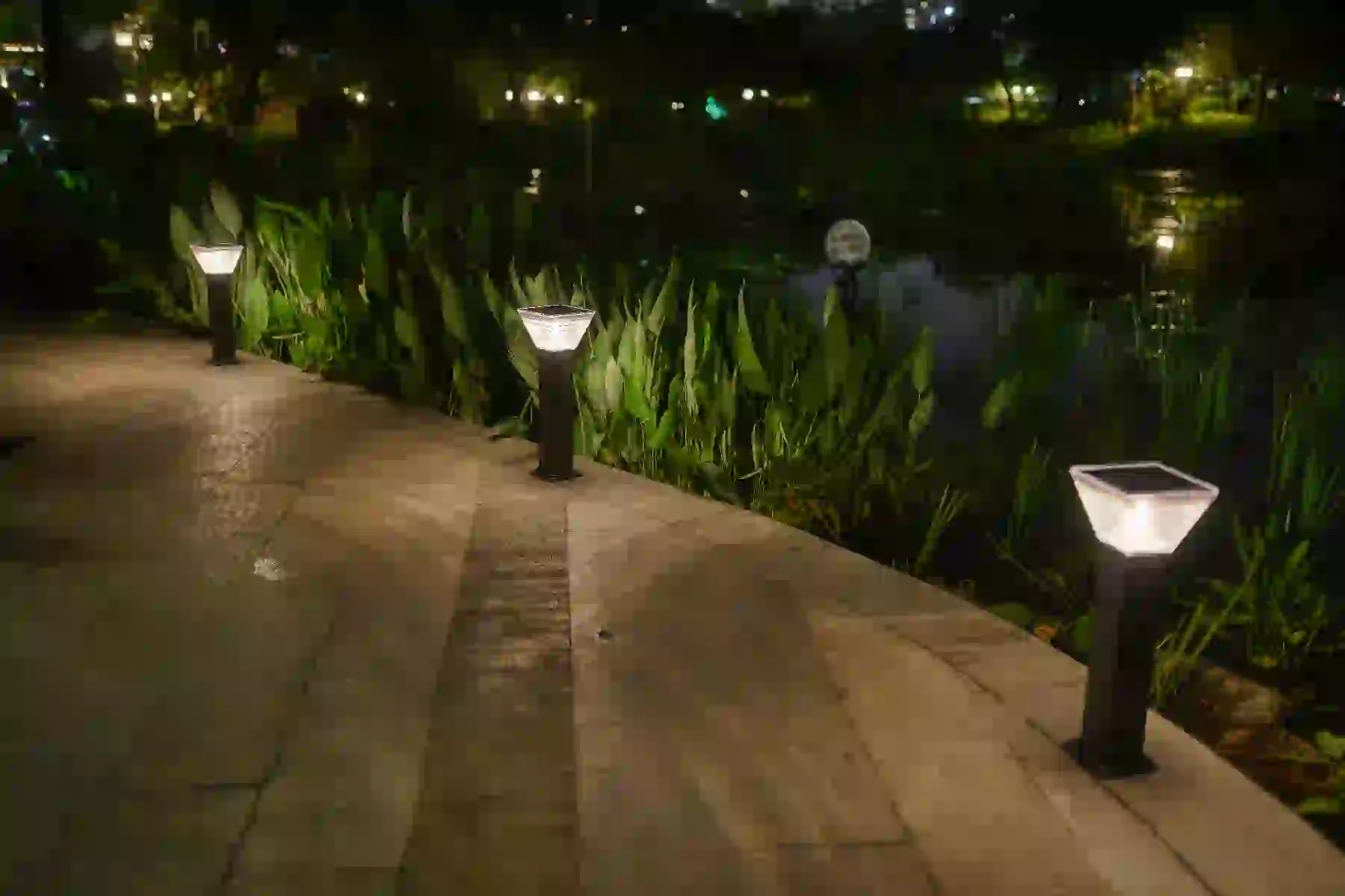

CPD-5004 solar lights in a courtyard
Courtyard lighting

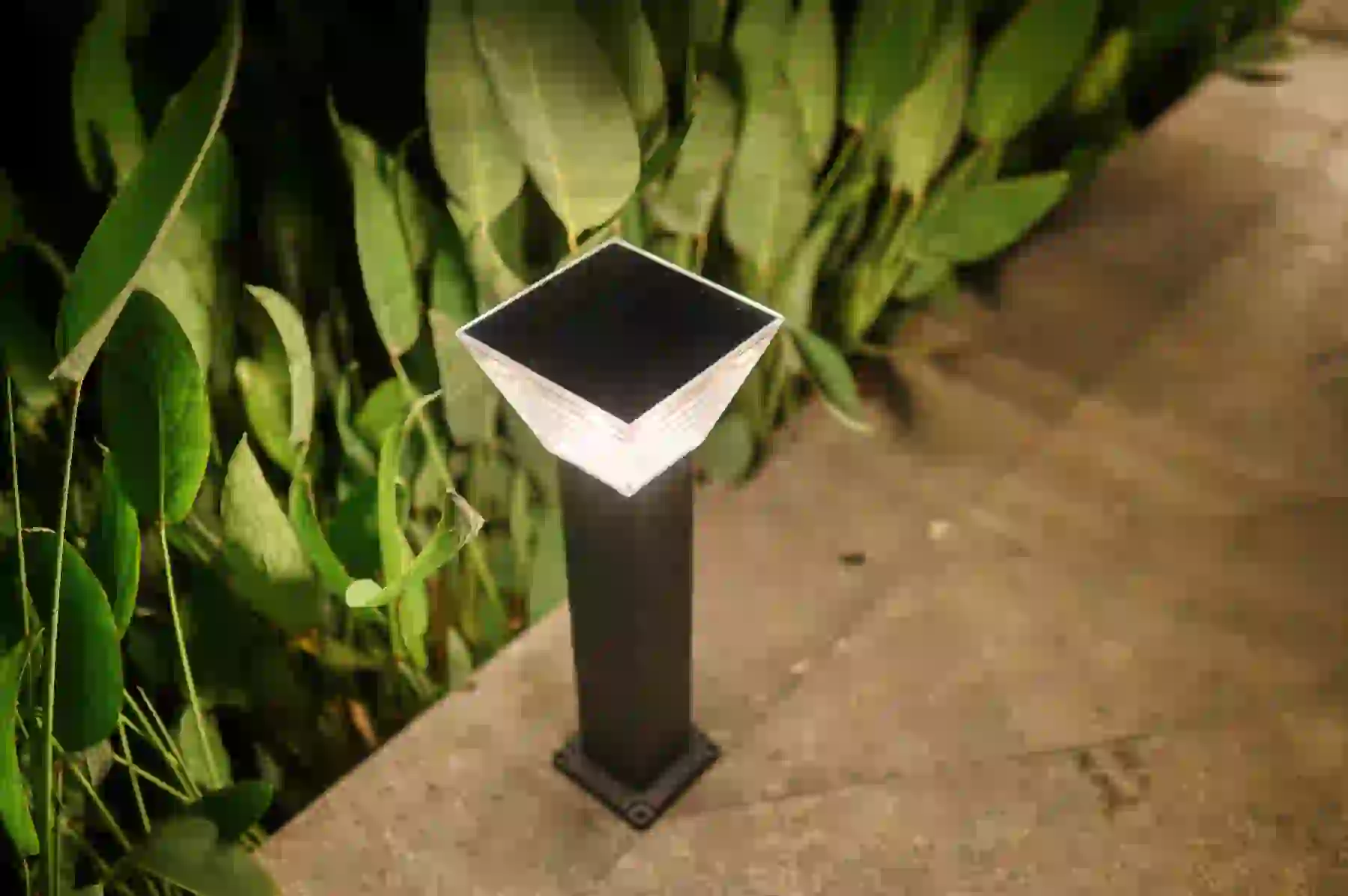

CPD-5004 solar light in a planted garden bed
Garden bed lighting

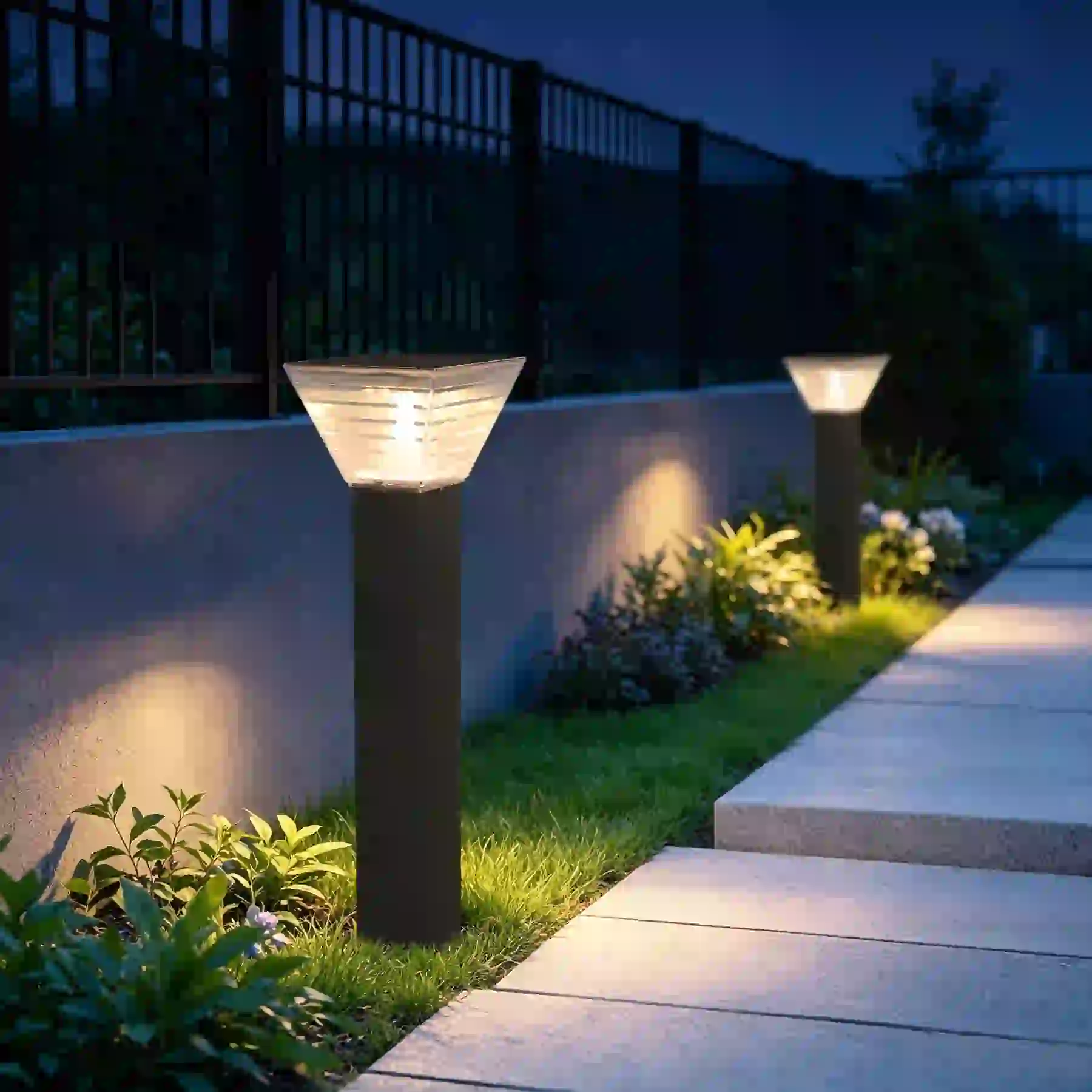

CPD-5004 solar light beside a patio seating area
Patio lighting

More views

06

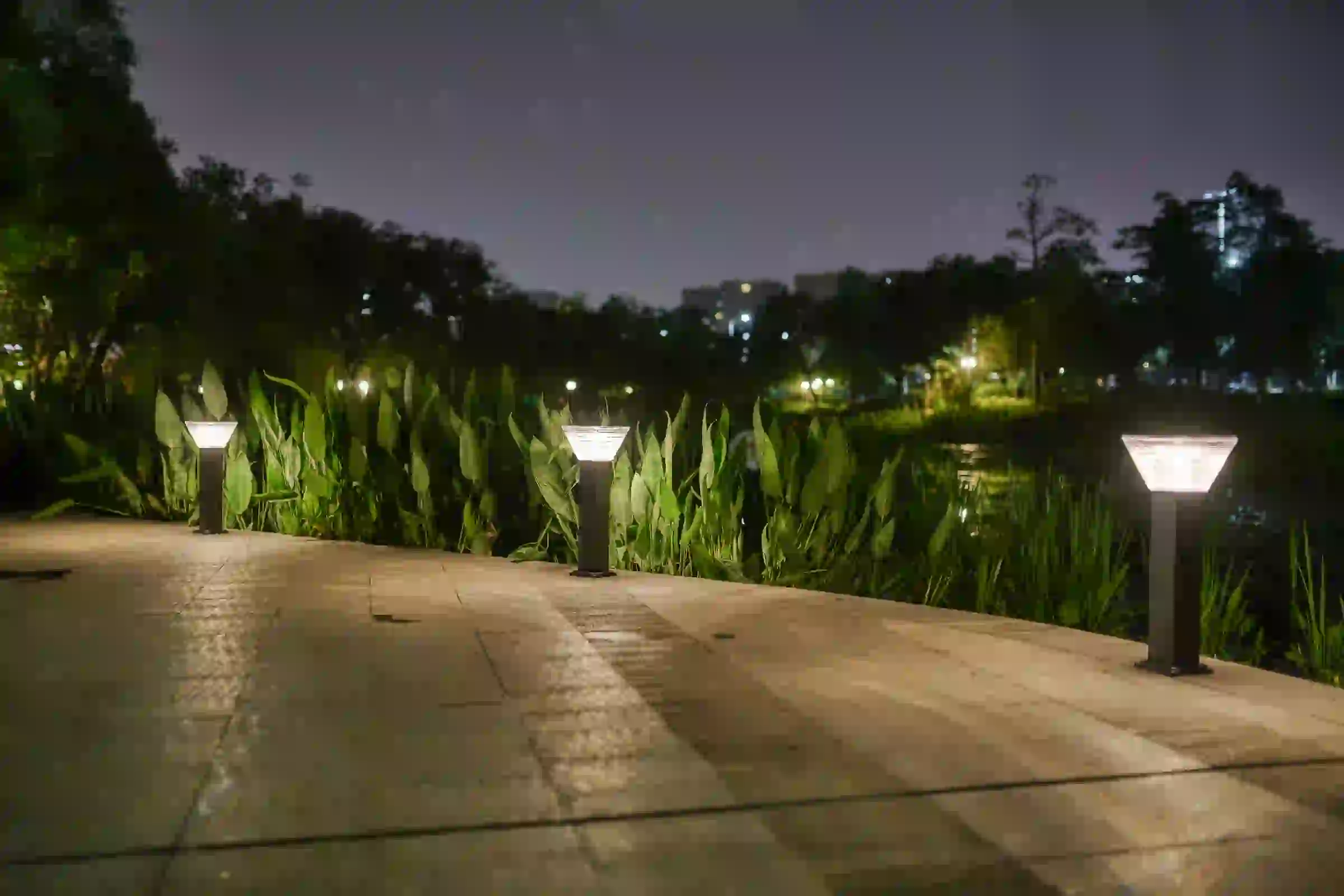

CPD-5004 solar lights lining a landscaped area

Frequently asked questions

05
What sizes is the CPD-5004 available in?

The CPD-5004 comes in 200 mm × 140 mm × H400 / 600 / 800 mm.

How long does the CPD-5004 run on a full charge?

It runs on a 3.2V / 6000mAh battery and provides 3 – 5 rainy days of working time.

Is the CPD-5004 weatherproof?

Yes. It is built from Die-cast aluminum + PC lens and rated IP65 for outdoor exposure.

What colour temperature and brightness does the CPD-5004 offer?

It offers 3000K – 6500K with roughly 169.87 lm (3000K) / 168.46 lm (6500K) luminous flux.

How and where should the CPD-5004 be installed?

It is designed for ground-level landscape installation and weighs 1.55 / 2 / 2.42 kg.

What powers the CPD-5004?

A 5W / 5V monocrystalline solar panel charges the on-board battery.

Can the CPD-5004 be customised for a project?

Yes — configuration and colour options can be adapted. Contact us with your site and lighting requirements to review a CPD-5004 configuration.

Specifications are nominal and may change without notice; the contractual revision is the one confirmed in the order acknowledgement.

Project support

Plan your solar lighting layout.

Share the layout, installation height and preferred colour temperature. Our team can help review a suitable CPD-5004 configuration.
