E-ABLE POWER / SOLAR GARDEN LIGHT

CPD-0406Solar Lawn Light

A compact solar garden stake light with a monocrystalline panel, 3.2V 3000mAh LiFePO4 battery and IP65 construction for pathways, courtyards and planted landscape edges.

Downloads

Model datasheet (PDF) in three languages — print-ready, no login required.

EN ES FR

Overview

01

Product overview

Light the path.
Keep the landscape.

CPD-0406 is a solar lawn light for garden pathways, courtyards and residential landscape applications. Its black stake format combines a square solar top, a PC translucent lampshade and a ground-installation structure.

The source pack documents two overall-height configurations: H500 mm and H700 mm. Both share a 160 mm top profile and are designed for ground-level installation in garden beds, landscape borders and courtyard pathways.

Selection note: select the preferred height and colour temperature for the layout, then confirm local site conditions before final configuration.

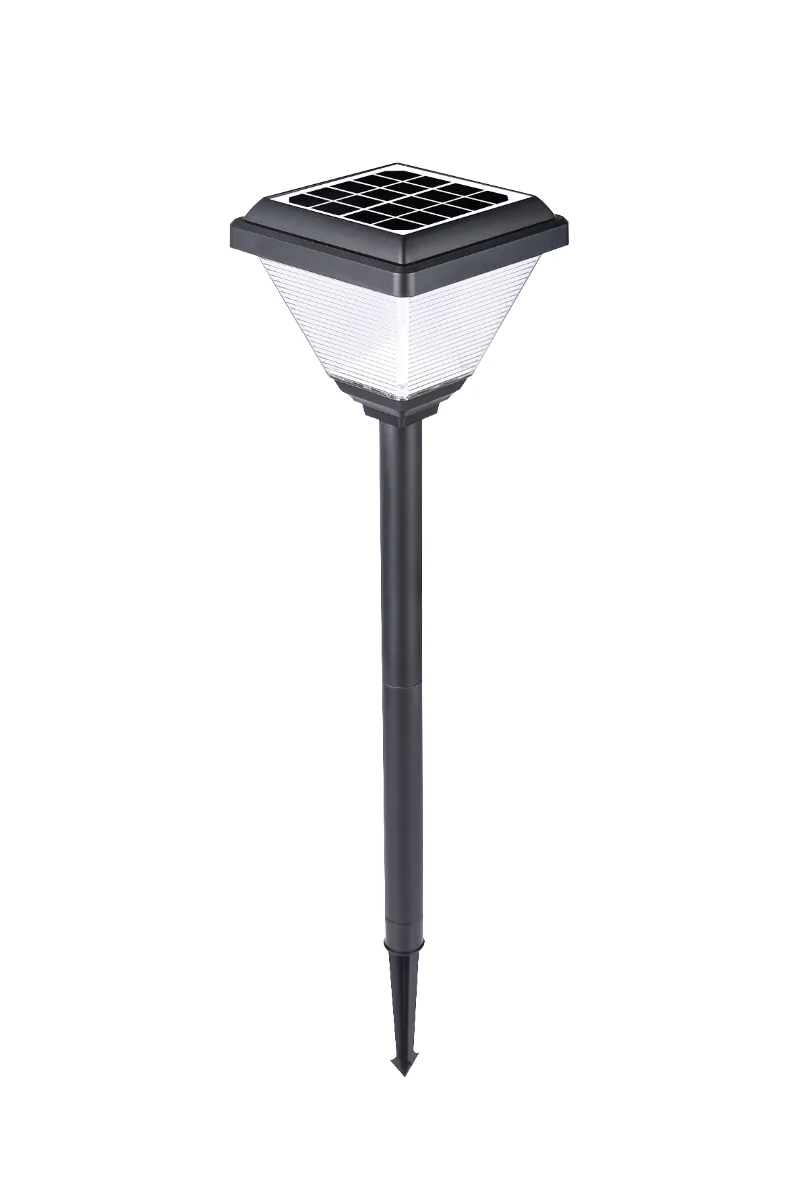

CPD-0406 solar lawn light product profile

Configurations

02

Two heights. One clear garden-light language.

Compact pathway profile

A lower configuration for close-spaced path and planting-bed layouts.

H500 mm overall height
  • Top profile: 160 mm
  • Stake section: 150 mm
  • Standard colour: Black

Raised landscape profile

A taller configuration for garden edges and more open courtyard zones.

H700 mm overall height
  • Top profile: 160 mm
  • Stake section: 150 mm
  • Colour option: Other colours can be customized

Features

03

Monocrystalline panel

2W / 5V solar input specified for the solar-powered version.

LiFePO4 battery

3.2V / 3000mAh battery configuration from the supplied specification.

PC translucent shade

ABS material and PC lens construction with a light-diffusing upper shade.

Ground stake format

Black ABS stake body for direct ground installation in landscape areas.

Technical data

04
Solar & electrical
Solar panelMonocrystalline, 2W / 5V
Battery3.2V / 3000mAh
Rated power2W
Input voltageDC 3.2V
Working time3–5 rainy days
Optical performance
Light source2835 LED
LED quantity16 pcs
Colour temperature3000K–6500K
Luminous flux97.41 lm (3000K) / 106.38 lm (6500K)
Colour renderingCRI >80
Beam angle180°
Construction & dimensions
MaterialABS material + PC lens
Lamp colourBlack; other colours can be customized
Net weight0.54 kg
Size160 mm × H500 / H700 mm
InstallationGround-mount lawn light
Operating environment
Waterproof levelIP65
Operating temperature-25°C to 50°C
Working humidity10%–90%
SwitchPush-button waterproof switch

Applications

05

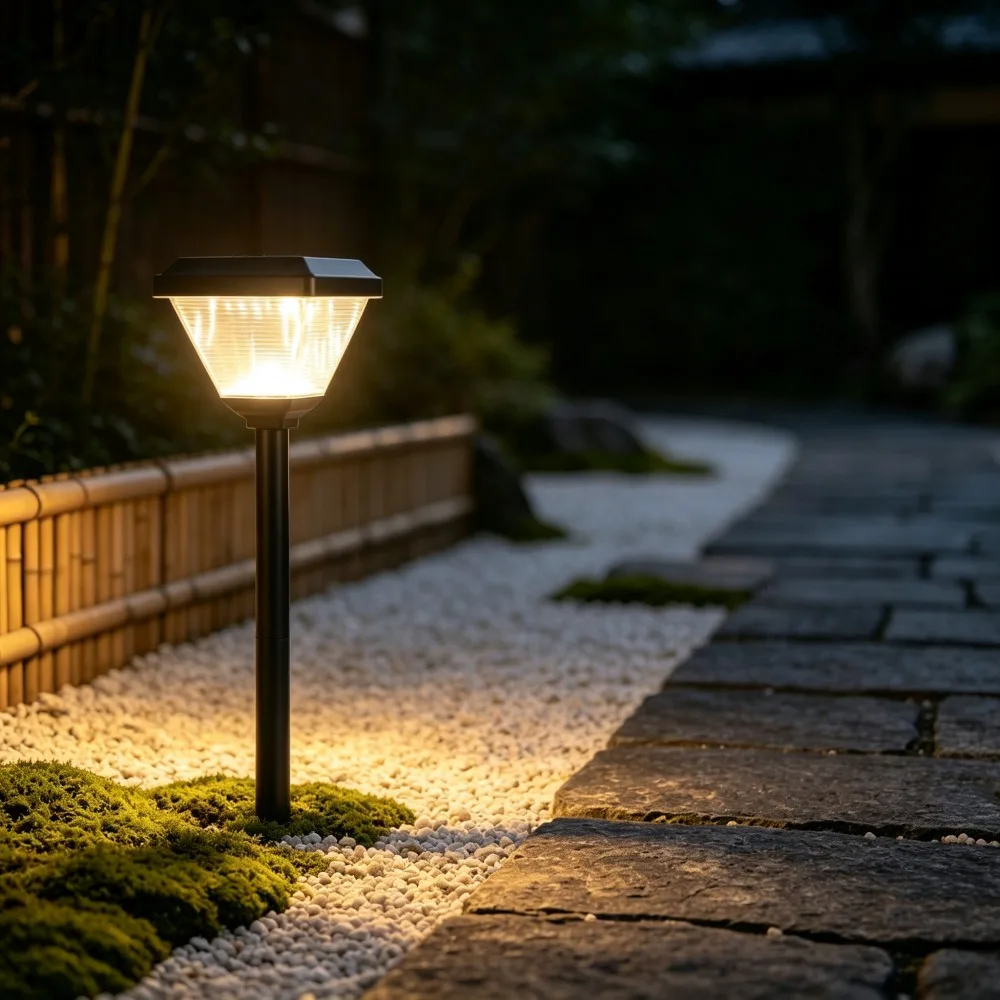

CPD-0406 solar lawn lights along a stone and gravel garden path
Stone and gravel path lighting

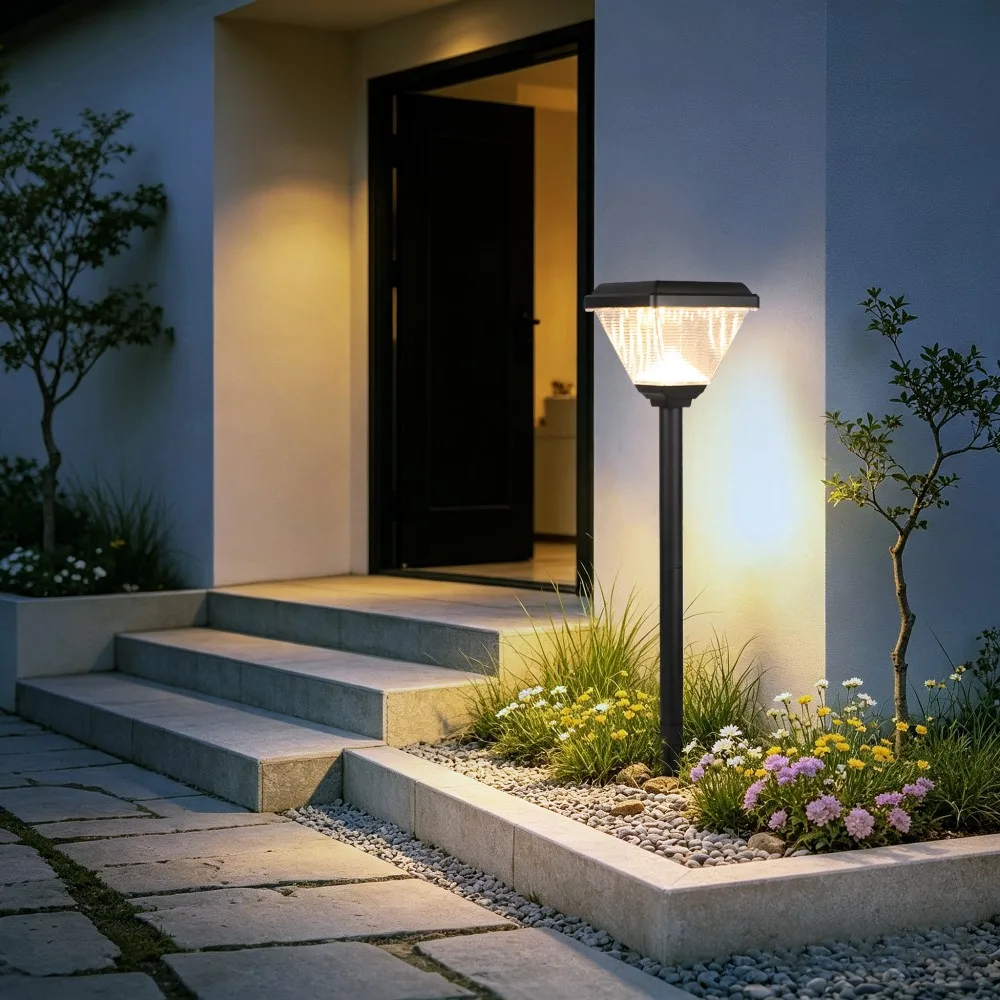

CPD-0406 solar lawn lights beside a residential entry and steps
Entry and step lighting

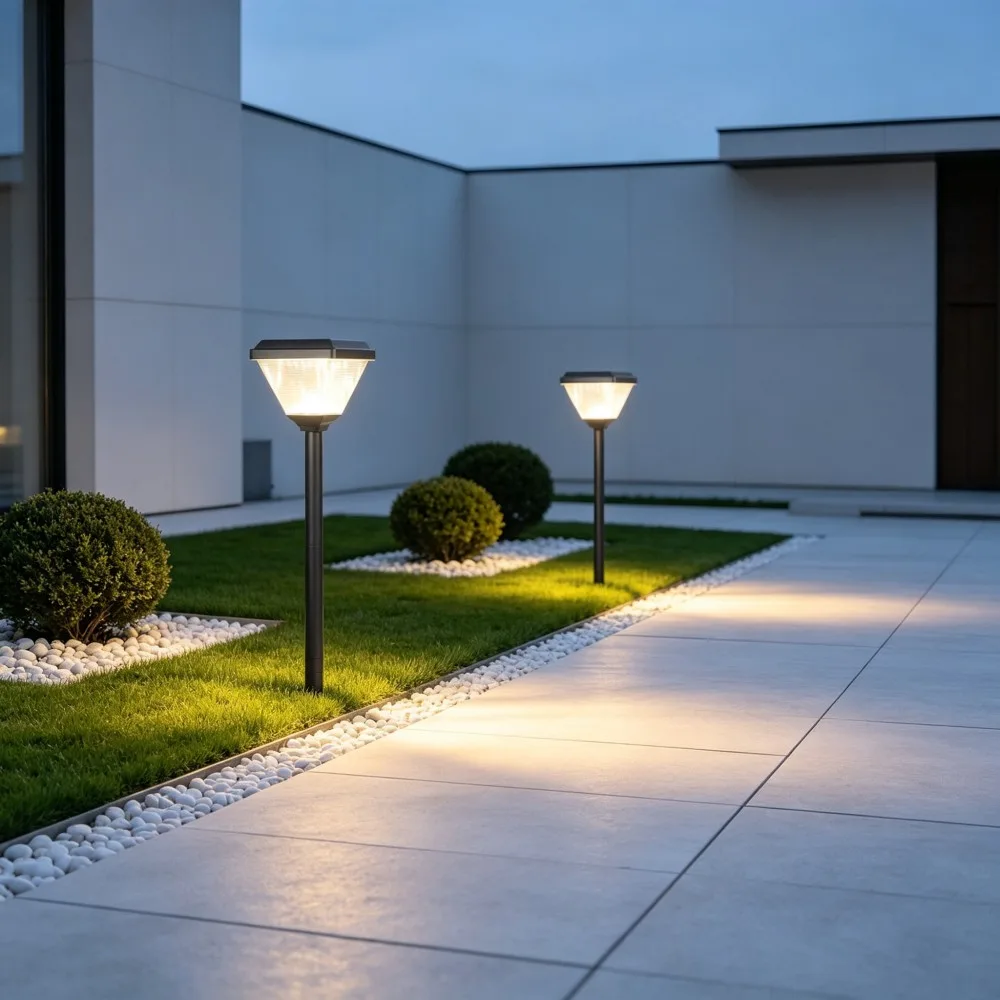

CPD-0406 solar lawn lights in a modern courtyard lawn
Courtyard lawn lighting

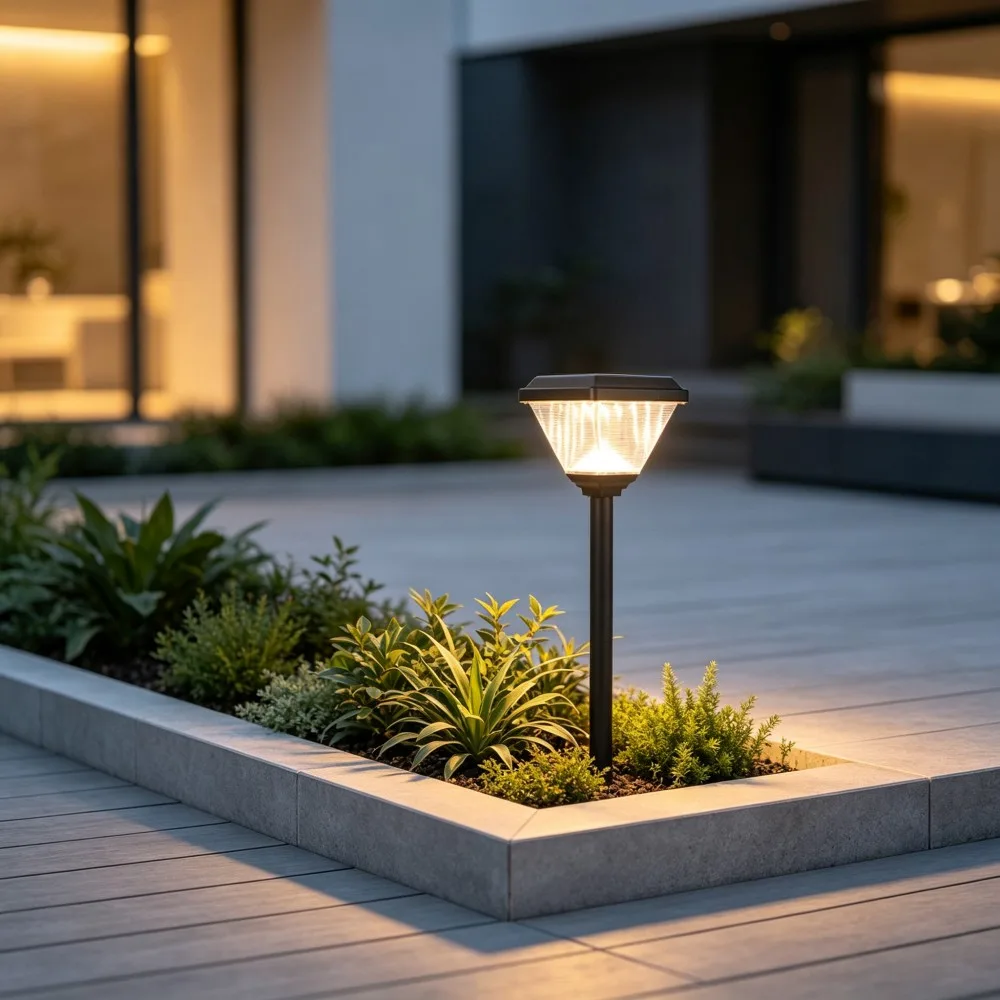

CPD-0406 solar lawn light in a planted garden bed
Planted garden-bed lighting

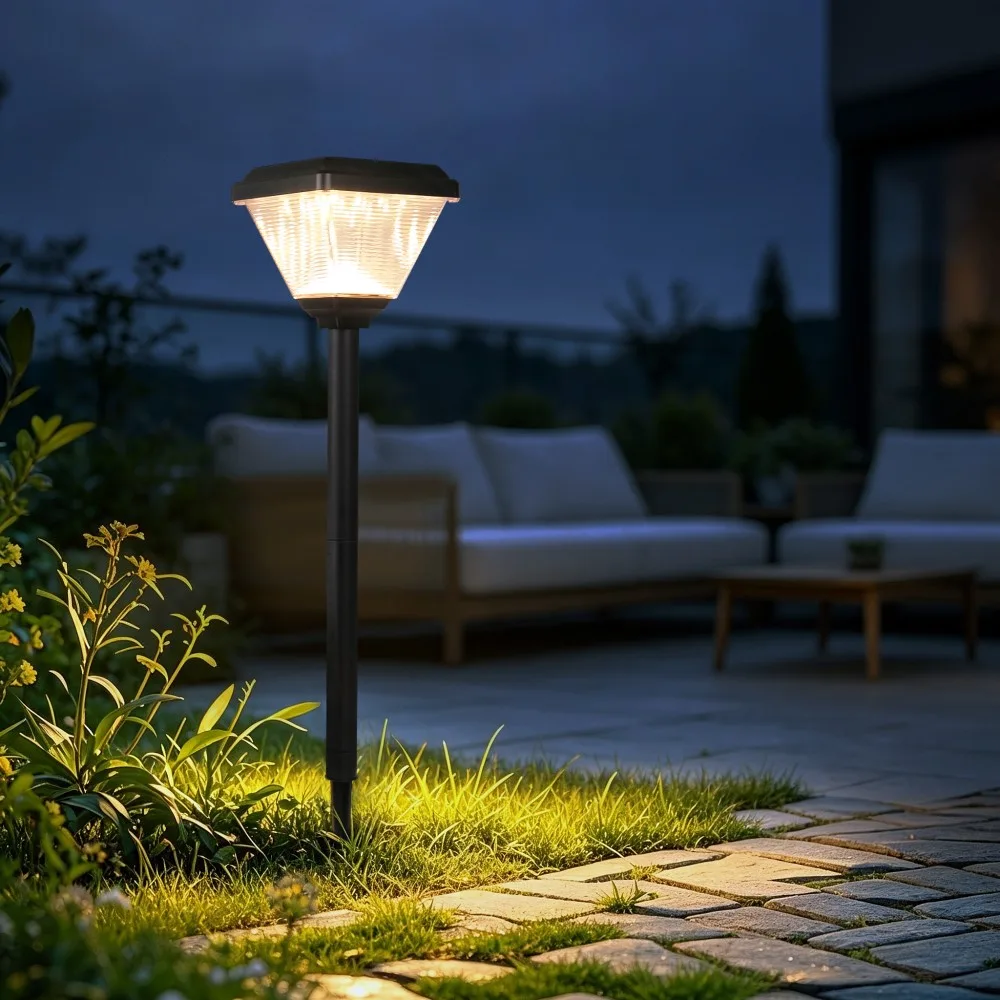

CPD-0406 solar lawn light beside a garden patio seating area
Garden patio lighting

More views

07

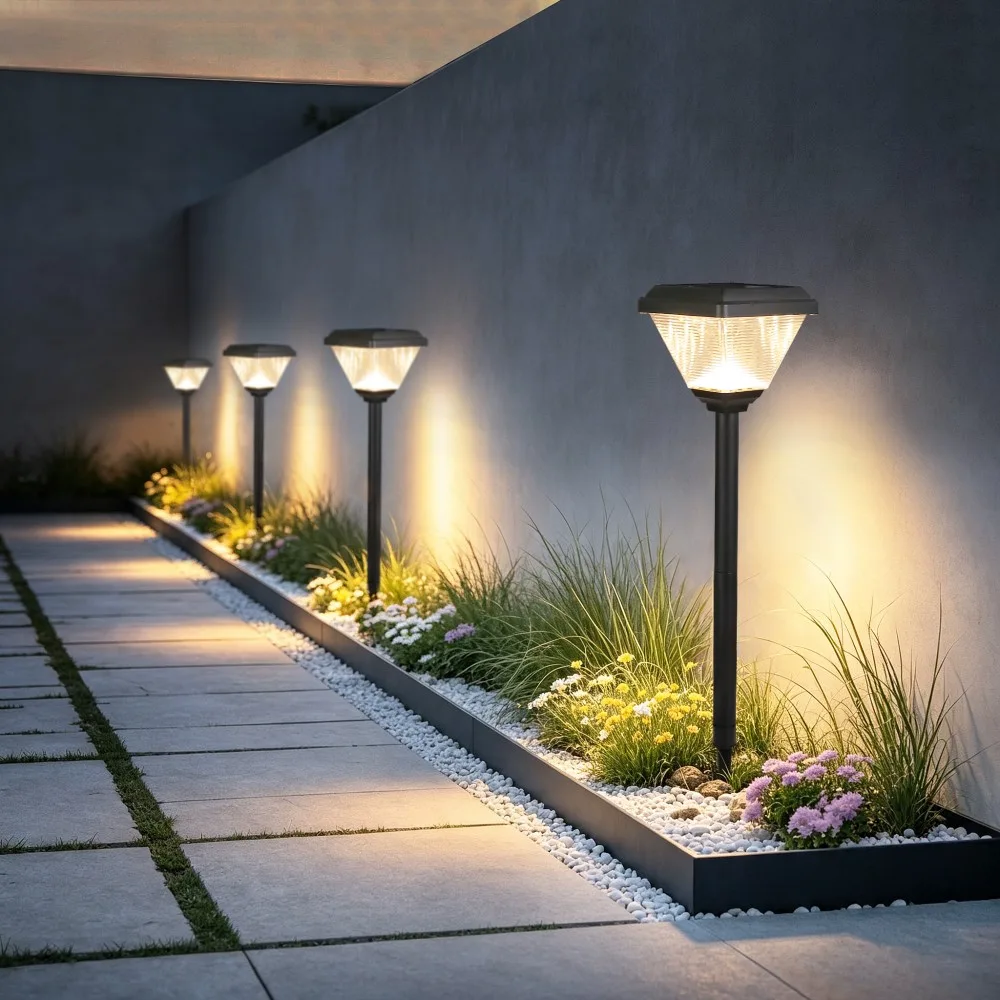

CPD-0406 solar lawn lights lining a landscaped pathway

Frequently asked questions

06
What sizes is the CPD-0406 available in?

The CPD-0406 comes in 160 mm × H500 / H700 mm.

How long does the CPD-0406 run on a full charge?

It runs on a 3.2V / 3000mAh battery and provides 3 – 5 rainy days of working time.

Is the CPD-0406 weatherproof?

Yes. It is built from ABS material + PC lens and rated IP65 for outdoor exposure.

What colour temperature and brightness does the CPD-0406 offer?

It offers 3000K – 6500K with roughly 97.41 lm (3000K) / 106.38 lm (6500K) luminous flux.

How and where should the CPD-0406 be installed?

It is designed for ground-level landscape installation and weighs 0.54 kg.

What powers the CPD-0406?

A 2W / 5V monocrystalline solar panel charges the on-board battery.

Can the CPD-0406 be customised for a project?

Yes — configuration and colour options can be adapted. Contact us with your site and lighting requirements to review a CPD-0406 configuration.

Specifications are nominal and may change without notice; the contractual revision is the one confirmed in the order acknowledgement.

Project support

Plan a solar garden-light layout.

Share the pathway layout, installation height and preferred colour temperature. Our team can help review a suitable CPD-0406 configuration.
