Monocrystalline panel
56Wp monocrystalline solar input for wire-free operation.
Product overview
Architectural form.
Reliable pathway light.

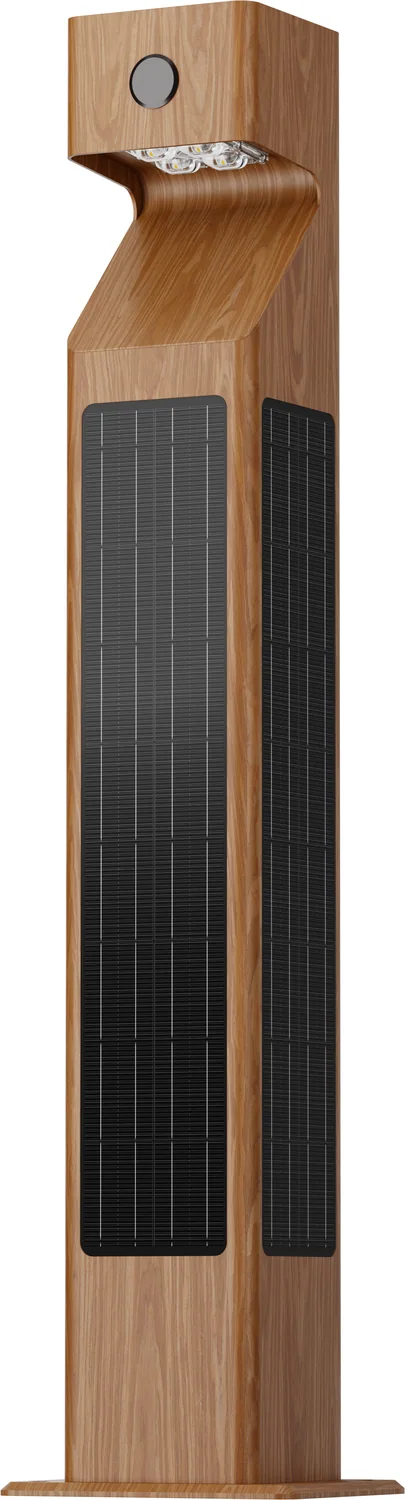

WOODPECKER CUBE-360 is a architectural solar pathway light from E-Able Power, pairing a 56Wp monocrystalline with a 3.2V 36Ah LiFePO4 and SMD5050, 5W/LED max.
A four-sided architectural solar light designed for complete solar exposure and all-around pathway illumination.
Selection note: confirm the mounting height and site conditions before the final configuration.
LiFePO4 battery
3.2V 36Ah LiFePO4 for reliable nightly output.
Weather-protected housing
IP65 / IK08 rated construction for long-term outdoor use.
Selectable colour temperature
2200 K / 3000 K / 4000 K / 6000 K for warm or bright light.
Verified specifications
Technical data, made easy to compare.
Solar & electrical
- Solar panel56Wp monocrystalline
- Battery3.2V 36Ah LiFePO4
- Max LED power12 W
- Adaptive operating output500-1000 lm
- Battery cycle life4,000 cycles at 80% DOD
- Solar module lifetime>20 years
Optical performance
- LED chipsSMD5050, 5W/LED max
- LED lifetime100,000 h
- Luminous flux2,400 lm
- Colour rendering≥ 70
- Colour temperature2200 K / 3000 K / 4000 K / 6000 K
Construction
- MaterialAluminum alloy
- FinishWood / Black / Customized
- ProtectionIP65 / IK08
- SensorMicrowave
Dimensions & warranty
- Dimensions (L × W × H)160 × 160 × 1100 mm
- SeriesWOODPECKER
- ModelCUBE-360
- Warranty2 years

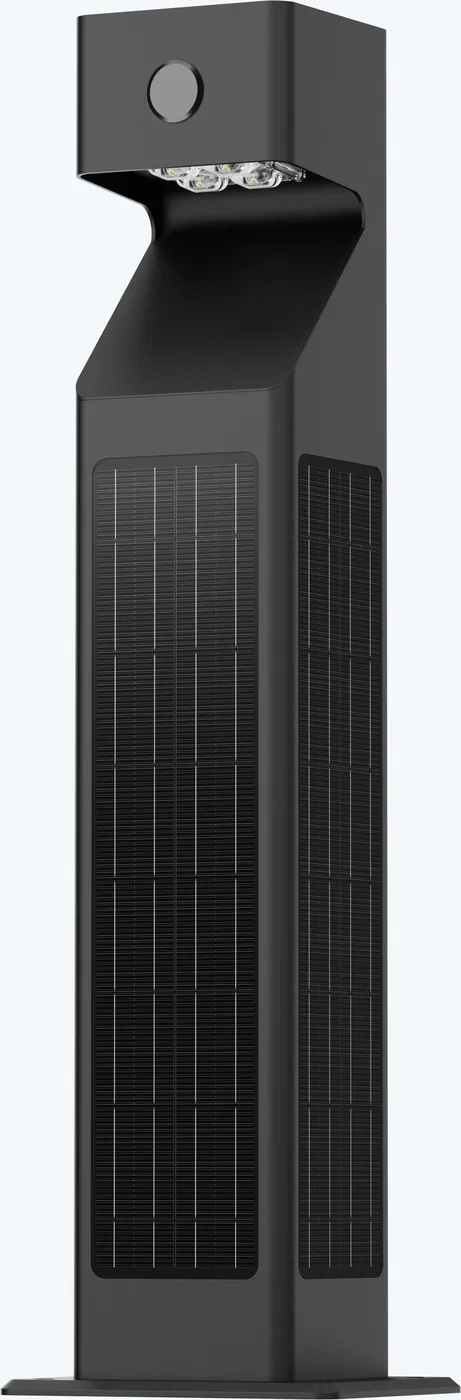

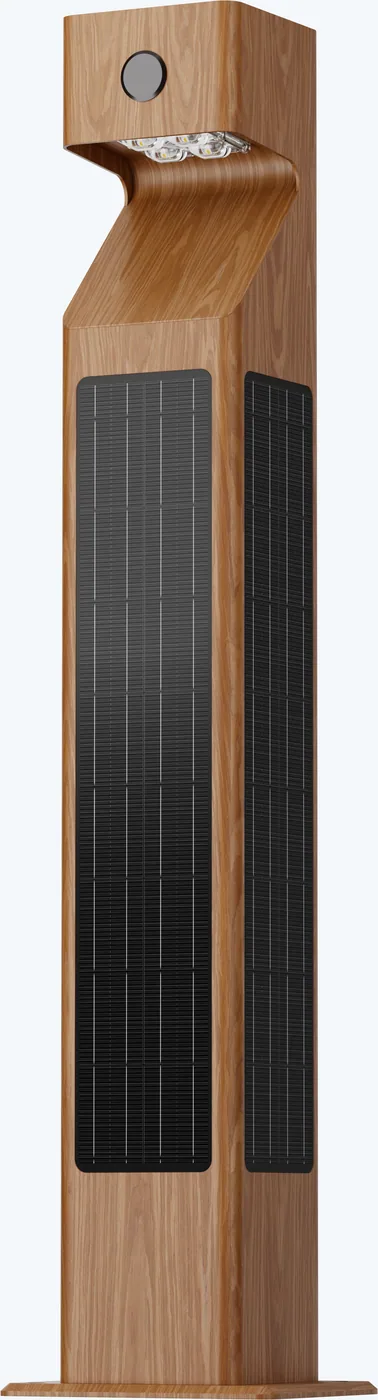

Product views
Every angle, built to specification.
FAQ
Common questions.
1What light output does the WOODPECKER CUBE-360 provide?
+
Up to 12 W of LED power and 2,400 lm of luminous flux.
2Which solar panel powers the WOODPECKER CUBE-360?
+
A 56Wp monocrystalline solar panel. The rated module lifetime is >20 years.
3What battery does the WOODPECKER CUBE-360 use?
+
A 3.2V 36Ah LiFePO4 battery, rated for 4,000 cycles at 80% DOD.
4How is the WOODPECKER CUBE-360 protected outdoors?
+
The housing is Aluminum alloy and rated IP65 / IK08, with a Microwave sensor.
5What light quality and colour temperatures are available?
+
CRI ≥ 70 and selectable colour temperatures of 2200 K / 3000 K / 4000 K / 6000 K.
6What finishes and warranty are available?
+
Available finishes are Wood / Black / Customized. E-Able Power offers a 2 years warranty.
Project support
Plan your project with E-Able Power.
Share the layout, installation height and preferred colour temperature. Our team can review a suitable configuration for your project.
